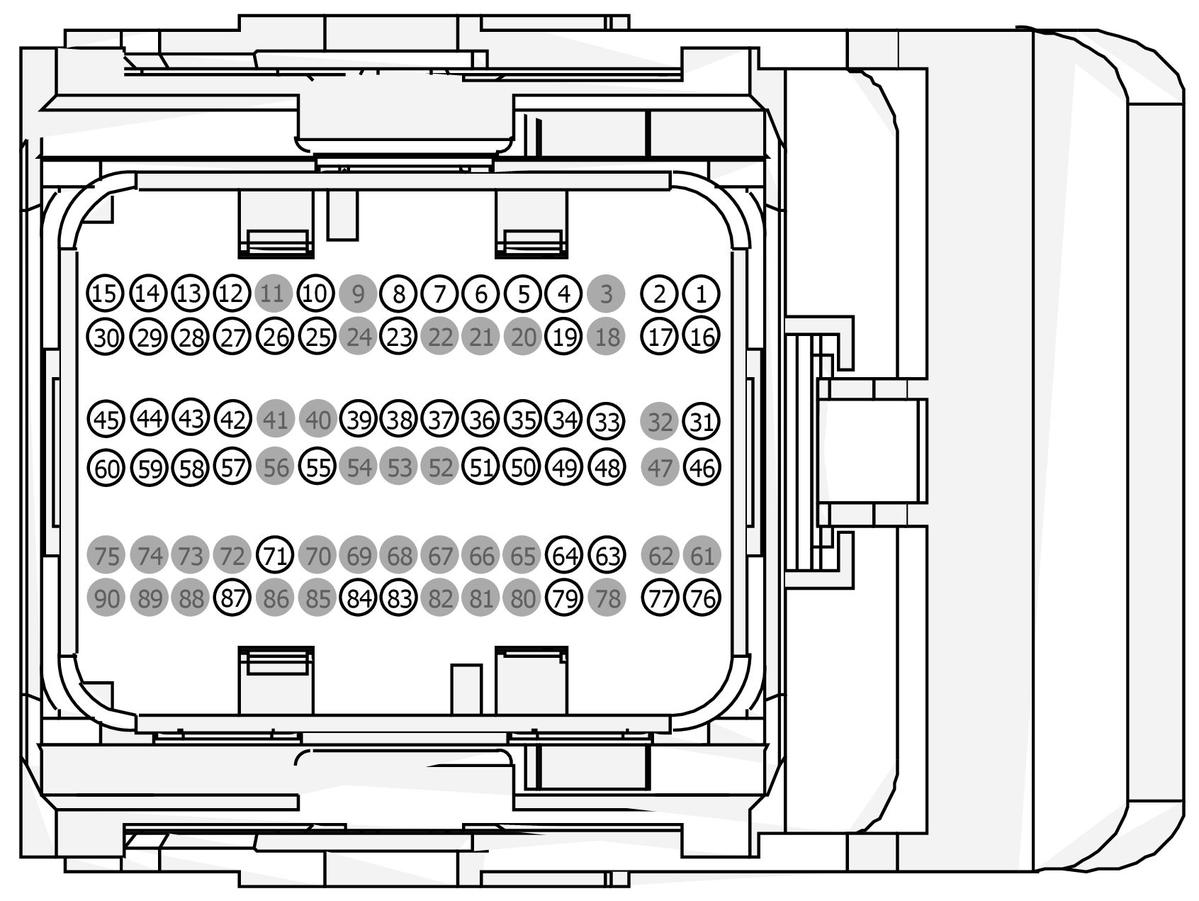

Connector End View C1551T - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C1551T POWERTRAIN CONTROL MODULE (PCM)   12C508 part# N/A Not Available
GFDWR68312Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size

Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CET49 (BN) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2)   N/A
2 CET25 (BU-GN) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)   N/A
3 * * Not Used   N/A
4 CET51 (WH) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION CLUTCH PRESSURE CONTROL (CPC)   N/A
5 CET50 (WH-OG) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION LINE PRESSURE CONTROL (LPC)   N/A
6 CET85 (GY) 18 CTRL MOD. - POWERTRAIN # AUTOMATIC TRANSMISSION FLUID PUMP CONTROL   N/A
7 RET24 (BN-BU) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)   N/A
8 VDB04 (WH-BU) 18 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH   N/A
9 * * Not Used   N/A
10 VE731 (YE-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)   N/A
11 * * Not Used   N/A
12 VE722 (BN) 18 SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT)   N/A
13 VE749 (VT) 18 SENSOR - DIESEL PARTICULATE FILTER DELTA PRESSURE (DPFDP) +   N/A
14 LE453 (BN-BU) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED 2ND (UO2SIA-21)   N/A
15 LE452 (GN-WH) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SIA-11)   N/A
16 CE234 (BU-WH) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22)   N/A
17 CET91 (YE) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE   N/A
18 * * Not Used   N/A
19 CET05 (BU-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS]   N/A
20 * * Not Used   N/A
21 * * Not Used   N/A
22 * * Not Used   N/A
23 VDB05 (WH) 18 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW   N/A
24 * * Not Used   N/A
25 VE787 (WH-OG) 18 SENSOR - PARTICULATE FILTER PRESSURE OUTLET RIGHT (PFP_O)   N/A
26 VE733 (WH) 18 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22)   N/A
27 VET97 (VT-OG) 20 SENSOR - TRANSMISSION FLUID PRESSURE 1   N/A
28 VE723 (GN-VT) 18 SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) +   N/A
29 LE450 (WH) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21)   N/A
30 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11)   N/A
31 CET96 (BU-BN) 20 CTRL MOD. - POWERTRAIN # ONE-WAY CLUTCH CONTROL ELECTRO-MECHANICAL HIGH   N/A
32 * * Not Used   N/A
33 CE171 (YE-VT) 18 CTRL MOD. - POWERTRAIN # ACTIVE TRANSMISSION WARMUP 1 (ATWU1)   N/A
34 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS]   N/A
35 LE461 (GY-YE) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (T-VREF2)   N/A
36 VET84 (BN-GN) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1)   N/A
37 VE744 (GY-BN) 20 SENSOR - INTERMEDIATE SHAFT SPEED (ISS)   N/A
38 RET33 (WH-VT) 20 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) -   N/A
39 VET86 (VT) 18 CTRL MOD. - POWERTRAIN # AUTOMATIC TRANSMISSION FLUID PUMP MONITOR   N/A
40 * * Not Used   N/A
41 * * Not Used   N/A
42 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)   N/A
43 VET98 (BN-VT) 20 SENSOR - TRANSMISSION FLUID PRESSURE 2   N/A
44 LE449 (VT-GN) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21)   N/A
45 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11)   N/A
46 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11)   N/A
47 * * Not Used   N/A
48 CE417 (GY-BN) 18 CTRL MOD. - POWERTRAIN # TORQUE CONVERTER CLUTCH CONTROL ON/OFF (TCC)   N/A
49 CET06 (GN-BN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS]   N/A
50 LE425 (BU-BN) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (T-VREF)   N/A
51 RET04 (YE-OG) 20 CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS)   N/A
52 * * Not Used   N/A
53 * * Not Used   N/A
54 * * Not Used   N/A
55 VET81 (YE-GY) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2)   N/A
56 * * Not Used   N/A
57 RE723 (WH-BU) 18 SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) -   N/A
58 VE758 (BU-BN) 18 SENSOR - DIESEL PARTICULATE FILTER PRESSURE OUTLET (DPFP_O)   N/A
59 VE827 (WH-GN) 18 SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21)   N/A
60 VE826 (BN-VT) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11)   N/A
61 * * Not Used   N/A
62 * * Not Used   N/A
63 CET11 (GN-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 7 (PC7) [EPC] [VFS]   N/A
64 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS]   N/A
65 * * Not Used   N/A
66 * * Not Used   N/A
67 * * Not Used   N/A
68 * * Not Used   N/A
69 * * Not Used   N/A
70 * * Not Used   N/A
71 RE723 (WH-BU) 18 SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) -   N/A
72 * * Not Used   N/A
73 * * Not Used   N/A
74 * * Not Used   N/A
75 * * Not Used   N/A
76 CE236 (GY-VT) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (HTR21)   N/A
77 CE233 (WH-OG) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12)   N/A
78 * * Not Used   N/A
79 CET95 (GN-WH) 20 CTRL MOD. - POWERTRAIN # ONE-WAY CLUTCH CONTROL ELECTRO-MECHANICAL LOW   N/A
80 * * Not Used   N/A
81 * * Not Used   N/A
82 * * Not Used   N/A
83 LE423 (GN-VT) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)   N/A
84 RE406 (GY-VT) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN)   N/A
85 * * Not Used   N/A
86 * * Not Used   N/A
87 RE141 (BN-GN) 18 CTRL MOD. - POWERTRAIN # PARK LOCK PAWL SOLENOID CONTROL   N/A
88 * * Not Used   N/A
89 * * Not Used   N/A
90 * * Not Used   N/A
