Connector End View C1551E - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C1551E POWERTRAIN CONTROL MODULE (PCM)   12C508 part# N/A Not Available

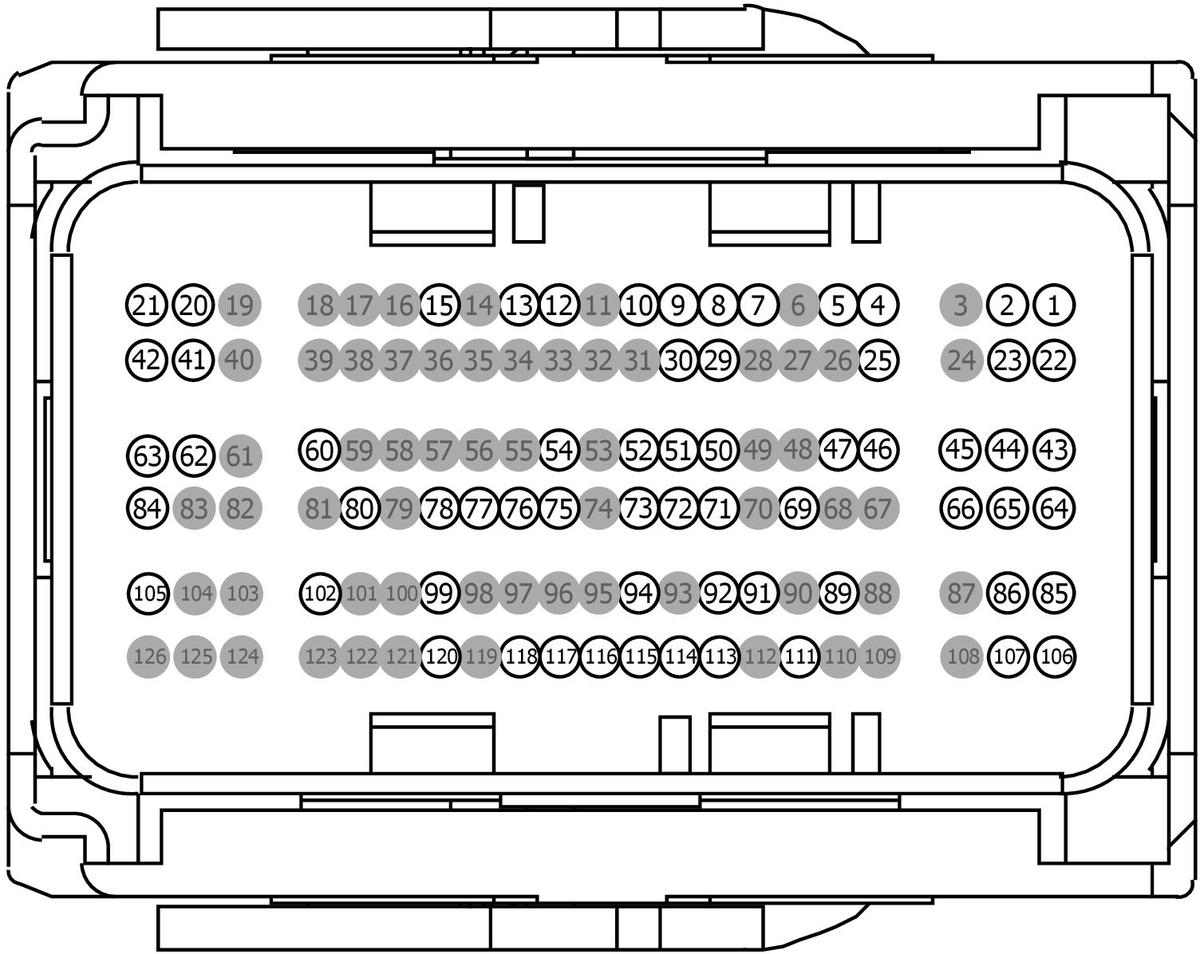

GFDWR68311Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size

BU5T-14474-BB Not Available
BU5T-14474-AB DU2Z-14474-CA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE208 (YE-OG) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) +   7C3T-14474-DA
2 CE205 (GN-BU) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +   7C3T-14474-DA
3 * * Not Used   N/A
4 CE421 (VT) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1)   BU5T-14474-BB
5 RE238 (BU-BN) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN)   N/A
6 * * Not Used   N/A
7 LE329 (BU) 18 CTRL MOD. - POWERTRAIN # MANIFOLD PRESSURE SENSOR (MAP) +   N/A
8 VE712 (BU-GY) 18 SENSOR - CYLINDER HEAD TEMPERATURE (CHT)   BU5T-14474-AB
9 RE323 (WH-BN) 18 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] -   BU5T-14474-BB
10 VE805 (GY-OG) 18 SENSOR - TURBOCHARGER BOOST PRESSURE (TCBP)   N/A
11 * * Not Used   N/A
12 VE818 (BN) 18 SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS)   BU5T-14474-AB
13 RE454 (YE-GN) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN)   BU5T-14474-BB
14 * * Not Used   N/A
15 VE824 (YE-GN) 20 SENSOR - BOOST PRESSURE   BU5T-14474-AB
16 * * Not Used   N/A
17 * * Not Used   N/A
18 * * Not Used   N/A
19 * * Not Used   N/A
20 RE210 (BN-VT) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) -   7C3T-14474-DA
21 CE303 (WH-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A)   BU5T-14474-BB
22 RE208 (BU) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) -   7C3T-14474-DA
23 RE205 (YE-BU) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) -   7C3T-14474-DA
24 * * Not Used   N/A
25 CE442 (YE-GY) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 3   BU5T-14474-AB
26 * * Not Used   N/A
27 * * Not Used   N/A
28 * * Not Used   N/A
29 VE716 (YE) 18 SENSOR - ENGINE COOLANT TEMPERATURE (ECT)   BU5T-14474-BB
30 VE801 (VT-OG) 18 SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+]   BU5T-14474-BB
31 * * Not Used   N/A
32 * * Not Used   N/A
33 * * Not Used   N/A
34 * * Not Used   N/A
35 * * Not Used   N/A
36 * * Not Used   N/A
37 * * Not Used   N/A
38 * * Not Used   N/A
39 * * Not Used   N/A
40 * * Not Used   N/A
41 CE210 (GN-WH) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) +   7C3T-14474-DA
42 CE305 (BU-OG) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C)   BU5T-14474-BB
43 CE209 (BN) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) +   7C3T-14474-DA
44 CE207 (VT-GY) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) +   7C3T-14474-DA
45 RE206 (BU-OG) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) -   7C3T-14474-DA
46 CE113 (WH-BN) 18 CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)   N/A
47 RE143 (VT) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)   N/A
48 * * Not Used   N/A
49 * * Not Used   N/A
50 VE740 (VT-GY) 18 SENSOR - INTAKE AIR TEMPERATURE (IAT)   BU5T-14474-BB
51 VE802 (BN-BU) 18 SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+]   BU5T-14474-BB
52 VE804 (GN-BN) 18 SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) +   BU5T-14474-BB
53 * * Not Used   N/A
54 LE143 (GN-BN) 18 CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 +   BU5T-14474-BB
55 * * Not Used   N/A
56 * * Not Used   N/A
57 * * Not Used   N/A
58 * * Not Used   N/A
59 * * Not Used   N/A
60 CH307 (GY-BU) 18 CTRL MOD. - POWERTRAIN # HEATED PUMP CONTROL RELAY (HPCR)   N/A
61 * * Not Used   N/A
62 CE306 (GN-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D)   BU5T-14474-BB
63 CE308 (VT-BN) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP-F)   BU5T-14474-BB
64 RE209 (WH-GN) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) -   7C3T-14474-DA
65 RE207 (GN-VT) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) -   7C3T-14474-DA
66 CE206 (GY-YE) 16 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) +   7C3T-14474-DA
67 * * Not Used   N/A
68 * * Not Used   N/A
69 CMC24 (GY) 18 SWITCH - OIL PRESSURE   N/A
70 * * Not Used   N/A
71 VE727 (BU-BN) 18 SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)   BU5T-14474-BB
72 RE324 (BN-GN) 18 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-]   BU5T-14474-BB
73 VE763 (YE) 18 SENSOR - CRANKCASE VENTILATION MONITOR (CVM)   N/A
74 * * Not Used   N/A
75 VE707 (GN-VT) 18 SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) +   BU5T-14474-BB
76 VE706 (BN-BU) 18 SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) +   BU5T-14474-BB
77 LE144 (YE-VT) 18 CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 2 +   BU5T-14474-BB
78 VE711 (YE-VT) 18 SENSOR - CRANKSHAFT POSITION (CKPP) +   7C3T-14474-DA
79 * * Not Used   N/A
80 VE175 (BN-WH) 18 CTRL MOD. - POWERTRAIN # ELECTRONIC COMPRESSOR BYPASS VALVE (ECBV PWM)   BU5T-14474-BB
81 * * Not Used   N/A
82 * * Not Used   N/A
83 * * Not Used   N/A
84 CE304 (YE-BU) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B)   BU5T-14474-BB
85 CE426 (BU-GN) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)   7C3T-14474-DA
86 CE226 (YE-VT) 16 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +   7C3T-14474-DA
87 * * Not Used   N/A
88 * * Not Used   N/A
89 VE821 (WH-VT) 18 SENSOR - VACUUM RESERVOIR PRESSURE (VRP)   N/A
90 * * Not Used   N/A
91 RE144 (BN) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)   N/A
92 RE454 (YE-GN) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2   N/A
93 * * Not Used   N/A
94 VE803 (BU-BN) 18 SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) +   N/A
95 * * Not Used   N/A
96 * * Not Used   N/A
97 * * Not Used   N/A
98 * * Not Used   N/A
99 RE138 (BU-GN) 18 CTRL MOD. - POWERTRAIN # CYLINDER HEAD TEMPERATURE SENSOR   N/A
100 * * Not Used   N/A
101 * * Not Used   N/A
102 CE422 (WH-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2)   BU5T-14474-BB
103 * * Not Used   N/A
104 * * Not Used   N/A
105 CE307 (WH-BN) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP-E)   BU5T-14474-BB
106 CE412 (YE-VT) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)   7C3T-14474-DA
107 RE226 (GN-VT) 16 FUEL VOLUME REGULATOR RETURN (FVRRTN)   N/A
108 * * Not Used   N/A
109 * * Not Used   N/A
110 * * Not Used   N/A
111 CE443 (BN-VT) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4   BU5T-14474-AB
112 * * Not Used   N/A
113 RE135 (GN-BN) 18 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) -   BU5T-14474-BB
114 RE134 (BU-OG) 18 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)   BU5T-14474-AB
115 LE458 (BU-WH) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)   BU5T-14474-AB
116 LE423 (GN-VT) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)   BU5T-14474-BB
117 LE134 (YE) 18 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)   BU5T-14474-AB
118 LE111 (VT-GN) 18 CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)   BU5T-14474-AB
119 * * Not Used   N/A
120 LE235 (GY-VT) 18 REFERENCE VOLTAGE (VREF)   BU5T-14474-AB
121 * * Not Used   N/A
122 * * Not Used   N/A
123 * * Not Used   N/A
124 * * Not Used   N/A
125 * * Not Used   N/A
126 * * Not Used   N/A
