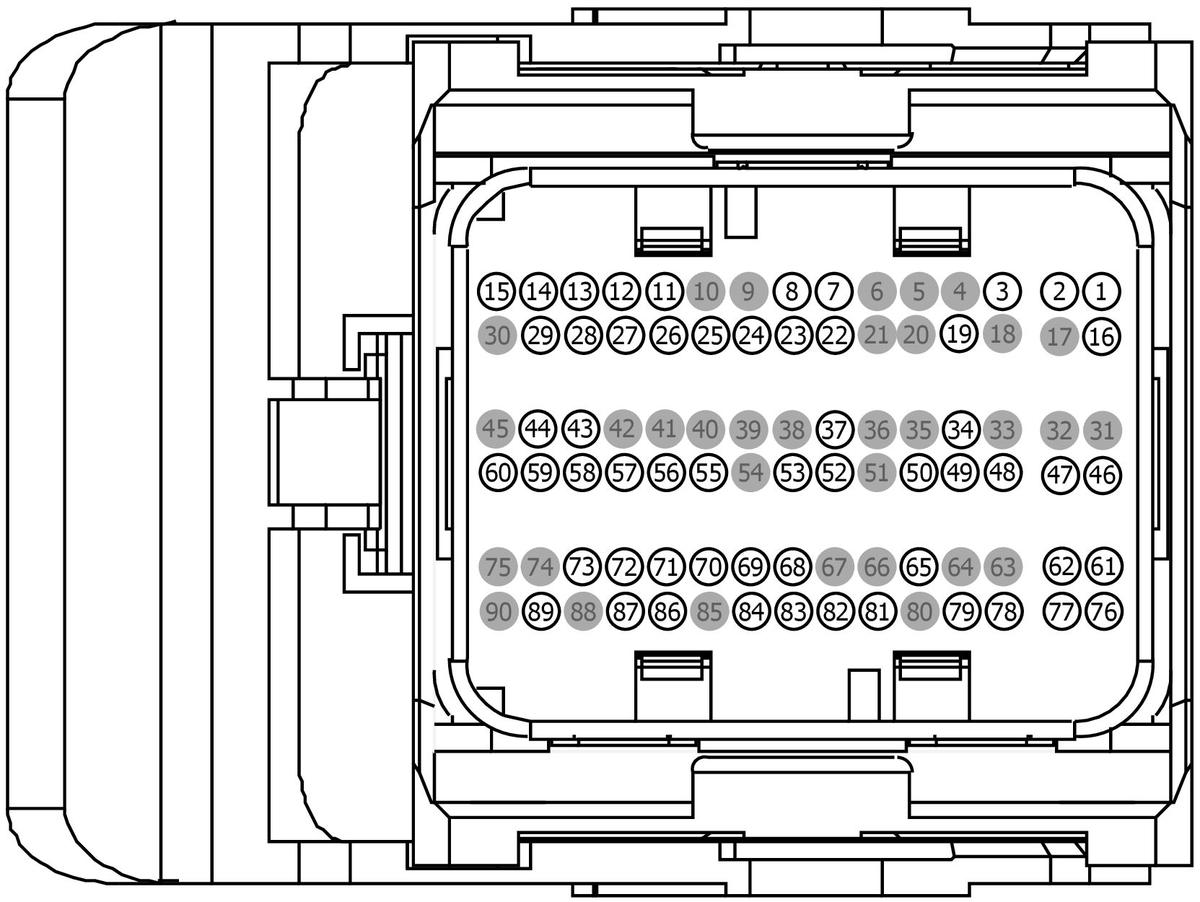

Connector End View C1551B - POWERTRAIN CONTROL MODULE (PCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1551B	POWERTRAIN CONTROL MODULE (PCM)		12A581	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
GU5T-14474-DA	Not Available
BU5T-14474-BC	Not Available
BU5T-14474-AC	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBB07 (GN-BU)	16	FUSE - 7 OR CIRCUIT BREAKER		GU5T-14474-DA
2	CBB07 (GN-BU)	16	FUSE - 7 OR CIRCUIT BREAKER		GU5T-14474-DA
3	VE225 (YE-OG)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC)		BU5T-14474-AC
4	*	*	Not Used		N/A
5	*	*	Not Used		N/A
6	*	*	Not Used		N/A
7	CE436 (VT-OG)	20	CTRL MOD. -WAKE UP PCM		BU5T-14474-AC
8	CCB08 (VT-WH)	22	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN		BU5T-14474-AC
9	*	*	Not Used		N/A
10	*	*	Not Used		N/A
11	VDN06 (WH-GN)	20	CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 [OBSOLETE - REPLACED BY VE181]		BU5T-14474-AC
12	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 1 LOW		BU5T-14474-AC
13	CBB26 (BU-WH)	20	FUSE - 26 OR CIRCUIT BREAKER		BU5T-14474-AC
14	CE522 (BN)	20	DIODE - RELAY FUEL PUMP		BU5T-14474-AC
15	CDC10 (BU-OG)	22	CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC)		BU5T-14474-AC
16	CBB07 (GN-BU)	16	FUSE - 7 OR CIRCUIT BREAKER		GU5T-14474-DA
17	*	*	Not Used		N/A
18	*	*	Not Used		N/A
19	CH302 (WH-BN)	22	CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR)		BU5T-14474-AC
20	*	*	Not Used		N/A
21	*	*	Not Used		N/A
22	CDC35 (BU-WH)	20	SWITCH - IGNITION # START		BU5T-14474-AC
23	CES09 (VT-OG)	20	SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) +		BU5T-14474-AC
24	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)		BU5T-14474-AC
25	VE727 (BU-BN)	20	SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)		BU5T-14474-AC
26	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)		BU5T-14474-AC
27	VDB04 (WH-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 1 HIGH		BU5T-14474-AC
28	RE479 (VT-BN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL 2 (C-SIGRTN) (SIGRTN-C)		BU5T-14474-AC
29	VE225 (YE-OG)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC)		BU5T-14474-AC
30	*	*	Not Used		N/A
31	*	*	Not Used		N/A
32	*	*	Not Used		N/A
33	*	*	Not Used		N/A
34	CE114 (GN-BU)	18	CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT)		BU5T-14474-BC
35	*	*	Not Used		N/A
36	*	*	Not Used		N/A
37	CR167 (YE-VT)	22	CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS)		BU5T-14474-AC
38	*	*	Not Used		N/A
39	*	*	Not Used		N/A
40	*	*	Not Used		N/A
41	*	*	Not Used		N/A
42	*	*	Not Used		N/A
43	RE230 (WH-VT)	20	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER		BU5T-14474-AC
44	CDC54 (WH-GN)	22	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS)		BU5T-14474-AC
45	*	*	Not Used		N/A
46	GD113 (BK-YE)	16	GROUND - COWL TOP RIGHT		GU5T-14474-DA
47	GD113 (BK-YE)	16	GROUND - COWL TOP RIGHT		GU5T-14474-DA
48	CE113 (WH-BN)	20	CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)		BU5T-14474-AC
49	CE170 (WH-BU)	22	CTRL MOD. - POWERTRAIN # ENGINE START SIGNAL		BU5T-14474-AC
50	CDC15 (VT)	22	GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI)		BU5T-14474-AC
51	*	*	Not Used		N/A
52	VE518 (BN-WH)	20	MONITOR - FUEL PUMP (FPM)		BU5T-14474-AC
53	CET43 (GY)	22	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)		BU5T-14474-AC
54	*	*	Not Used		N/A
55	VDC61 (VT-GN)	22	SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR		BU5T-14474-AC
56	VE701 (YE-OG)	20	SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1)		BU5T-14474-AC
57	VE922 (VT-GN)	20	TRANSDUCER - FUEL TANK PRESSURE (FTPT)		BU5T-14474-AC
58	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)		BU5T-14474-AC
59	CEC02 (GN-BU)	22	CTRL MOD. - COOLING FAN CONTROL (FC1)		BU5T-14474-AC
59	CEC01 (WH-BU)	20	CTRL MOD. - COOLING FAN CONTROL (FC2)		BU5T-14474-AC
60	CE237 (BN-WH)	20	CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM)		BU5T-14474-AC
61	GD113 (BK-YE)	16	GROUND - COWL TOP RIGHT		GU5T-14474-DA
62	GD113 (BK-YE)	16	GROUND - COWL TOP RIGHT		GU5T-14474-DA
63	*	*	Not Used		N/A
64	*	*	Not Used		N/A
65	CET42 (GN-VT)	22	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)		BU5T-14474-AC
66	*	*	Not Used		N/A
67	*	*	Not Used		N/A
68	VE702 (BU-WH)	20	SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2)		BU5T-14474-AC
69	VH433 (VT-OG)	20	TRANSDUCER - A/C PRESSURE (ACPT) +		BU5T-14474-AC
70	LE230 (BN-BU)	22	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF)		BU5T-14474-AC
71	LE137 (BU-GY)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF)		BU5T-14474-AC
72	RE137 (YE-GN)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN)		BU5T-14474-AC
73	RE454 (YE-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN (SIGRTN)		BU5T-14474-AC
74	*	*	Not Used		N/A
75	*	*	Not Used		N/A
76	GD113 (BK-YE)	16	GROUND - COWL TOP RIGHT		GU5T-14474-DA
77	GD113 (BK-YE)	16	GROUND - COWL TOP RIGHT		GU5T-14474-DA
78	CDC12 (YE)	22	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC)		BU5T-14474-AC
79	VE462 (WH-BN)	22	CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE		BU5T-14474-AC
80	*	*	Not Used		N/A
81	LE424 (GN-VT)	22	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)		BU5T-14474-AC
82	LE458 (BU-WH)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)		BU5T-14474-AC
83	LE424 (YE-GN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF)		BU5T-14474-AC
84	VE750 (GN-BU)	20	SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT)		BU5T-14474-AC
85	*	*	Not Used		N/A
86	LE136 (GN-OG)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF)		BU5T-14474-AC
87	RE136 (VT-GN)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN)		BU5T-14474-AC
88	*	*	Not Used		N/A
89	CEC01 (WH-BU)	20	CTRL MOD. - COOLING FAN CONTROL (FC2)		BU5T-14474-AC
90	*	*	Not Used		N/A
