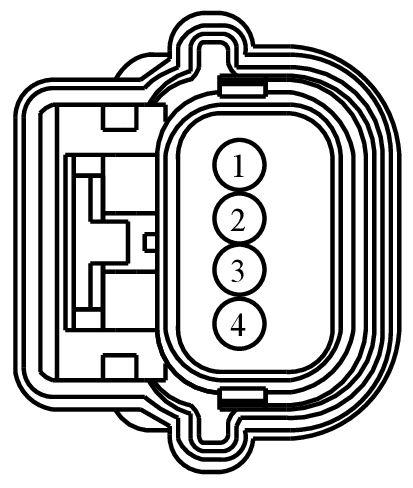

Connector End View C167 - TRANSMISSION RANGE (TR) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C167	TRANSMISSION RANGE (TR) SENSOR	BK	7G276	HU5T-14A464-BB	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1456968-1	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)		1456968-1
2	VET84 (BN-GN)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1)		1456968-1
3	VET81 (YE-GY)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2)		1456968-1
4	LE425 (BU-BN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (T-VREF)		1456968-1

Available Pigtail Kits

Pigtail Kit Part Number WPT-1307

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGA

Gauge:

18

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Antenna - Keyless Entry
• Sensor - Brake Pedal Position
• Sensor - Clutch Master Cylinder
