Connector End View C146 - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C146	INLINE	BLACK	7J0697G276		See Below

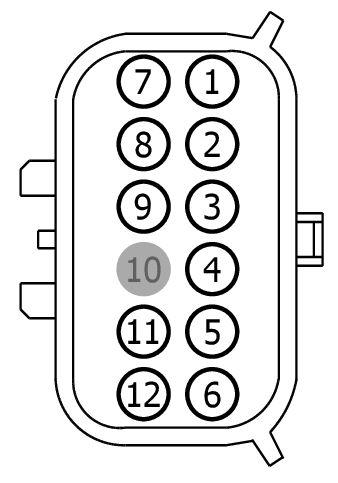

MALE

Harness

7J069

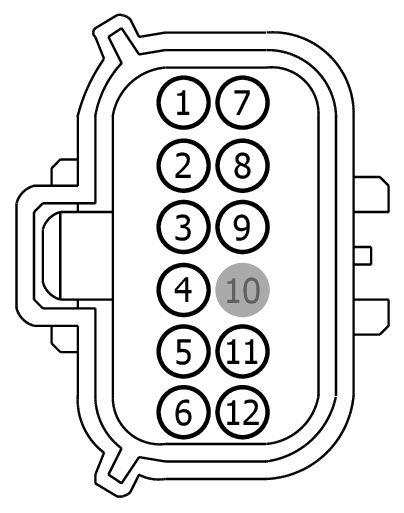

FEMALE

Harness

7G276

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VE744 (GY-BN)	20		N/A
2	CET25 (BU-GN)	20		N/A
3	CET95 (GN-WH)	20		N/A
4	GD108 (BK-VT)	20		N/A
5	VET86 (VT)	20		N/A
6	CET91 (YE)	20		N/A
7	LE461 (GY-YE)	20		N/A
8	CET96 (BU)	20		N/A
9	GD108 (BK-VT)	20		N/A
10	- ()	*		N/A
11	CET85 (GY)	20		N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	VE744 (GY-BN)	20		N/A
2	CET25 (BU-GN)	20		N/A
3	CET95 (GN-WH)	20		N/A
4	GD108 (BK-VT)	20		N/A
5	VET86 (VT)	20		N/A
6	CET91 (YE)	20		N/A
7	LE461 (GY-YE)	20		N/A
8	CET96 (BU)	20		N/A
9	GD108 (BK-VT)	20		N/A
10	- ()	*		N/A
11	CET85 (GY)	20		N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1485

Courtesy of FORD MOTOR COMPANY

Service Part Number:

HU2Z-14S411-CA

Gauge:

16

Pin material:

Silver

Cavities:

12

Vehicle Uses:

• Connector - Inline

Pigtail Kit Part Number WPT-1601

Courtesy of FORD MOTOR COMPANY

Service Part Number:

HU2Z-14S411-CB

Gauge:

16

Pin material:

Silver

Cavities:

12

Vehicle Uses:

• Connector - Inline
• Module - Anti-Lock Brake System
• Module - Wigwag Lamps
• Trailer Tow - Vehicle Side
