Power Transfer Unit Rear Seal: Installation
WARNING: This page is about a different variant/trim than selected.
- Using the special tool, install a new rear seal. Use Special Service Tool: 308-430 Installer, PTO Drive Gear Outer Oil Seal.

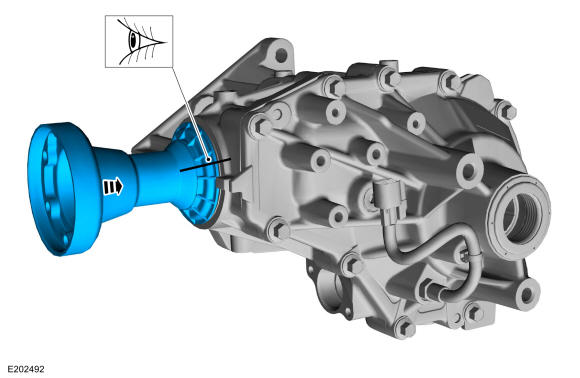

- Align the marks, and install the pinion flange.

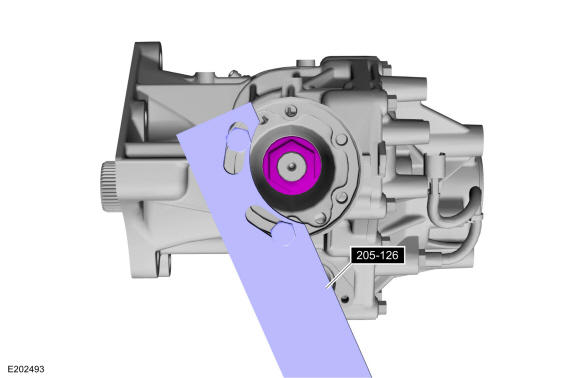

- Using the special tool, install a new pinion flange nut. Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.
Torque: 173 lb.ft (235 Nm)
- Check the PTU fluid level. Refer to: Power Transfer Unit Fluid Level Check .
- Install the RH and LH exhaust flexible pipe. Refer to: Exhaust Flexible Pipe .
- Install the driveshaft. Refer to: Rear Driveshaft .
