Transmission Support Insulator: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the following items:

    1. Refer to: Battery Tray .
    2. Refer to: Air Cleaner Outlet Pipe RH .
    3. Remove the RHCAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .

  3. Remove the pin-type retainers and the radiator sight shield.
    GFD378474Courtesy of FORD MOTOR COMPANY
  4. Detach the wiring harness retainer from the RH cowl filler panel.
    GFD378418Courtesy of FORD MOTOR COMPANY
  5. Remove the retainers and the RH and LH cowl filler panels.
    GFD378419Courtesy of FORD MOTOR COMPANY
  6. Disconnect the PCV tube and position aside.
    GFD378415Courtesy of FORD MOTOR COMPANY
  7. Remove the bolt and position aside the vacuum harness pressure sensor.
    GFD378416Courtesy of FORD MOTOR COMPANY
    1. Remove the ground wire bolt from the RH cylinder head.
    2. Detach the retainers and position the ground wire aside.
    GFD378417Courtesy of FORD MOTOR COMPANY

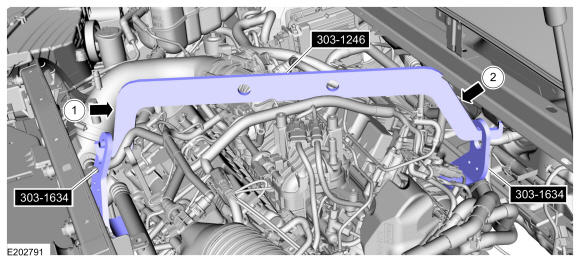

  9. Install the special tools on the engine.

    1. Straight side of the special tool.
    2. Sloped side of the special tool. Use Special Service Tool: 303-1246 Engine Spreader Bar., 303-1634 Lift Eyes (2).

    GFD378420Courtesy of FORD MOTOR COMPANY

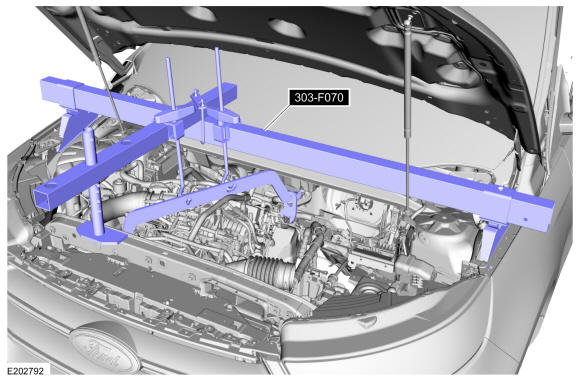

  10. Using the special tools, support the engine. Use Special Service Tool: 303-F070 Support Bar, Engine.
    GFD378421Courtesy of FORD MOTOR COMPANY

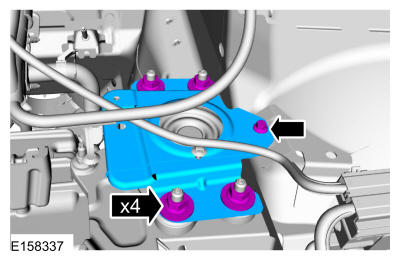

  11. Remove the nuts, the bolt and the transmission support insulator bracket.
    GFD378475Courtesy of FORD MOTOR COMPANY

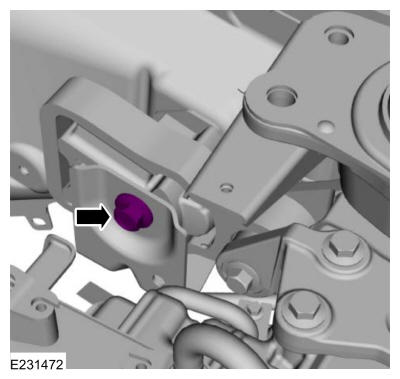

  12. Remove the rear roll restrictor bolt.
    GFD378476Courtesy of FORD MOTOR COMPANY

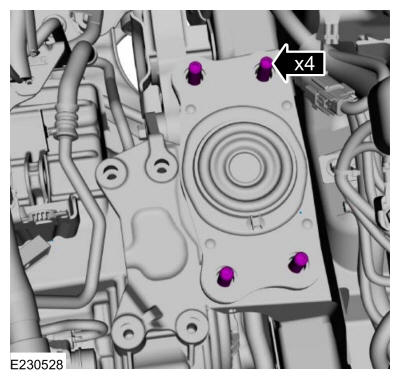

  13. Remove the transmission support insulator studs.
    GFD378477Courtesy of FORD MOTOR COMPANY

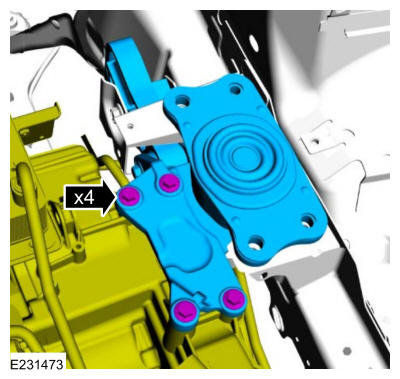

  14. Remove the bolts and the transmission support insulator.
    GFD378478Courtesy of FORD MOTOR COMPANY

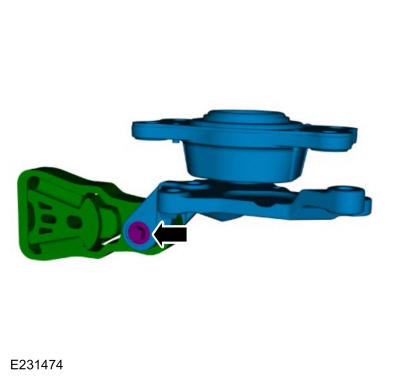

  15. Clamp the transmission support insulator in a vise and remove the roll restrictor bolt. Use the General Equipment: Vise
GFD378479Courtesy of FORD MOTOR COMPANY
