Transmission Support Insulator: Installation

WARNING: This page is about a different variant/trim than selected.

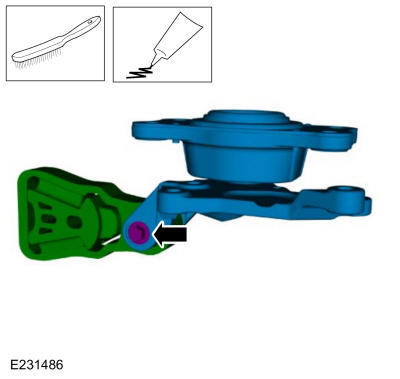

Loosely install the roll restrictor bolt. Use the General Equipment: Vise
Material: Motorcraft® Threadlock and Sealer / TA-25-B

Courtesy of FORD MOTOR COMPANY

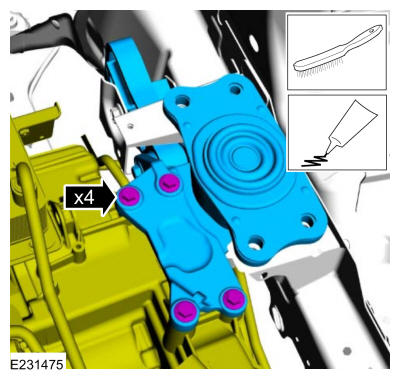

Install the transmission support insulator and the bolts.
Material: Motorcraft® Threadlock and Sealer / TA-25-B

Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

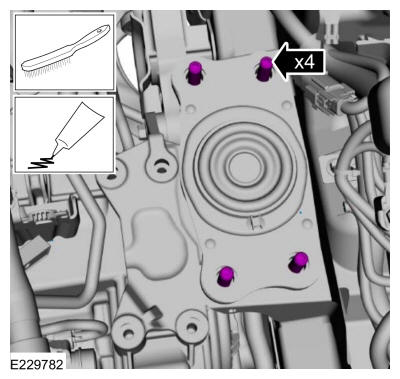

Install the transmission support insulator studs.
Material: Motorcraft® Threadlock and Sealer / TA-25-B

Torque: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

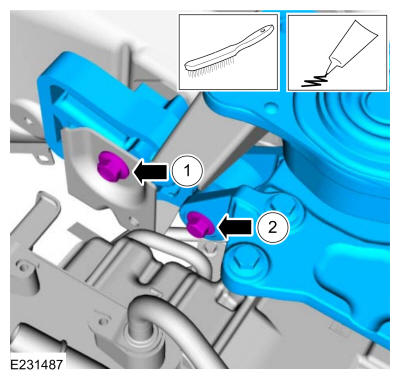

Install the transmission support insulator.
1. Install the bolt.
  Material: Motorcraft® Threadlock and Sealer / TA-25-B

  Torque: 111 lb.ft (150 Nm)
2. Tighten the bolt.
  Torque: 85 lb.ft (115 Nm)
Courtesy of FORD MOTOR COMPANY

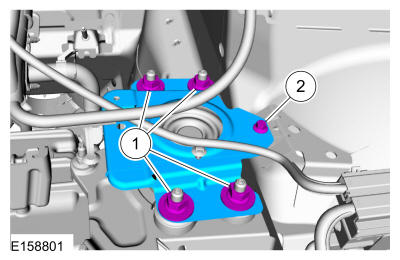

Install the transmission support insulator bracket, nuts and bolt.
1. Torque
  : 66 lb.ft (90 Nm)
2. Torque
  : 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

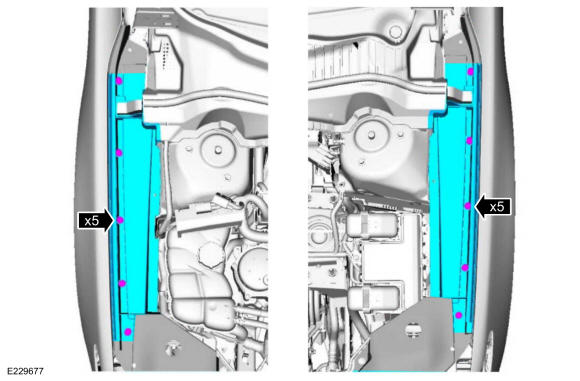

Install the RH and LH cowl filler panels and the retainers.

Courtesy of FORD MOTOR COMPANY

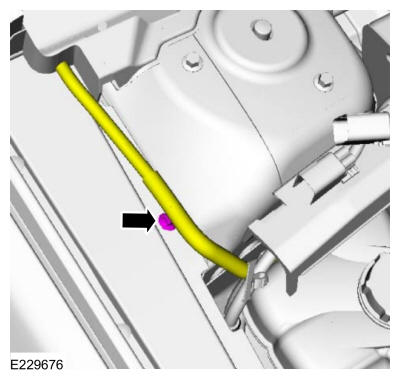

Attach the wiring harness retainer to the RH cowl filler panel.

Courtesy of FORD MOTOR COMPANY

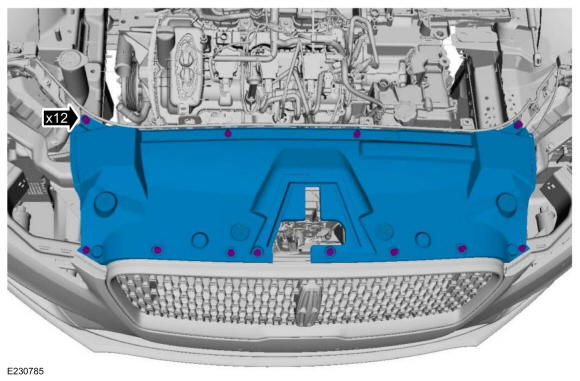

Install the radiator sight shield and the pin-type retainers

Courtesy of FORD MOTOR COMPANY

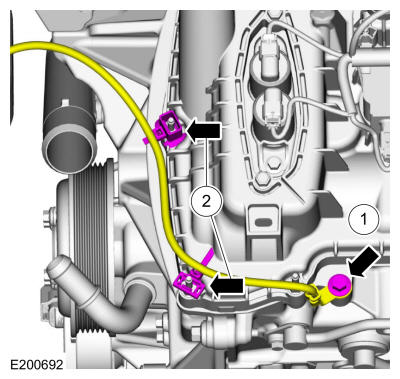

1. Install the ground wire and the bolt.
  Torque: 159 lb.in (18 Nm)
2. Attach the wiring harness retainers.
Courtesy of FORD MOTOR COMPANY

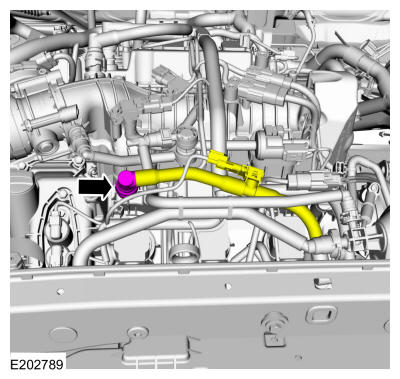

Connect the PCV tube.

Courtesy of FORD MOTOR COMPANY

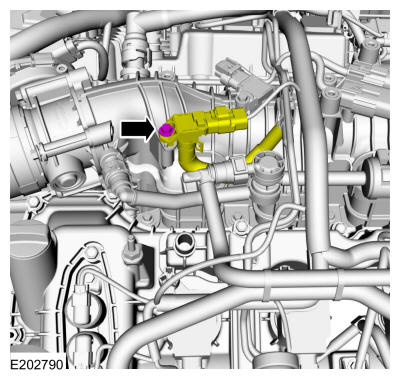

Install the vacuum harness pressure sensor and the bolt.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the RHCAC intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
2. Refer to: Air Cleaner Outlet Pipe RH .
3. Refer to: Battery Tray .
