Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

Install the TR sensor.
1. Position the park pawl actuating rod in the TR sensor.
2. Install the TR sensor in the transmission case.
Courtesy of FORD MOTOR COMPANY

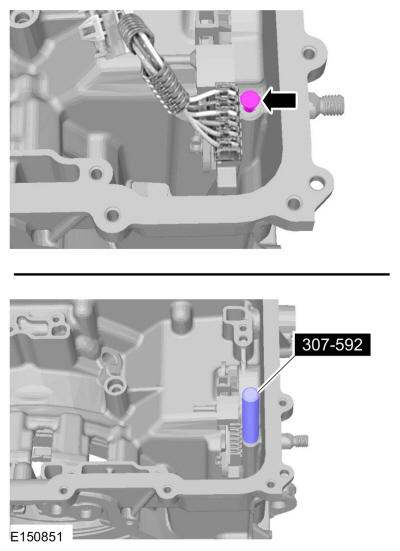

Using the special tool, install a new TR sensor locking pin. Use Special Service Tool: 307-592 Manual lever Retaining Pin Installer.

Courtesy of FORD MOTOR COMPANY
Install the manual control lever and the nut.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Install the main control valve body. Refer to: Main Control Valve Body .
Adjust the selector lever cable.
