Torque Converter Seal: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the transmission. Refer to: REMOVAL .
Using the special tool, install the transmission onto the bench. Use Special Service Tool: 307-580 Holding Fixture.

Courtesy of FORD MOTOR COMPANY
Remove the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

Courtesy of FORD MOTOR COMPANY
NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.

NOTE: Only thread the bolts 6 to 8 turns or do not exceed 12 mm (0.472 in) into the torque converter. If the bolts are threaded too far, damage to the torque converter clutch surface can occur causing torque converter failure.

Install two 10 mm x 1.50 bolts into the torque converter 6 to 8 turns to assist in handling the torque converter and remove the torque converter.

Courtesy of FORD MOTOR COMPANY

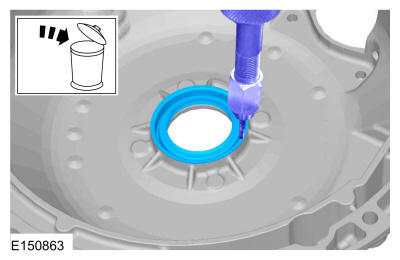

Using a dent puller, remove and discard the torque converter hub seal. Use the General Equipment: Puller

Courtesy of FORD MOTOR COMPANY
