Solenoid Body: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the main control cover. Refer to: Main Control Cover .

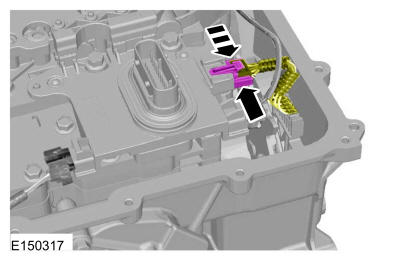

Slide the TR sensor electrical connector lock tab over.

Courtesy of FORD MOTOR COMPANY

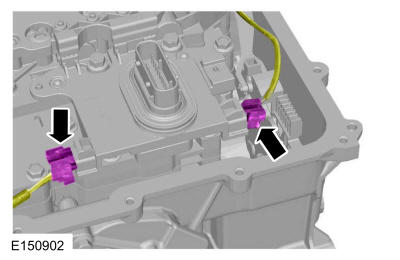

Disconnect the TSS and OSS sensor electrical connectors.

Courtesy of FORD MOTOR COMPANY
Remove the OSS sensor wire from the retainer.

Courtesy of FORD MOTOR COMPANY
NOTE: Handle the solenoid body with care or damage to the solenoid body may occur.

NOTE: Note the location of the different length bolts for assembly.

Remove the bolts and the solenoid body.

Courtesy of FORD MOTOR COMPANY
