Halfshaft Seal RH - FWD: Removal
WARNING: This page is about a different variant/trim than selected.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Remove the underbody shield.
- Remove the front RH halfshaft. Refer to: Front Halfshaft RH .

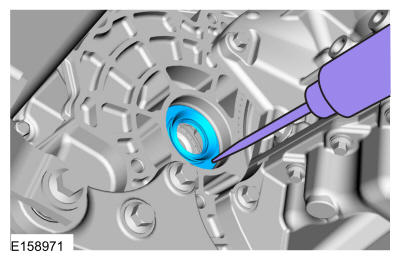

- Using a punch, poke a small hole in the halfshaft seal. Use the General Equipment: Punch

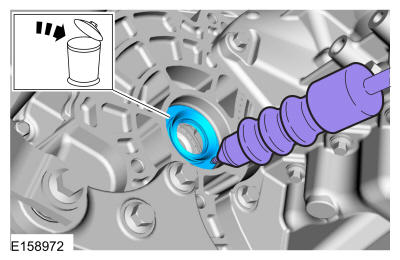

- Using a puller, remove the halfshaft seal. Use the General Equipment: Puller
