Muffler and Tailpipe: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Clean all exhaust connections before reassembly.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

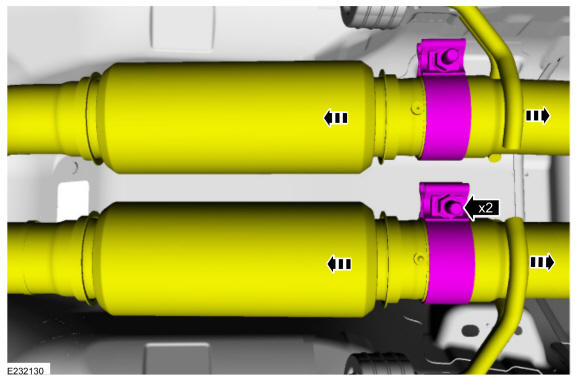

Loosen the LH and RH exhaust muffler and tailpipe clamps and disconnect flex pipe outlets at the muffler inlets.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

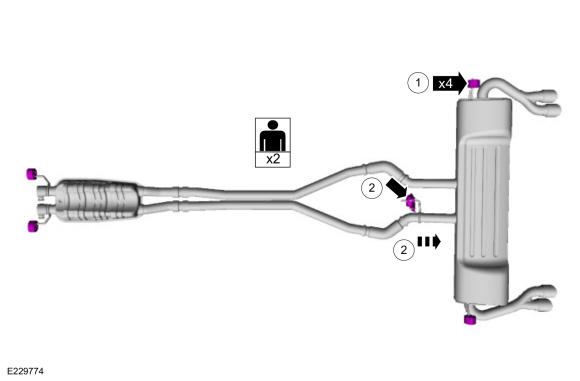

1. Detach the exhaust isolators hangers.
2. Slide the muffler and tailpipe rearward out of the isolator hanger and remove the muffler and tailpipe.

Courtesy of FORD MOTOR COMPANY
