Intake Manifold: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
1. Remove the nut.
  Torque: 42 lb.in (4.8 Nm)
2. Detach the 2 engine appearance cover grommets from the ball studs and remove the engine appearance cover.
3. If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the valve cover.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the upper RH air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe RH .
Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

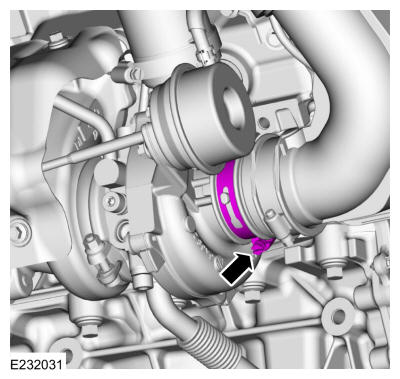

Loosen the clamp.
Torque: 42 lb.in (4.8 Nm)

Courtesy of FORD MOTOR COMPANY

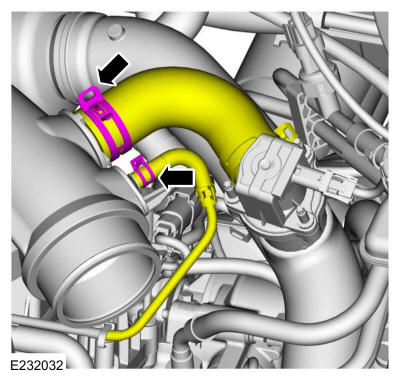

Release the clamps and disconnect the by-pass hose and the vacuum hose.

Courtesy of FORD MOTOR COMPANY

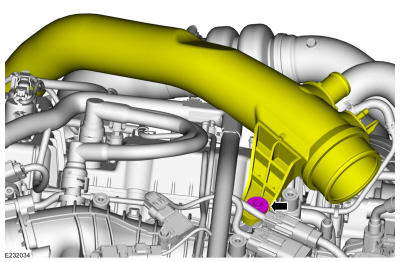

Remove the bolt and position the lower RH air cleaner outlet pipe aside.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Loosen the clamps and remove the upper CAC outlet pipe.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

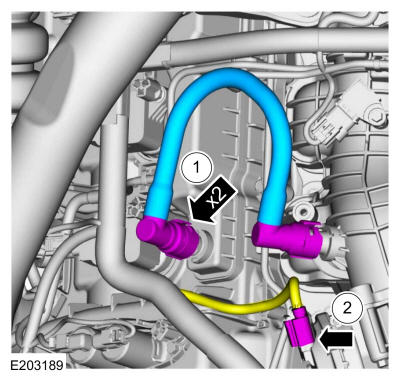

1. Disconnect the PCV tube quick release couplings and remove the tube. Refer to: Quick Release Coupling .
2. Disconnect the throttle body electrical connector.
Courtesy of FORD MOTOR COMPANY

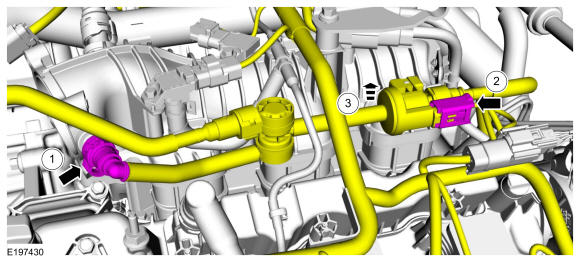

1. Disconnect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .
2. Disconnect the EVAP purge valve electrical connector.
3. Lift the EVAP purge valve off of the intake manifold mounting tab.
Courtesy of FORD MOTOR COMPANY
- Disconnect the crankcase pressure sensor electrical connector.
- Detach the PCV tube retainer. Refer to: Quick Release Coupling .
- Disconnect the PCV tube quick release couplings and remove the tube. Refer to: Quick Release Coupling .
Courtesy of FORD MOTOR COMPANY

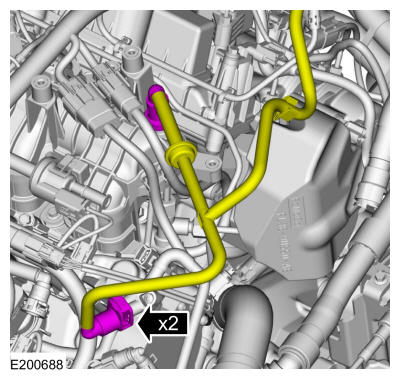

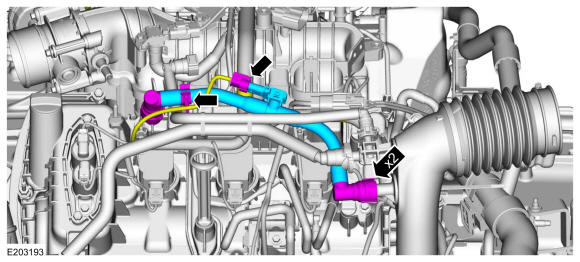

Disconnect the vacuum tube quick release couplings and position the tube aside. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

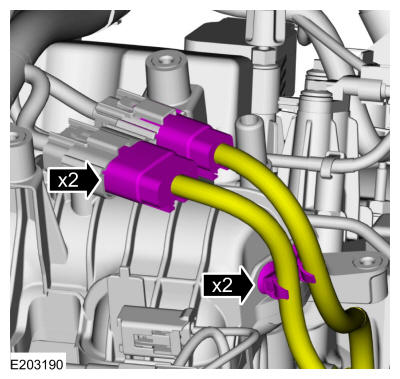

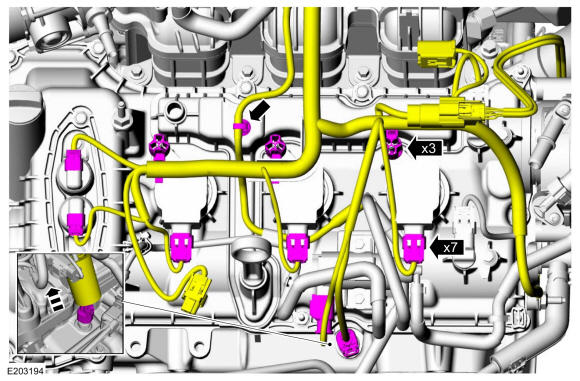

Disconnect the engine wiring harness electrical connectors and retainers.

Courtesy of FORD MOTOR COMPANY

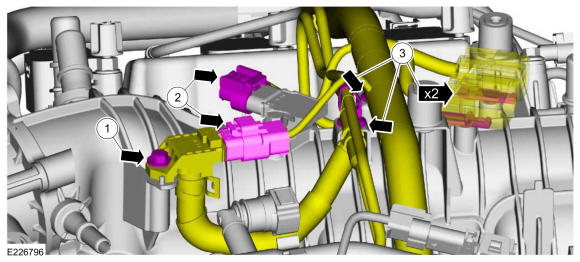

1. Remove the vacuum harness pressure sensor bolt.
  Torque: 62 lb.in (7 Nm)
2. Disconnect the wiring harness electrical connectors.
3. Detach the wiring harness and vacuum harness retainers.
Courtesy of FORD MOTOR COMPANY
Detach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
- Slide the insulator up to access the CHT electrical connector.

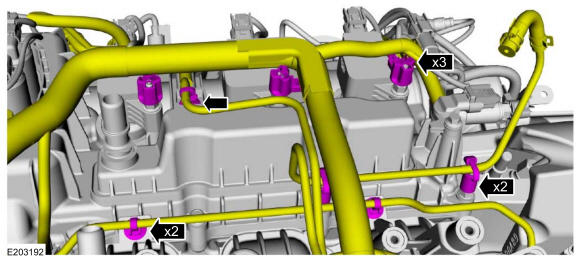

- Disconnect the engine wiring harness electrical connectors and detach the harness and vacuum hose retainers.
Courtesy of FORD MOTOR COMPANY
Detach the engine wiring harness and vacuum hose retainers.

Courtesy of FORD MOTOR COMPANY

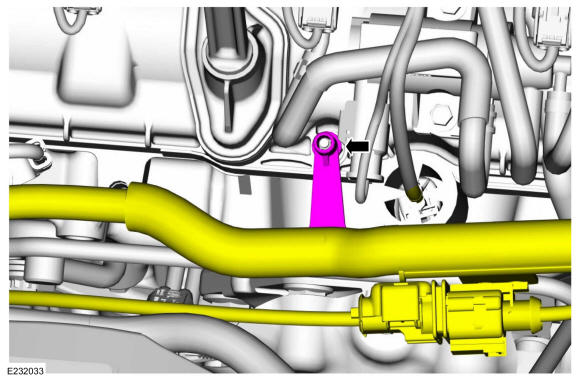

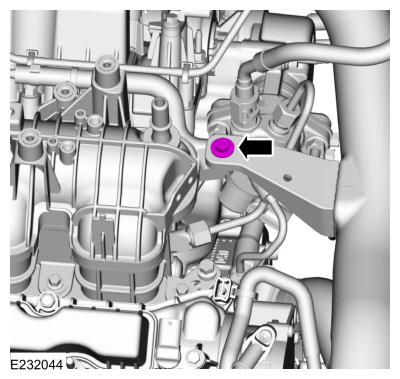

Remove the CAC intake pipe bolt.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

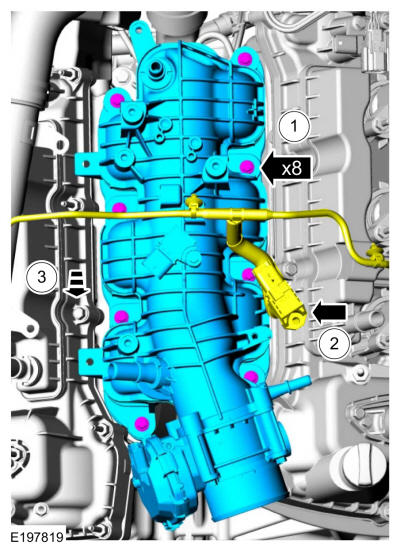

1. Loosen the bolts.
2. Position the vacuum harness aside.
3. Remove the intake manifold.
Courtesy of FORD MOTOR COMPANY

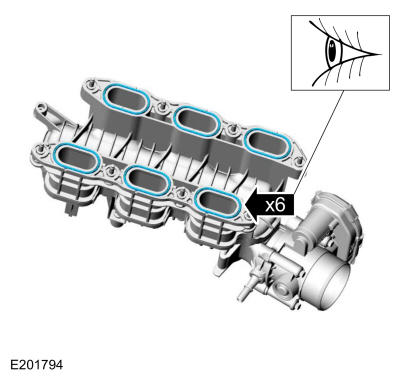

Inspect the gaskets and replace as necessary.

Courtesy of FORD MOTOR COMPANY
