Intake Manifold: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris if found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

To install, reverse the removal procedure.
Install the intake manifold and tighten the bolts.
Torque: 89 lb.in (10 Nm)

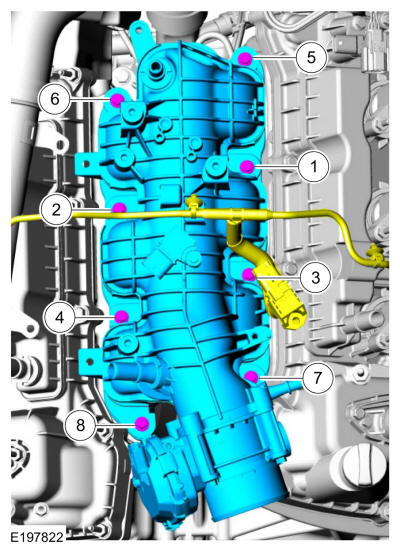

Fig 1: Intake Manifold Tightening Sequence (3.0L EcoBoost)

Courtesy of FORD MOTOR COMPANY
