Engine Front Cover: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  3. Remove and discard the engine oil filter and drain the engine oil. Refer to: Engine Oil Draining and Filling .
  4. Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  5. Remove the following items:

    1. NOTE: It is not necessary to clamp off the degas bottle hose with the cooling system drained.

      Refer to: Degas Bottle .

    2. NOTE: It is not necessary to clamp off the oil cooler hoses with the cooling system drained.

      Refer to: Oil Cooler .

    3. Refer to: Valve Cover LH .
    4. Refer to: Valve Cover RH .
    5. RH fender splash shield. Refer to: Fender Splash Shield .
    6. Refer to: Accessory Drive Belt Tensioner .
    7. Refer to: Oil Pressure Control Solenoid .

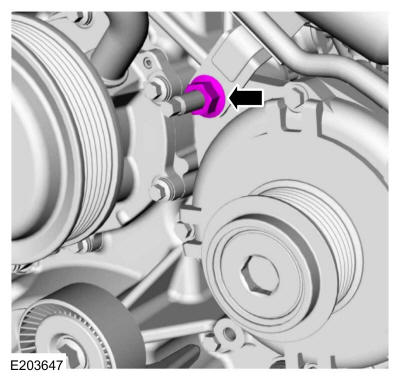

  6. Remove the generator nut.
    GFD376598Courtesy of FORD MOTOR COMPANY

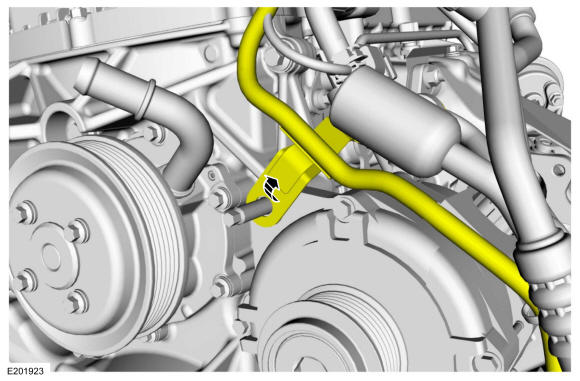

  7. Position the A/C line bracket from the generator stud.
    GFD376862Courtesy of FORD MOTOR COMPANY

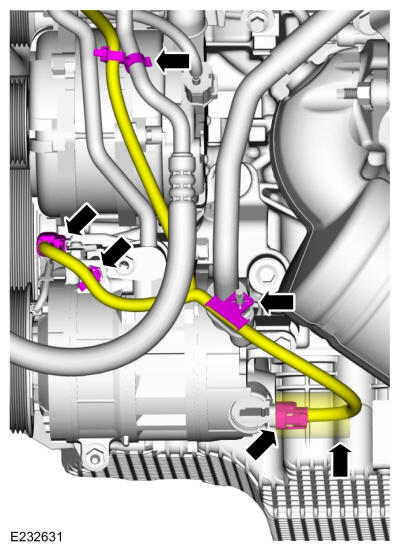

  8. Detach the wiring harness retainers, slide up the insulator and disconnect the A/C compressor electrical connectors.
    GFD376863Courtesy of FORD MOTOR COMPANY
    1. Remove the nut.
    2. Remove the stud.
    3. Remove the bolt.

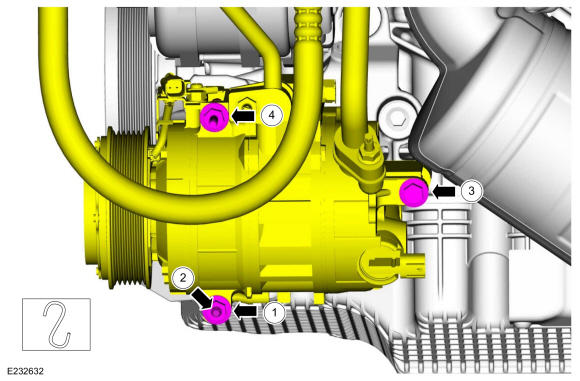

    4. Remove the stud bolt and position the A/C compressor aside and support with a length of mechanics wire.
    Fig 1: A/C Compressor Loosening Sequence (3.0L EcoBoost)
    GFD376864Courtesy of FORD MOTOR COMPANY
    1. Remove the M8 x 50mm bolt.
    2. Remove the M10 x 43mm bolt.
    3. Remove the M8 x 30mm bolt and the A/C compressor mounting bracket.
    Fig 2: A/C Compressor Bracket Tightening Sequence (3.0L EcoBoost)
    GFD376600Courtesy of FORD MOTOR COMPANY

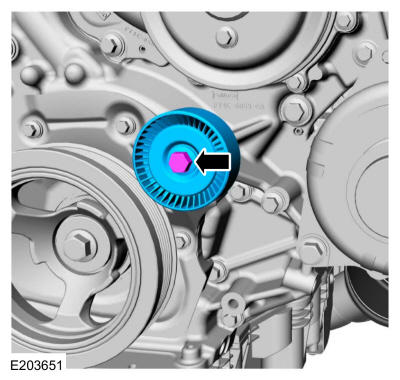

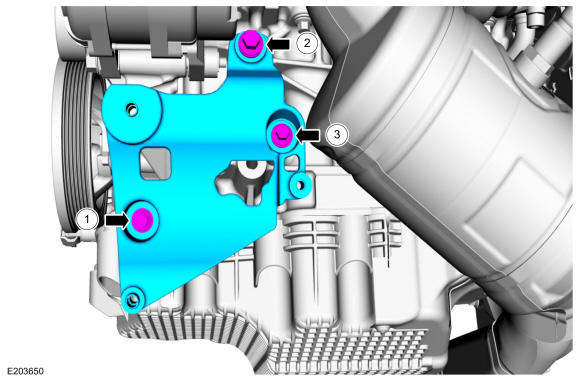

  11. Remove the bolt and the idler pulley.
    GFD376648Courtesy of FORD MOTOR COMPANY

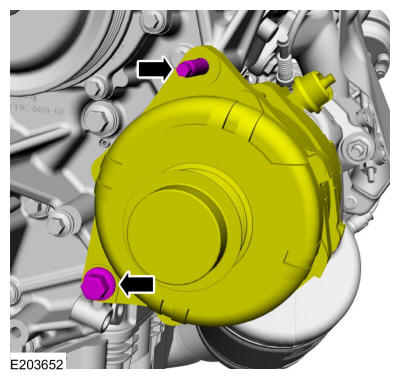

  12. Remove the bolt, the stud and position the generator aside.
    GFD376649Courtesy of FORD MOTOR COMPANY

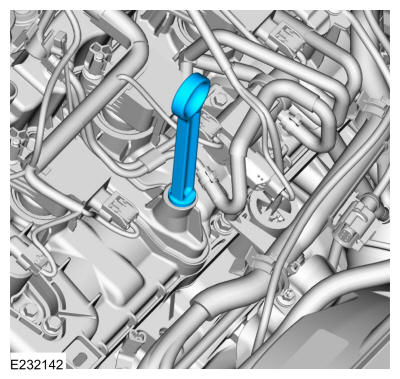

  13. Remove the oil level indicator.
    GFD376582Courtesy of FORD MOTOR COMPANY

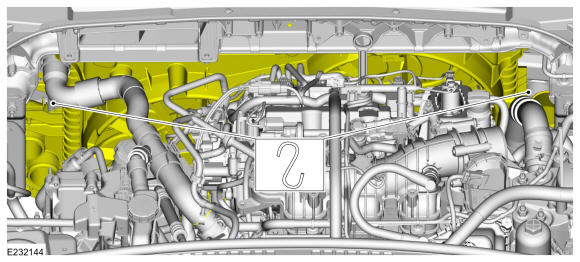

  14. Support the cooling module.
    GFD376577Courtesy of FORD MOTOR COMPANY

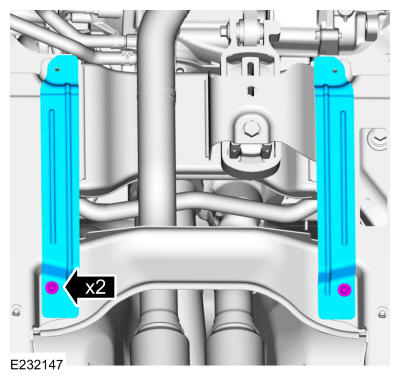

  15. If equipped, remove the retainers and the front underbody straps.
    GFD376579Courtesy of FORD MOTOR COMPANY

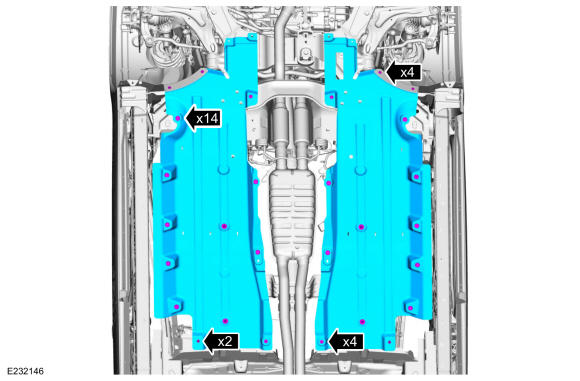

  16. Remove the retainers and the underbody shields.
    GFD376580Courtesy of FORD MOTOR COMPANY
  17. Remove the RH ride height sensor. Refer to: Front Suspension Height Sensor .

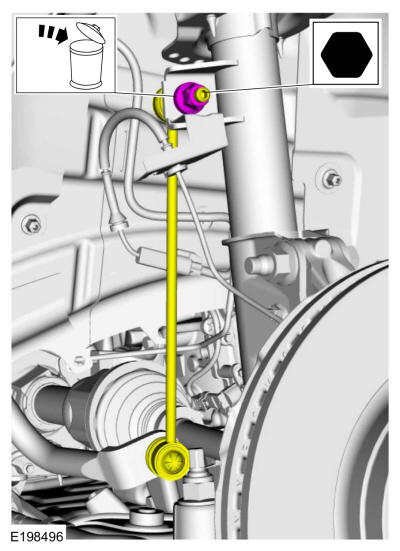

  18. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Remove the nut and position the RH sway bar link aside.

    GFD376271Courtesy of FORD MOTOR COMPANY

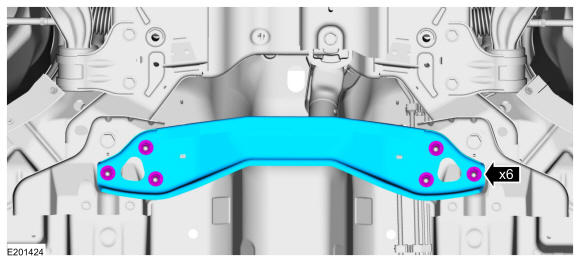

  19. Remove the nuts and the subframe support bracket.
    GFD376601Courtesy of FORD MOTOR COMPANY

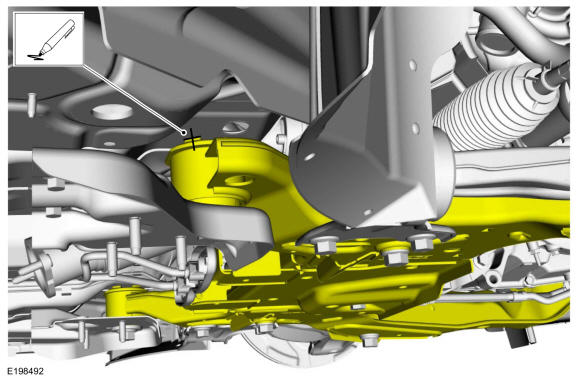

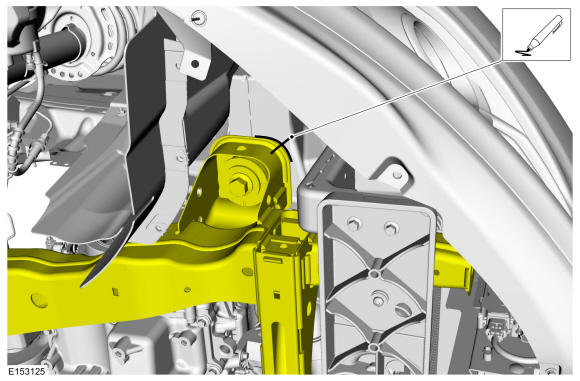

  20. Mark the subframe location.
    GFD376266Courtesy of FORD MOTOR COMPANY
  21. Mark the subframe location.
    GFD376608Courtesy of FORD MOTOR COMPANY

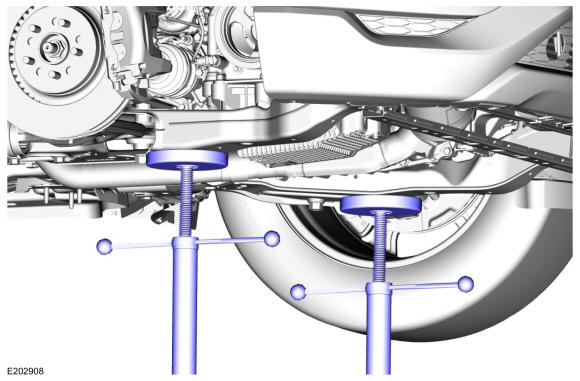

  22. Position adjustable stands under the sides of the subframe. Use the General Equipment: Vehicle/Axle Stands
    GFD376865Courtesy of FORD MOTOR COMPANY
  23. NOTE: Make sure the cooling module is secure.

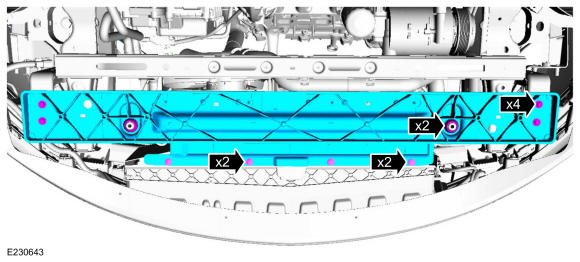

    Remove the fasteners and the cooling module support panel.

    GFD376609Courtesy of FORD MOTOR COMPANY

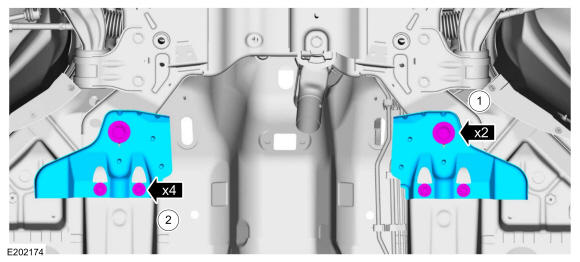

  24. NOTE: The original subframe fasteners will be used later in this procedure, do not discard the bolts until instructed to in this procedure.

    1. Remove the subframe bolts.
    2. Remove the bolts and the subframe brackets.

    GFD376743Courtesy of FORD MOTOR COMPANY

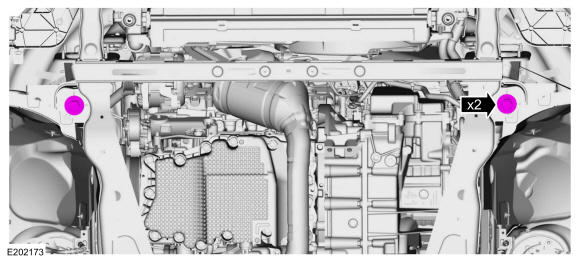

  25. Remove the subframe bolts.
    GFD376866Courtesy of FORD MOTOR COMPANY

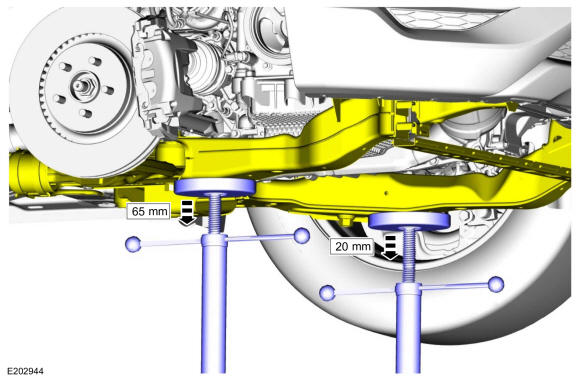

  26. Using the adjustable stands lower the LH side of the subframe 20 mm (0.75 in) and lower the RH 65 mm (2.5 in). Use the General Equipment: Vehicle/Axle Stands
    GFD376867Courtesy of FORD MOTOR COMPANY

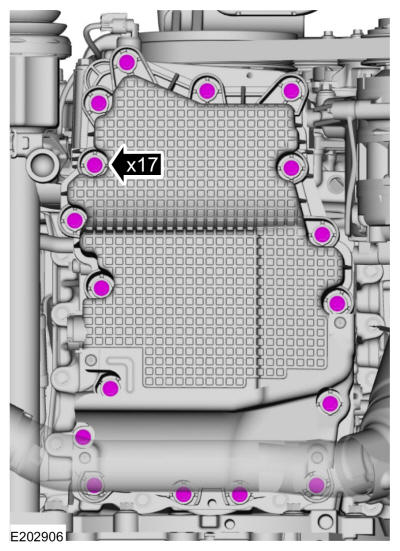

  27. Remove the oil pan bolts.
    GFD376868Courtesy of FORD MOTOR COMPANY

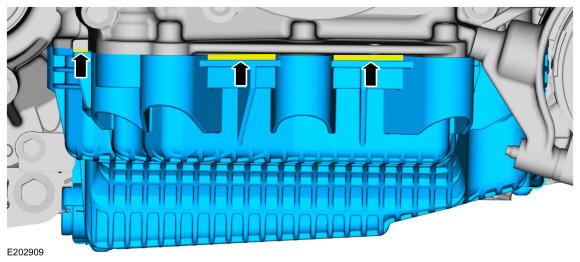

  28. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and separate the oil pan from the bottom of the engine. Use the General Equipment: Flat-Bladed Screwdriver
    GFD376869Courtesy of FORD MOTOR COMPANY

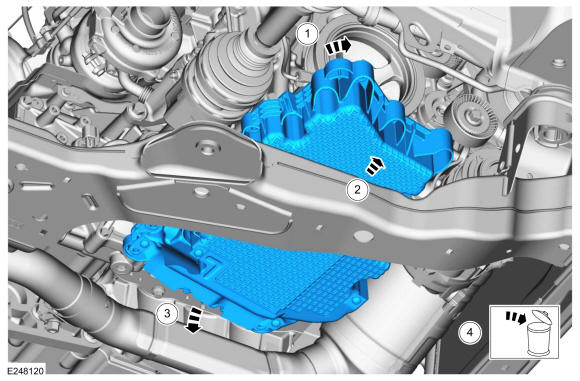

  29. NOTE: Suspension components and jackstand removed from graphic for clarity.

    1. Rotate the front of the oil pan slightly toward the front of the vehicle.
    2. Position the front of the oil pan to the RH side of the vehicle above the subframe.
    3. Lower the rear of the oil pan to clear the exhaust and remove the oil pan.
    4. NOTE: Do not reuse the oil pans sealed by Motorcraft® High Performance Engine RTV Silicone. Oil pans sealed by Motorcraft® High Performance Engine RTV Silicone are to be removed and discarded. The replacement oil pan will have a press-in-place gasket.

      Discard the oil pan if it is sealed with Motorcraft® High Performance Engine RTV Silicone.

    GFD376870Courtesy of FORD MOTOR COMPANY

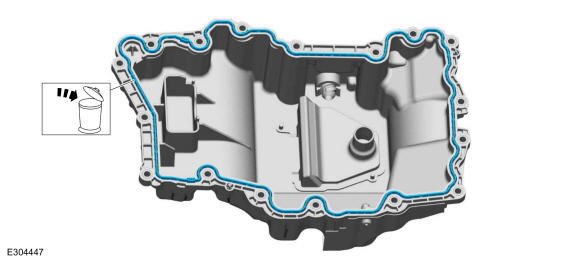

  30. If equipped, remove and discard the oil pan press-in-place gasket.
    GFD376605Courtesy of FORD MOTOR COMPANY

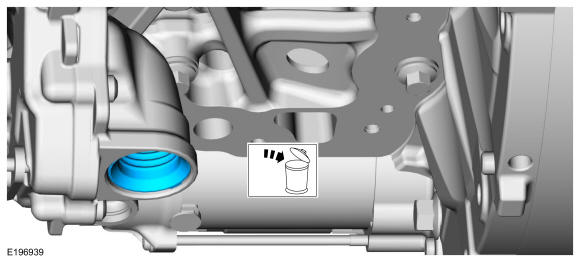

  31. Remove and discard the oil pump seal.
    GFD376606Courtesy of FORD MOTOR COMPANY

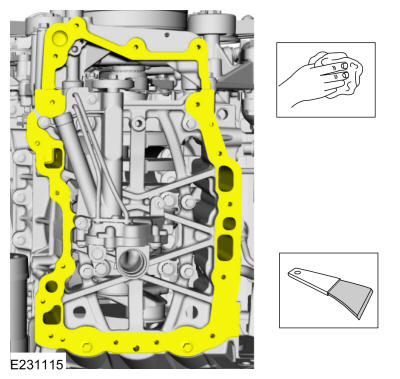

  32. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper
    GFD376607Courtesy of FORD MOTOR COMPANY

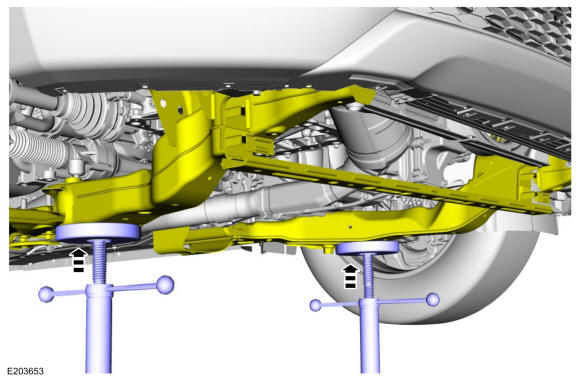

  33. Using the adjustable stands, raise the subframe into the installed position. Use the General Equipment: Vehicle/Axle Stands
    GFD376871Courtesy of FORD MOTOR COMPANY

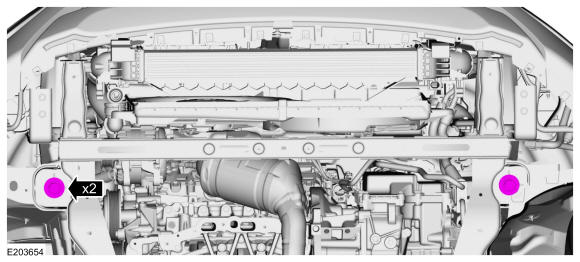

  34. Install the original subframe bolts.
    GFD376872Courtesy of FORD MOTOR COMPANY
    1. Install the subframe brackets and the original subframe bolts.
    2. Install the subframe bracket bolts.
    GFD376743Courtesy of FORD MOTOR COMPANY

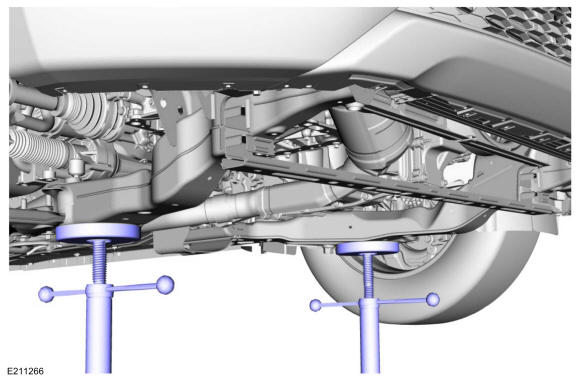

  36. Remove the stands. Remove the General Equipment: Vehicle/Axle Stands
    GFD376873Courtesy of FORD MOTOR COMPANY

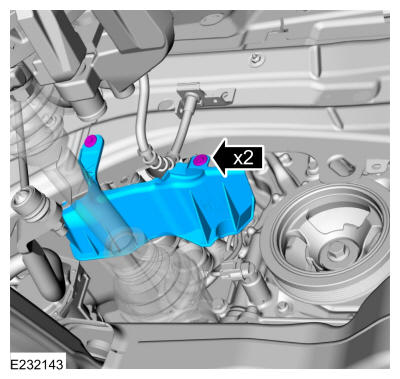

  37. Remove the retainers and the splash shield.
    GFD376874Courtesy of FORD MOTOR COMPANY

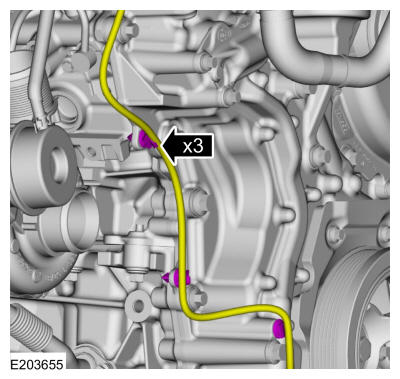

  38. Detach the wiring harness retainers.
    GFD376633Courtesy of FORD MOTOR COMPANY

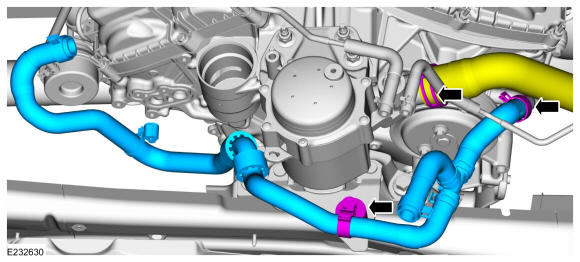

    1. Release the clamp and disconnect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer
    2. Detach the heater hose retainer.
    3. Release the clamp and remove the heater hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD376590Courtesy of FORD MOTOR COMPANY
  40. NOTE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pump. The floor jack will be used to lower and raise the engine during the remainder of the removal procedure.

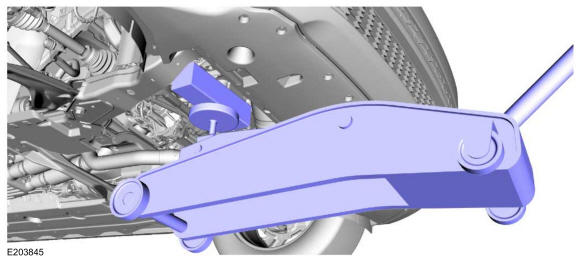

    Support the engine with a floor jack and a wooden block placed under the engine block skirt stiffener. Use the General Equipment: Wooden BlockUse the General Equipment: Trolley Jack

    GFD376875Courtesy of FORD MOTOR COMPANY
    1. Remove and discard the engine mount-to-engine nuts.
    2. Remove and discard the engine mount-to-frame nut.
    3. Remove and discard the engine mount-to-frame bolts.
    4. Remove the engine mount.
    GFD376615Courtesy of FORD MOTOR COMPANY

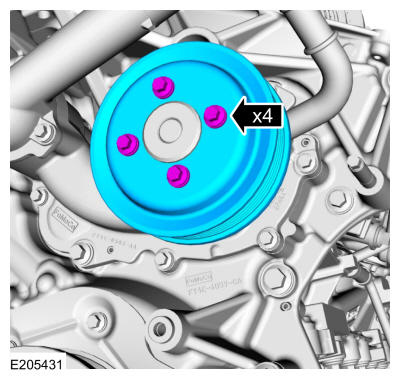

  42. Remove the bolts and the coolant pump pulley.
    GFD376654Courtesy of FORD MOTOR COMPANY

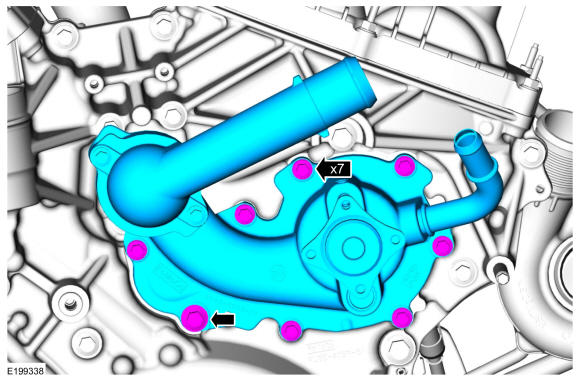

  43. Remove the bolts and the coolant pump.
    GFD376655Courtesy of FORD MOTOR COMPANY
  44. Remove and discard the coolant pump gasket and seal.
    GFD376656Courtesy of FORD MOTOR COMPANY

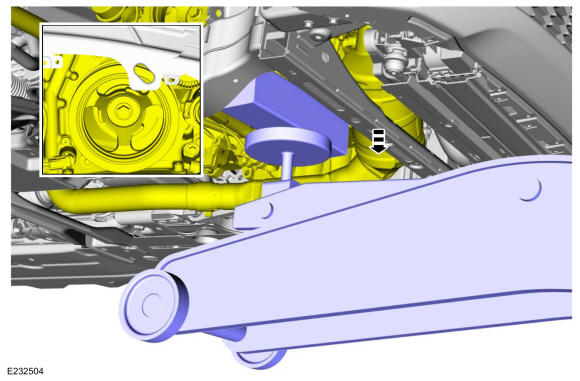

  45. Using the floor jack, lower the front of the engine to access the crankshaft pulley. Use the General Equipment: Wooden BlockUse the General Equipment: Trolley Jack
    GFD376876Courtesy of FORD MOTOR COMPANY

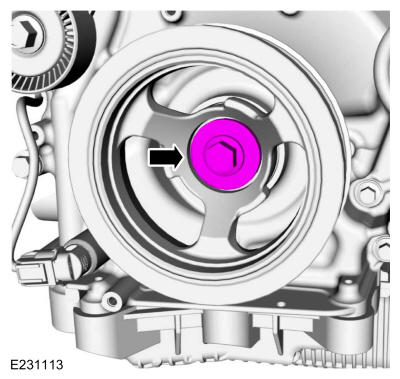

  46. Remove the crankshaft pulley bolt.
    GFD376650Courtesy of FORD MOTOR COMPANY

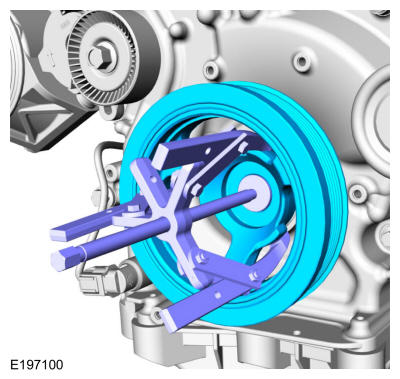

  47. Using the 3 Leg Puller and a step plate, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller
    GFD376651Courtesy of FORD MOTOR COMPANY

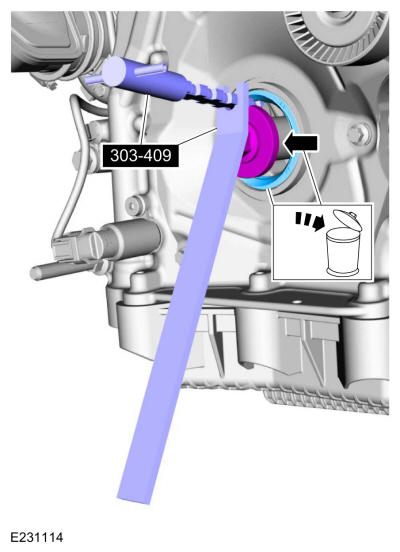

  48. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

    1. Install the crankshaft pulley bolt.
    2. Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. NOTE: If further disassembly of the engine will be performed, retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

      Remove and discard the crankshaft pulley bolt.

    GFD376784Courtesy of FORD MOTOR COMPANY

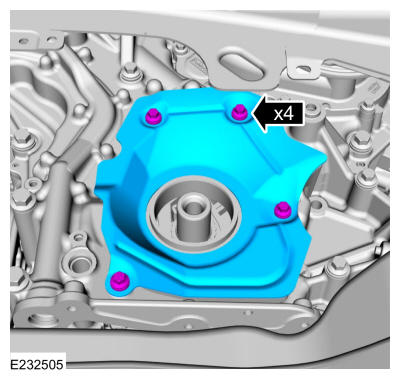

  49. Remove the fasteners and the insulator.
    GFD376653Courtesy of FORD MOTOR COMPANY

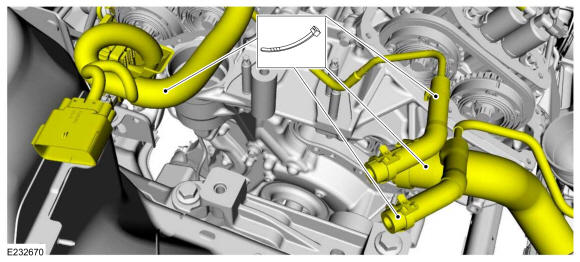

  50. NOTE: The coolant hoses and wiring harness must be positioned aside to provide a clear extraction path for the engine front cover.

    Secure the coolant hoses and wiring harness aside.

    GFD376877Courtesy of FORD MOTOR COMPANY
  51. NOTE: There are 4 different types of fasteners, note location of each fastener for assembly.

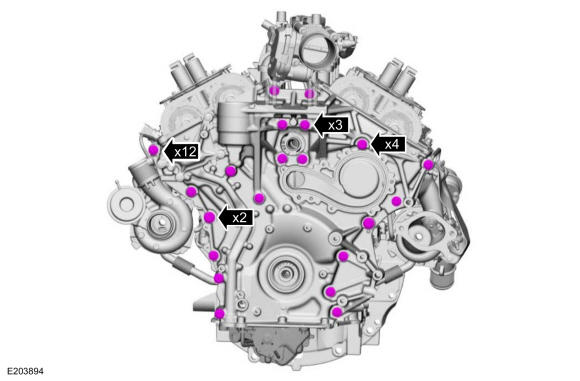

    Remove the engine front cover fasteners.

    GFD376659Courtesy of FORD MOTOR COMPANY

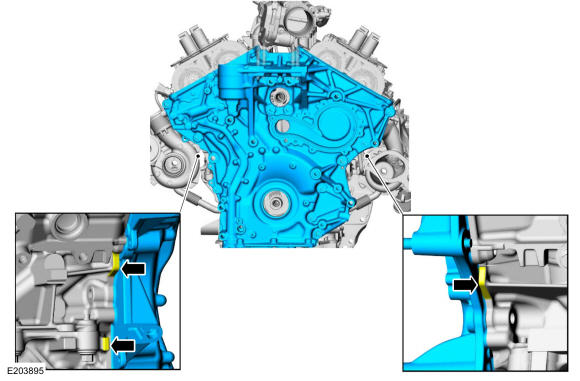

  52. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and remove the engine front cover. Use the General Equipment: Flat-Bladed Screwdriver
    GFD376660Courtesy of FORD MOTOR COMPANY

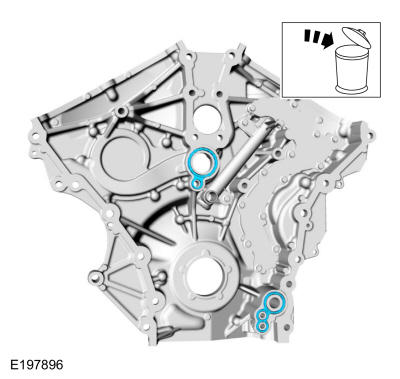

  53. Remove and discard the engine front cover gaskets.
    GFD376661Courtesy of FORD MOTOR COMPANY

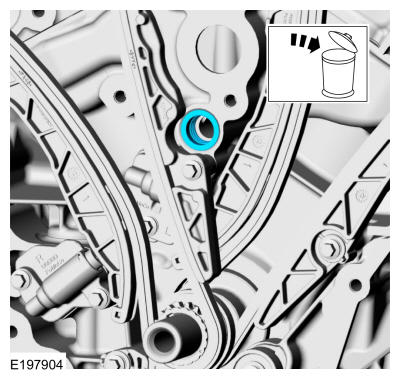

  54. Remove and discard the oil gallery seal (6G068).
    GFD376662Courtesy of FORD MOTOR COMPANY
  55. GFD376663Courtesy of FORD MOTOR COMPANY

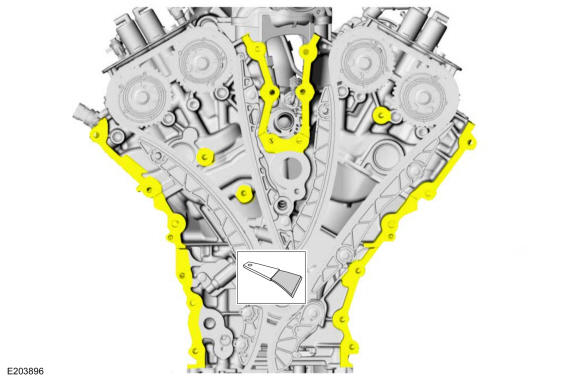

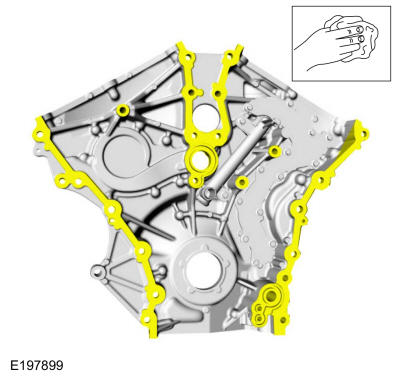

  56. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper
GFD376664Courtesy of FORD MOTOR COMPANY
