Cylinder Head RH: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the RH camshafts. Refer to: Camshaft RH .

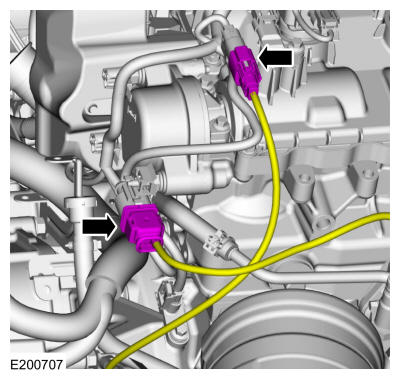

  3. Disconnect the right hand HO2S and right hand catalyst monitor sensor electrical connectors.
    GFD376829Courtesy of FORD MOTOR COMPANY

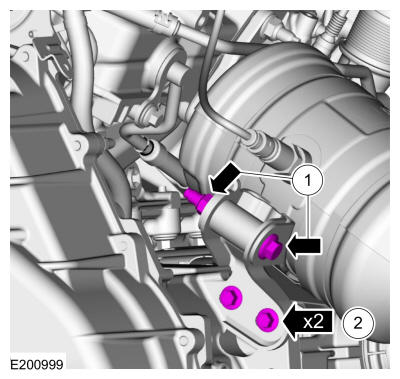

    1. Loosen.
    2. Remove.
    GFD376830Courtesy of FORD MOTOR COMPANY
    1. Remove and discard the RH catalytic converter nuts.
    2. Remove the RH catalytic converter.
    GFD376831Courtesy of FORD MOTOR COMPANY

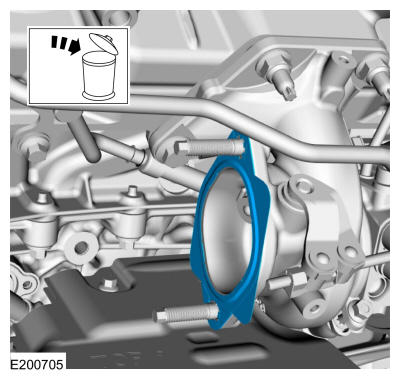

  6. Remove and discard the RH catalytic converter gasket.
    GFD376832Courtesy of FORD MOTOR COMPANY

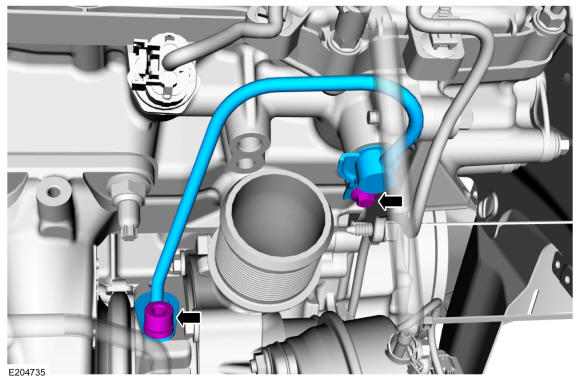

  7. Remove the bolts and the TC oil supply tube.
    GFD376833Courtesy of FORD MOTOR COMPANY

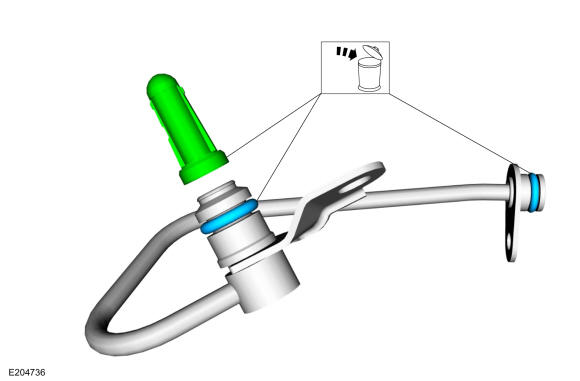

  8. Remove and discard the TC oil supply tube O-ring seals and the TC oil supply tube oil filter.
    GFD376834Courtesy of FORD MOTOR COMPANY

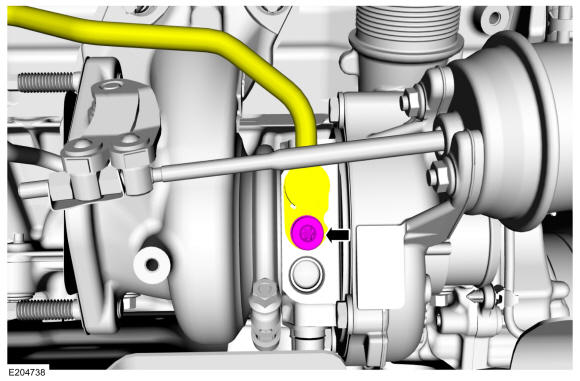

  9. Remove the bolt and disconnect the TC coolant return tube.
    GFD376835Courtesy of FORD MOTOR COMPANY
  10. Remove and discard the TC coolant return tube O-ring seal.
    GFD376836Courtesy of FORD MOTOR COMPANY

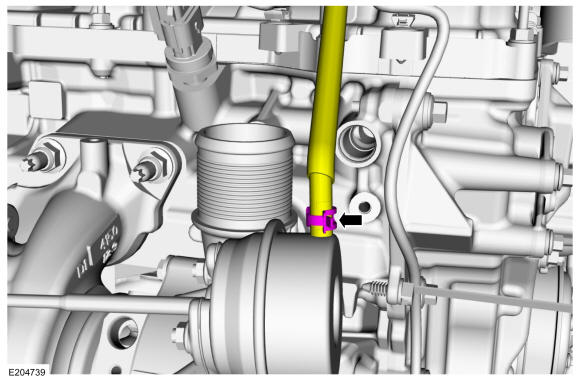

  11. Release the clamp and disconnect the vacuum hose.
    GFD376837Courtesy of FORD MOTOR COMPANY
  12. NOTE: AWD shown FWD is similar.

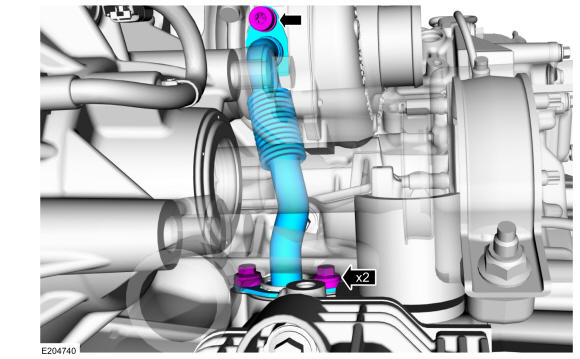

    Remove the bolts and the TC oil return tube.

    GFD376838Courtesy of FORD MOTOR COMPANY
  13. Remove and discard the TC oil return tube O-ring seal.
    GFD376802Courtesy of FORD MOTOR COMPANY
  14. Remove and discard the TC oil return tube tube-to-engine block gasket.
    GFD376803Courtesy of FORD MOTOR COMPANY

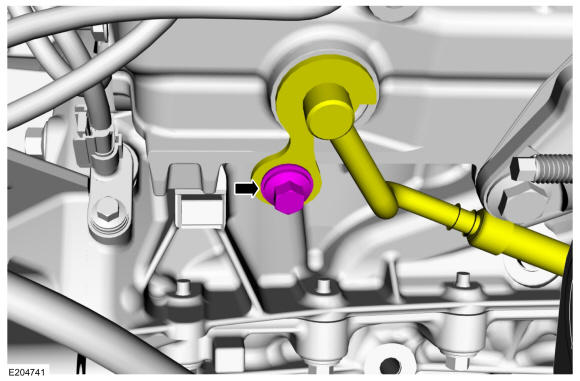

  15. Remove the TC coolant supply tube bolt.
    GFD376839Courtesy of FORD MOTOR COMPANY

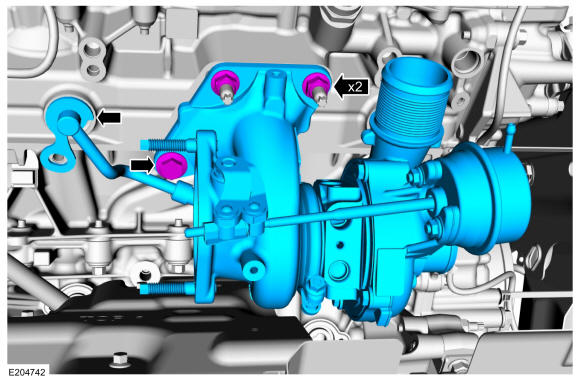

  16. NOTE: Remove the TC coolant supply tube from the engine block while removing the TC.

    Remove the retainers and the TC.

    GFD376840Courtesy of FORD MOTOR COMPANY

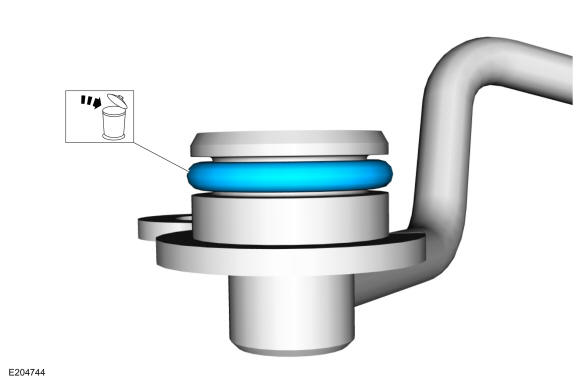

  17. Remove and discard the TC coolant supply tube O-ring seal.
    GFD376806Courtesy of FORD MOTOR COMPANY
  18. Remove and discard the TC gasket.
    GFD376841Courtesy of FORD MOTOR COMPANY

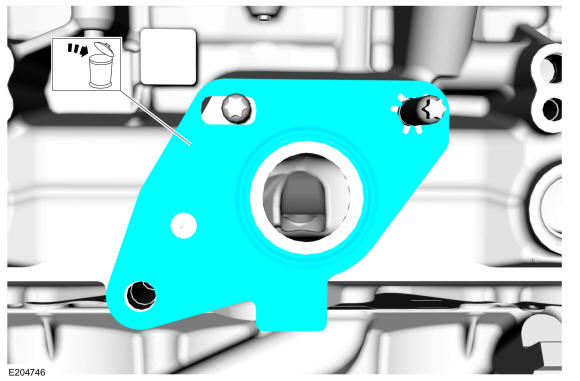

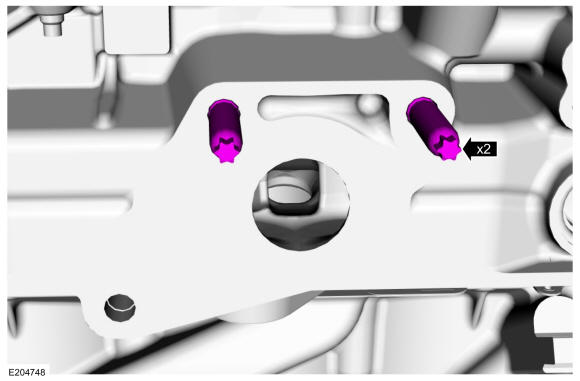

  19. Remove and discard the TC mounting studs.
    GFD376842Courtesy of FORD MOTOR COMPANY

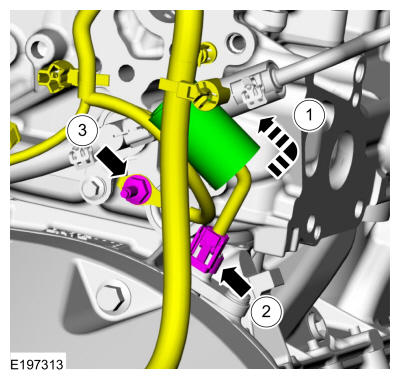

    1. Reposition the CKP sensor electrical connector insulator.
    2. Disconnect the CKP sensor electrical connector.
    3. Remove the stud bolt and the wiring harness ground.
    GFD376843Courtesy of FORD MOTOR COMPANY

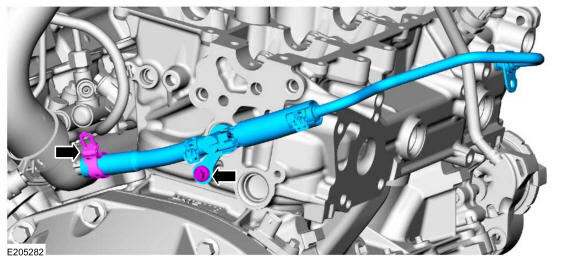

    • Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer

    • NOTE: Do not pry the cylinder head to coolant outlet connector behind the bracket. If necessary, use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

      Remove the bolt and the cylinder head to coolant outlet connector hose assembly.

    GFD376844Courtesy of FORD MOTOR COMPANY

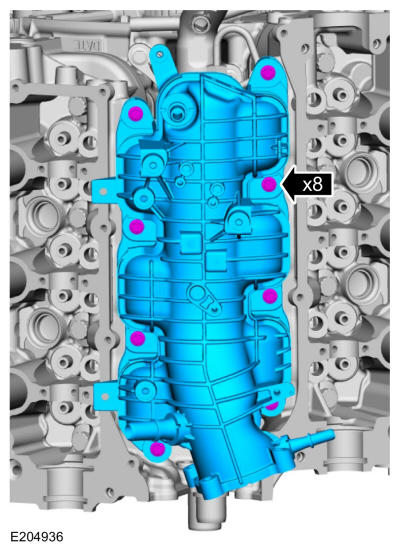

  22. Loosen the bolts and remove the intake manifold.
    GFD376809Courtesy of FORD MOTOR COMPANY

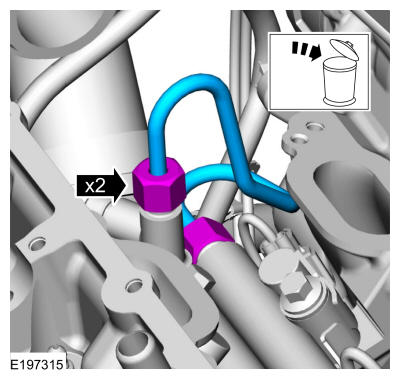

    • Loosen the fuel rail-to-fuel rail high-pressure fuel tube flare nuts.

    • Remove and discard the high-pressure fuel tube.

    GFD376810Courtesy of FORD MOTOR COMPANY

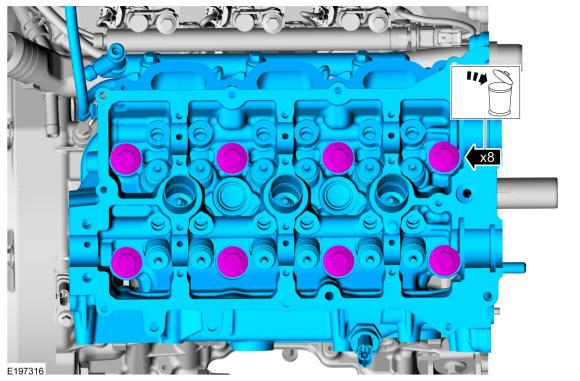

    • Remove and discard the cylinder head bolts.

    • Remove the cylinder head.

    GFD376845Courtesy of FORD MOTOR COMPANY

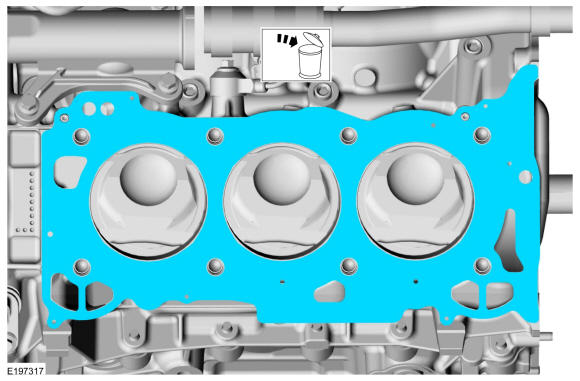

  25. Remove and discard the cylinder head gasket.
    GFD376846Courtesy of FORD MOTOR COMPANY

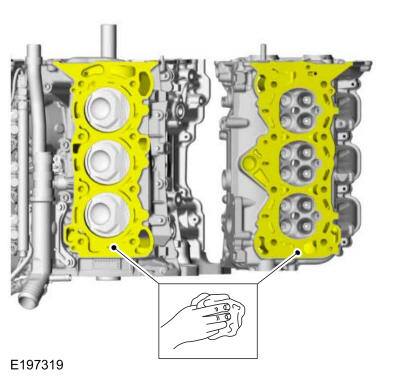

    • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.

GFD376847Courtesy of FORD MOTOR COMPANY
