Removal And Installation: Thermostat: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Drain the cooling system.
- Remove the engine mount. Refer to: Engine Mount .
-
NOTE: Cover the accessory drive belt to prevent coolant contamination of the belt.
Completely cover the accessory drive belt with waterproof plastic.
-
NOTE: During installation, make sure the coolant outlet connection is fully seated on the thermostat housing before tightening the bolts.

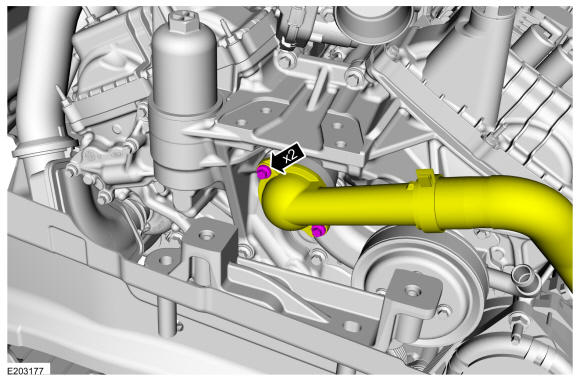

Remove the bolts and detach the coolant inlet connector.
Torque: 89 lb.in (10 Nm)
-

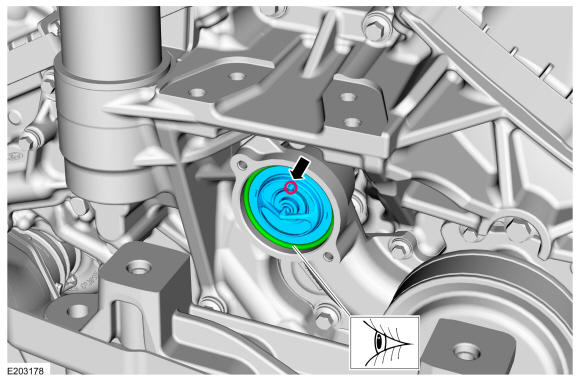

NOTE: During installation verify the thermostat vent hole is at the 12 o'clock position.
Remove the thermostat. Inspect the O-ring seal and replace if necessary.
