Cooling Fan Motor and Shroud: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the cooling module.

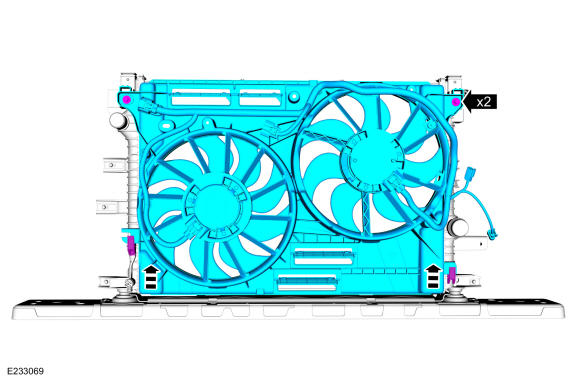

  2. Remove the bolts and the cooling fan motor and shroud.

    Torque: 53 lb.in (6 Nm)

GFD377151Courtesy of FORD MOTOR COMPANY
