Coolant Pump: Removal
WARNING: This page is about a different variant/trim than selected.
- Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the accessory drive belt. Refer to: Accessory Drive Belt .
- Remove the engine mount.
- Remove the thermostat. Refer to: Thermostat .

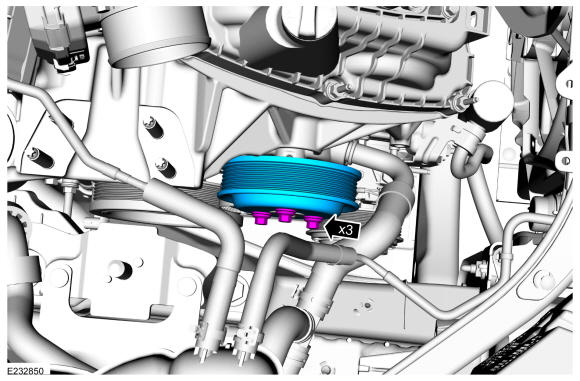

- Remove the bolts and the coolant pump pulley.

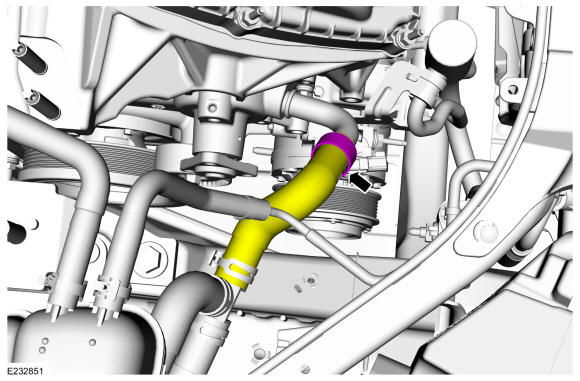

- Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
-
NOTE: Use caution to prevent damage to the coolant inlet pipe grommet.

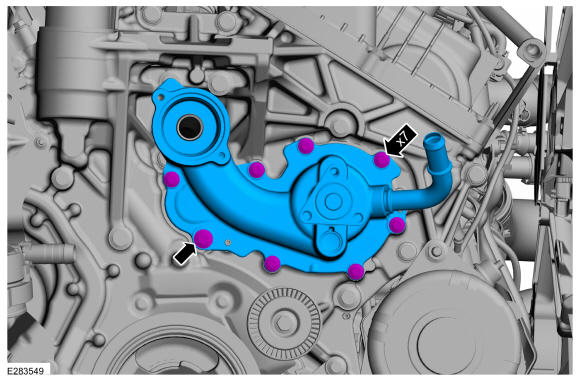

Remove the bolts and the coolant pump.

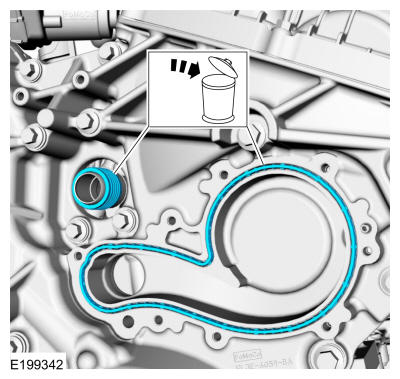

- Remove and discard the coolant pump gasket and seal.
