Coolant Pump: Installation
WARNING: This page is about a different variant/trim than selected.
-

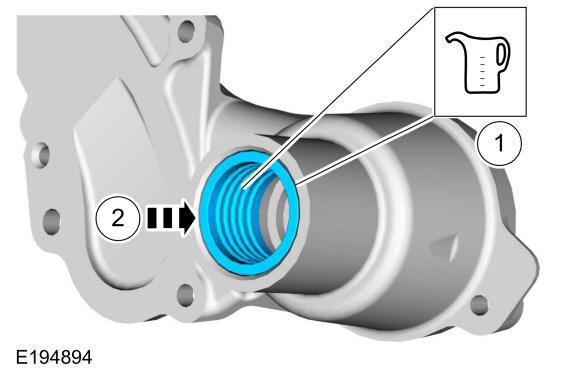

- Lubricate the inside and the outside diameter of the grommet with clean engine coolant.
- Install the grommet so it is flush with the rear of the coolant pump housing.
-
NOTE: Verify the front cover dowel pins are aligned to the coolant pump and that the coolant pump is fully seated prior to installing the fasteners.

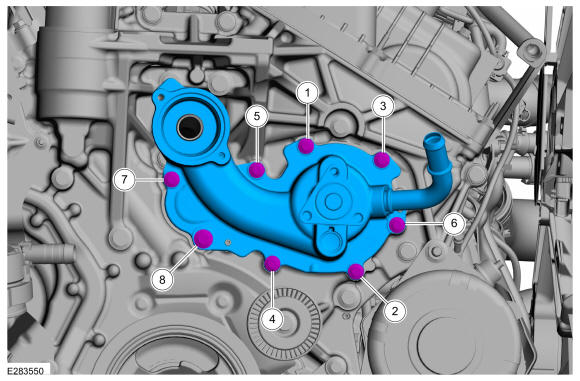

- Using a new gasket, install the coolant pump and the fasteners.
Torque: Fasteners 1-7: Stage 1: 89 lb.in (10 Nm) - Stage 2: 45°
- Torque: Fastener 8: 18 lb.ft (24 Nm)
- Using a new gasket, install the coolant pump and the fasteners.
- Connect the coolant hose and position the clamp. Use the General Equipment: Hose Clamp Remover/Installer
- Install the coolant pump pulley and the bolts.
Torque: 89 lb.in (10 Nm)
- Install the thermostat. Refer to: Thermostat .
- Install the engine mount.
- Install the accessory drive belt. Refer to: Accessory Drive Belt .
- Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
