FWD (Front Wheel Drive)
WARNING: This page is about a different variant/trim than selected.

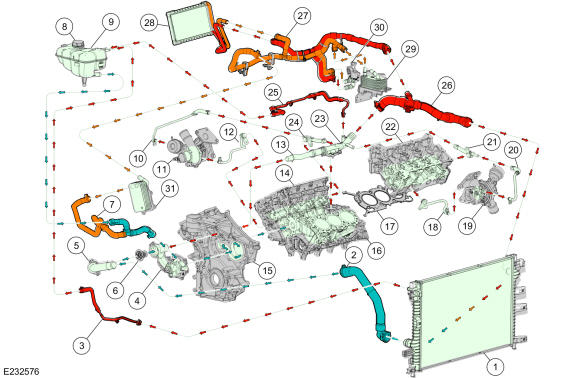

| Item | Description |
|---|---|
| 1 | Radiator |
| 2 | Lower radiator hose |
| 3 | Radiator-to-degas bottle hose |
| 4 | Coolant pump |
| 5 | Coolant inlet connector |
| 6 | Thermostat |
| 7 | Degas bottle hose |
| 8 | Pressure relief cap |
| 9 | Degas bottle |
| 10 | Turbocharger outlet tube RH |
| 11 | Turbocharger RH |
| 12 | Turbocharger inlet tube RH |
| 13 | Coolant outlet connector |
| 14 | Cylinder head RH |
| 15 | Engine front cover |
| 16 | Cylinder block |
| 17 | Cylinder head gasket LH |
| 18 | Turbocharger inlet tube LH |
| 19 | Turbocharger LH |
| 20 | Turbocharger outlet tube LH |
| 21 | Cylinder head to coolant outlet connector hose LH |
| 22 | Cylinder head LH |
| 23 | Coolant outlet connector |
| 24 | Cylinder head to coolant outlet connector hose RH |
| 25 | Coolant outlet connector-to-degas bottle hose |
| 26 | Upper radiator hose |
| 27 | Heater hose assembly |
| 28 | Heater core |
| 29 | Transmission fluid warmer |
| 30 | Transmission fluid heater coolant control valve |
| 31 | Engine oil cooler |
