Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

RH (right-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids

1. Remove the nut.
  Torque: 42 lb.in (4.8 Nm)
2. Detach the 2 engine appearance cover grommets from the ball studs and remove the engine appearance cover.
3. If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the valve cover.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY

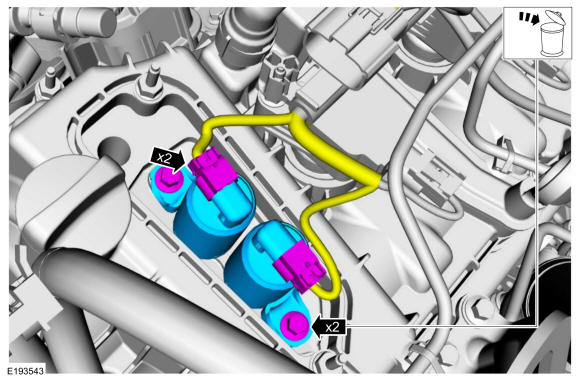

Disconnect the electrical connectors, remove the bolts and the RHVCT oil control solenoids.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

LH (left-hand) Variable Camshaft Timing (VCT) Oil Control Solenoids
1. Remove the nut.
  Torque: 42 lb.in (4.8 Nm)
2. Detach the 2 engine appearance cover grommets from the ball studs and remove the engine appearance cover.
3. If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the valve cover.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY

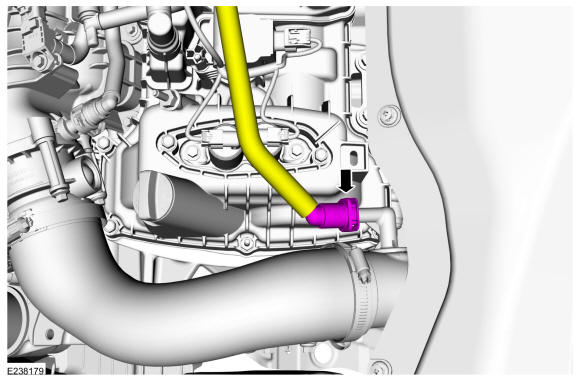

Disconnect the quick release coupling and position the tube aside. Refer to: Quick Release Coupling .

Courtesy of FORD MOTOR COMPANY

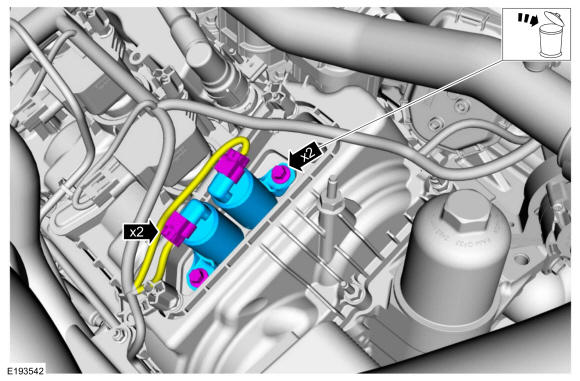

Disconnect the electrical connectors, remove the bolts and the LHVCT oil control solenoids.
Torque: 97 lb.in (11 Nm)
