Turbocharger Bypass Valve: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the nut.
  Torque: 42 lb.in (4.8 Nm)
2. Detach the 2 engine appearance cover grommets from the ball studs and remove the engine appearance cover.
3. If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the valve cover.
  Torque: 62 lb.in (7 Nm)
Courtesy of FORD MOTOR COMPANY

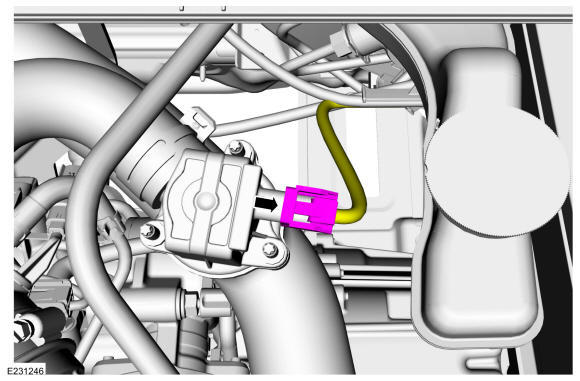

Disconnect the turbocharger bypass valve electrical connector.

Courtesy of FORD MOTOR COMPANY

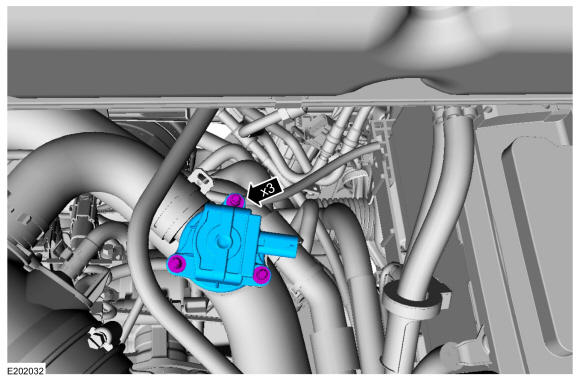

Remove the retainers and the turbocharger bypass valve.
Torque: 62 lb.in (7 Nm)
