Fuel Rail Pressure (FRP) Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the LH fuel rail. Refer to: Fuel Rail .

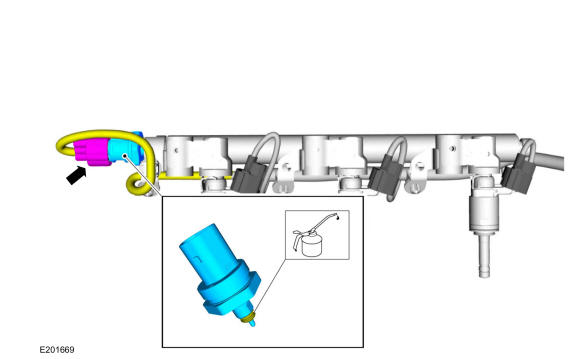

- Disconnect the electrical connector, remove the FRP sensor.
Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
Torque:Stage 1: 44 lb.in (5 Nm) - Stage 2: 19°
