Valve Cover RH: Installation

WARNING: This page is about a different variant/trim than selected.
  1. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    GFD376730Courtesy of FORD MOTOR COMPANY
  2. Install a new gasket.
    GFD376731Courtesy of FORD MOTOR COMPANY
  3. Apply clean engine oil to the surface.

    Material: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)

    GFD376732Courtesy of FORD MOTOR COMPANY
  4. NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    GFD376733Courtesy of FORD MOTOR COMPANY
  5. Install the valve cover and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    Fig 1: Valve Cover Tightening Sequence (3.0L EcoBoost)
    GFD376734Courtesy of FORD MOTOR COMPANY
  6. Install the RH coil-on-plugs. Refer to: Ignition Coil-On-Plug .
    • Connect the TC vacuum supply tube. Use the General Equipment: Hose Clamp Remover/Installer

    • Attach the vacuum tube retainers.

    GFD376638Courtesy of FORD MOTOR COMPANY
    • Attach the vacuum tube and coolant tube retainers.

    • Connect the engine wiring harness electrical connector and retainers.

    GFD376637Courtesy of FORD MOTOR COMPANY

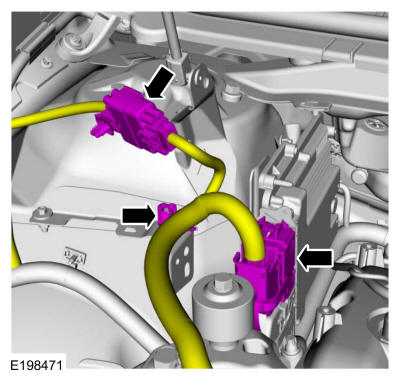

    • Connect the engine harness electrical connector and attach the retainer.

    • Connect the PCM electrical connector.

    GFD376916Courtesy of FORD MOTOR COMPANY
    1. Position the PCV tube and connect the quick release couplings. Refer to: Quick Release Coupling .
    2. Connect the throttle body electrical connector.
    GFD376634Courtesy of FORD MOTOR COMPANY
  11. Install the RH charge air cooler intake pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
  12. Attach the wiring harness retainer to the engine mount.
    GFD376583Courtesy of FORD MOTOR COMPANY
  13. Connect the engine wiring harness electrical connectors and attach the wiring harness retainer.
    GFD376214Courtesy of FORD MOTOR COMPANY
  14. If equipped, install the wiring harness cover and the retainer.
    GFD376238Courtesy of FORD MOTOR COMPANY
    1. Position the engine appearance cover and attach the 2 grommets onto the ball studs.
    2. Install the nut.

      Torque: 42 lb.in (4.8 Nm)

    GFD376885Courtesy of FORD MOTOR COMPANY
  16. Install a new engine oil filter and fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
