Timing Chain: Installation

LH timing chain

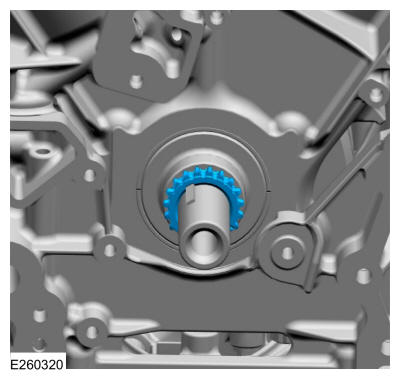

1. Install the timing chain sprocket.

   Courtesy of FORD MOTOR COMPANY

2. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the LH side the circle marks are used.
   1. Install the LH timing chain with the single colored links aligned with the circle  timing marks on the VCT units.
   2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

   Courtesy of FORD MOTOR COMPANY

3. Install the LH timing chain guide and bolts.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

4. Install the LH timing chain tensioner arm.

   Courtesy of FORD MOTOR COMPANY

5. Slide the tensioner cylinder out of the LH timing chain tensioner housing.

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Use vise jaw protectors or cover the jaws of the vise with clean shop towels to prevent damage to the surface of the tensioner ratchet mechanism.

   Mount the flat machined surfaces on the end of the tensioner cylinder into a vise.

   1. Using a flat-bladed screwdriver apply light downward pressure on the end of the tensioner ratchet mechanism. Use the General Equipment: ViseUse the General Equipment: Vise Jaw ProtectorsUse the General Equipment: Flat-Bladed Screwdriver
   2. Rotate the screwdriver clockwise approximately one turn.
   3. An audible click will be heard when the tensioner ratchet mechanism locks into place.

   Courtesy of FORD MOTOR COMPANY

7. Slide the tensioner cylinder into the tensioner housing until it contacts the bottom of the bore. The shoulder of the tensioner cylinder will be flush with the top of the housing.

   Courtesy of FORD MOTOR COMPANY

8. 1. Firmly press the tensioner cylinder into the tensioner housing until the shoulder of the tensioner cylinder is approximately 3 mm (0.125 in) below the top of the housing.
   2. Install a retaining pin into the hole in the housing to lock the tensioner cylinder in the retracted position.

   Courtesy of FORD MOTOR COMPANY

9. 1. Position the LH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
   2. Install the bolts.

      Torque: 89 lb.in (10 Nm)

   3. Remove the pin to allow the tensioner cylinder to extend and press against the timing chain tensioner arm.

   Courtesy of FORD MOTOR COMPANY

10. Install the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

11. NOTE: Loosening the oil pump bolts will aid in the installation of the oil pump drive belt.

    Loosen the oil pump bolts 3 turns.

    Courtesy of FORD MOTOR COMPANY

12. 1. Position the oil pump drive belt onto the oil pump sprocket and raise the front of the oil pump.
    2. Slide the oil pump drive belt onto the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

13. Tighten the oil pump bolts.

    Torque: Stage 1: 89 lb.in (10 Nm) - Stage 2: 45°

    Courtesy of FORD MOTOR COMPANY

14. Install the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

15. NOTE: The crankshaft must be rotated clockwise one revolution (360 degrees). Failure to do so will result in incorrect camshaft timing.
    1. Rotate the crankshaft clockwise one revolution (360 degrees).
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.

    Courtesy of FORD MOTOR COMPANY

16. Remove and discard the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

    RH and LH timing chains

17. Install the timing chain sprocket.

    Courtesy of FORD MOTOR COMPANY

18. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.
    1. Install the RH timing chain with the single colored links aligned with the triangle  timing marks on the VCT units.
    2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

19. Install the RH timing chain guide and bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

20. Install the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

21. Slide the tensioner cylinder out of the RH timing chain tensioner housing.

    Courtesy of FORD MOTOR COMPANY

22. NOTE: Use vise jaw protectors or cover the jaws of the vise with clean shop towels to prevent damage to the surface of the tensioner ratchet mechanism.

    Mount the flat machined surfaces on the end of the tensioner cylinder into a vise.

    1. Using a flat-bladed screwdriver apply light downward pressure on the end of the tensioner ratchet mechanism. Use the General Equipment: ViseUse the General Equipment: Vise Jaw ProtectorsUse the General Equipment: Flat-Bladed Screwdriver
    2. Rotate the screwdriver clockwise approximately one turn.
    3. An audible click will be heard when the tensioner ratchet mechanism locks into place.

    Courtesy of FORD MOTOR COMPANY

23. Slide the tensioner cylinder into the tensioner housing until it contacts the bottom of the bore. The shoulder of the tensioner cylinder will be flush with the top of the housing.

    Courtesy of FORD MOTOR COMPANY

24. 1. Firmly press the tensioner cylinder into the tensioner housing until the shoulder of the tensioner cylinder is approximately 3 mm (0.125 in) below the top of the housing.
    2. Install a retaining pin into the hole in the housing to lock the tensioner cylinder in the retracted position.

    Courtesy of FORD MOTOR COMPANY

25. 1. Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
    2. Install the bolts.

       Torque: 89 lb.in (10 Nm)

    3. Remove the pin to allow the tensioner cylinder to extend and press against the timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

26. Install the engine front cover. Refer to: ENGINE FRONT COVER .
