Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.

Install a new oil pump seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The oil pan must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 minutes of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.
1. Install a new oil pan press-in-place gasket.
2. Apply a 18 mm (0.708 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder block joint areas on the oil pan.
  Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
Courtesy of FORD MOTOR COMPANY
Install the oil pan and the bolts.
Torque: Stage 1: 31 lb.in (3.5 Nm) - Stage 2: 89 lb.in (10 Nm)

Fig 1: Oil Pan Tightening Sequence (3.0L EcoBoost)
Courtesy of FORD MOTOR COMPANY

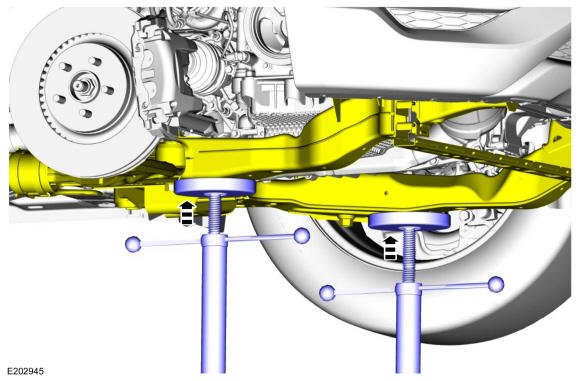

Using the adjustable stands raise the subframe into the installed position. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
NOTE: Align the reference marks made during removal.

NOTE: Only tighten the bolts finger tight at this stage.

Install the new subframe bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Align the reference marks made during removal.

NOTE: Only tighten the bolts finger tight at this stage.
1. Install the subframe brackets and the new subframe bolts.
2. Install the subframe bracket bolts.
Courtesy of FORD MOTOR COMPANY
NOTE: While tightening the subframe bolts, make sure the front subframe does not move.

Tighten the subframe bolts.

Torque: 173 lb.ft (235 Nm)

Courtesy of FORD MOTOR COMPANY
1. Tighten.
  Torque:Stage 1: 76 lb.ft (103 Nm) - Stage 2: 270°
2. Tighten.
  Torque: 35 lb.ft (48 Nm)
Courtesy of FORD MOTOR COMPANY
Remove. Use the General Equipment: Vehicle/Axle Stands

Courtesy of FORD MOTOR COMPANY
Install the cooling module support panel and the fasteners.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Install the subframe support bracket and the nuts.
Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

Position the RH sway bar link and install the new nut.

Torque: 85 lb.ft (115 Nm)

Courtesy of FORD MOTOR COMPANY
Install the RH ride height sensor. Refer to: Front Suspension Height Sensor .
Install the underbody shields and the retainers.

Courtesy of FORD MOTOR COMPANY
If equipped, install the front underbody straps and the retainers.

Courtesy of FORD MOTOR COMPANY

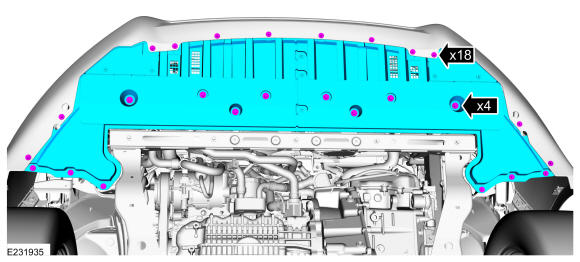

Install the front underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
Remove the cooling module support.

Courtesy of FORD MOTOR COMPANY
Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY
Install the accessory drive belt. Refer to: Accessory Drive Belt .
Install a new engine oil filter and fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
