Oil Cooler: Installation

WARNING: This page is about a different variant/trim than selected.

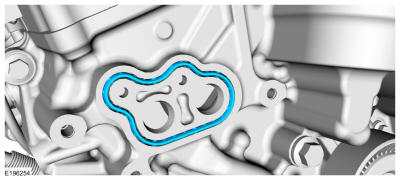

Install a new gasket.

Courtesy of FORD MOTOR COMPANY
Install the oil cooler and the fasteners.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Position the coolant hose and attach the retainer.

Courtesy of FORD MOTOR COMPANY
- Install the coolant hoses and clamps. Use the General Equipment: Hose Clamp Remover/Installer
- Remove the hose locking pliers. Use the General Equipment: Locking Pliers
Courtesy of FORD MOTOR COMPANY
Install the PCM. Refer to: Powertrain Control Module (PCM) .
Attach the wiring harness retainer to the engine mount.

Courtesy of FORD MOTOR COMPANY
Connect the engine wiring harness electrical connectors and attach the wiring harness retainer.

Courtesy of FORD MOTOR COMPANY
If equipped, install the wiring harness cover and the retainer.

Courtesy of FORD MOTOR COMPANY
Install a new engine oil filter and fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
Inspect and adjust the coolant level in the degas bottle.
Material: Motorcraft® Orange Prediluted Antifreeze/Coolant / VC-3DIL-B (WSS-M97B44-D2)
