Section 11 (Engine - 3.0L ECOBOOST (2 Of 2)): Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1246Engine Spreader BarTKIT-2006UF-FLMTKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634Lift Eyes (2)TKIT-2014D-ROW3TKIT-2014D-FL_ROW
Courtesy of FORD MOTOR COMPANY	307-346 (T97T-7902-A)Retainer, Torque ConverterTKIT-1998-LM (NavigatoR)TKIT-1997-F/FLM/LT
Floor Crane
Adjustable Mounting Arm
Hose Clamp Remover/Installer
Powertrain Jack
Wooden Block

Materials

LHD AWD/LHD FWD

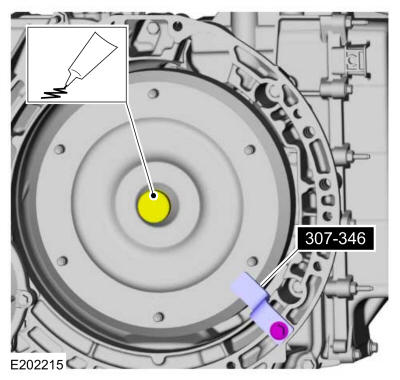

1. Lubricate the torque converter hub with multi-purpose grease. Remove Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Material

   : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

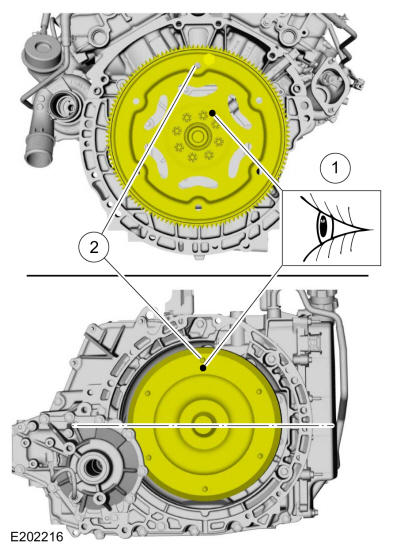

2. • Inspect the torque converter stud and flexplate for paint marks.
   • Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.

   Courtesy of FORD MOTOR COMPANY

3. Position the engine onto the transmission and subframe assembly. Use the General Equipment: Floor Crane

   Courtesy of FORD MOTOR COMPANY

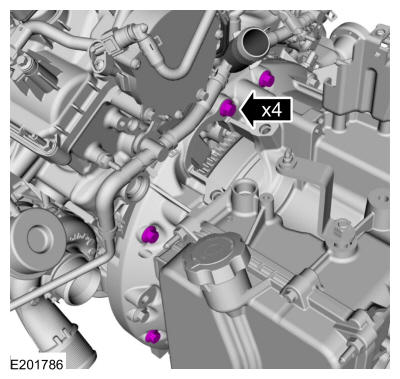

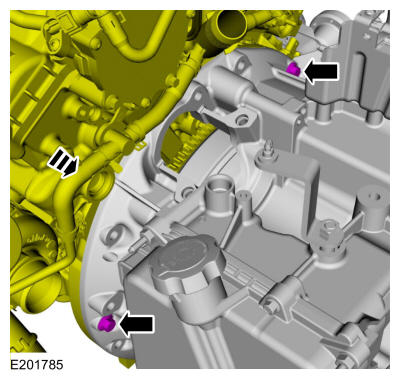

4. • Align the engine to the transmission and install the bolts.
   • Draw the engine and transmission together evenly using the bolts.

   Courtesy of FORD MOTOR COMPANY

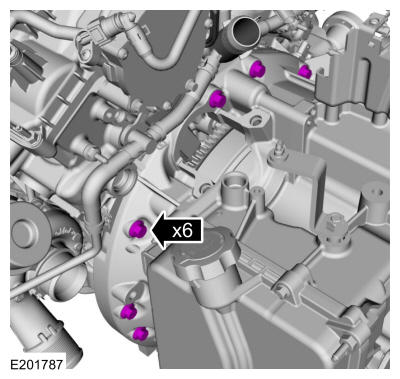

5. Install the transmission bellhousing bolts.

   Courtesy of FORD MOTOR COMPANY

6. Tighten.

   Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

7. NOTE: 4WD shown, 2WD similar.

   If equipped, install the transmission bellhousing bolt.

   Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

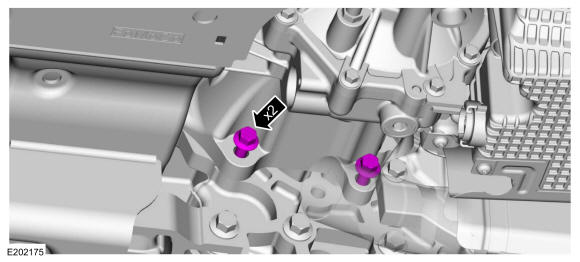

8. Install the transmission bellhousing bolts.

   Torque

   : 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

9. Install. Use the General Equipment: Adjustable Mounting Arm

   Courtesy of FORD MOTOR COMPANY

10. 1. Remove the floor crane and length of chain with connecting links. Use the General Equipment: Floor Crane
    2. Remove Special Service Tool: 303-1246 Engine Spreader Bar., 303-1634 Lift Eyes (2).

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

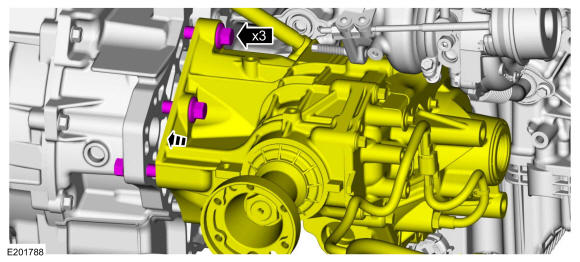

11. Using the bolts, draw the PTU up to the transmission.

    Torque

    : 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

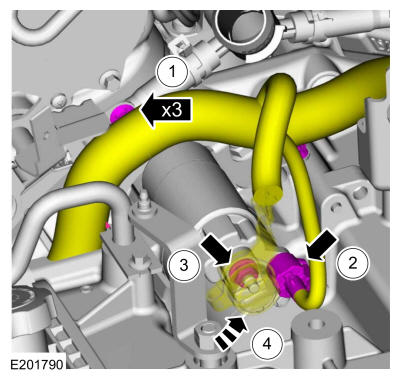

12. Install the bracket and the bolts.

    Torque

    : Bracket-to-engine block bolts: 35 lb.ft (48 Nm) Bracket -to-PTU bolts: 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Attach the PTU vent hose retainer.

    Courtesy of FORD MOTOR COMPANY

14. Install the heat shield and the bolts.

    Torque

    : 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

15. Install the heat shield and the bolts.

    Torque

    : 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

16. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

17. Attach the coolant tube retainers to the subframe.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD FWD

18. NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

    Install the new torque converter nuts.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Install the access cover and the retainers.

    Courtesy of FORD MOTOR COMPANY

20. Install the ground cable and the nut.

    Torque

    : 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

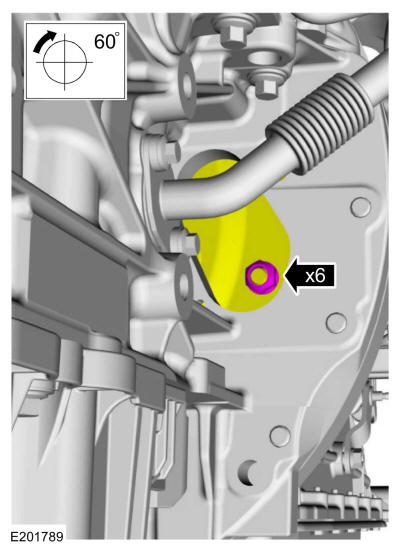

21. Install the starter and the stud bolts.

    Torque

    : 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Install the bracket and the nuts.

    Torque

    : 17 lb.ft (23 Nm)

    Courtesy of FORD MOTOR COMPANY

23. NOTE: Make sure that when installing the manual control lever, it is fully seated onto the manual control lever shaft. Damage to the manual control lever shaft will occur and the manual lever will come loose.
    NOTE: Make sure to hold the manual control lever while tightening the manual control lever nut or damage to the manual control lever and park components will occur.

    Install the manual control lever and the nut.

    Torque: 159 lb.in (18 Nm)

    Courtesy of FORD MOTOR COMPANY

24. 1. Attach the wiring harness retainers.
    2. Connect the starter electrical connector.
    3. Connect the starter cable and install the nut.

       Torque: 106 lb.in (12 Nm)

    4. Position the starter cable protective cover.

    Courtesy of FORD MOTOR COMPANY

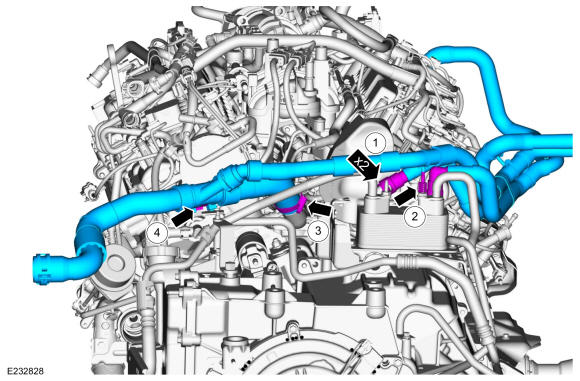

25. 1. Install the coolant hose assembly and connect the coolant hose quick connectors.
    2. Attach the coolant hose retainer onto the stud bolt.
    3. Slide the coolant hose onto the coolant outlet pipe and tighten the clamp.

       Torque: 44 lb.in (5 Nm)

    4. Slide the coolant hose retainer onto the bracket.

    Courtesy of FORD MOTOR COMPANY

26. • Connect the transmission electrical connector.
    • Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

27. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

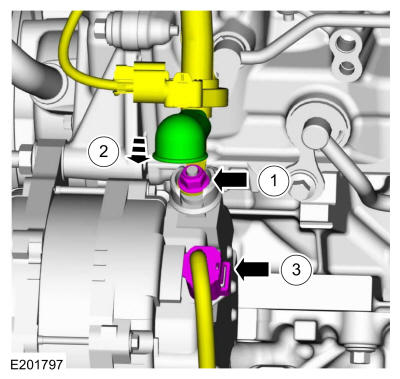

28. 1. Connect the generator cable and install the nut.

       Torque: 159 lb.in (18 Nm)

    2. Position the generator cable protective cover.
    3. Connect the generator electrical connector.

    Courtesy of FORD MOTOR COMPANY

29. Install a new RH catalytic converter gasket.

    Courtesy of FORD MOTOR COMPANY

30. 1. Install the RH catalytic converter.
    2. Install new RH catalytic converter nuts.

       Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

31. 1. Install.

       Torque: 22 lb.ft (30 Nm)

    2. Tighten.

       Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

32. Connect the RHHO2S and RH catalyst monitor sensor electrical connectors.

    Courtesy of FORD MOTOR COMPANY

33. Using the powertrain jack, raise the powertrain and subframe assembly into the engine compartment. Use the General Equipment: Powertrain Jack

    Courtesy of FORD MOTOR COMPANY

34. Install the transmission mount bolts.

    Torque: 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

35. Install the transmission support insulator bracket, the nuts and the bolt.

    Torque: Nuts: 66 lb.ft (90 Nm) Bolt: 97 lb.in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

36. NOTE: Hand tighten fasteners only at this time.
    1. Position the engine mount.
    2. Install the engine mount-to-engine nuts and hand tighten.
    3. Install the engine mount-to-frame bolts and hand tighten.
    4. Install the engine mount-to-frame nut and hand tighten.

    Courtesy of FORD MOTOR COMPANY

37. Tighten the engine mount-to-engine nuts.

    Torque: 59 lb.ft (80 Nm)

    Courtesy of FORD MOTOR COMPANY

38. NOTE: Align the reference marks made during removal.
    NOTE: Only tighten the bolts finger tight at this stage.

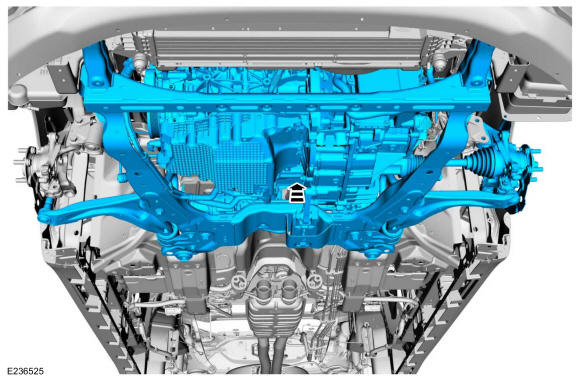

    Install the new subframe bolts.

    Courtesy of FORD MOTOR COMPANY

39. NOTE: Align the reference marks made during removal.
    NOTE: Only tighten the bolts finger tight at this stage.
    1. Install the subframe brackets and the new subframe bolts.
    2. Install the subframe bracket bolts.

    Courtesy of FORD MOTOR COMPANY

40. NOTE: While tightening the subframe bolts, make sure the front subframe does not move.

    Tighten the subframe bolts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

41. 1. Tighten.

       Torque: Stage 1: 76 lb.ft (103 Nm) - Stage 2: 270°

    2. Tighten.

       Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

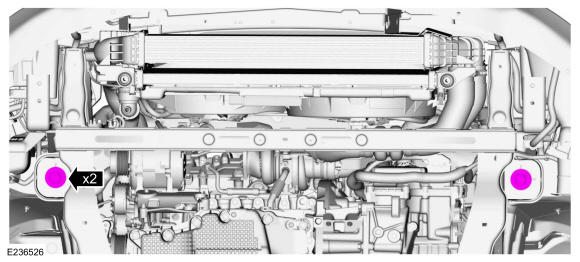

42. Install the bolts and nuts.

    Torque: 173 lb.ft (235 Nm)

    Courtesy of FORD MOTOR COMPANY

43. Remove. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

44. Install the engine-to-transmission bolt.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

45. Remove. Use the General Equipment: Powertrain JackUse the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

46. 1. Tighten the engine mount-to-frame bolts.

       Torque: 81 lb.ft (110 Nm)

    2. Tighten the engine mount-to-frame nut.

       Torque: 81 lb.ft (110 Nm)

    Courtesy of FORD MOTOR COMPANY

47. Install the cooling module support panel and the bolts.

    Torque: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

48. Tighten.

    Torque: 66 lb.ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

49. Install the rear driveshaft. Refer to: Rear Driveshaft .
50. Connect the coolant tubes and attach the retainer.

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD FWD

51. Remove the following items:
    1. Refer to: Catalytic Converter LH .
    2. Refer to: Exhaust Flexible Pipe .
    3. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

       LH brake disc. Refer to: Brake Disc .

    4. RH front halfshaft. Refer to: Front Halfshaft RH .

52. Install the subframe support bracket and the nuts.

    Torque: 33 lb.ft (45 Nm)

    Courtesy of FORD MOTOR COMPANY

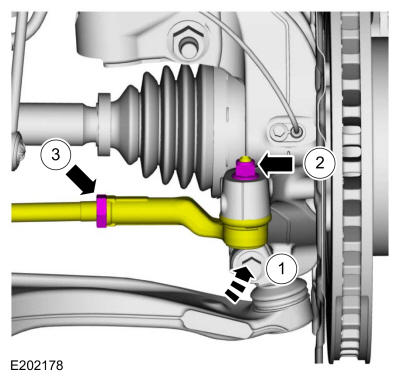

53. 1. Position the tie rod end into the wheel knuckle.
    2. Install the new tie rod end nut.

       Torque: 111 lb.ft (150 Nm)

    3. Tighten the tie rod end jam nut.

       Torque: 52 lb.ft (70 Nm)

    Courtesy of FORD MOTOR COMPANY

54. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the RH sway bar link and install the new nut.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

55. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the LH sway bar link and install the new nut.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

56. Install the LH anti-lock sensor and the bolt.

    Torque: 80 lb.in (9 Nm)

    Courtesy of FORD MOTOR COMPANY

57. Install the front ride height sensors. Refer to: Front Suspension Height Sensor .
58. 1. Position the A/C line bracket onto the generator stud.
    2. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

59. Install the generator nut.

    Torque: 35 lb.ft (47 Nm)

    Courtesy of FORD MOTOR COMPANY

60. Connect and attach the engine harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

61. Connect the transmission fluid cooler tube.

    Courtesy of FORD MOTOR COMPANY

62. Install the transmission fluid cooler tube secondary latch.

    Courtesy of FORD MOTOR COMPANY

63. Connect the transmission fluid cooler tube.

    Courtesy of FORD MOTOR COMPANY

64. Install the transmission fluid cooler tube secondary latch.

    Courtesy of FORD MOTOR COMPANY

65. 1. Position the high-pressure fuel pump noise insulator aside and connect the high-pressure fuel pump fuel feed tube quick release coupling. Refer to: Quick Release Coupling .
    2. Connect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

66. 1. Install the ground wire and the bolt.

       Torque: 159 lb.in (18 Nm)

    2. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

67. Connect the upper radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

68. 1. Install the heater hose and clamp. Use the General Equipment: Hose Clamp Remover/Installer
    2. Attach the heater hose retainer.
    3. Connect the lower radiator hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

69. Slide the coolant control solenoid onto the bracket.

    Courtesy of FORD MOTOR COMPANY

70. Connect the coolant control solenoid electrical connector.

    Courtesy of FORD MOTOR COMPANY

71. Connect the coolant hoses from the heater core. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

72. Attach the heater hose to the retainers.

    Courtesy of FORD MOTOR COMPANY

73. 1. Attach the cable to the transmission control lever.
    2. Position the cable and install the bolt.

       Torque: 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

74. Connect the vacuum tube quick release couplings. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

75. Remove the ground wire bolt and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

76. Install the bolt and attach the wiring harness retainers.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

77. Position the wiring harness and install the nuts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

78. Close the battery cable terminal cover.

    Courtesy of FORD MOTOR COMPANY

79. Position and install the fuse box.

    Courtesy of FORD MOTOR COMPANY

80. Install the ground cable and stud bolt.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

81. Install the following items:
    1. Refer to: Battery Tray .
    2. Refer to: Air Conditioning (A/C) Compressor - 3.0L EcoBoost .
    3. Refer to: Accessory Drive Belt .

82. Install the upper CAC outlet pipe and tighten the clamps.

    Torque: 48 lb.in (5.4 Nm)

    Courtesy of FORD MOTOR COMPANY

83. Install the following items:
    1. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    2. Refer to: Air Cleaner Outlet Pipe RH .
    3. Refer to: Air Cleaner Outlet Pipe LH .
    4. Refer to: Air Cleaner .
    5. Refer to: Oil Cooler .
    6. Refer to: Degas Bottle .

84. Attach the wiring harness retainer to the engine mount.

    Courtesy of FORD MOTOR COMPANY

85. • Connect the engine wiring harness electrical connector and retainer.
    • Connect the PCM electrical connector.

    Courtesy of FORD MOTOR COMPANY

86. If equipped, install the wiring harness cover and the retainer.

    Courtesy of FORD MOTOR COMPANY

87. 1. Position the engine appearance cover and attach the 2 grommets onto the ball studs.
    2. Install the nut.

       Torque: 42 lb.in (4.8 Nm)

    Courtesy of FORD MOTOR COMPANY

88. Install the underbody shields and the retainers.

    Courtesy of FORD MOTOR COMPANY

89. If equipped, install the front underbody straps and the retainers.

    Courtesy of FORD MOTOR COMPANY

90. Install the underbody shields and the retainers.

    Courtesy of FORD MOTOR COMPANY

91. Install the front fender splash shields. Refer to: Fender Splash Shield .
92. Remove the support.

    Courtesy of FORD MOTOR COMPANY

93. Position steering column shaft and install a new bolt.

    Torque: 18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

94. Remove the holding device.

    Courtesy of FORD MOTOR COMPANY

95. Install a new engine oil filter and fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
96. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
97. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
98. Charge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant . Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
99. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
100. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
