Section 11 (Engine - 3.0L ECOBOOST (2 Of 2)): Disassembly: Engine

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W)Handle
Courtesy of FORD MOTOR COMPANY	303-1246Engine Spreader BarTKIT-2006UF-FLMTKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1247VCT Spark Plug Tube Seal Remover and InstallerTKIT-2006UF-FLMTKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1248Camshaft holding toolsTKIT-2006UF-FLMTKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634Lift Eyes (2)TKIT-2014D-ROW3TKIT-2014D-FL_ROW
Courtesy of FORD MOTOR COMPANY	303-409 (T92C-6700-CH)Remover, Crankshaft SealTKIT-1992-FH/FMH/FLMHTKIT-1993-LMH/MH
Floor Crane
Three Leg Puller
Mounting Stand
Plastic Scraper
Hose Clamp Remover/Installer
Flat-Bladed Screwdriver

1. Remove the bolts and the flexplate.

   Courtesy of FORD MOTOR COMPANY

2. Remove the crankshaft sensor ring.

   Courtesy of FORD MOTOR COMPANY

3. Inspect the crankshaft sensor ring for damage. If the crankshaft sensor ring has been dropped or has any visual damage, it must be discarded.

   Courtesy of FORD MOTOR COMPANY

4. 1. Disconnect the CKP sensor electrical connector.
   2. Remove the bolt and the CKP sensor.

   Courtesy of FORD MOTOR COMPANY

5. Remove the bolts and the crankshaft rear seal and retainer plate.
   • Discard the crankshaft rear seal and retainer plate.

   Courtesy of FORD MOTOR COMPANY

6. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

   Courtesy of FORD MOTOR COMPANY

7. Using a floor crane, install the engine on a mounting stand. Remove Special Service Tool: 303-1246 Engine Spreader Bar., 303-1634 Lift Eyes (2).Use the General Equipment: Floor CraneUse the General Equipment: Mounting Stand

   Courtesy of FORD MOTOR COMPANY

8. • Remove the bolts and the accessory drive belt tensioner.
   • Remove the bolt and the idler pulley.
   • Remove the bolts and the coolant pump pulley.
   • Remove the generator stud.
   • Remove the bolt and the generator.

   Courtesy of FORD MOTOR COMPANY

9. • Disconnect the oil pressure control solenoid electrical connector.
   • Remove the retainer and the oil pressure control solenoid.

   Courtesy of FORD MOTOR COMPANY

10. Detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

11. • Disconnect the KS electrical connector.
    • Detach the wiring harness retainer.
    • Remove the nut, the bolt and the bracket.

    Courtesy of FORD MOTOR COMPANY

12. Remove the stud bolt and the ground wire.

    Courtesy of FORD MOTOR COMPANY

13. • Disconnect the high pressure fuel pump electrical connector.
    • Detach the wiring harness retainers.
    • Remove the stud bolt and the ground wire.

    Courtesy of FORD MOTOR COMPANY

14. • Disconnect the PCV tube quick release couplings and remove the tube. Refer to: Quick Release Coupling .
    1. Disconnect the throttle body electrical connector and detach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

15. • Disconnect the crankcase pressure sensor electrical connector.
    • Detach the PCV tube retainer.
    • Disconnect the PCV tube quick release coupling and remove the tube. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

16. Disconnect the EVAP tube quick release coupling and remove the tube. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

17. 1. Disconnect the EVAP tube quick release coupling. Refer to: Quick Release Coupling .
    2. Disconnect the EVAP purge valve electrical connector.
    3. Lift the EVAP purge valve off of the intake manifold mounting tab and remove the valve from the engine.

    Courtesy of FORD MOTOR COMPANY

18. Disconnect the engine wiring harness electrical connectors and retainers.

    Courtesy of FORD MOTOR COMPANY

19. 1. Remove the vacuum harness pressure sensor bolt.
    2. Disconnect the MAP sensor electrical connector.
    3. Detach the wiring harness and vacuum harness retainers.

    Courtesy of FORD MOTOR COMPANY

20. • Slide the insulator up to access the CHT electrical connector.
    • Disconnect the engine wiring harness electrical connectors and detach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

21. • Disconnect the engine wiring harness electrical connectors.
    • Detach the wiring harness retainers and remove the harness from the engine.

    Courtesy of FORD MOTOR COMPANY

22. Detach the vacuum hose retainers.
    • Release the clamp and disconnect the vacuum hose from the TC.

    Courtesy of FORD MOTOR COMPANY

23. 1. Release the clamp and disconnect the vacuum hose from the TC.
    2. Remove the vacuum control solenoid bolts.
    3. Disconnect the vacuum tube quick release coupling. Refer to: Quick Release Coupling .
    4. Detach the retainers and remove the vacuum tube assembly from the engine.

    Courtesy of FORD MOTOR COMPANY

24. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

    Remove the bolts and the coil-on-plug assemblies.

    Courtesy of FORD MOTOR COMPANY

25. Remove the oil level indicator.

    Courtesy of FORD MOTOR COMPANY

26. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris if found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

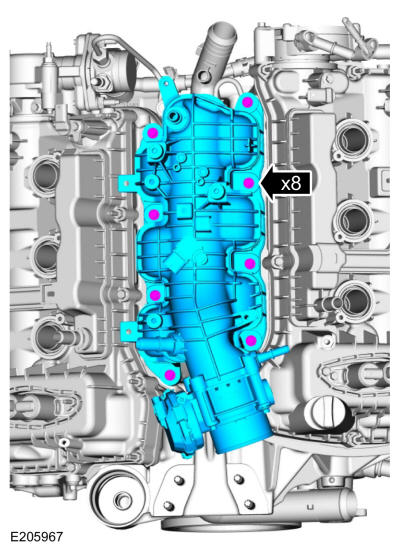

    Loosen the bolts and remove the intake manifold.

    Courtesy of FORD MOTOR COMPANY

27. Inspect the gaskets and replace as necessary.

    Courtesy of FORD MOTOR COMPANY

28. NOTE: To release the fuel pressure in the high-pressure fuel tube, wrap the high-pressure fuel tube flare nuts with a shop towel to absorb any residual fuel pressure during the loosening of high-pressure fuel tube flare nuts.
    • Loosen the high-pressure fuel pump-to-fuel rail high-pressure fuel tube flare nuts.
    • Remove and discard the high-pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

29. NOTE: Alternately loosen the high-pressure fuel pump nuts one revolution at a time.

    Remove the nuts and the high-pressure fuel pump.

    Courtesy of FORD MOTOR COMPANY

30. Remove and discard the high-pressure fuel pump O-ring seal.

    Courtesy of FORD MOTOR COMPANY

31. Remove the high-pressure fuel pump tappet.

    Courtesy of FORD MOTOR COMPANY

32. Inspect the high-pressure fuel pump roller tappet. If any flat spots or scoring are found, especially in the indicated areas, then inspect the high-pressure fuel pump and the high-pressure fuel pump roller tappet drive lobe. Install new components as necessary.

    Courtesy of FORD MOTOR COMPANY

33. Remove the stud bolts and the high-pressure fuel pump drive unit.

    Courtesy of FORD MOTOR COMPANY

34. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Courtesy of FORD MOTOR COMPANY

35. • Loosen the fuel rail-to-fuel rail high-pressure fuel tube flare nuts.
    • Remove and discard the high-pressure fuel tube.

    Courtesy of FORD MOTOR COMPANY

36. Remove the bolts and the brake vacuum pump.

    Courtesy of FORD MOTOR COMPANY

37. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Courtesy of FORD MOTOR COMPANY

38. Remove the bolts and the coolant pump.

    Courtesy of FORD MOTOR COMPANY

39. Remove and discard the coolant pump gasket and seal.

    Courtesy of FORD MOTOR COMPANY

40. Remove the bolts and the TC heat shield.

    Courtesy of FORD MOTOR COMPANY

41. Remove the bolts and the TC oil supply tube.

    Courtesy of FORD MOTOR COMPANY

42. Remove and discard the TC oil supply tube oil filter and the O-ring seals.

    Courtesy of FORD MOTOR COMPANY

43. Remove the bolts and the TC oil return tube.

    Courtesy of FORD MOTOR COMPANY

44. Remove and discard the TC oil return tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

45. Remove and discard the TC oil return tube-to-engine block gasket.

    Courtesy of FORD MOTOR COMPANY

46. Release the clamp and disconnect the TC coolant return hose. Use the General Equipment: Hose Clamp Remover/Installer

    Courtesy of FORD MOTOR COMPANY

47. NOTE: Remove the TC coolant supply tube from the engine block while removing the TC.
    • Remove the TC coolant supply tube bolt.
    • Remove the TC bolt.
    • Remove the nuts and the TC.

    Courtesy of FORD MOTOR COMPANY

48. Remove and discard the TC coolant supply tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

49. • Remove and discard the TC gasket.
    • Remove and discard the TC mounting studs.

    Courtesy of FORD MOTOR COMPANY

50. Remove the bolts and the TC oil supply tube.

    Courtesy of FORD MOTOR COMPANY

51. Remove and discard the TC oil supply tube O-ring seals and the TC oil supply tube oil filter.

    Courtesy of FORD MOTOR COMPANY

52. Remove the bolt and disconnect the TC coolant return tube.

    Courtesy of FORD MOTOR COMPANY

53. Remove and discard the TC coolant return tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

54. NOTE: AWD shown FWD is similar.

    Remove the bolts and the TC oil return tube.

    Courtesy of FORD MOTOR COMPANY

55. Remove and discard the TC oil return tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

56. Remove and discard the TC oil return tube-to-engine block gasket.

    Courtesy of FORD MOTOR COMPANY

57. Remove the TC coolant supply tube bolt.

    Courtesy of FORD MOTOR COMPANY

58. NOTE: Remove the TC coolant supply tube from the engine block while removing the TC.

    Remove the retainers and the TC.

    Courtesy of FORD MOTOR COMPANY

59. Remove and discard the TC coolant supply tube O-ring seal.

    Courtesy of FORD MOTOR COMPANY

60. Remove and discard the TC gasket.

    Courtesy of FORD MOTOR COMPANY

61. Remove and discard the TC mounting studs.

    Courtesy of FORD MOTOR COMPANY

62. Remove the oil pan bolts.

    Courtesy of FORD MOTOR COMPANY

63. 1. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and separate the oil pan from the bottom of the engine.
    2. NOTE: Do not reuse the oil pans sealed by Motorcraft® High Performance Engine RTV Silicone. Oil pans sealed by Motorcraft® High Performance Engine RTV Silicone are to be removed and discarded. The replacement oil pan will have a press-in-place gasket.

       Remove the oil pan. Discard the oil pan if it is sealed with Motorcraft® High Performance Engine RTV Silicone.

    Courtesy of FORD MOTOR COMPANY

64. If equipped, remove and discard the oil pan press-in-place gasket.

    Courtesy of FORD MOTOR COMPANY

65. Remove and discard the oil pump seal.

    Courtesy of FORD MOTOR COMPANY

66. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Courtesy of FORD MOTOR COMPANY

67. Loosen the fasteners and remove the valve cover.

    Courtesy of FORD MOTOR COMPANY

68. Remove and discard the gasket.
    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Courtesy of FORD MOTOR COMPANY

69. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

70. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Courtesy of FORD MOTOR COMPANY

71. Loosen the fasteners and remove the valve cover.

    Courtesy of FORD MOTOR COMPANY

72. Remove and discard the gasket.
    • Clean the valve cover gasket groove with soap and water or a suitable solvent.

    Courtesy of FORD MOTOR COMPANY

73. Inspect the spark plug seals. Remove any damaged seals using the special tools. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

74. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Courtesy of FORD MOTOR COMPANY

75. Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

76. Using the 3 Leg Puller and a step plate, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller

    Courtesy of FORD MOTOR COMPANY

77. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.
    1. Install the crankshaft pulley bolt.
    2. Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
    3. NOTE: Retain the original crankshaft pulley bolt for turning the crankshaft while the pulley is removed.

       Remove the crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

78. NOTE: There are 4 different types of fasteners, note location of each fastener for assembly.

    Remove the engine front cover fasteners.

    Courtesy of FORD MOTOR COMPANY

79. Using a large flat-bladed screwdriver and the indicated pry pads, release the sealer and remove the engine front cover. Use the General Equipment: Flat-Bladed Screwdriver

    Courtesy of FORD MOTOR COMPANY

80. Remove and discard the engine front cover gaskets.

    Courtesy of FORD MOTOR COMPANY

81. Remove and discard the oil gallery seal (6G068).

    Courtesy of FORD MOTOR COMPANY

82. • Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

    Courtesy of FORD MOTOR COMPANY

83. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Courtesy of FORD MOTOR COMPANY

84. NOTE: Rotate the crankshaft utilizing only the original crankshaft pulley bolt. Failure to follow this direction may cause damage to the crankshaft and result in engine failure.

    Install the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

85. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.
    1. Rotate the crankshaft clockwise.
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. Verify the triangle  timing marks on the VCT units are at the 2 o'clock (intake) and 11 o'clock (exhaust) positions. If the circle  timing marks are at these positions the crankshaft must be turned clockwise one revolution (360 degrees).

    Courtesy of FORD MOTOR COMPANY

86. Remove the bolts and the RH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

87. Remove the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

88. Remove the bolts and the RH timing chain guide.

    Courtesy of FORD MOTOR COMPANY

89. Remove the RH timing chain.

    Courtesy of FORD MOTOR COMPANY

90. NOTE: The crankshaft must be rotated clockwise one revolution (360 degrees). Failure to do so will result in incorrect camshaft timing.
    NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the LH side the circle marks are used.
    1. Rotate the crankshaft clockwise one revolution (360 degrees).
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.
    3. The circle  timing marks on the VCT units will be at the 10 o'clock (intake) and 12:30 (exhaust) positions.

    Courtesy of FORD MOTOR COMPANY

91. Remove the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

92. Remove the timing chain sprocket.

    Courtesy of FORD MOTOR COMPANY

93. Slide the oil pump drive belt off of the crankshaft sprocket and remove the belt.

    Courtesy of FORD MOTOR COMPANY

94. Remove the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

95. Remove the bolts and the LH timing chain tensioner.

    Courtesy of FORD MOTOR COMPANY

96. Remove the LH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

97. Remove the bolts and the LH timing chain guide.

    Courtesy of FORD MOTOR COMPANY

98. Remove the LH timing chain.

    Courtesy of FORD MOTOR COMPANY

99. Remove the timing chain sprocket.

    Courtesy of FORD MOTOR COMPANY

100. Remove the bolts and the oil pump.

     Courtesy of FORD MOTOR COMPANY

101. 1. Install Special Service Tool: 303-1248 Camshaft holding tools.
     2. Remove and discard the VCT unit bolts.
     3. Remove the VCT units.

     Courtesy of FORD MOTOR COMPANY

102. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

103. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

104. Remove the intake and exhaust camshafts.

     Courtesy of FORD MOTOR COMPANY

105. 1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
     2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
     3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

106. 1. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
     2. NOTE: Do not pry the cylinder head to coolant outlet connector behind the bracket. If necessary, use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

        Remove the bolt and the cylinder head to coolant outlet connector hose assembly.

     Courtesy of FORD MOTOR COMPANY

107. • Remove and discard the cylinder head bolts.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

108. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

109. • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.
     • Refer to: Cylinder Head Distortion .
     • Refer to: Cylinder Block Distortion .

     Courtesy of FORD MOTOR COMPANY

110. 1. Install Special Service Tool: 303-1248 Camshaft holding tools.
     2. Remove and discard the VCT unit bolts.
     3. Remove the VCT units.

     Courtesy of FORD MOTOR COMPANY

111. NOTE: The front camshaft bearing mega cap must be removed first and then the remaining camshaft bearing caps. Failure to follow this direction may result in damage to the engine.

     Remove the bolts and the front camshaft bearing mega cap.

     Courtesy of FORD MOTOR COMPANY

112. Remove the bolts and the camshaft bearing caps.

     Courtesy of FORD MOTOR COMPANY

113. Remove the intake and exhaust camshafts.

     Courtesy of FORD MOTOR COMPANY

114. 1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.
     2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.
     3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

     Courtesy of FORD MOTOR COMPANY

115. 1. Release the clamp and disconnect the coolant hose. Use the General Equipment: Hose Clamp Remover/Installer
     2. NOTE: Do not pry the cylinder head to coolant outlet connector behind the bracket. If necessary, use gripping pliers to pull the cylinder head to coolant outlet connector from the cylinder head.

        Remove the bolt and the cylinder head to coolant outlet connector hose assembly.

     Courtesy of FORD MOTOR COMPANY

116. • Remove and discard the cylinder head bolts.
     • Remove the cylinder head.

     Courtesy of FORD MOTOR COMPANY

117. Remove and discard the cylinder head gasket.

     Courtesy of FORD MOTOR COMPANY

118. • Clean and inspect the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block.
     • Refer to: Cylinder Head Distortion .
     • Refer to: Cylinder Block Distortion .

     Courtesy of FORD MOTOR COMPANY

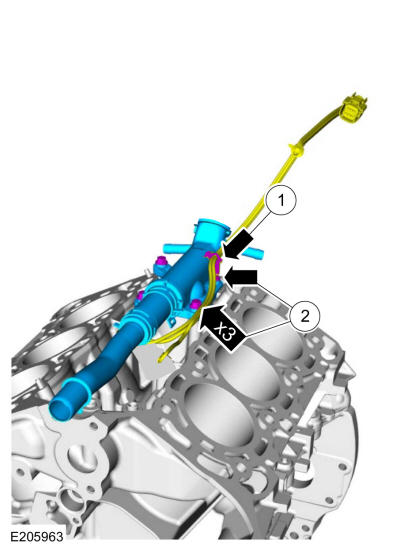

119. 1. Detach the wiring harness retainer from the stud bolt.
     2. Remove the stud bolt, the nuts and the coolant outlet connector pipe.

     Courtesy of FORD MOTOR COMPANY

120. 1. Disconnect the ECT sensor electrical connector.
     2. Remove the bolts and the KS assembly.

     Courtesy of FORD MOTOR COMPANY

121. NOTE: Do not reuse the ECT sensor, install a new sensor.

     Remove and discard the ECT sensor.

     Courtesy of FORD MOTOR COMPANY

122. Remove the engine block skirt stiffener bolts.

     Courtesy of FORD MOTOR COMPANY

123. Using a suitable pry bar at the 4 pry pad locations, release the engine block skirt stiffener-to-engine block seal.

     Courtesy of FORD MOTOR COMPANY

124. • Remove the engine block skirt stiffener.
     • Remove and discard the oil seal.

     Courtesy of FORD MOTOR COMPANY

125. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

     Courtesy of FORD MOTOR COMPANY

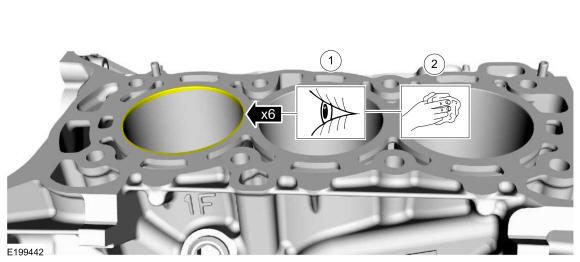

126. • Before removing the pistons, inspect the top of the cylinder bores.
     • If necessary, remove the ridge or carbon deposits from each cylinder using an abrasive pad.

     Courtesy of FORD MOTOR COMPANY

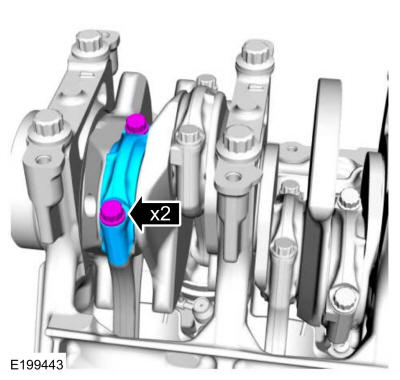

127. Remove the bolts and the connecting rod cap.

     Courtesy of FORD MOTOR COMPANY

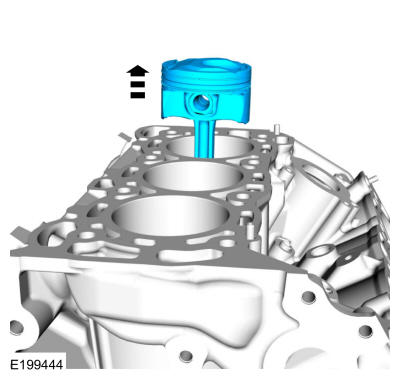

128. NOTE: Position the cylinder bank for the piston serviced in a vertical position. Do not scratch the cylinder walls or crankshaft journals with the connecting rod or engine damage may occur.
     • Remove the piston through the top of the cylinder block
     • Repeat the steps for each of the remaining pistons.

     Courtesy of FORD MOTOR COMPANY

129. • Remove the connecting rod bearings.
     • Disassemble and inspect the pistons. Refer to: Piston . Refer to: Piston Inspection .

     Courtesy of FORD MOTOR COMPANY

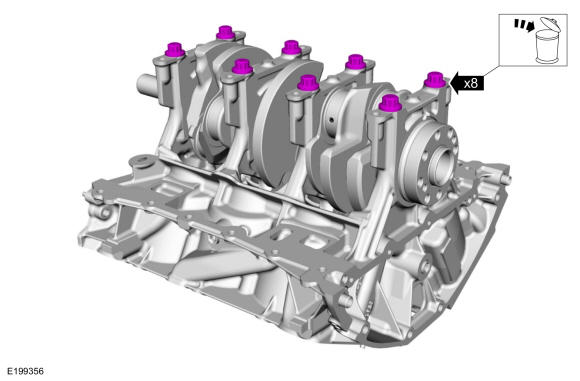

130. Remove and discard the main bearing cap bolts.

     Courtesy of FORD MOTOR COMPANY

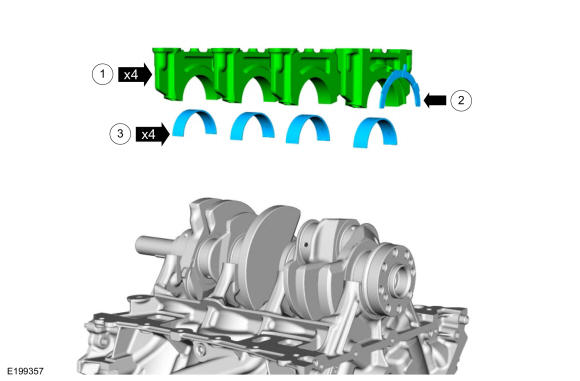

131. 1. Remove the main bearing caps.
     2. Remove the lower thrust washer.
     3. Remove the lower main bearings.

     Courtesy of FORD MOTOR COMPANY

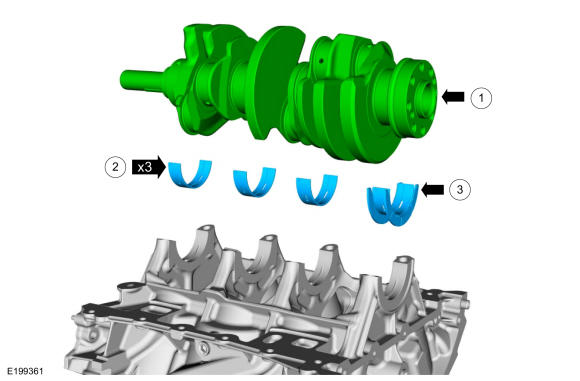

132. 1. Remove the crankshaft.
     2. Remove the lower main bearings.
     3. Remove the lower thrust bearing.

     Courtesy of FORD MOTOR COMPANY

133. Remove the bolts and the piston cooling jets from the cylinder block.

Courtesy of FORD MOTOR COMPANY
