Transmission Range Control Module (TRCM): Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: When replacing the TRCM, it is necessary to initiate "Default to Park".

    1. Remove the RH side fender splash shield. Refer to: Fender Splash Shield .
    2. Turn key on, engine off.
    3. Open driver's door and leave open.
    4. Shift the vehicle to R by pressing the R on the GSM.
    5. NOTE: Release the locking tab on the TRCM electrical connector before disconnecting.

      Disconnect the TRCM and wait approximately 5 seconds until "Default to Park" initiates.

    6. Turn key off and close driver's door.

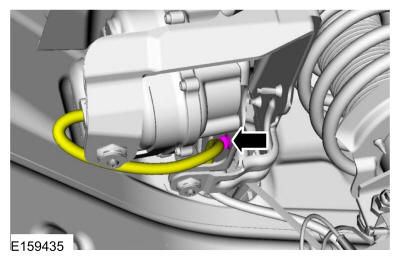

  3. Detach the wiring harness retainer.
    GFD378863Courtesy of FORD MOTOR COMPANY

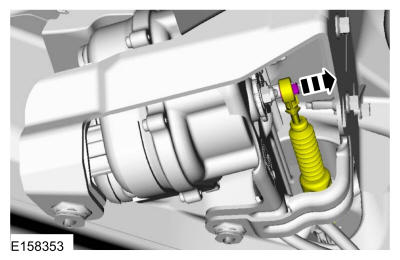

  4. Detach the selector lever cable from the TRCM lever.
    GFD378864Courtesy of FORD MOTOR COMPANY
  5. Remove the retaining clip bolt and detach the selector lever cable from the selector lever cable bracket.
    GFD378865Courtesy of FORD MOTOR COMPANY
  6. Remove the bolts and the TRCM.
GFD378866Courtesy of FORD MOTOR COMPANY
