Selector Lever Cable: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Before beginning any service procedure in this information, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
  1. Refer to: Health and Safety Precautions .
  2. With the vehicle in N, position it on hoist. Refer to: Jacking and Lifting - Overview .
  3. Remove the air cleaner outlet pipe.
  4. Remove the battery tray. Refer to: Battery Tray .

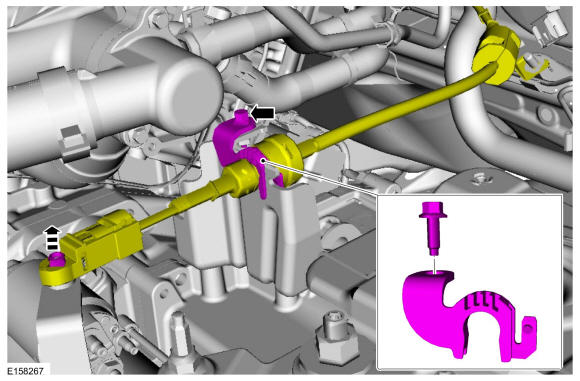

  5. Disconnect the selector lever cable from the transmission manual lever and the bracket.

    • Remove the selector lever cable bracket bolt.

    • Disengage the selector lever cable holding clip.

    • Disconnect the selector lever cable.

    GFD378854Courtesy of FORD MOTOR COMPANY

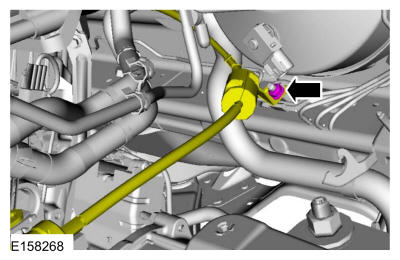

  6. Remove the nut and disconnect the selector lever cable.
    GFD378873Courtesy of FORD MOTOR COMPANY

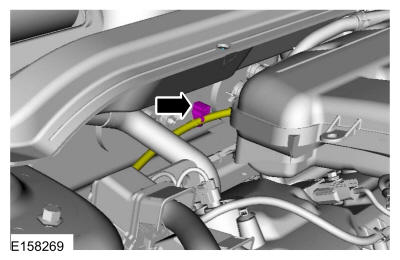

  7. Disconnect the selector lever cable retainer.
    GFD378874Courtesy of FORD MOTOR COMPANY
  8. Remove the RH fender splash shield. Refer to: Fender Splash Shield .

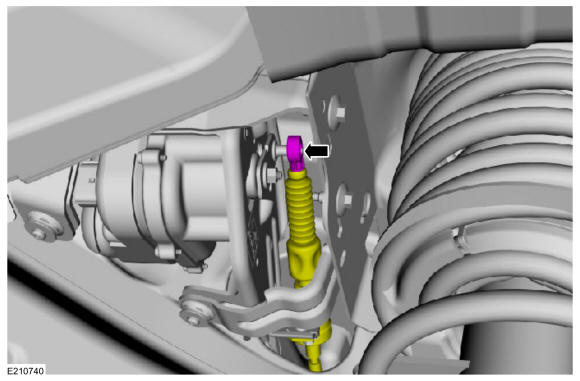

  9. Detach the selector lever cable from the TRCM lever.
    GFD378857Courtesy of FORD MOTOR COMPANY

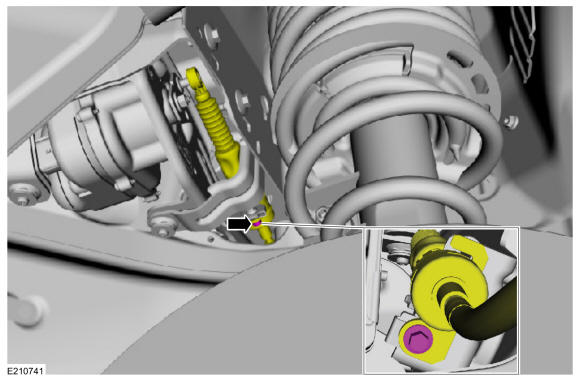

  10. Remove the selector lever cable retaining clip bolt.
    GFD378858Courtesy of FORD MOTOR COMPANY

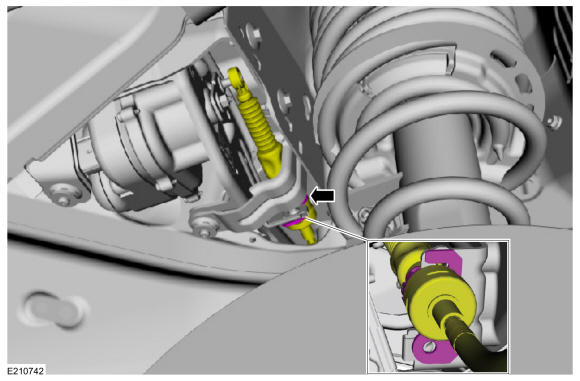

  11. Release the tab and detach the selector lever cable from the selector lever cable bracket.
    GFD378859Courtesy of FORD MOTOR COMPANY

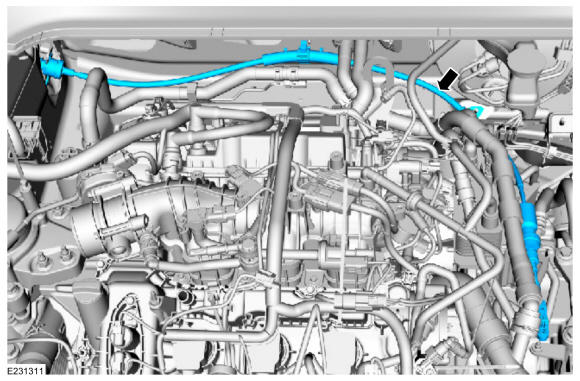

  12. Remove the selector lever cable.
GFD378860Courtesy of FORD MOTOR COMPANY
