Downshift Paddle Switch: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver airbag. Refer to: Driver Airbag .

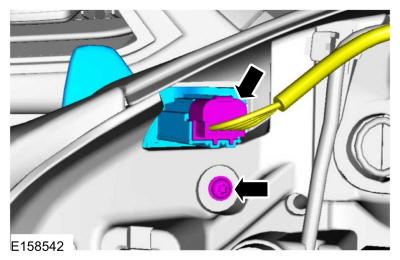

  2. Remove the downshift paddle switch.

    • Disconnect the downshift paddle switch electrical connector.

    • Remove the screw and the downshift paddle switch.

      Torque: 44 lb.in (5 Nm)

GFD378851Courtesy of FORD MOTOR COMPANY
