Brake Shift Interlock Actuator Manual Override
WARNING: This page is about a different variant/trim than selected.
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Activation
-
NOTE: This vehicle is equipped with a brake shift interlock feature that prevents the vehicle from being moved out of P when the ignition is in the ON position until the brake pedal is applied.
Proceed with this procedure if the vehicle cannot be moved out of the P position when the ignition is in the ON position and the brake pedal is applied. Check for BSIA DTC. If BSIA DTC are present, Refer to: External Controls .

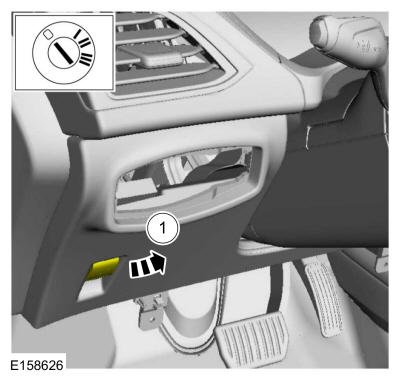

- Turn the ignition switch off and apply the parking brake.
-
NOTE: When the GSM flashes, the vehicle is in override mode.

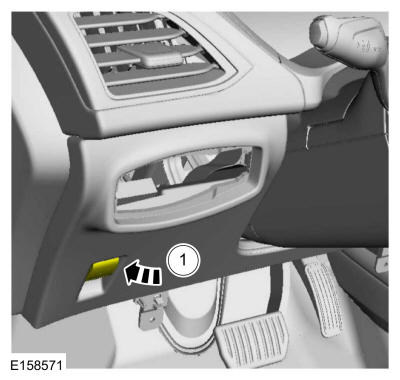

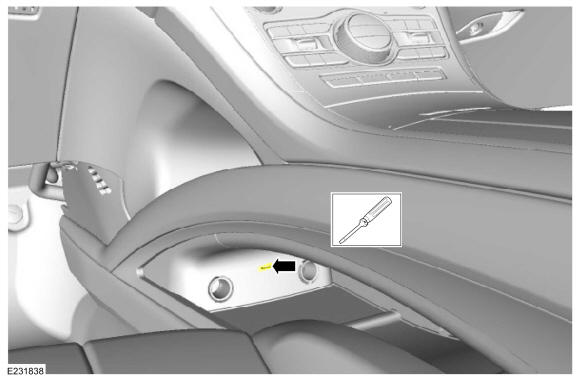

Press and hold the brake shift interlock override switch.

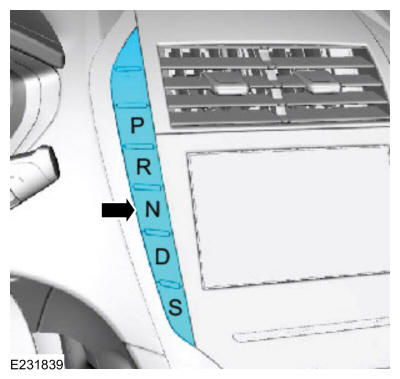

- While holding the brake shift interlock override switch, press the N button on the GSM.
- Release the parking brake.
