Remote Keyless Entry And Alarm

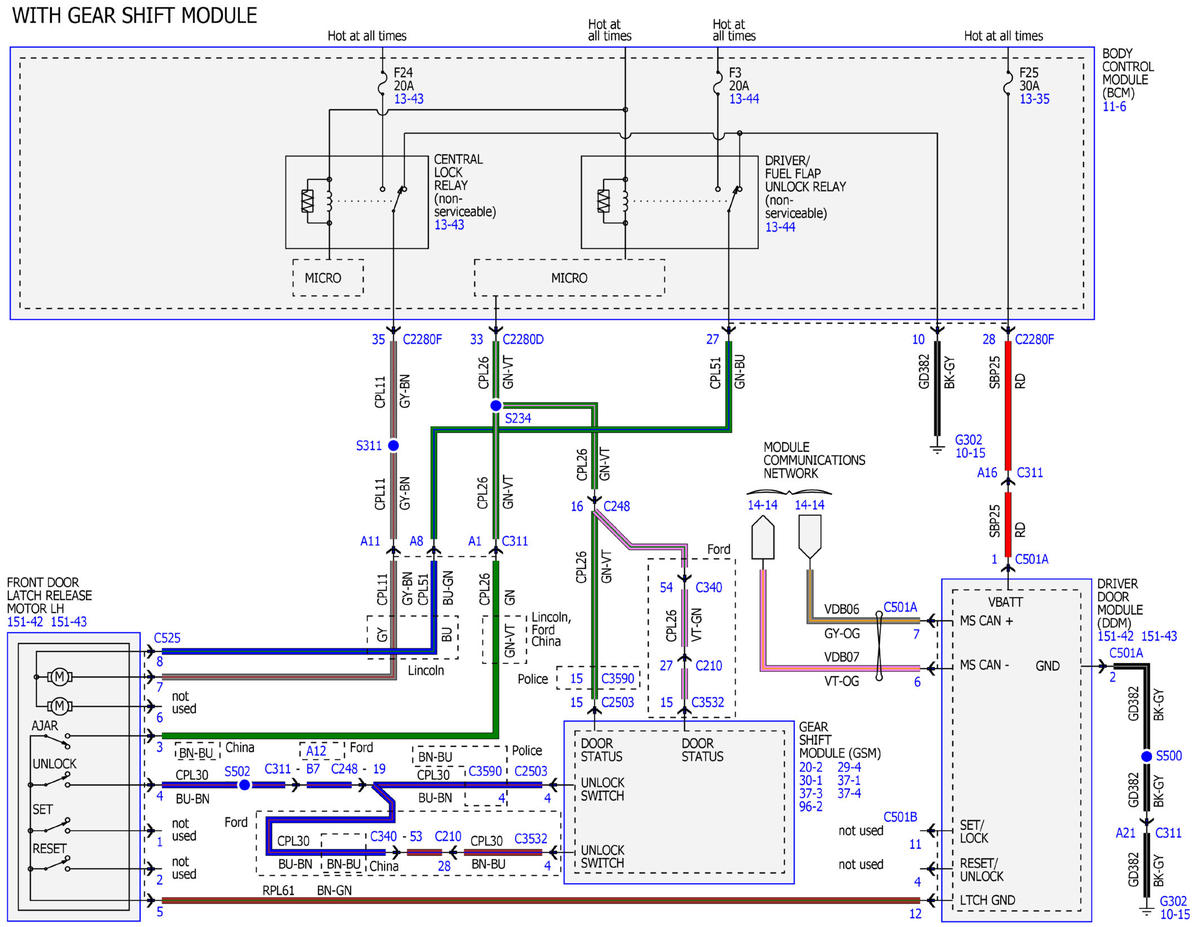

Fig 1: Remote Keyless Entry And Alarm Wiring Diagram (1 Of 21)

GFDWR50400

Courtesy of FORD MOTOR COMPANY

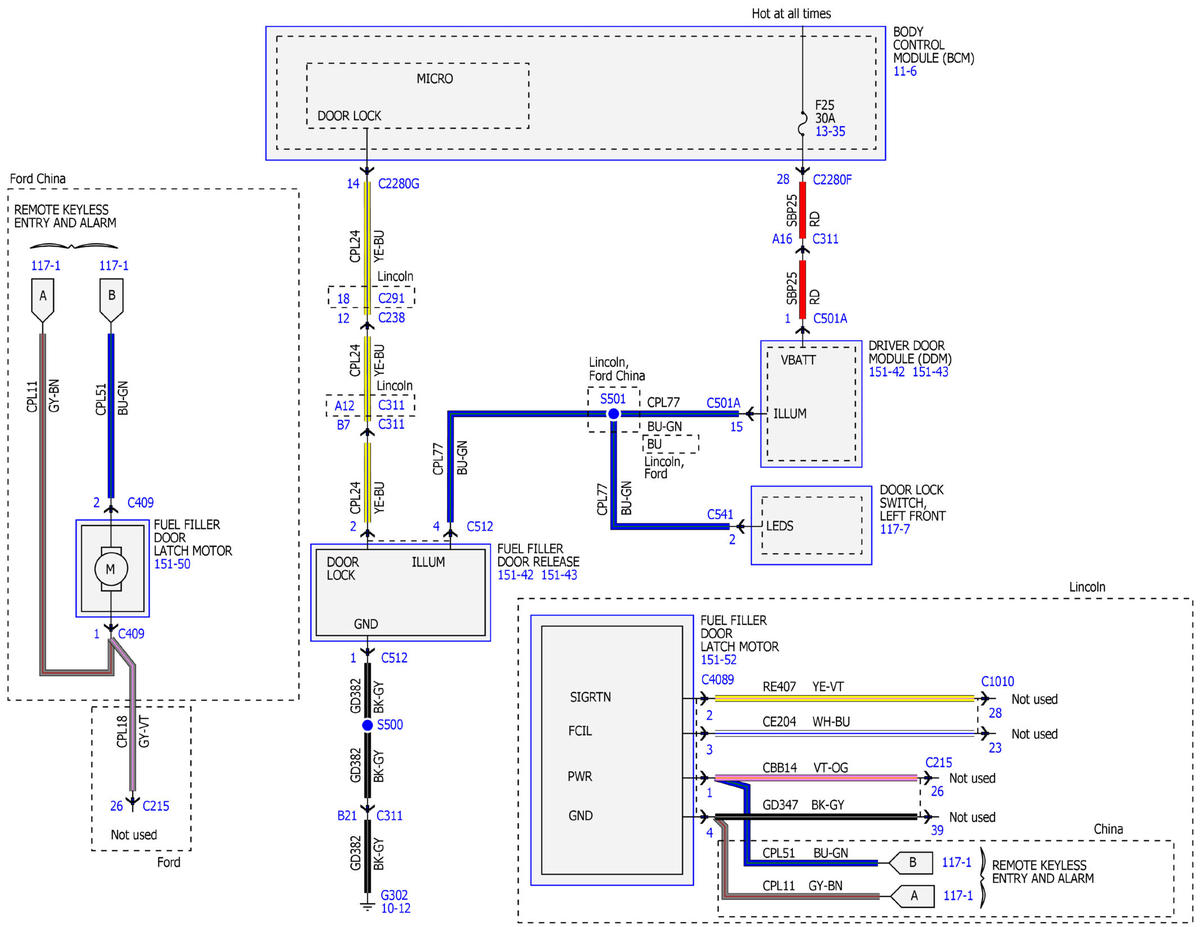

Fig 2: Remote Keyless Entry And Alarm Wiring Diagram (2 Of 21)

GFDWR50401

Courtesy of FORD MOTOR COMPANY

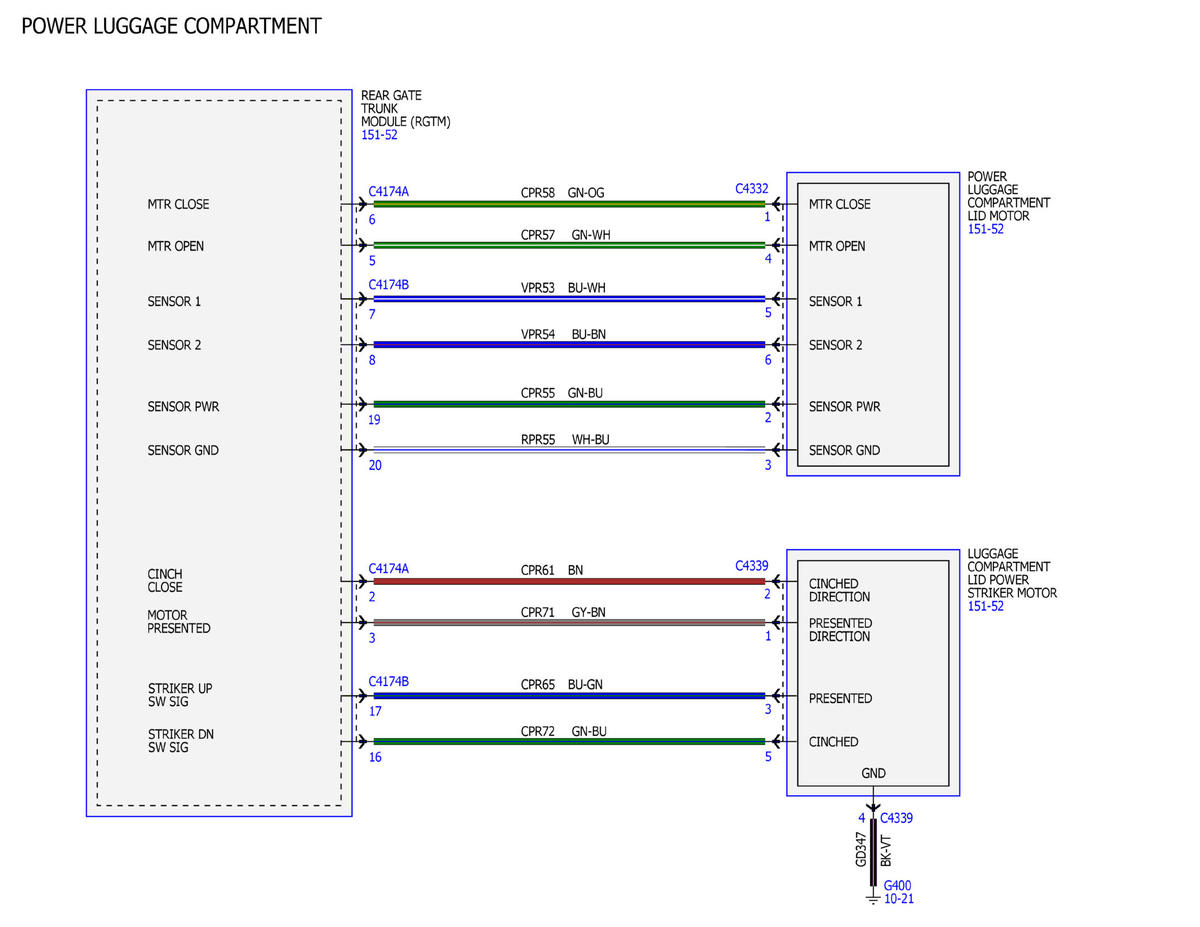

Fig 3: Remote Keyless Entry And Alarm Wiring Diagram (3 Of 21)

GFDWR50402

Courtesy of FORD MOTOR COMPANY

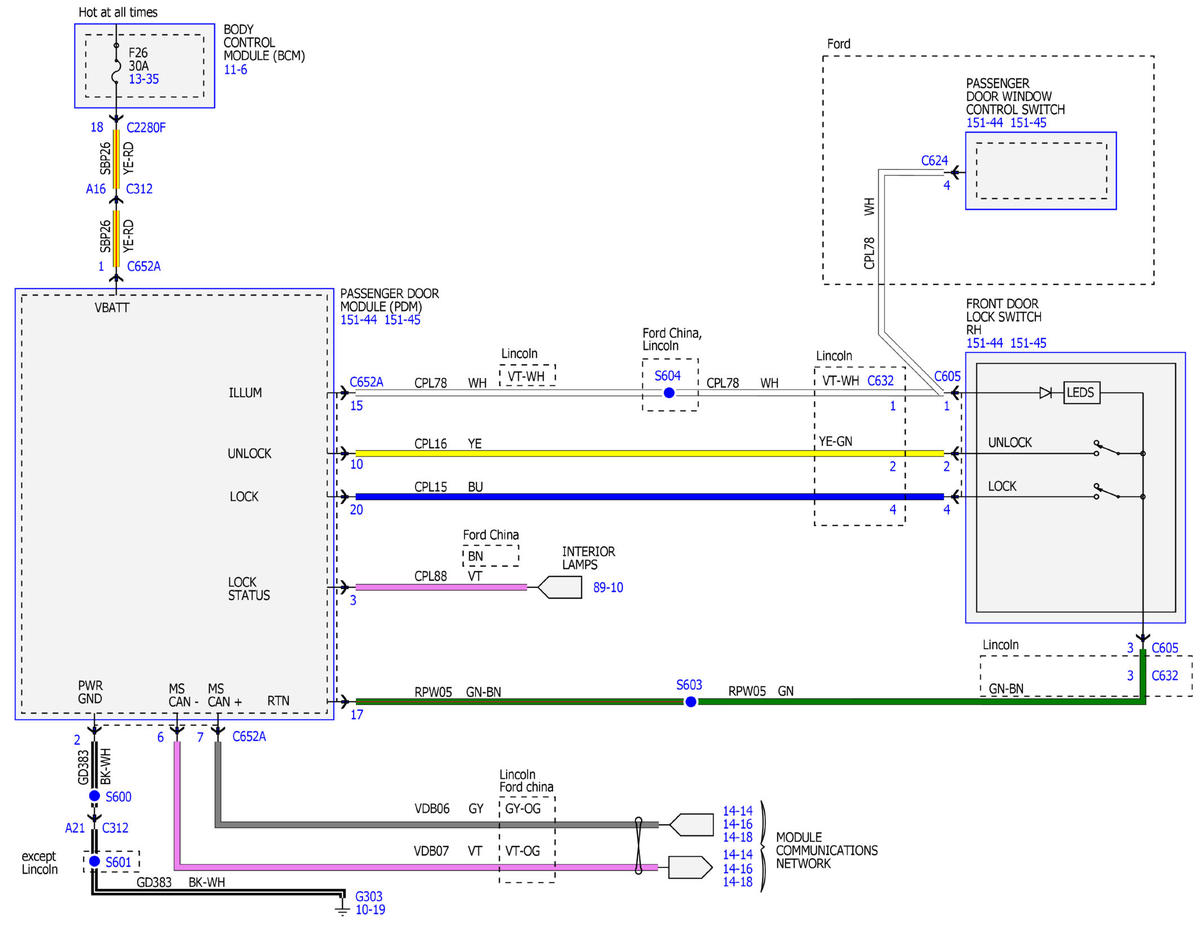

Fig 4: Remote Keyless Entry And Alarm Wiring Diagram (4 Of 21)

GFDWR50403

Courtesy of FORD MOTOR COMPANY

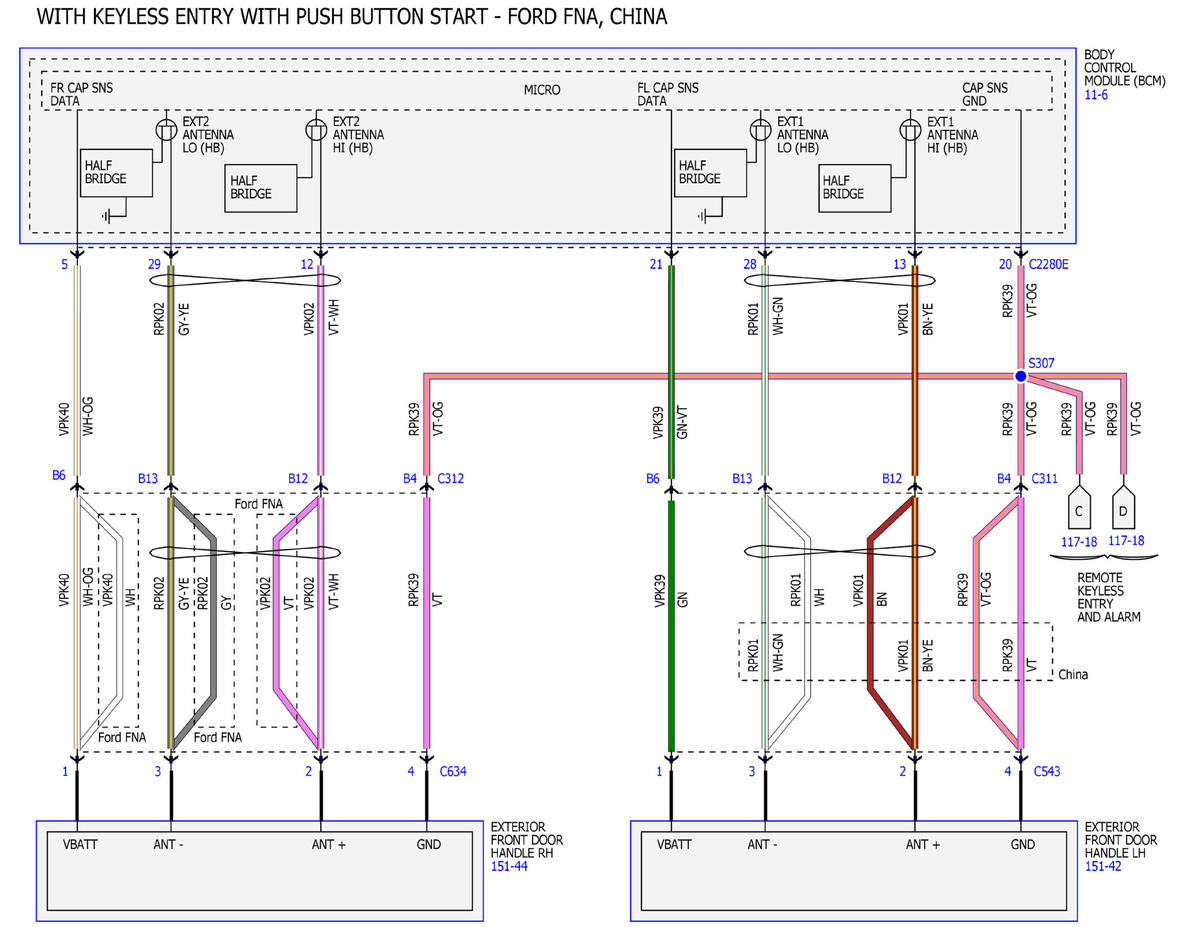

Fig 5: Remote Keyless Entry And Alarm Wiring Diagram (5 Of 21)

GFDWR50404

Courtesy of FORD MOTOR COMPANY

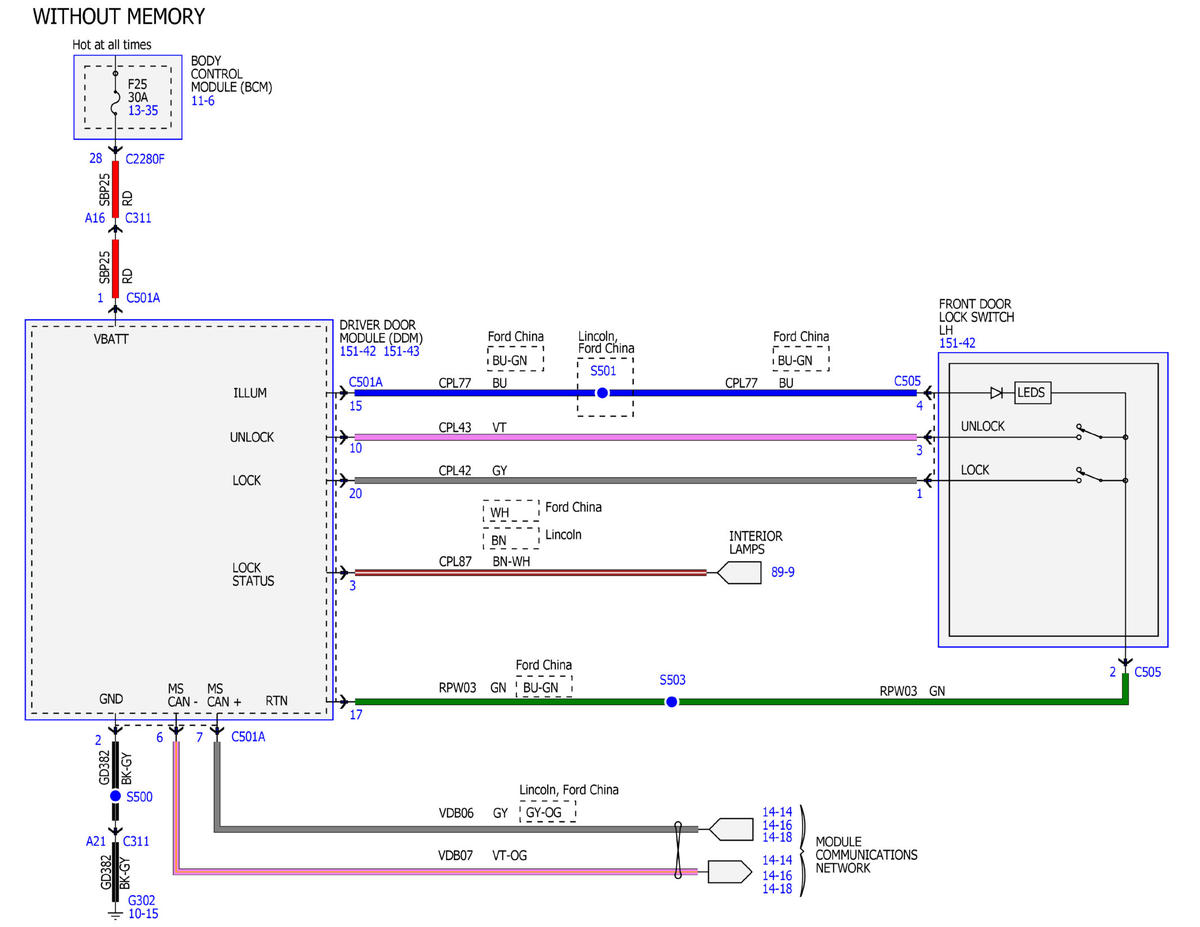

Fig 6: Remote Keyless Entry And Alarm Wiring Diagram (6 Of 21)

GFDWR50405

Courtesy of FORD MOTOR COMPANY

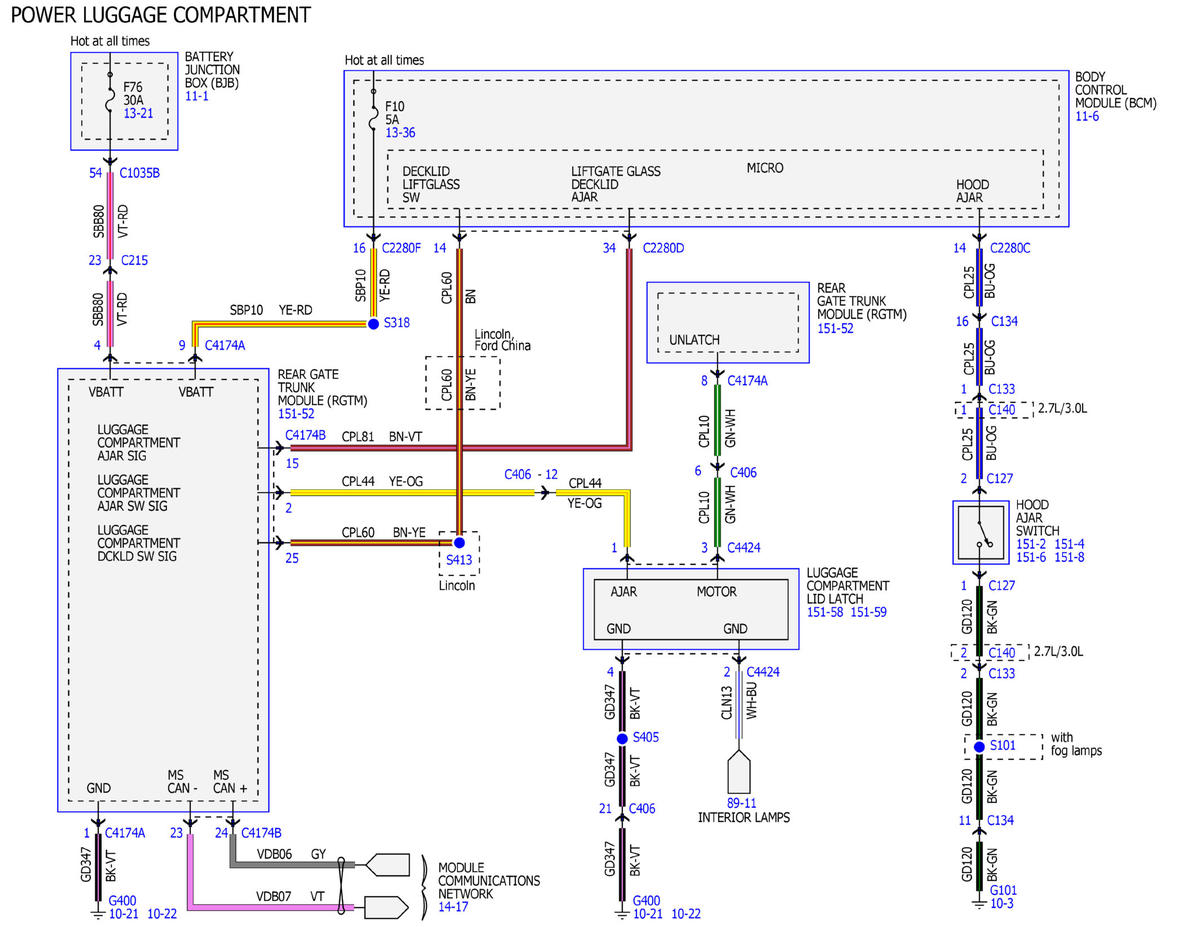

Fig 7: Remote Keyless Entry And Alarm Wiring Diagram (7 Of 21)

GFDWR50406

Courtesy of FORD MOTOR COMPANY

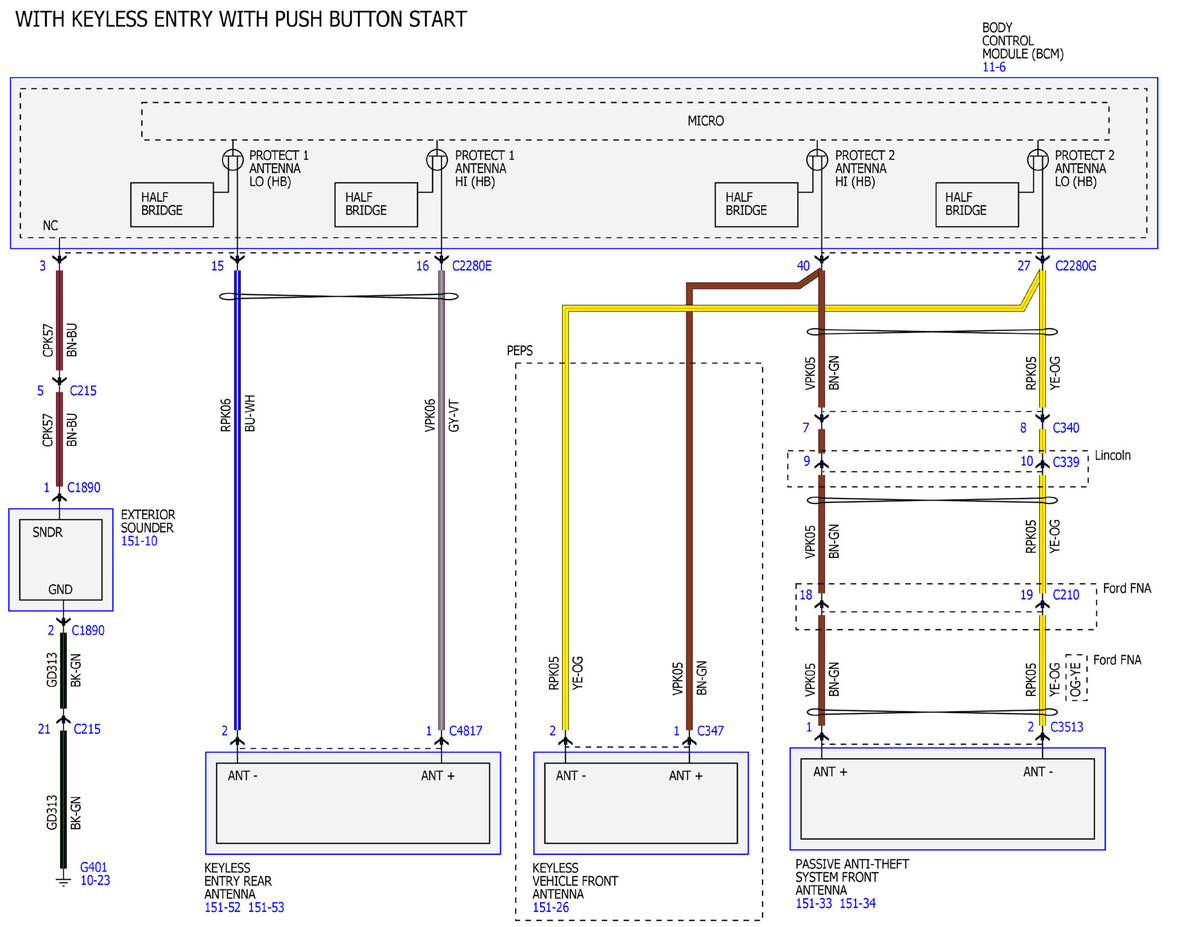

Fig 8: Remote Keyless Entry And Alarm Wiring Diagram (8 Of 21)

GFDWR50407

Courtesy of FORD MOTOR COMPANY

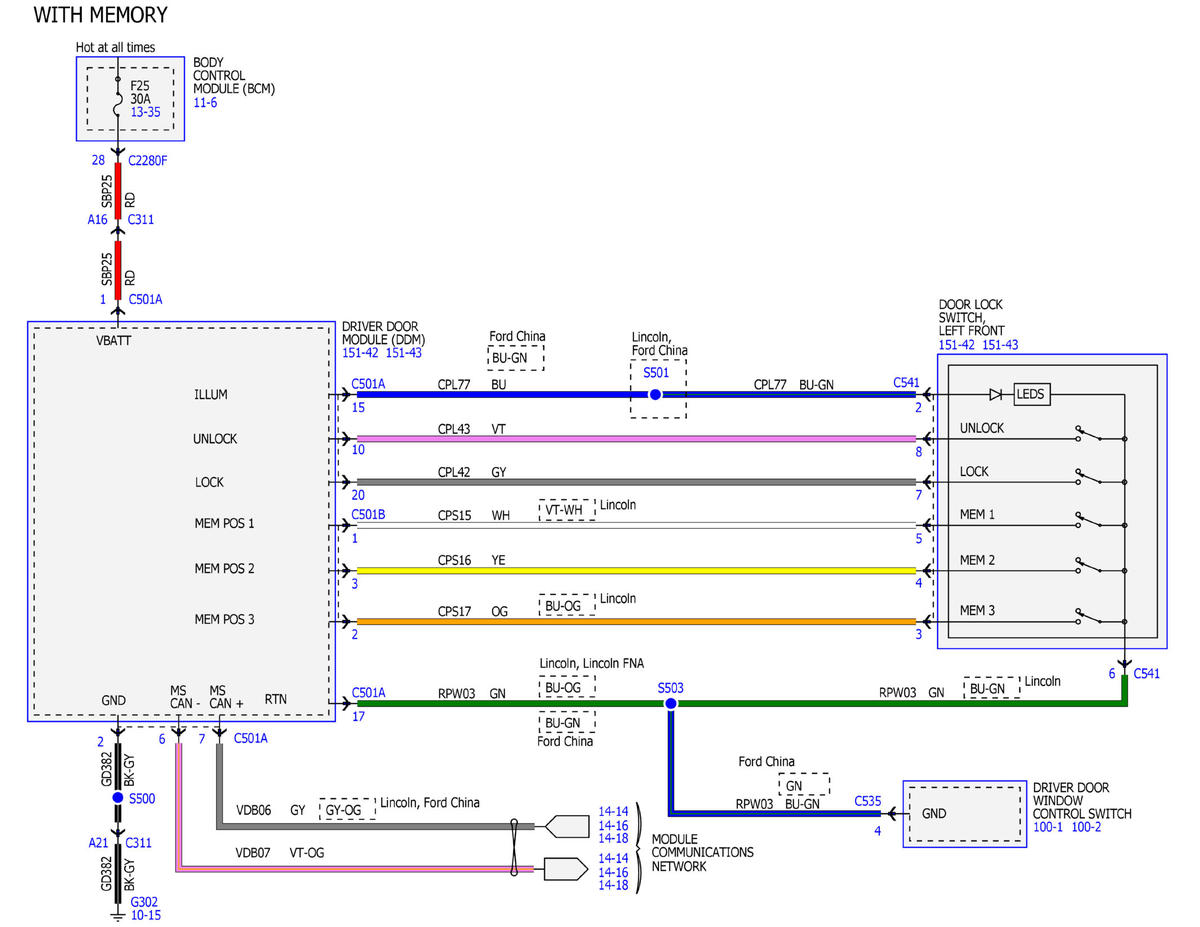

Fig 9: Remote Keyless Entry And Alarm Wiring Diagram (9 Of 21)

GFDWR50408

Courtesy of FORD MOTOR COMPANY

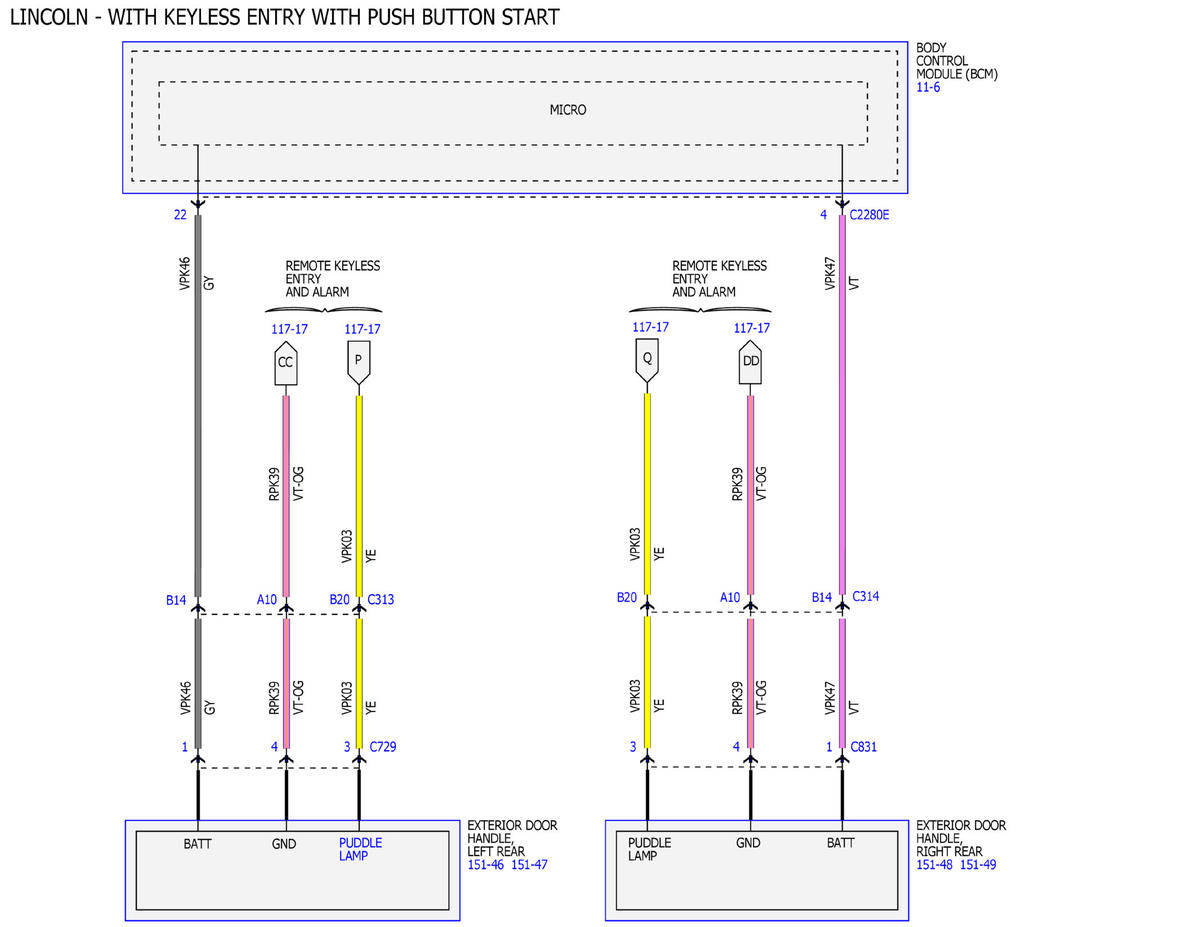

Fig 10: Remote Keyless Entry And Alarm Wiring Diagram (10 Of 21)

GFDWR50409

Courtesy of FORD MOTOR COMPANY

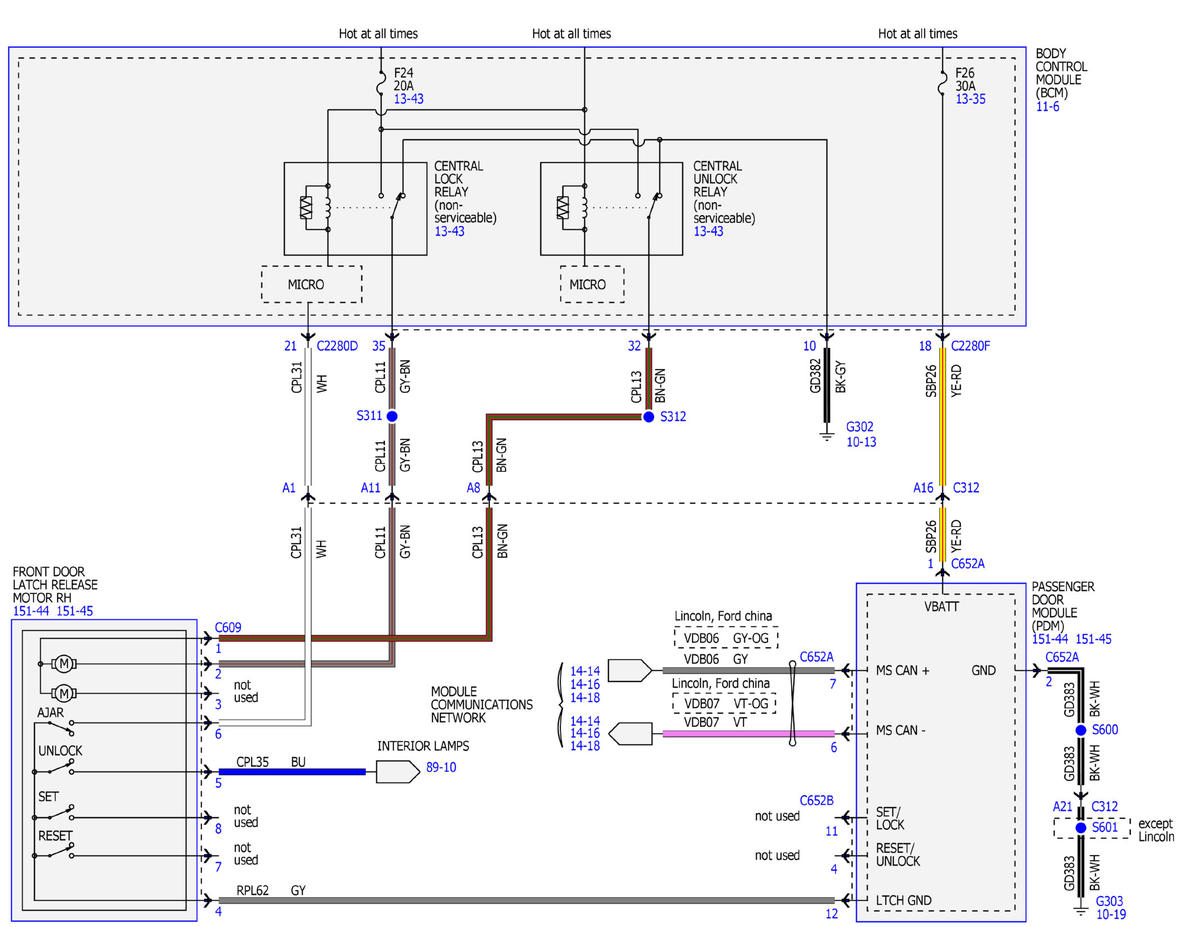

Fig 11: Remote Keyless Entry And Alarm Wiring Diagram (11 Of 21)

GFDWR50410

Courtesy of FORD MOTOR COMPANY

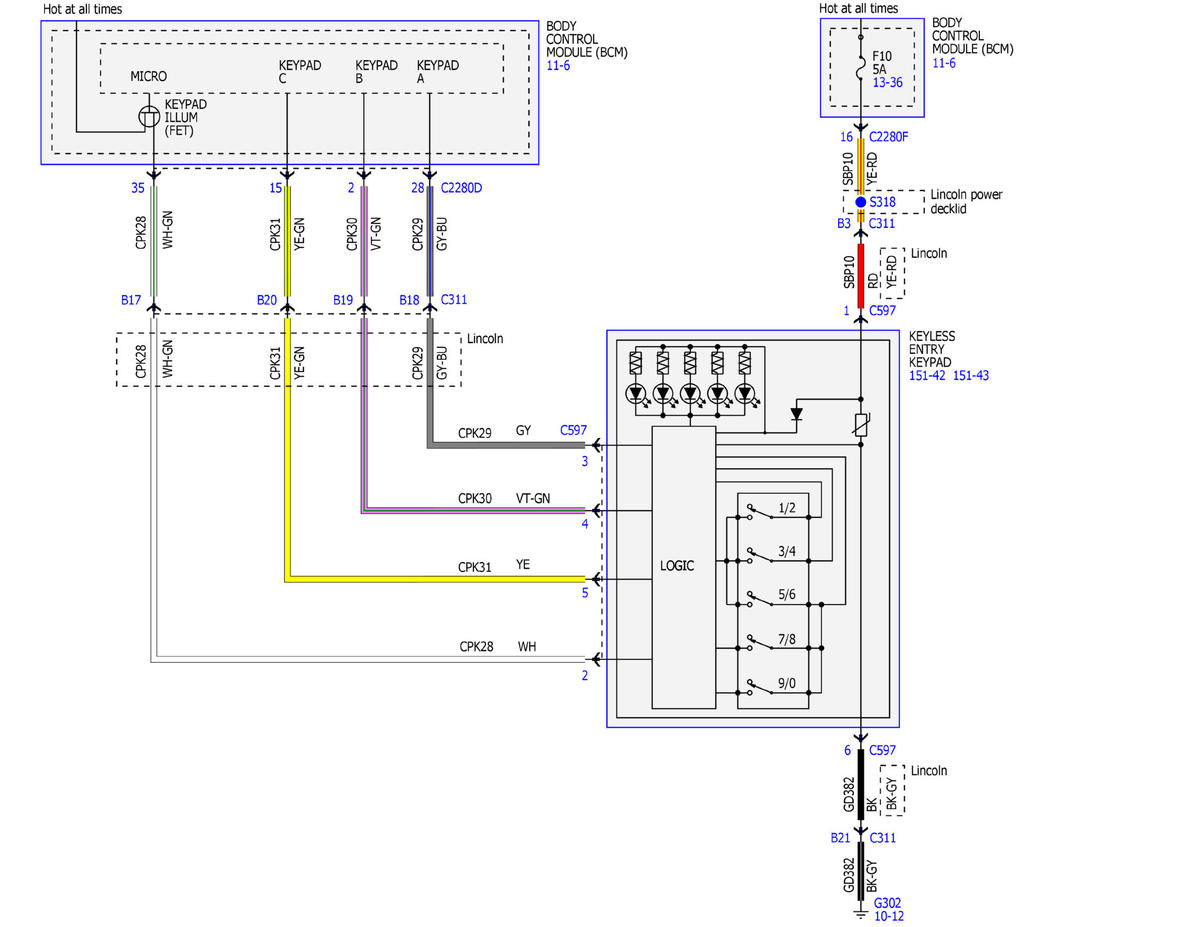

Fig 12: Remote Keyless Entry And Alarm Wiring Diagram (12 Of 21)

GFDWR50411

Courtesy of FORD MOTOR COMPANY

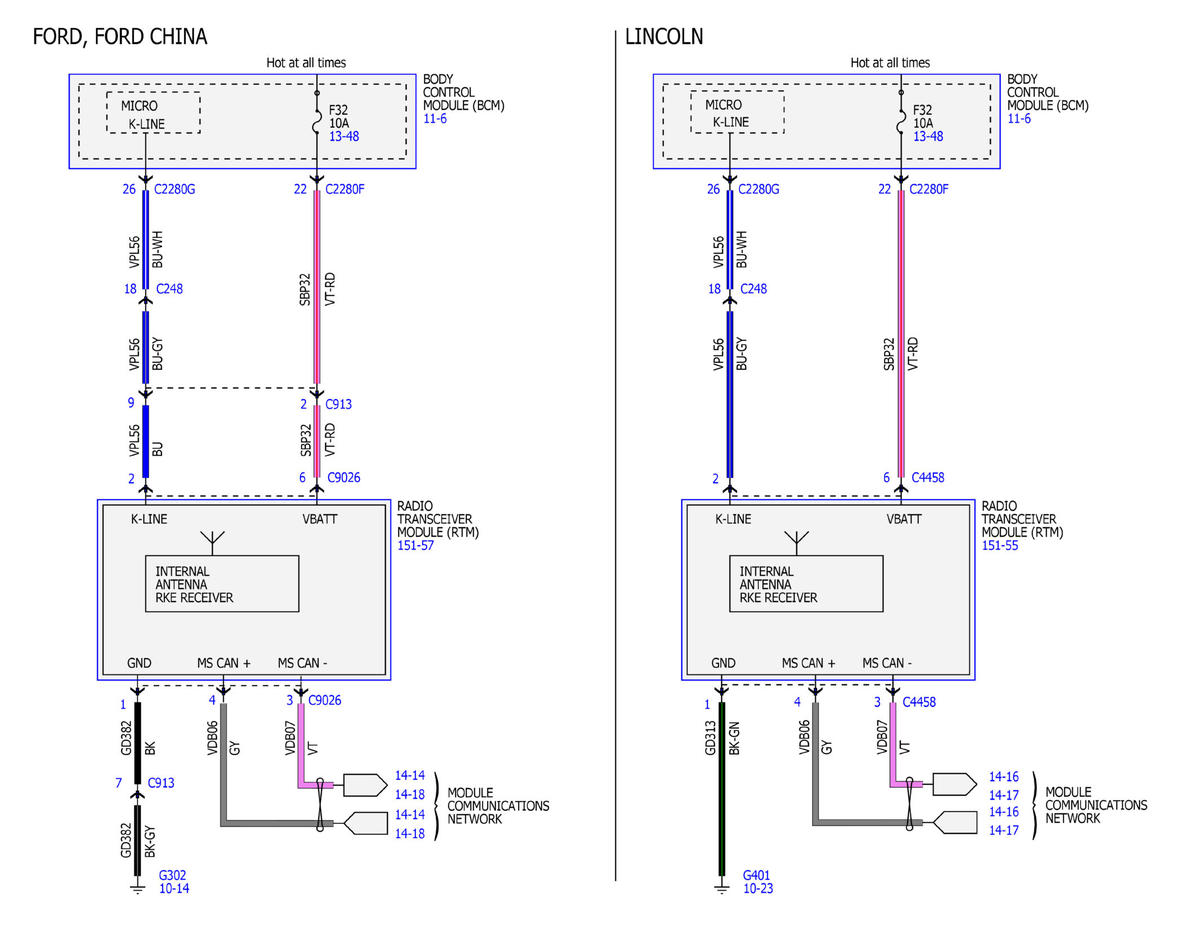

Fig 13: Remote Keyless Entry And Alarm Wiring Diagram (13 Of 21)

GFDWR50412

Courtesy of FORD MOTOR COMPANY

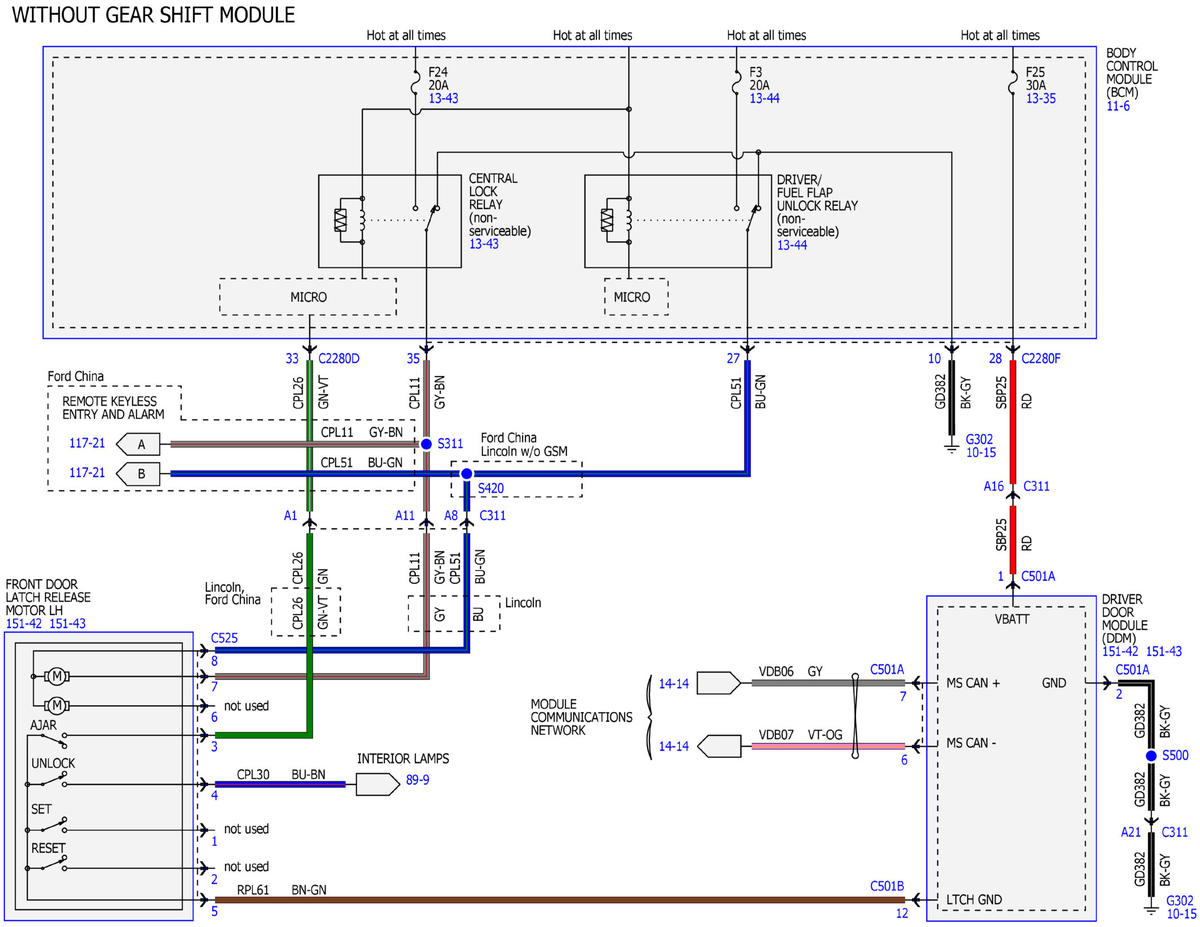

Fig 14: Remote Keyless Entry And Alarm Wiring Diagram (14 Of 21)

GFDWR50413

Courtesy of FORD MOTOR COMPANY

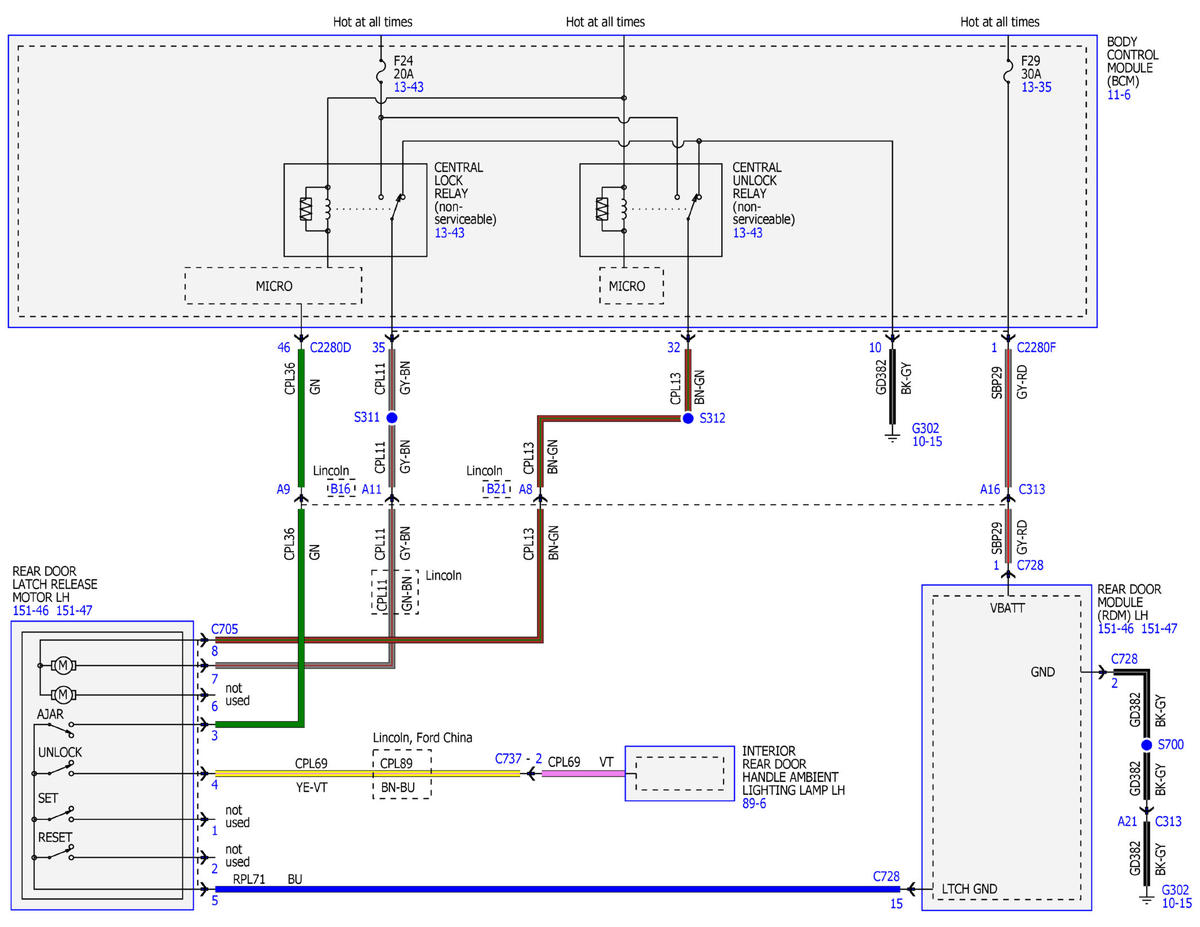

Fig 15: Remote Keyless Entry And Alarm Wiring Diagram (15 Of 21)

GFDWR50414

Courtesy of FORD MOTOR COMPANY

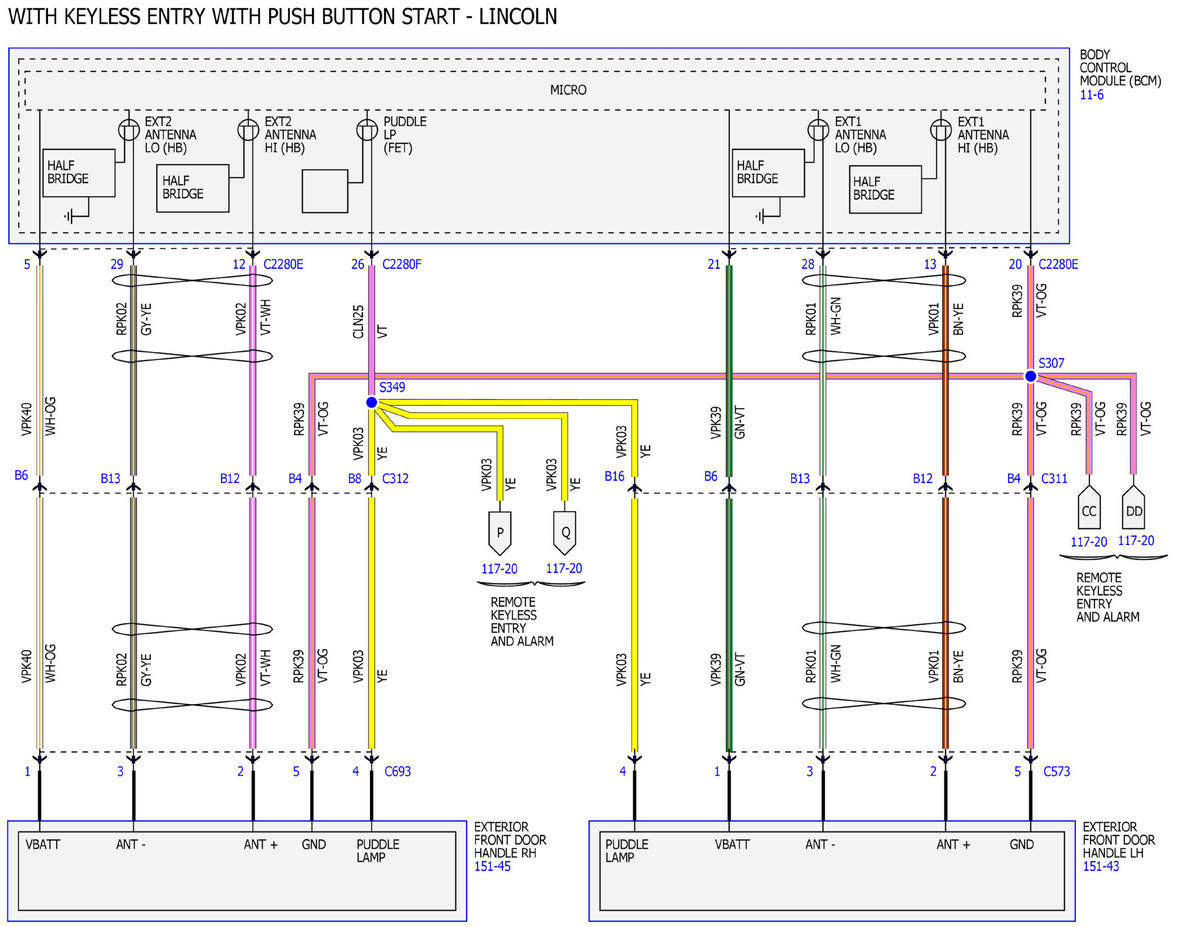

Fig 16: Remote Keyless Entry And Alarm Wiring Diagram (16 Of 21)

GFDWR50415

Courtesy of FORD MOTOR COMPANY

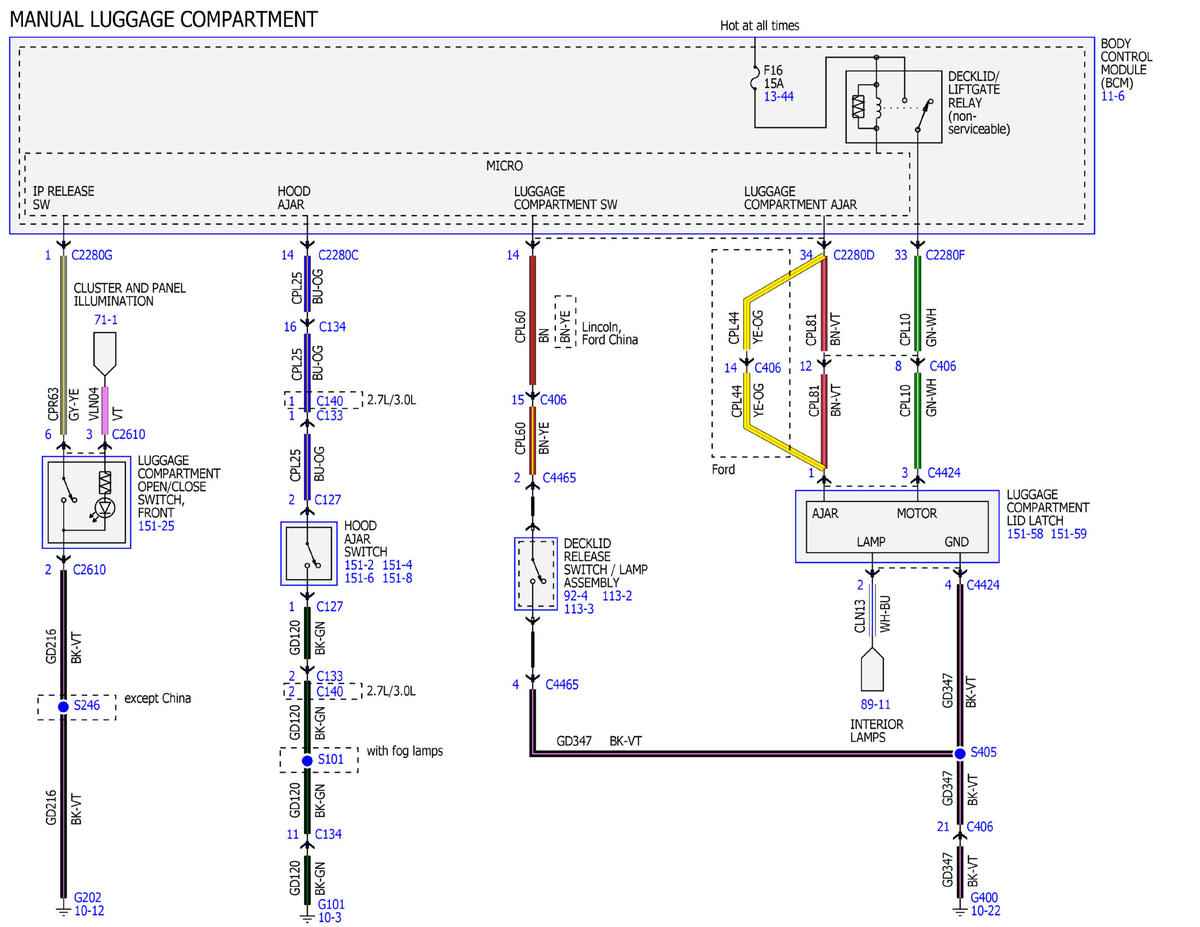

Fig 17: Remote Keyless Entry And Alarm Wiring Diagram (17 Of 21)

GFDWR50416

Courtesy of FORD MOTOR COMPANY

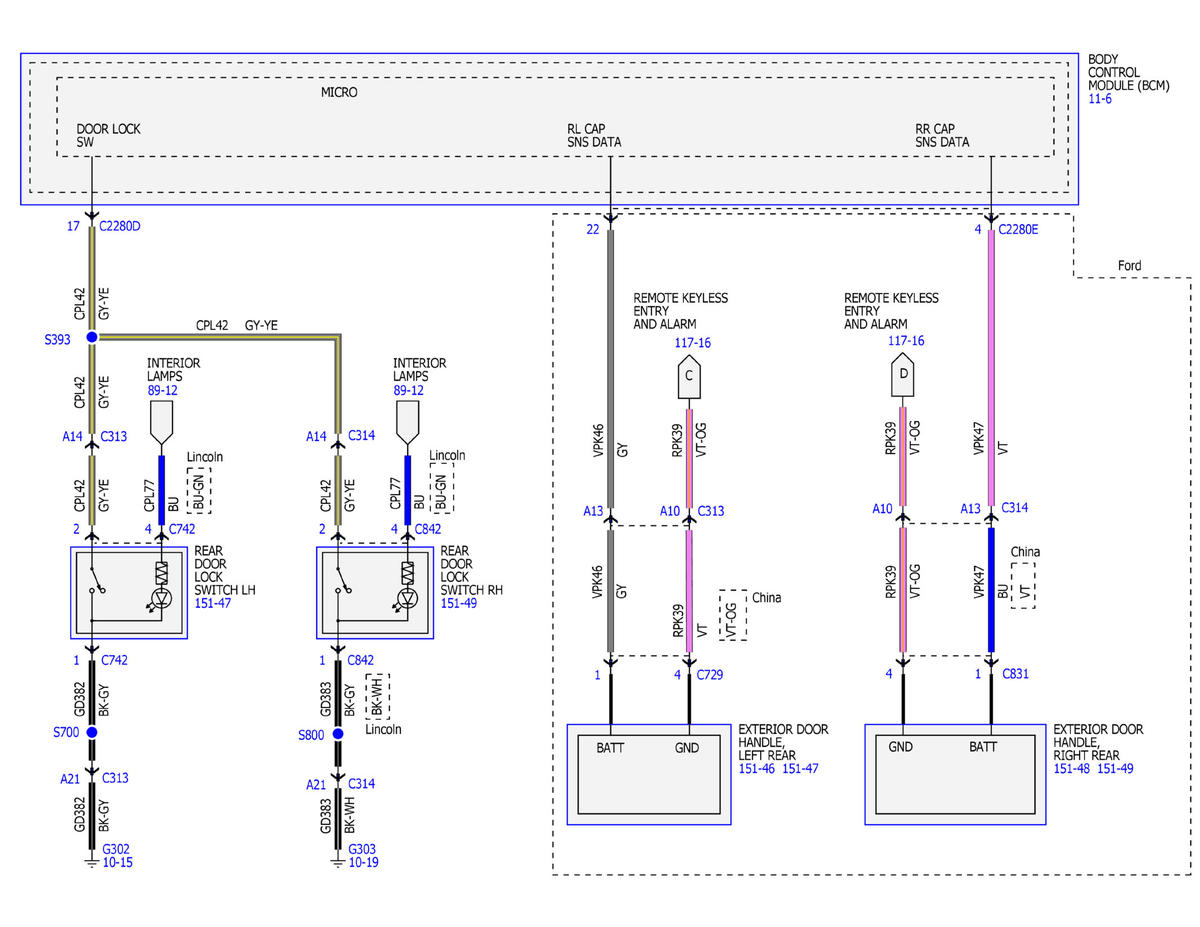

Fig 18: Remote Keyless Entry And Alarm Wiring Diagram (18 Of 21)

GFDWR50417

Courtesy of FORD MOTOR COMPANY

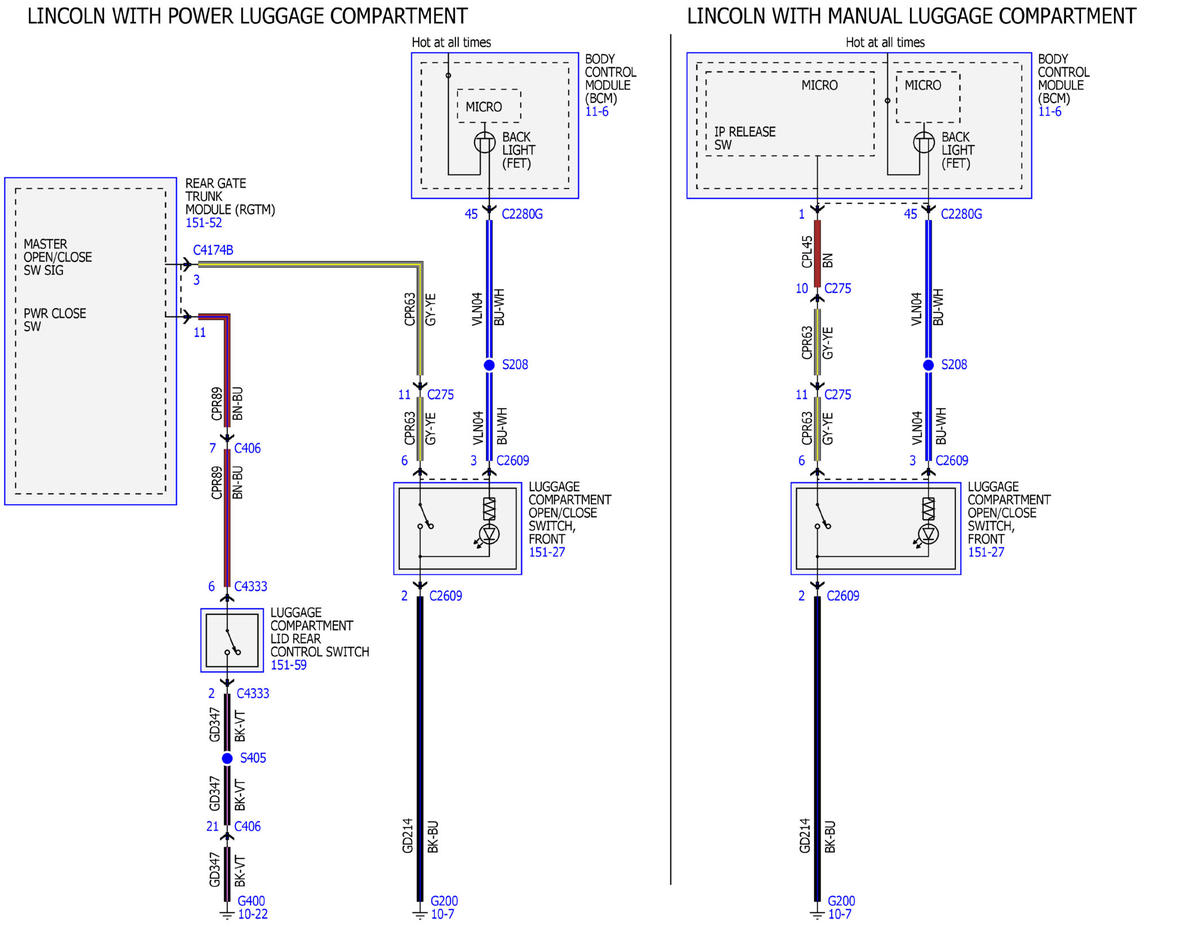

Fig 19: Remote Keyless Entry And Alarm Wiring Diagram (19 Of 21)

GFDWR50418

Courtesy of FORD MOTOR COMPANY

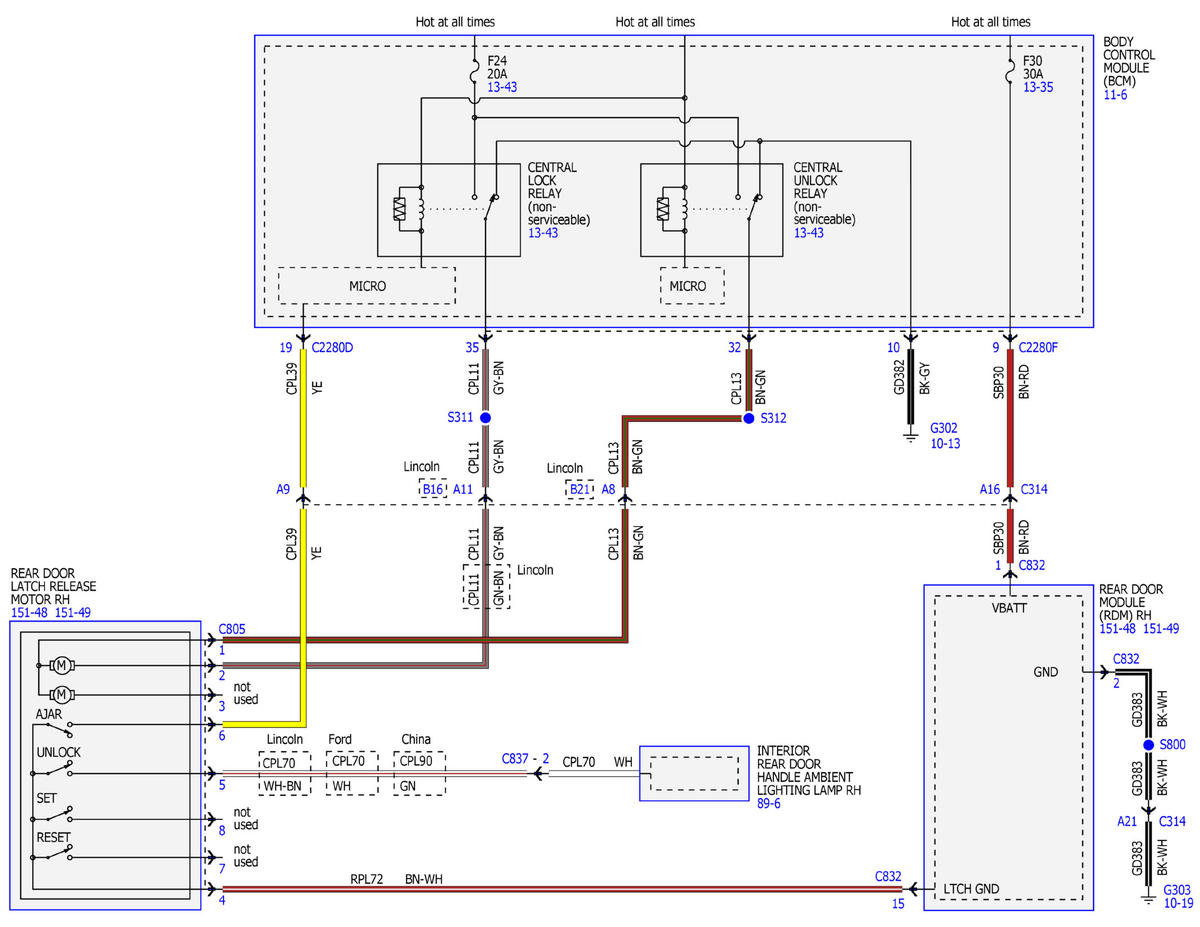

Fig 20: Remote Keyless Entry And Alarm Wiring Diagram (20 Of 21)

GFDWR50419

Courtesy of FORD MOTOR COMPANY

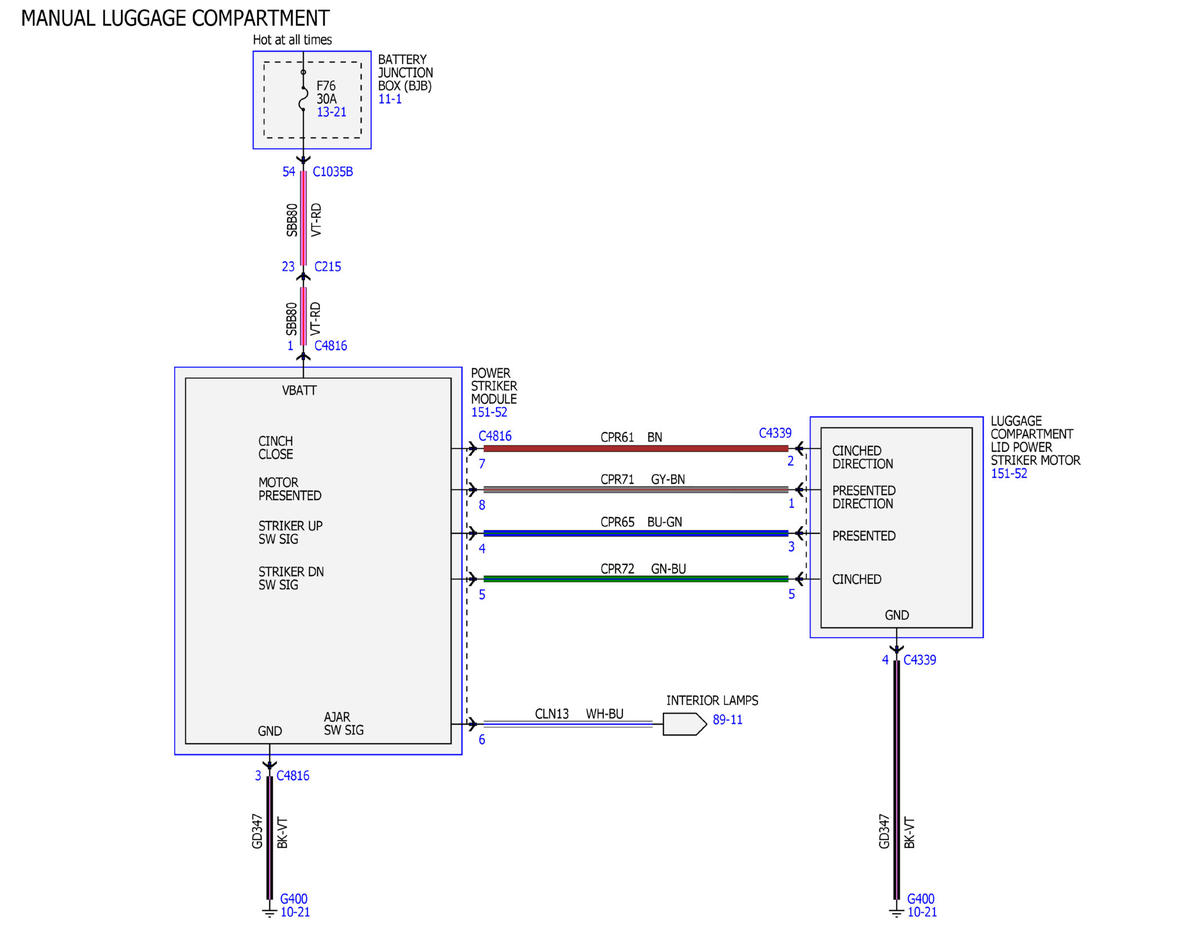

Fig 21: Remote Keyless Entry And Alarm Wiring Diagram (21 Of 21)

GFDWR50420

Courtesy of FORD MOTOR COMPANY
