Power Distribution

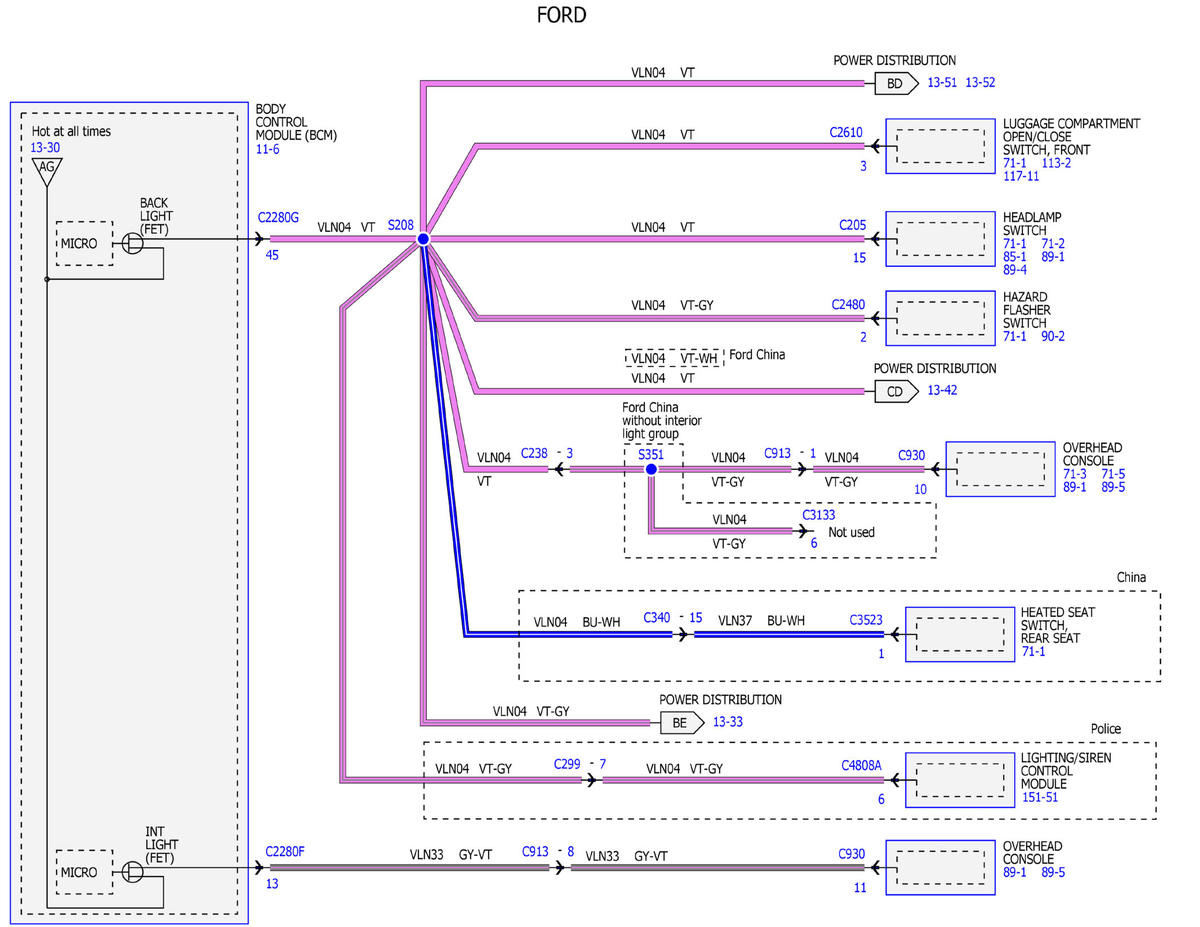

Fig 1: Power Distribution Wiring Diagram (1 Of 59)

GFDWR50317

Courtesy of FORD MOTOR COMPANY

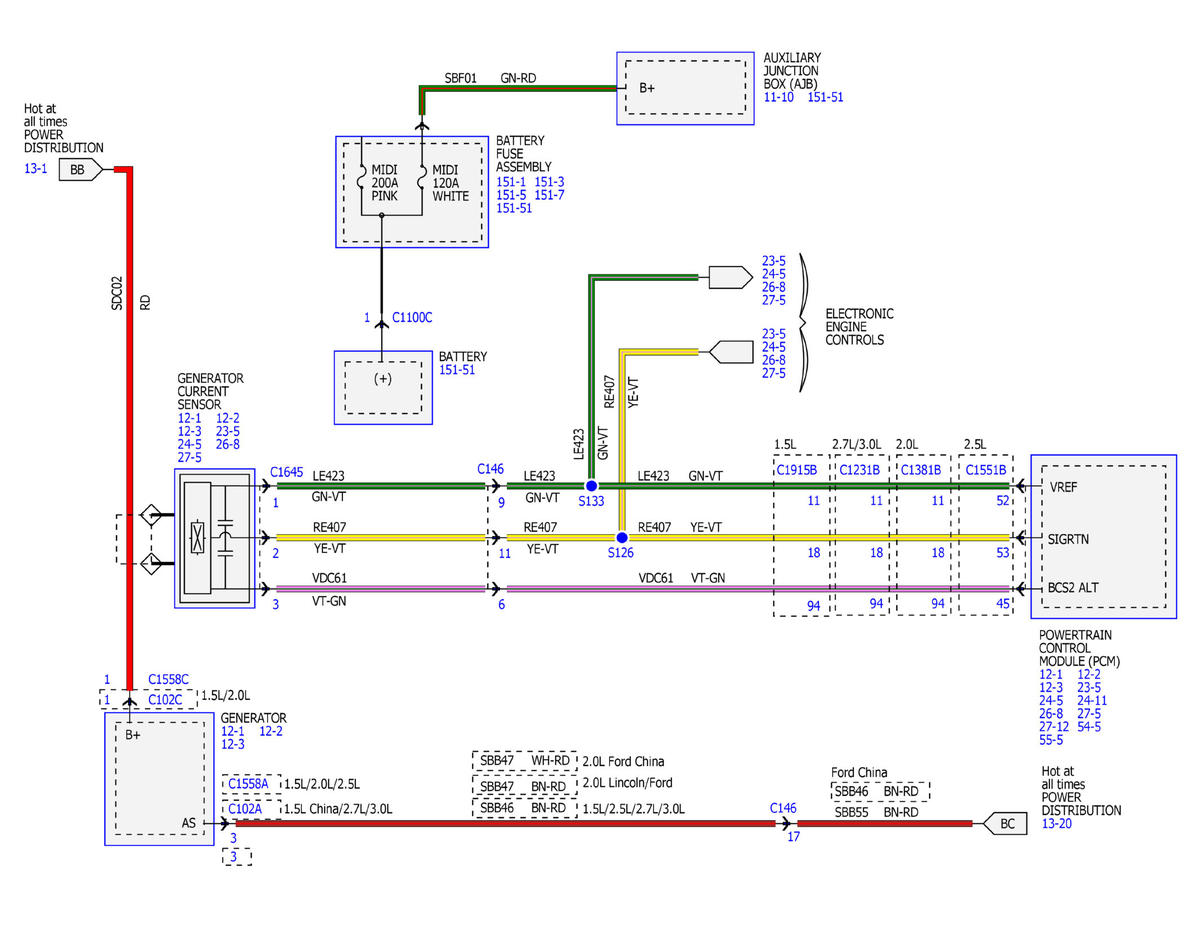

Fig 2: Power Distribution Wiring Diagram (2 Of 59)

GFDWR50318

Courtesy of FORD MOTOR COMPANY

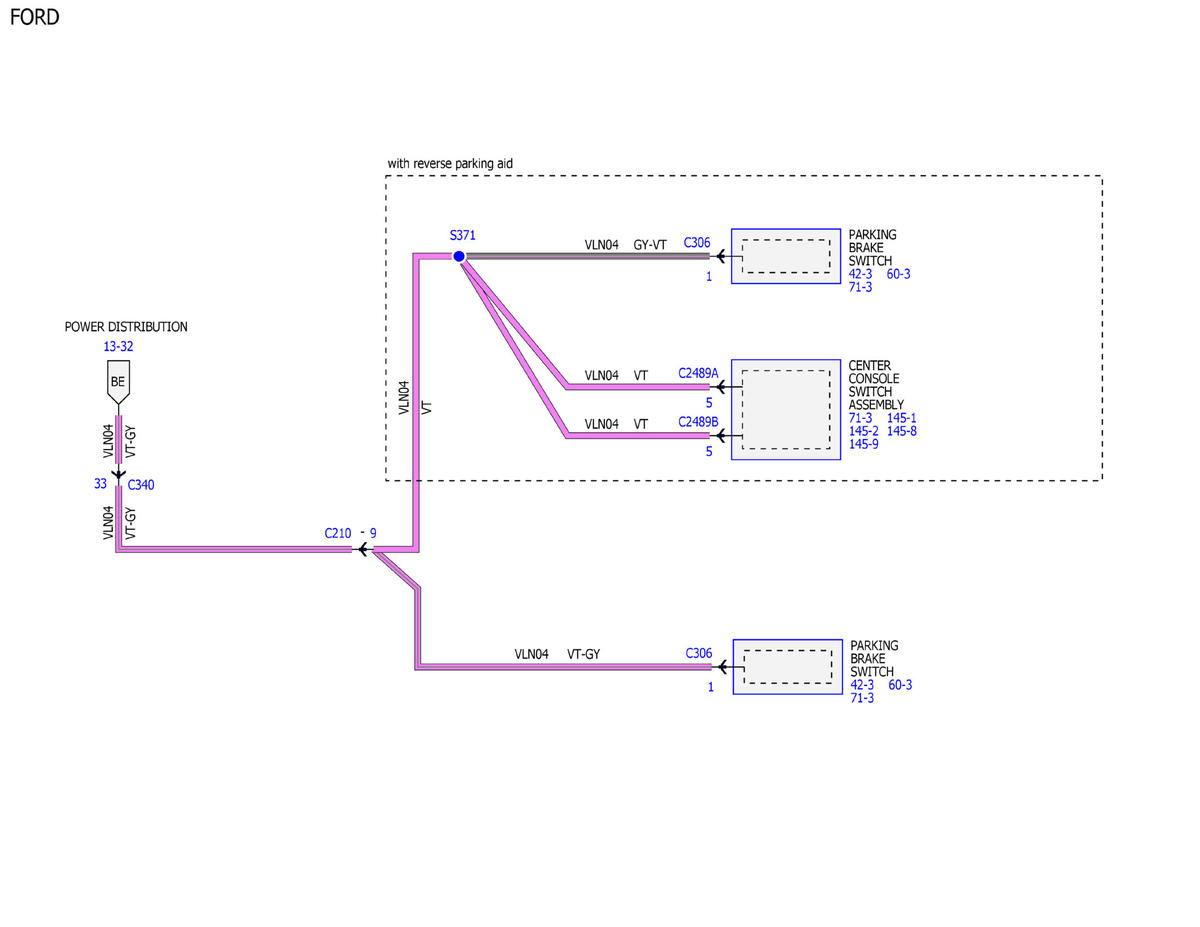

Fig 3: Power Distribution Wiring Diagram (3 Of 59)

GFDWR50319

Courtesy of FORD MOTOR COMPANY

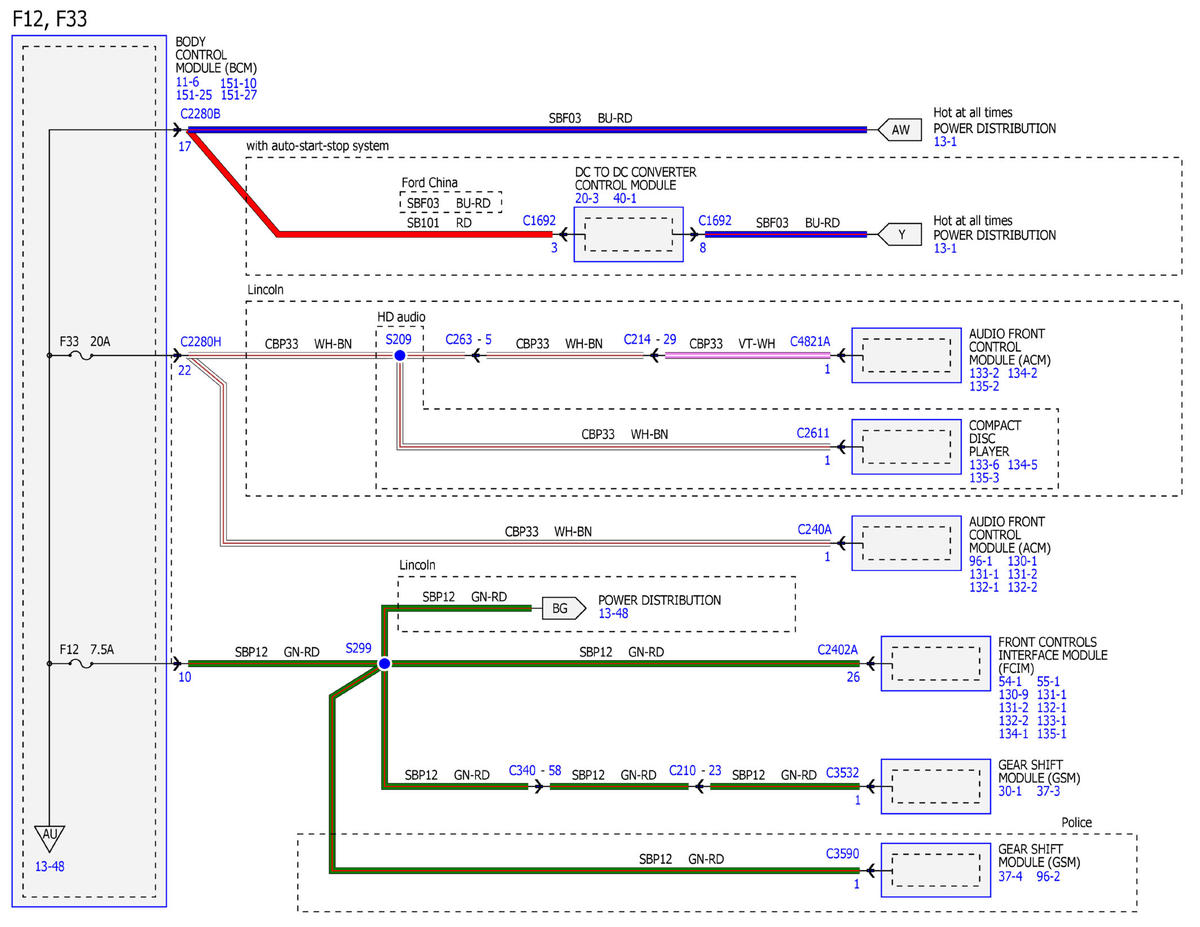

Fig 4: Power Distribution Wiring Diagram (4 Of 59)

GFDWR50320

Courtesy of FORD MOTOR COMPANY

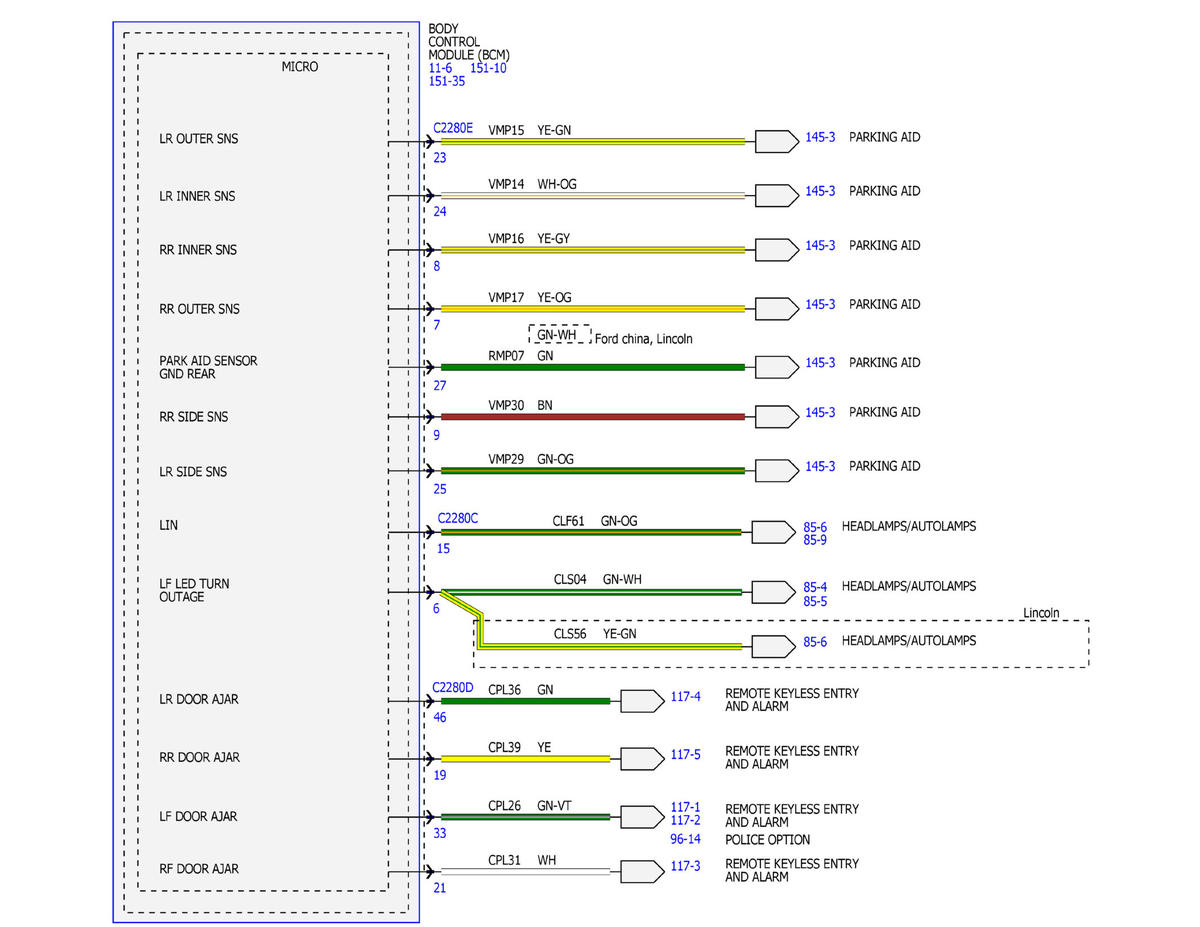

Fig 5: Power Distribution Wiring Diagram (5 Of 59)

GFDWR50321

Courtesy of FORD MOTOR COMPANY

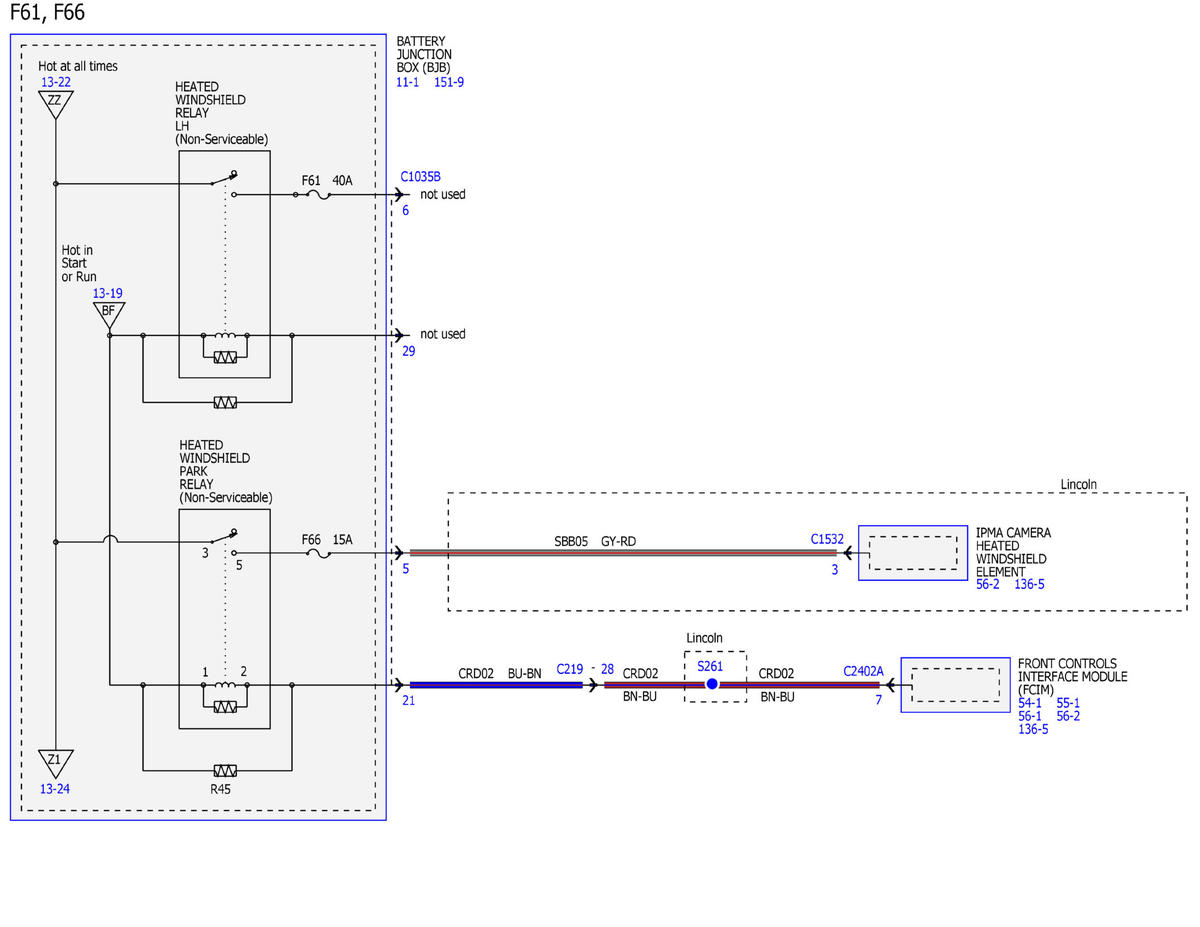

Fig 6: Power Distribution Wiring Diagram (6 Of 59)

GFDWR50322

Courtesy of FORD MOTOR COMPANY

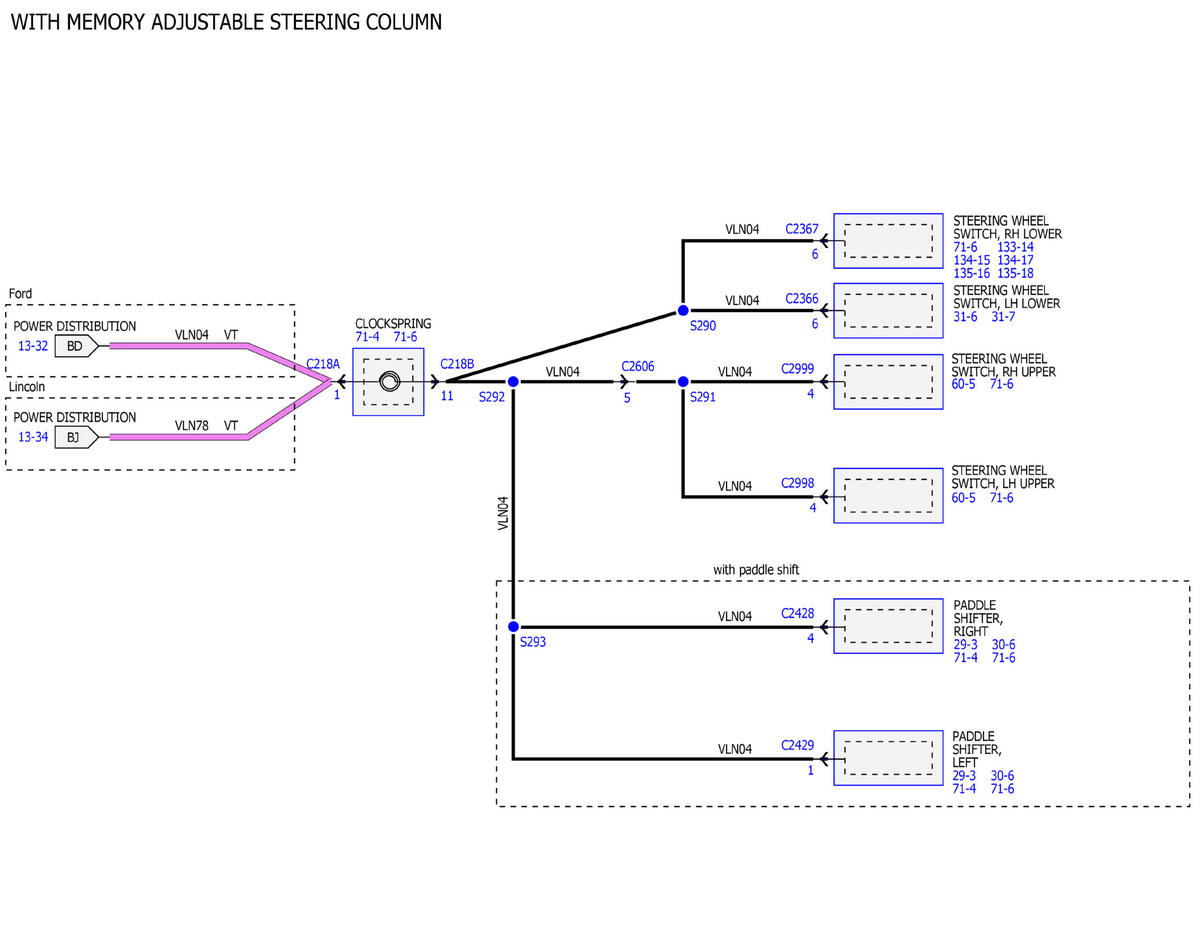

Fig 7: Power Distribution Wiring Diagram (7 Of 59)

GFDWR50323

Courtesy of FORD MOTOR COMPANY

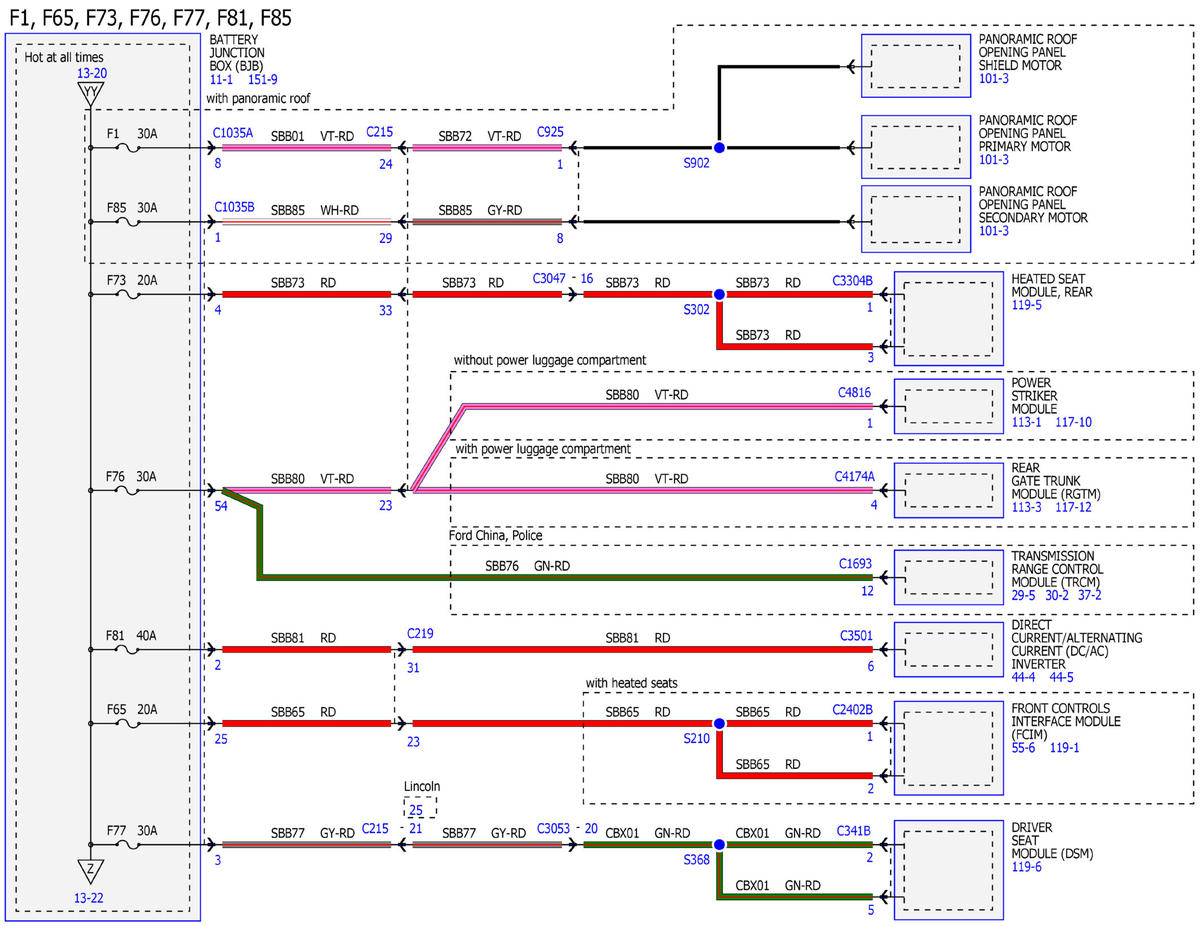

Fig 8: Power Distribution Wiring Diagram (8 Of 59)

GFDWR50324

Courtesy of FORD MOTOR COMPANY

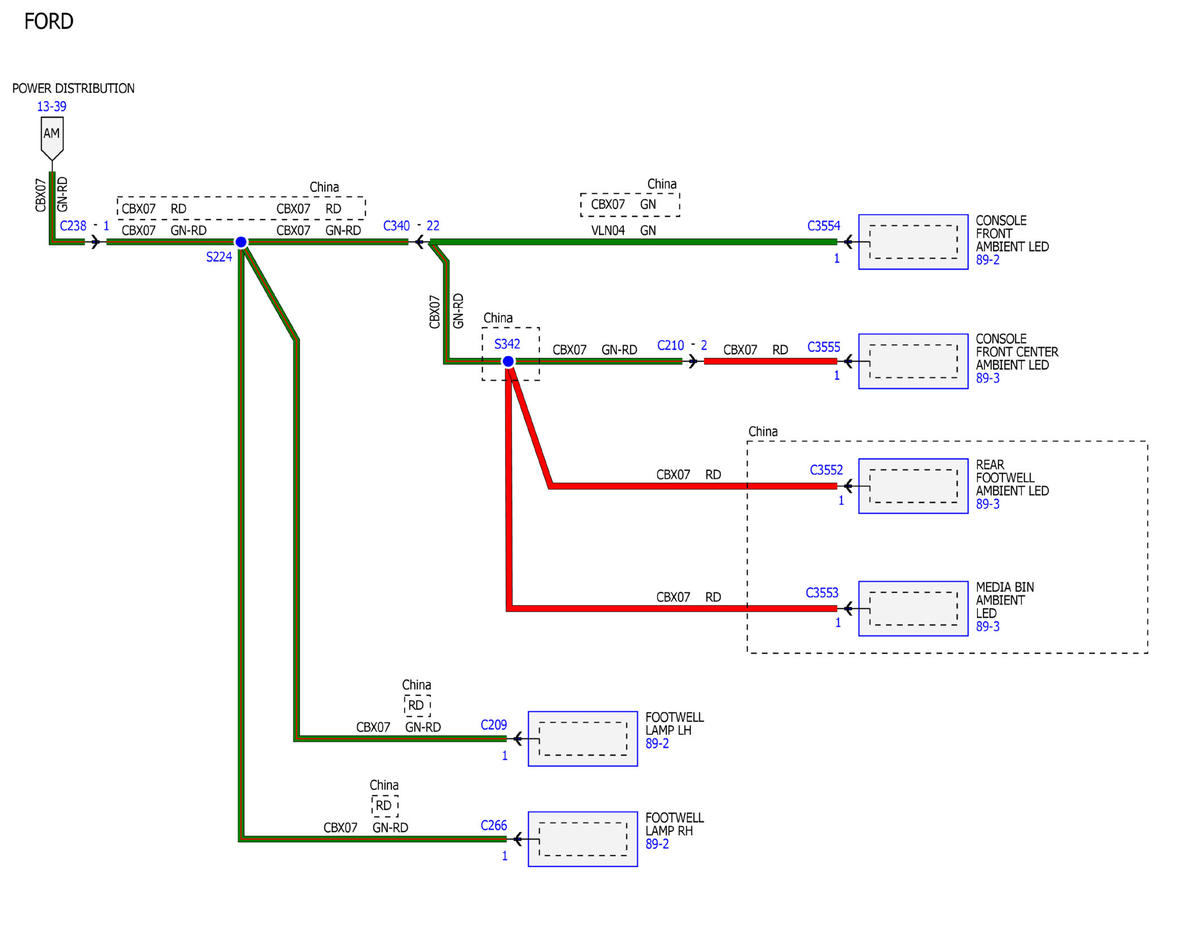

Fig 9: Power Distribution Wiring Diagram (9 Of 59)

GFDWR50325

Courtesy of FORD MOTOR COMPANY

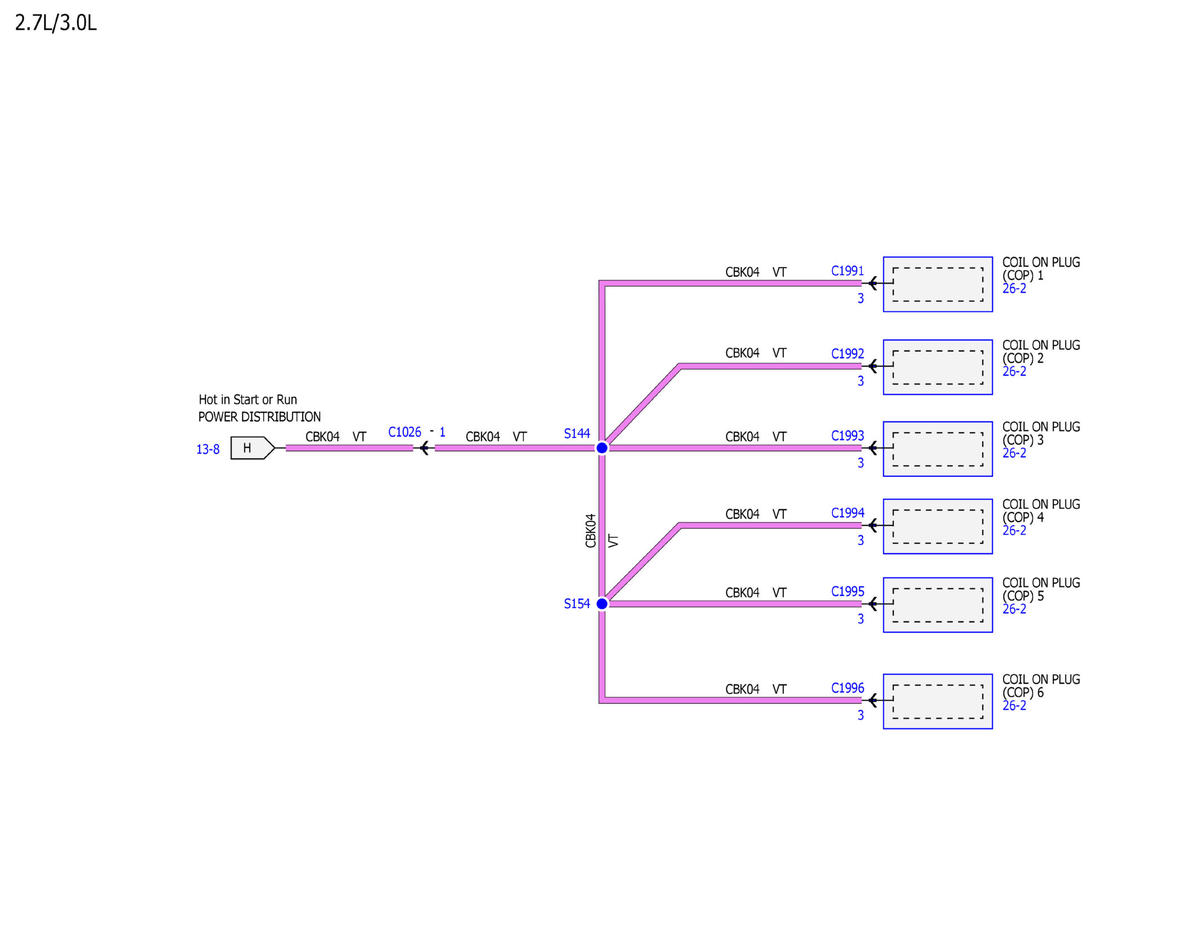

Fig 10: Power Distribution Wiring Diagram (10 Of 59)

GFDWR50375

Courtesy of FORD MOTOR COMPANY

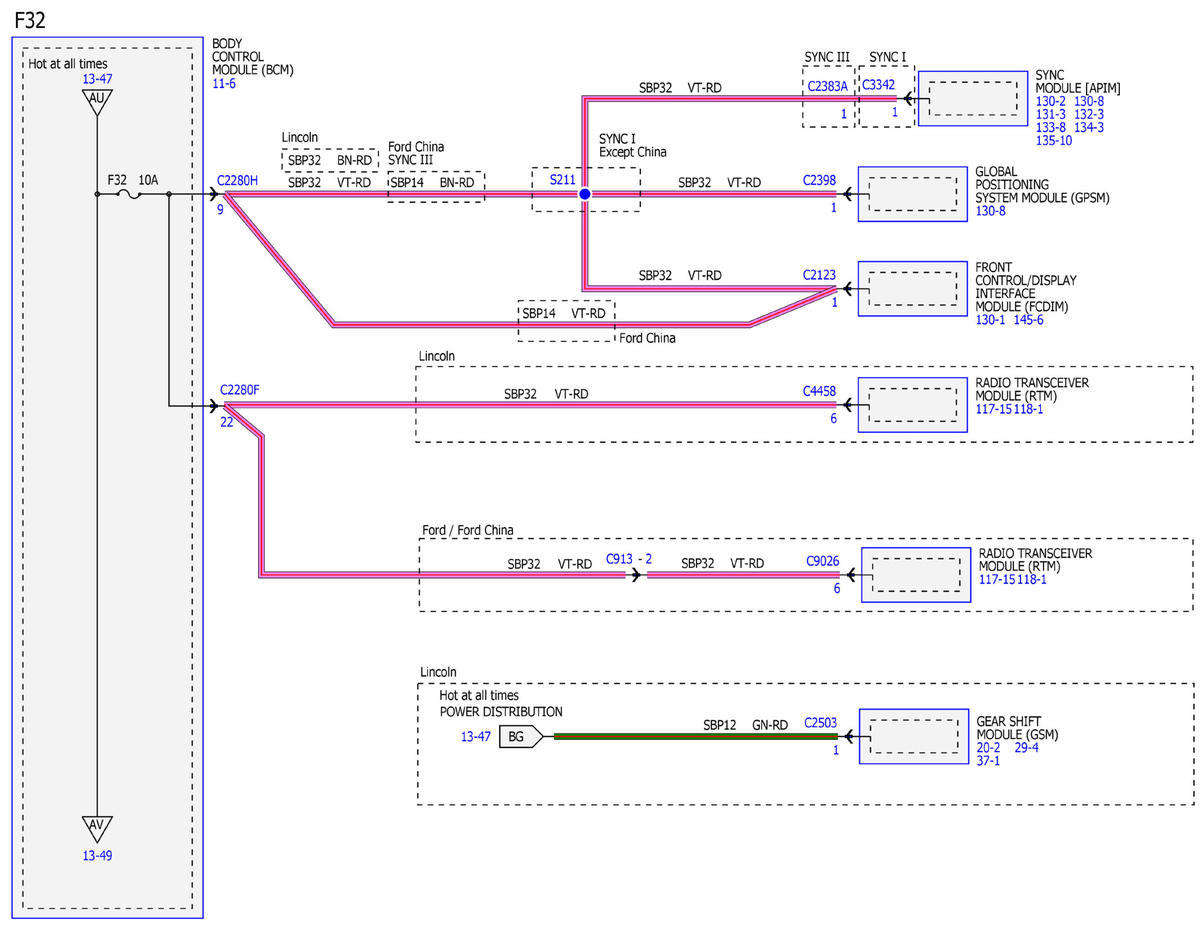

Fig 11: Power Distribution Wiring Diagram (11 Of 59)

GFDWR50326

Courtesy of FORD MOTOR COMPANY

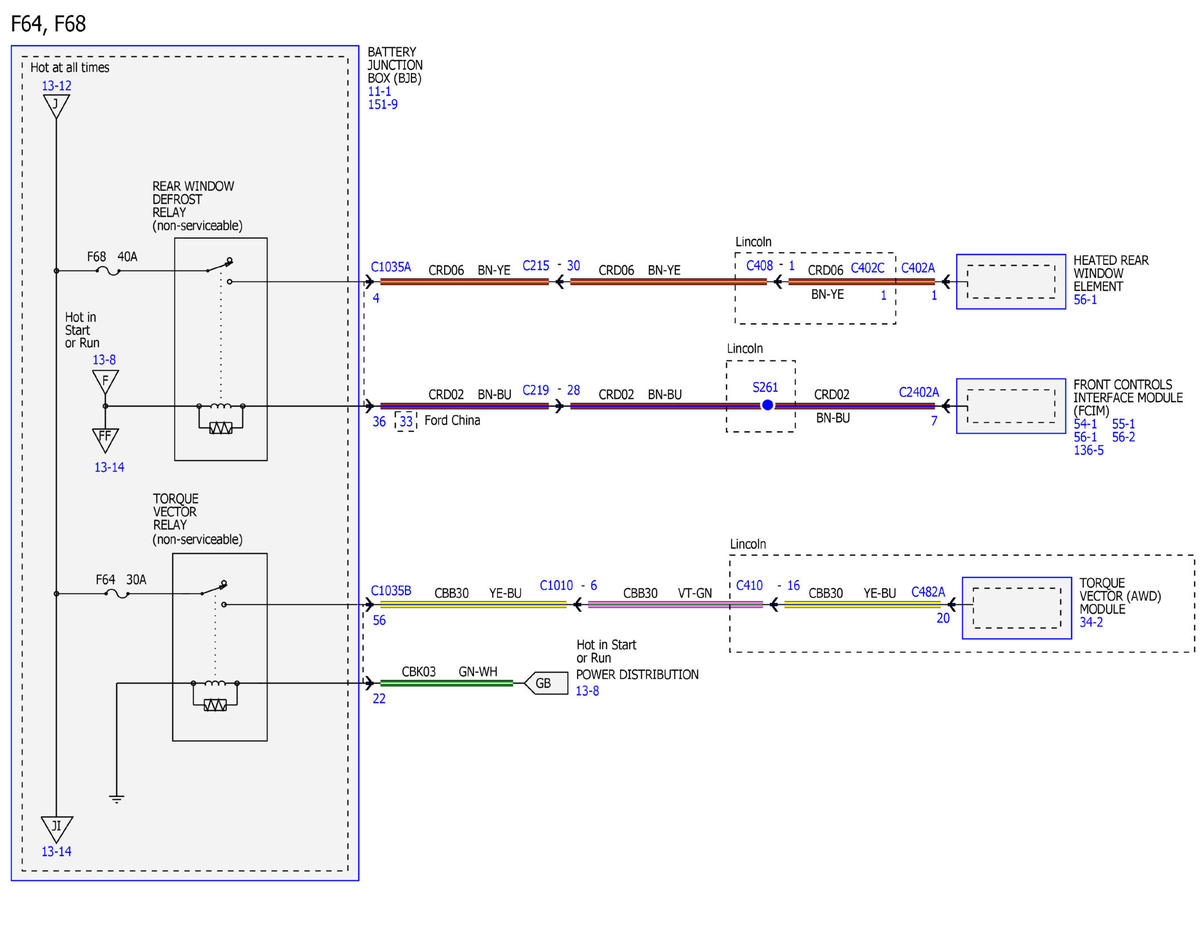

Fig 12: Power Distribution Wiring Diagram (12 Of 59)

GFDWR50327

Courtesy of FORD MOTOR COMPANY

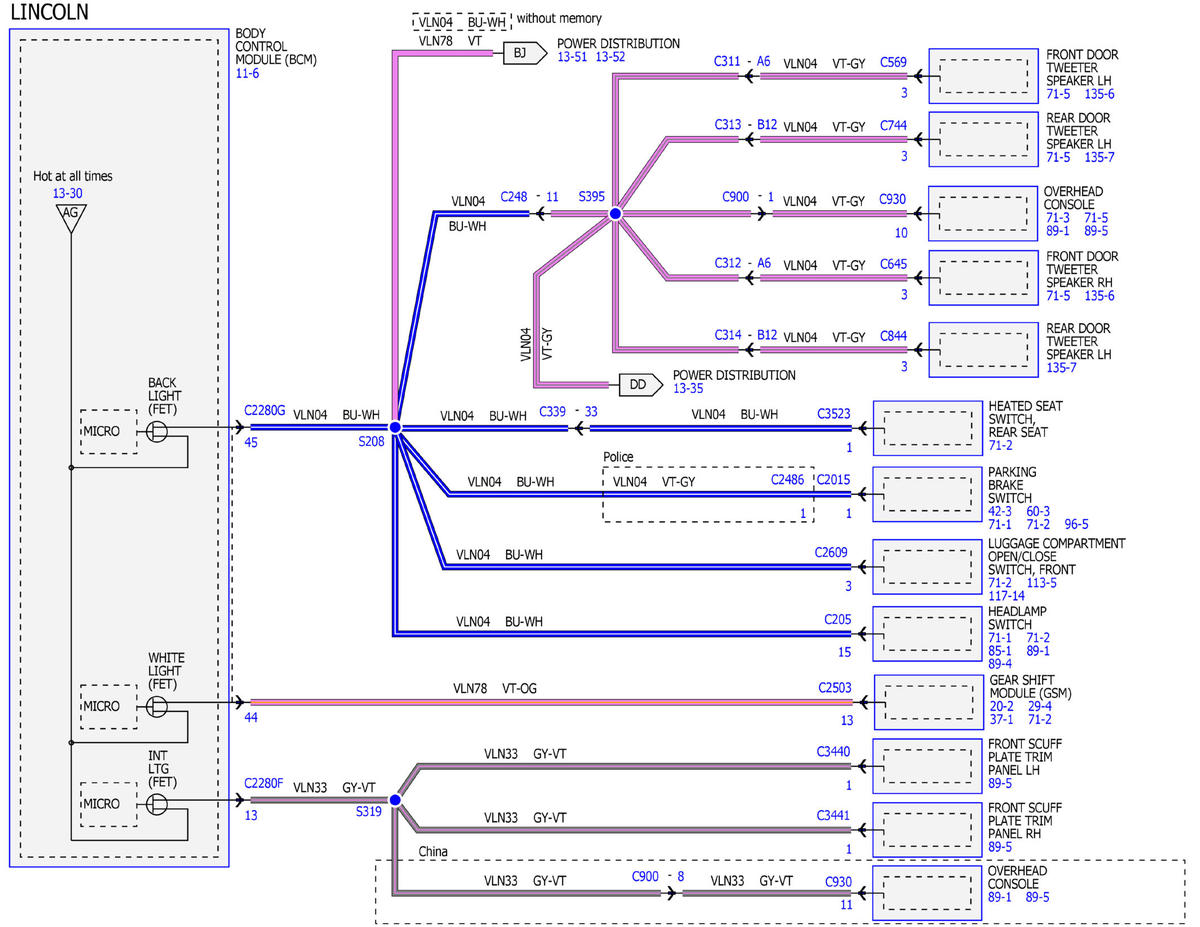

Fig 13: Power Distribution Wiring Diagram (13 Of 59)

GFDWR50328

Courtesy of FORD MOTOR COMPANY

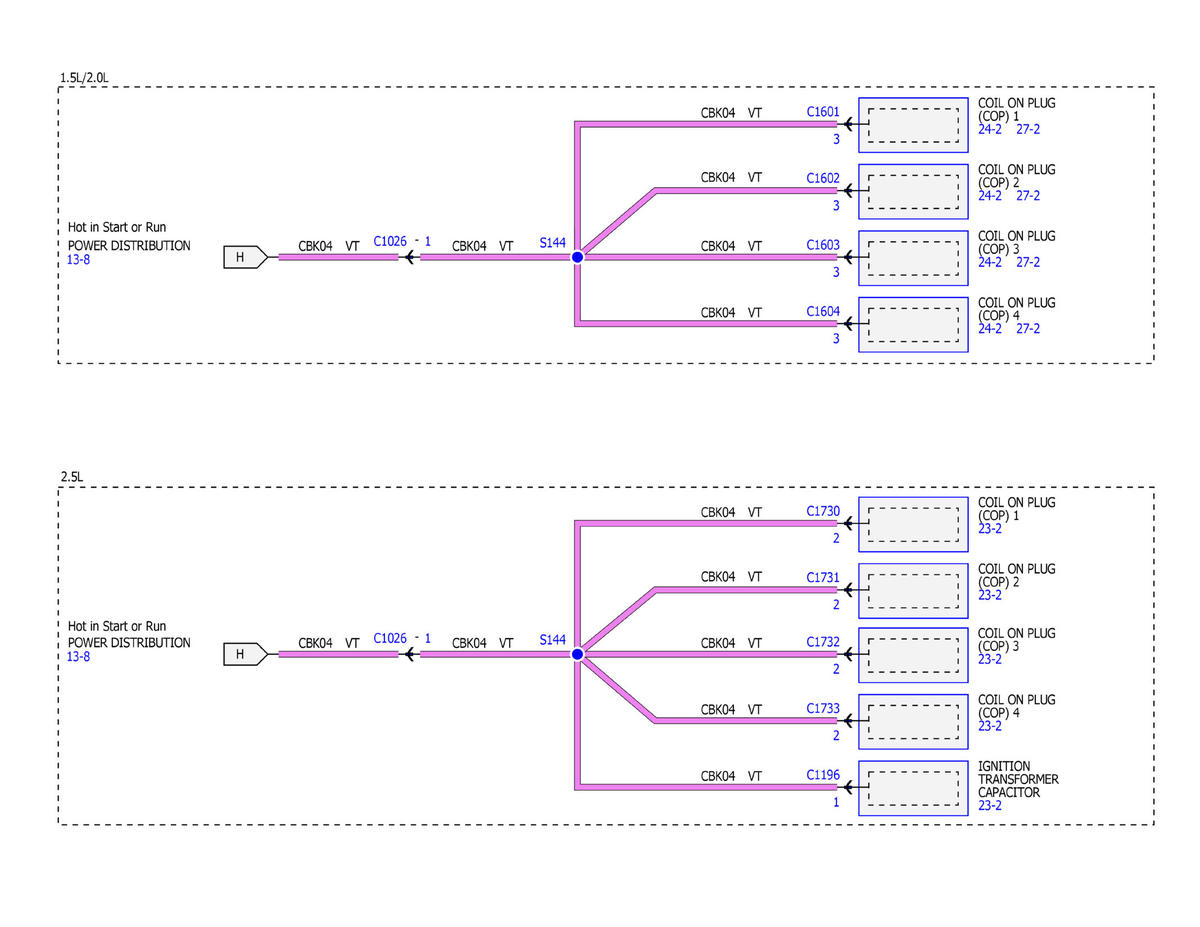

Fig 14: Power Distribution Wiring Diagram (14 Of 59)

GFDWR50329

Courtesy of FORD MOTOR COMPANY

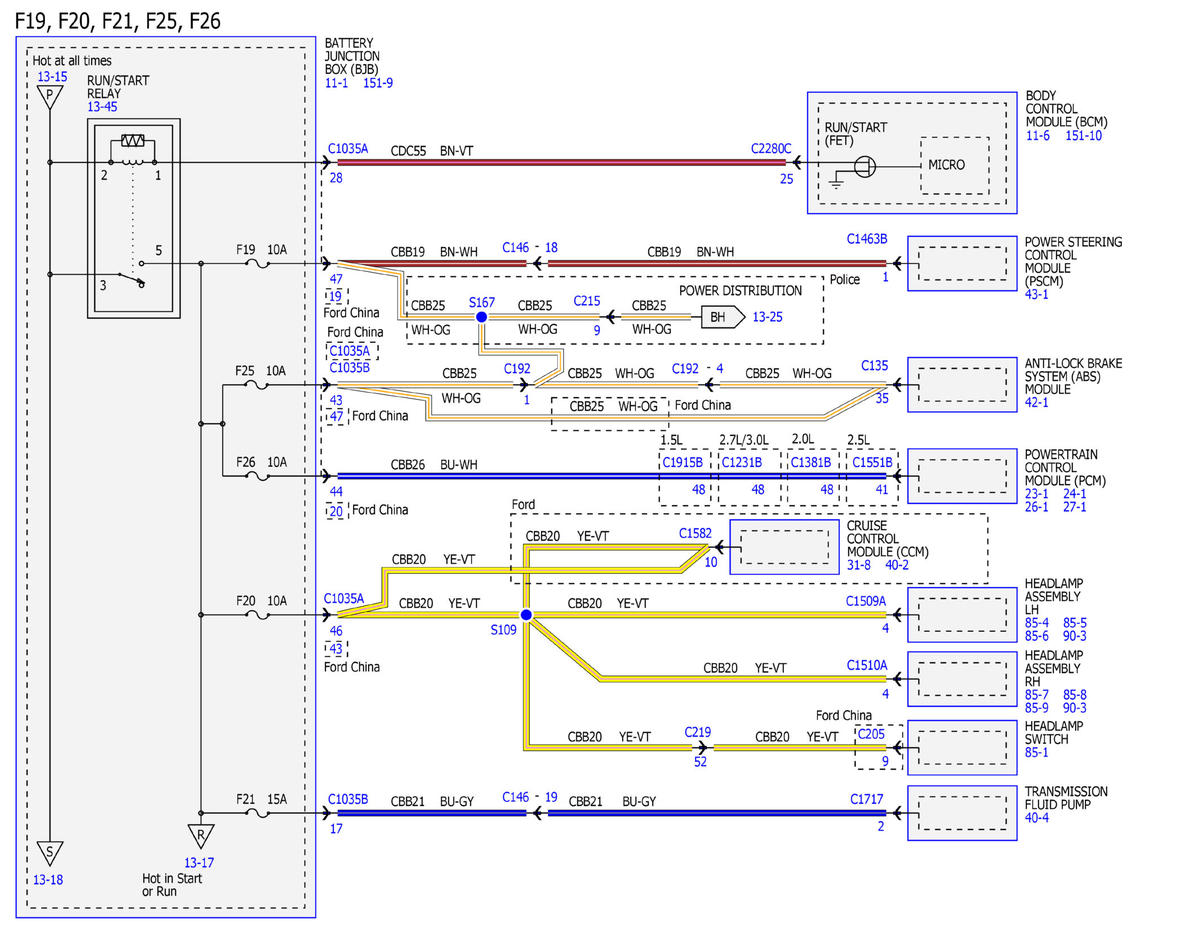

Fig 15: Power Distribution Wiring Diagram (15 Of 59)

GFDWR50330

Courtesy of FORD MOTOR COMPANY

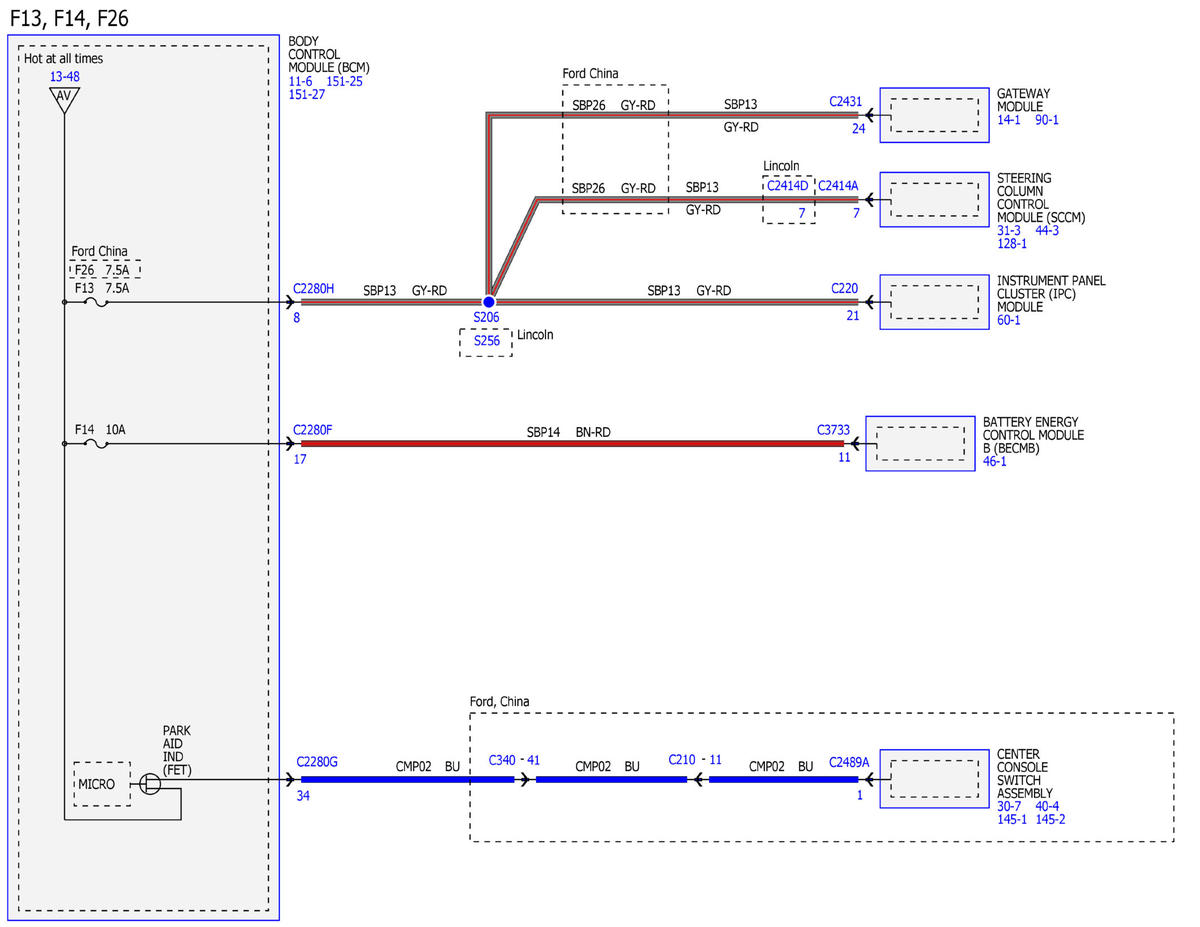

Fig 16: Power Distribution Wiring Diagram (16 Of 59)

GFDWR50331

Courtesy of FORD MOTOR COMPANY

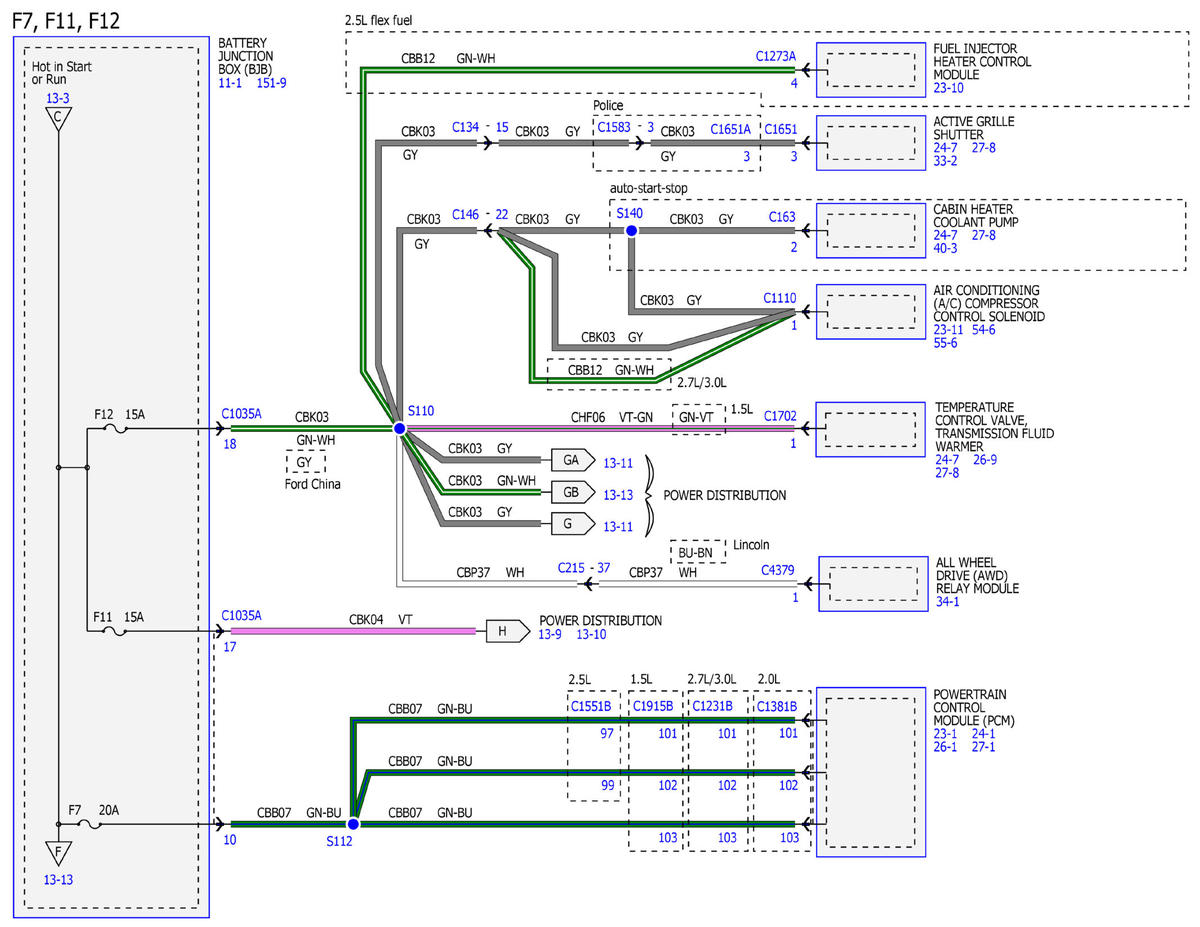

Fig 17: Power Distribution Wiring Diagram (17 Of 59)

GFDWR50332

Courtesy of FORD MOTOR COMPANY

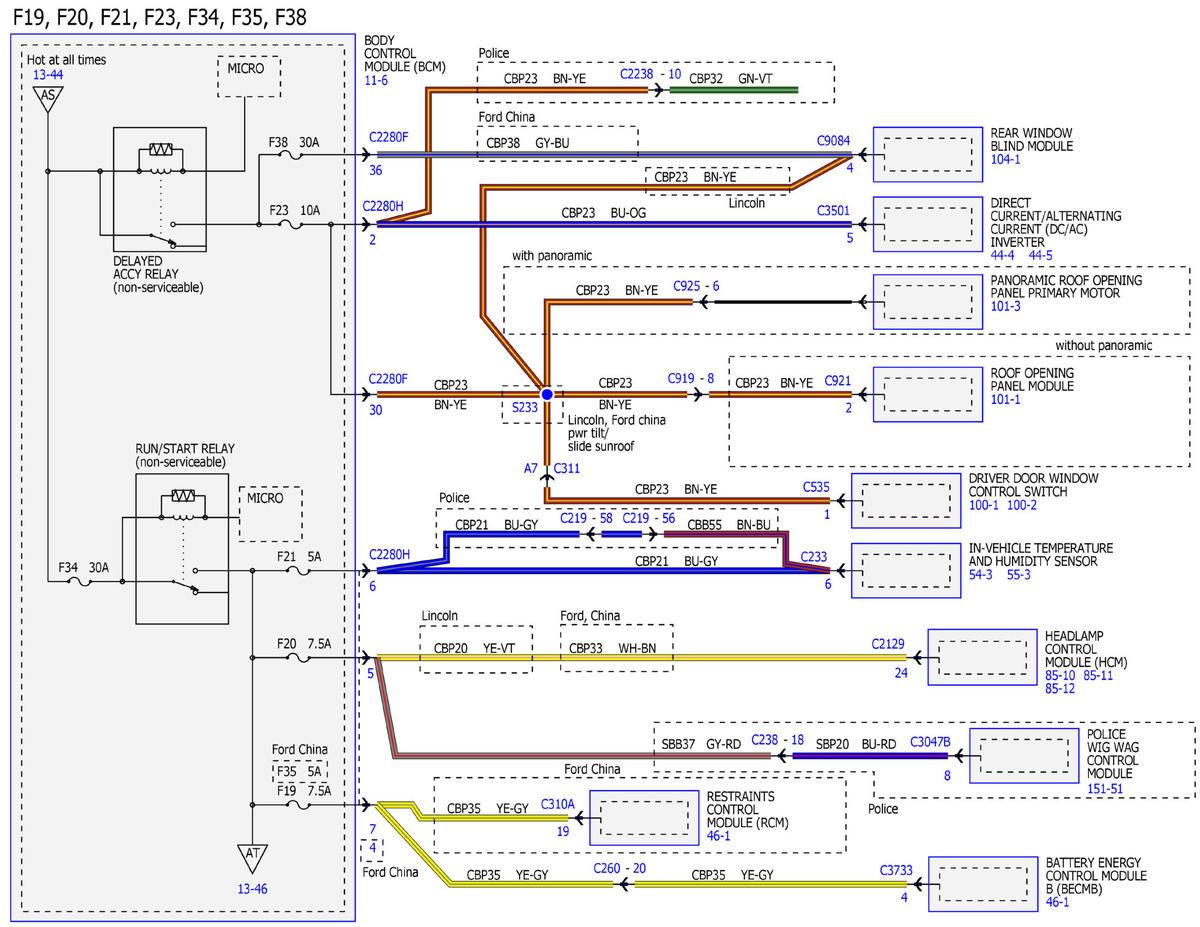

Fig 18: Power Distribution Wiring Diagram (18 Of 59)

GFDWR50333

Courtesy of FORD MOTOR COMPANY

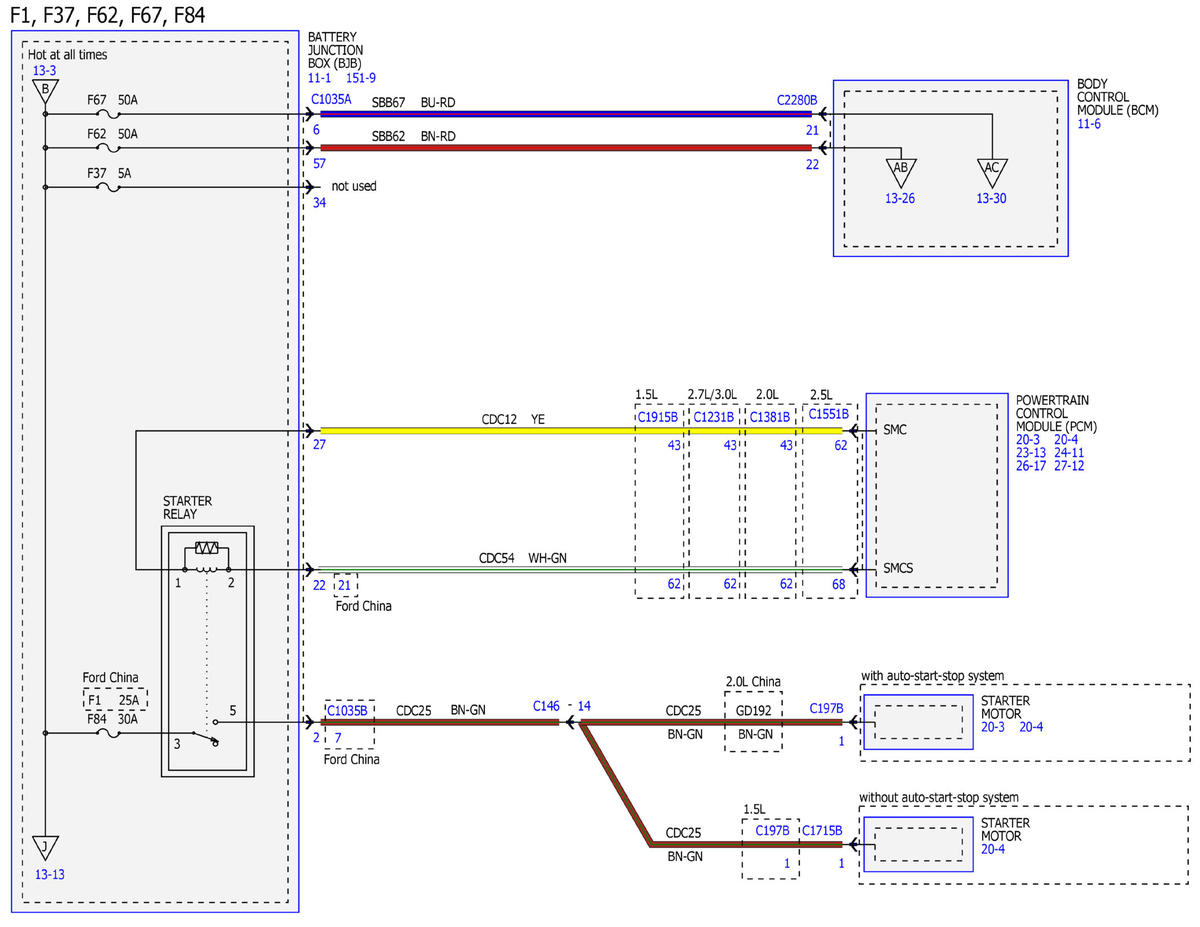

Fig 19: Power Distribution Wiring Diagram (19 Of 59)

GFDWR50334

Courtesy of FORD MOTOR COMPANY

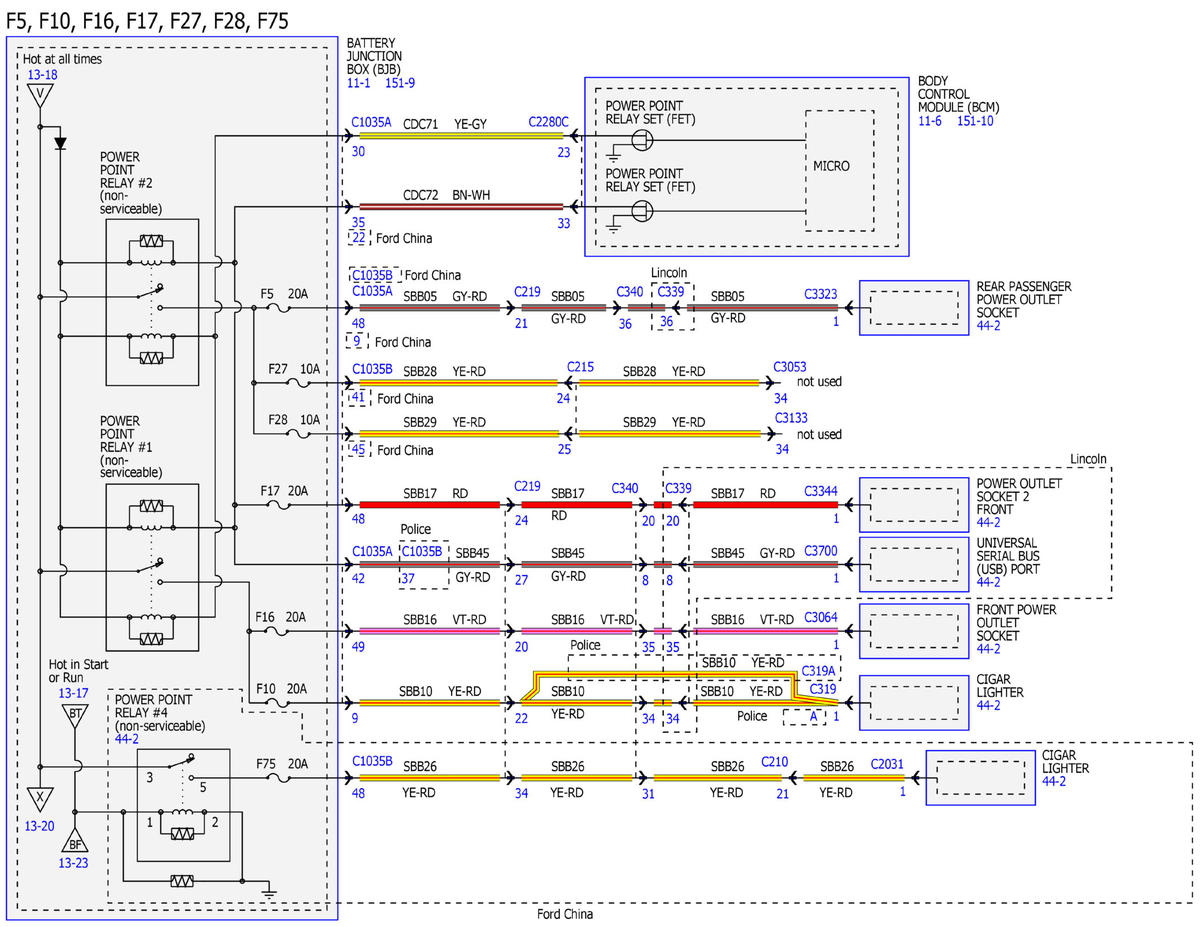

Fig 20: Power Distribution Wiring Diagram (20 Of 59)

GFDWR50335

Courtesy of FORD MOTOR COMPANY

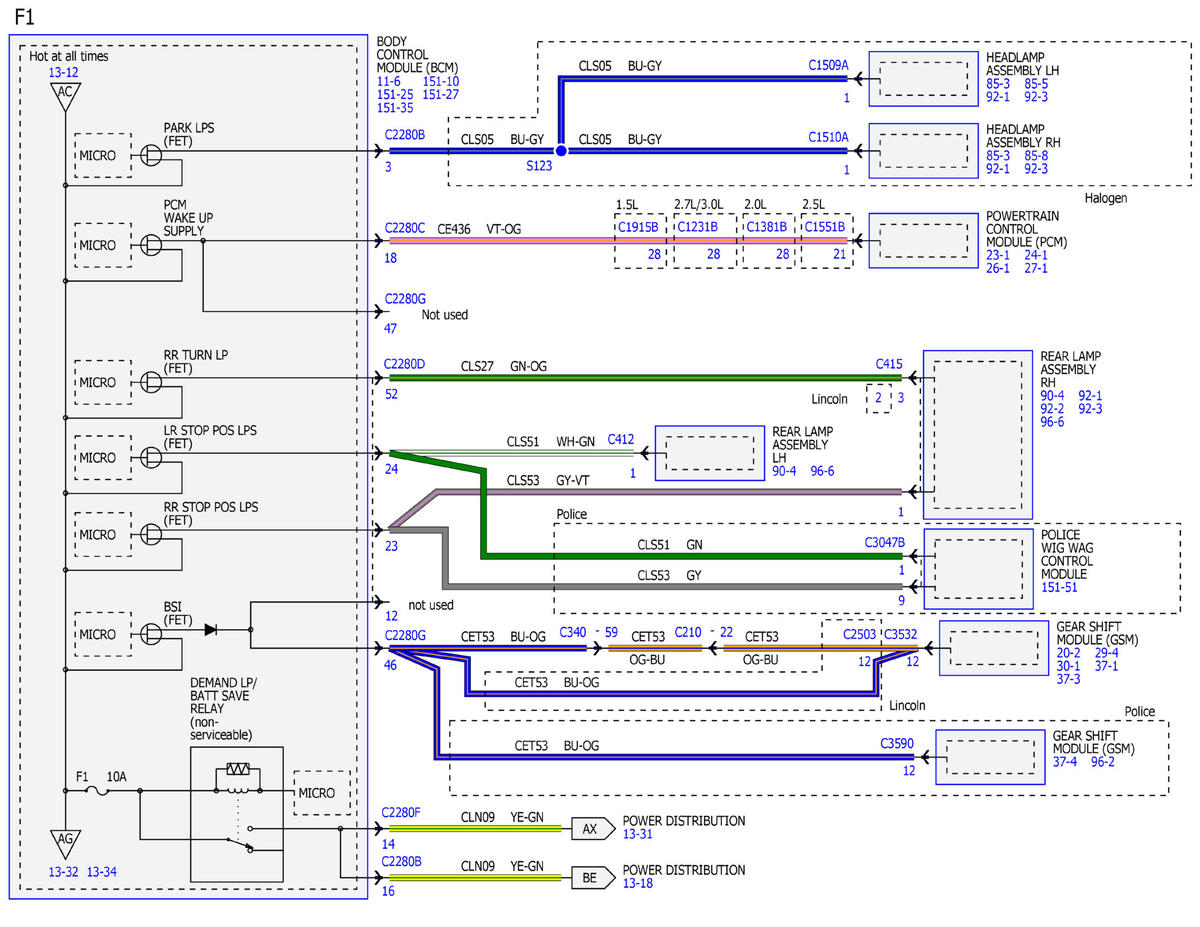

Fig 21: Power Distribution Wiring Diagram (21 Of 59)

GFDWR50336

Courtesy of FORD MOTOR COMPANY

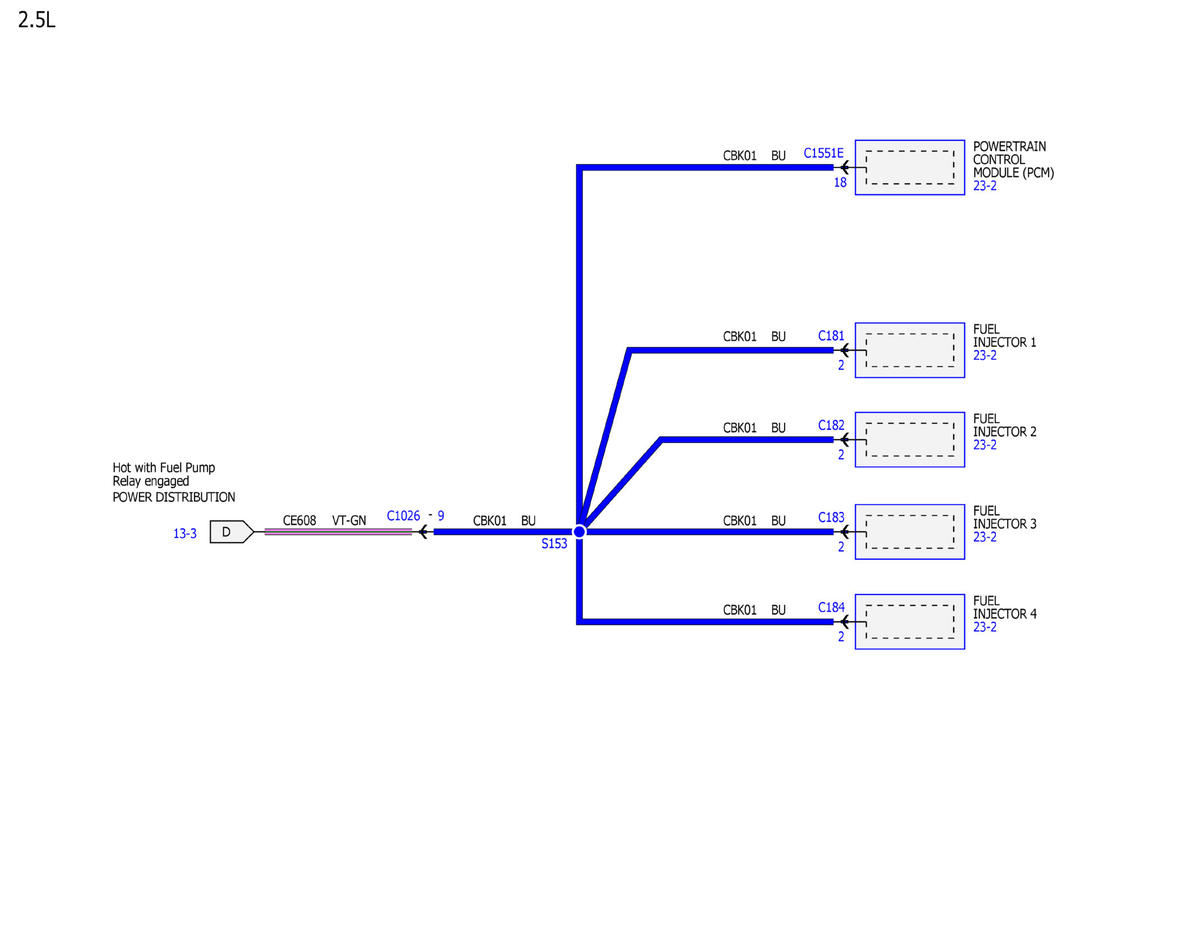

Fig 22: Power Distribution Wiring Diagram (22 Of 59)

GFDWR50337

Courtesy of FORD MOTOR COMPANY

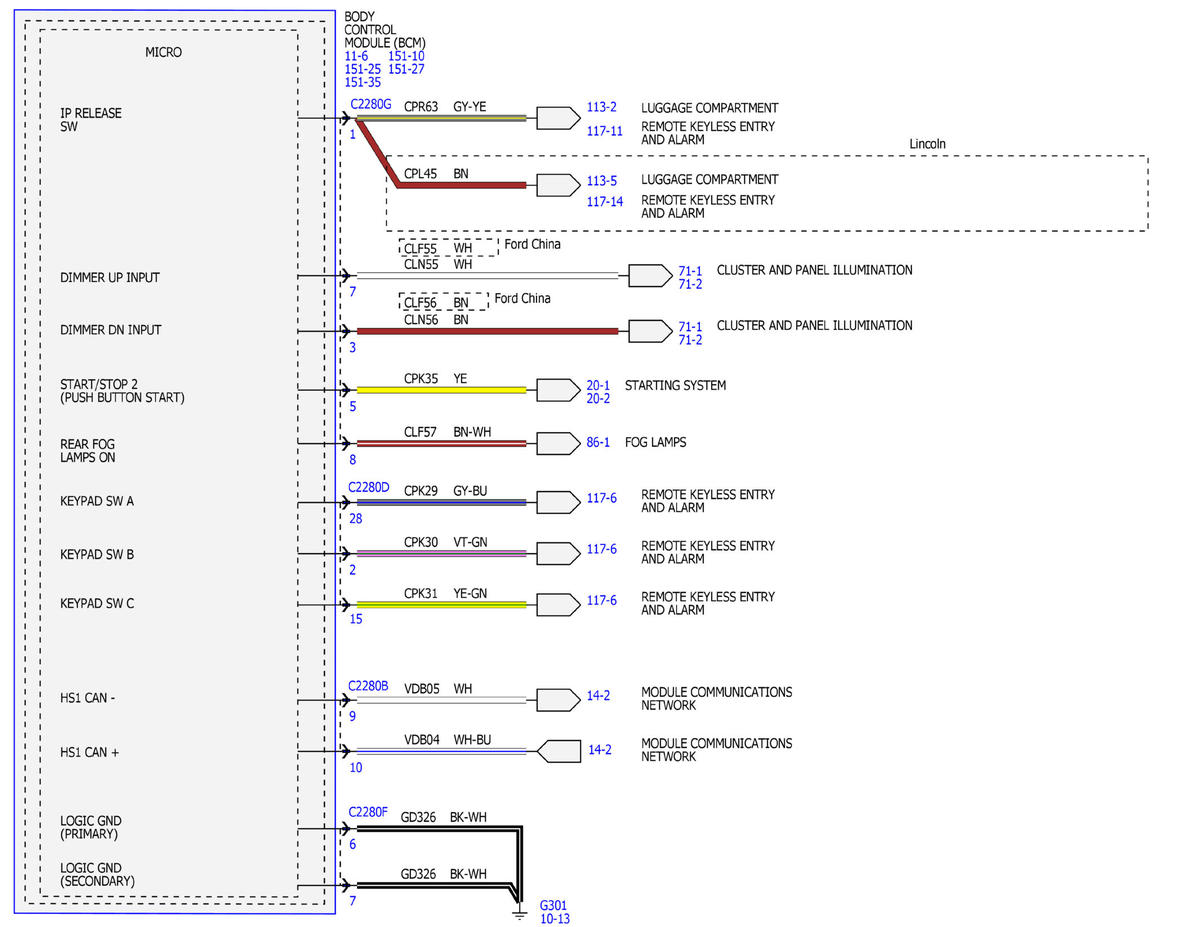

Fig 23: Power Distribution Wiring Diagram (23 Of 59)

GFDWR50338

Courtesy of FORD MOTOR COMPANY

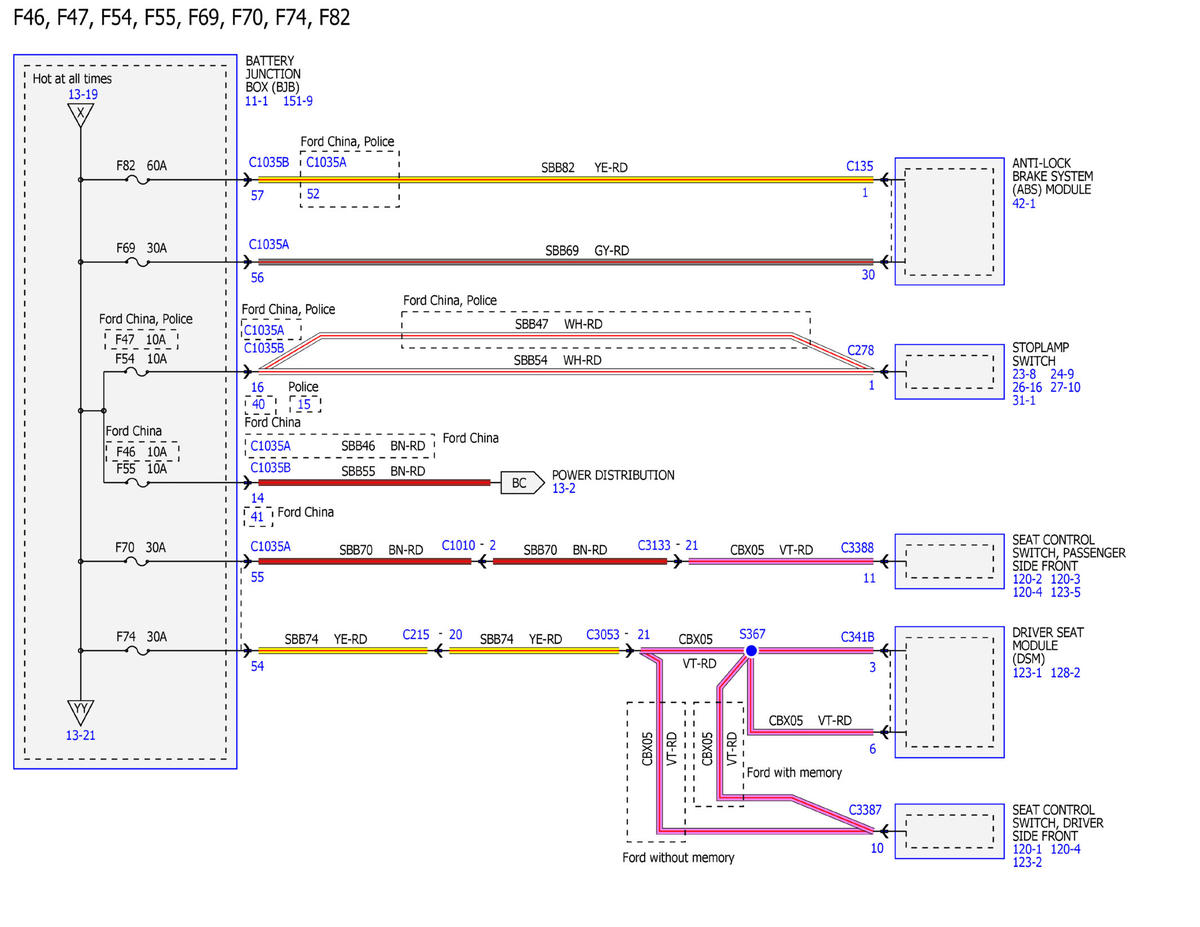

Fig 24: Power Distribution Wiring Diagram (24 Of 59)

GFDWR50339

Courtesy of FORD MOTOR COMPANY

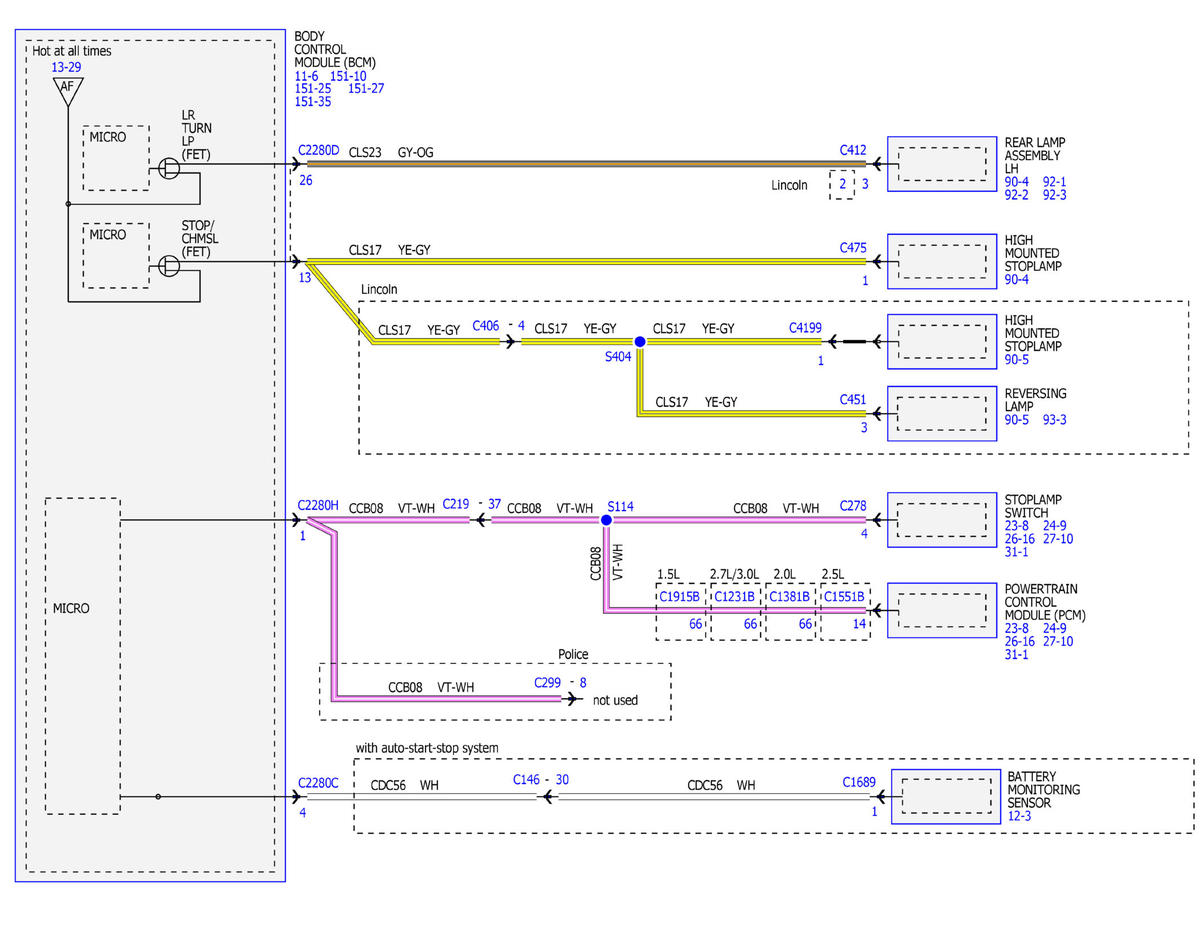

Fig 25: Power Distribution Wiring Diagram (25 Of 59)

GFDWR50340

Courtesy of FORD MOTOR COMPANY

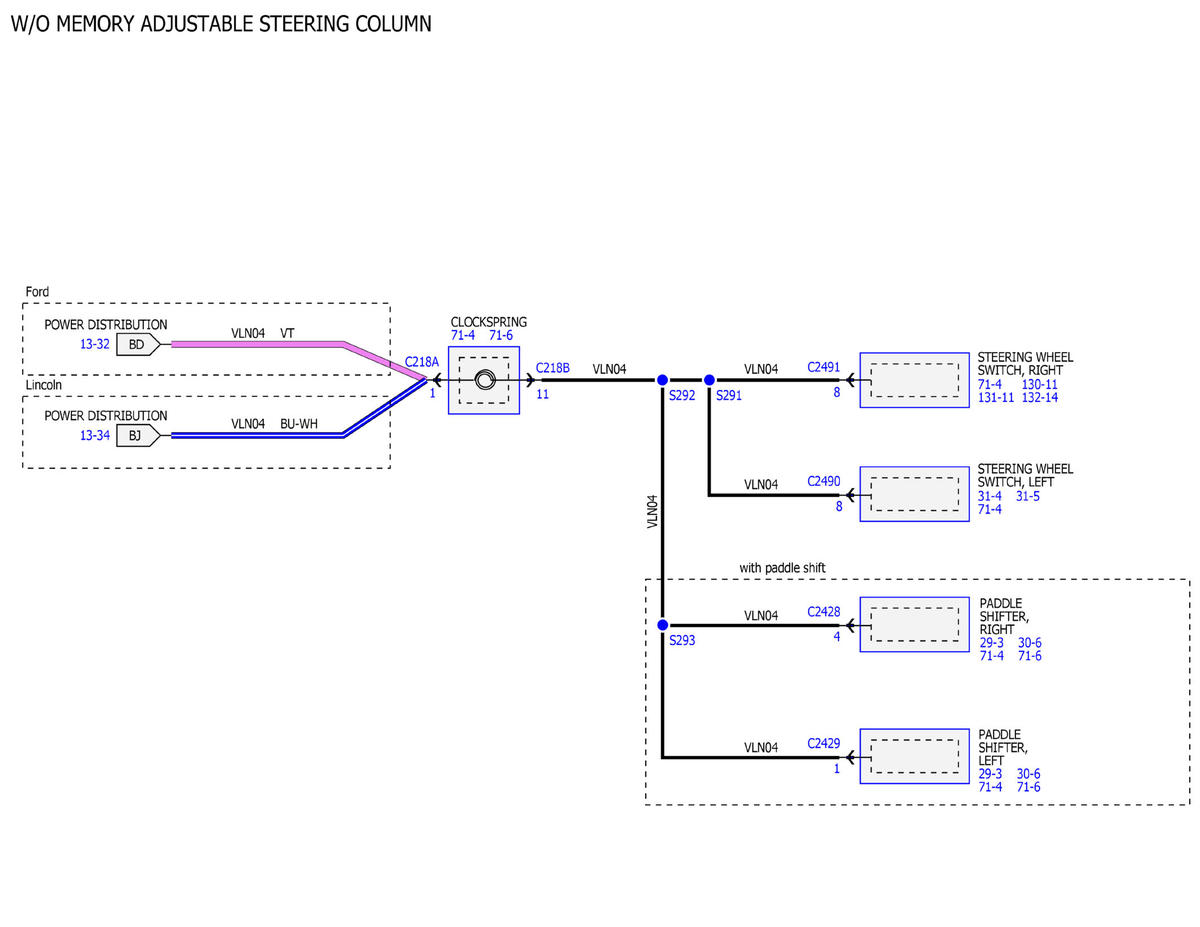

Fig 26: Power Distribution Wiring Diagram (26 Of 59)

GFDWR50341

Courtesy of FORD MOTOR COMPANY

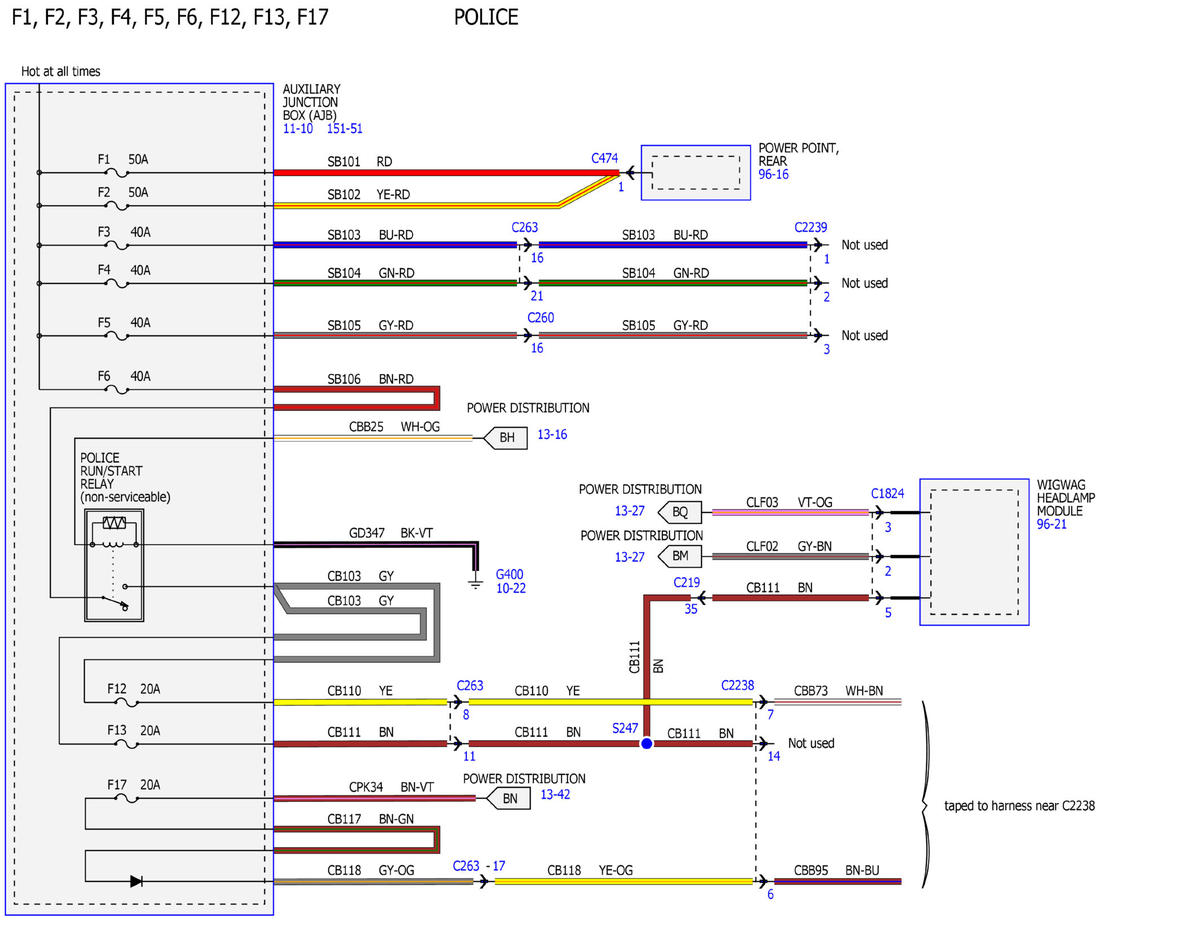

Fig 27: Power Distribution Wiring Diagram (27 Of 59)

GFDWR50342

Courtesy of FORD MOTOR COMPANY

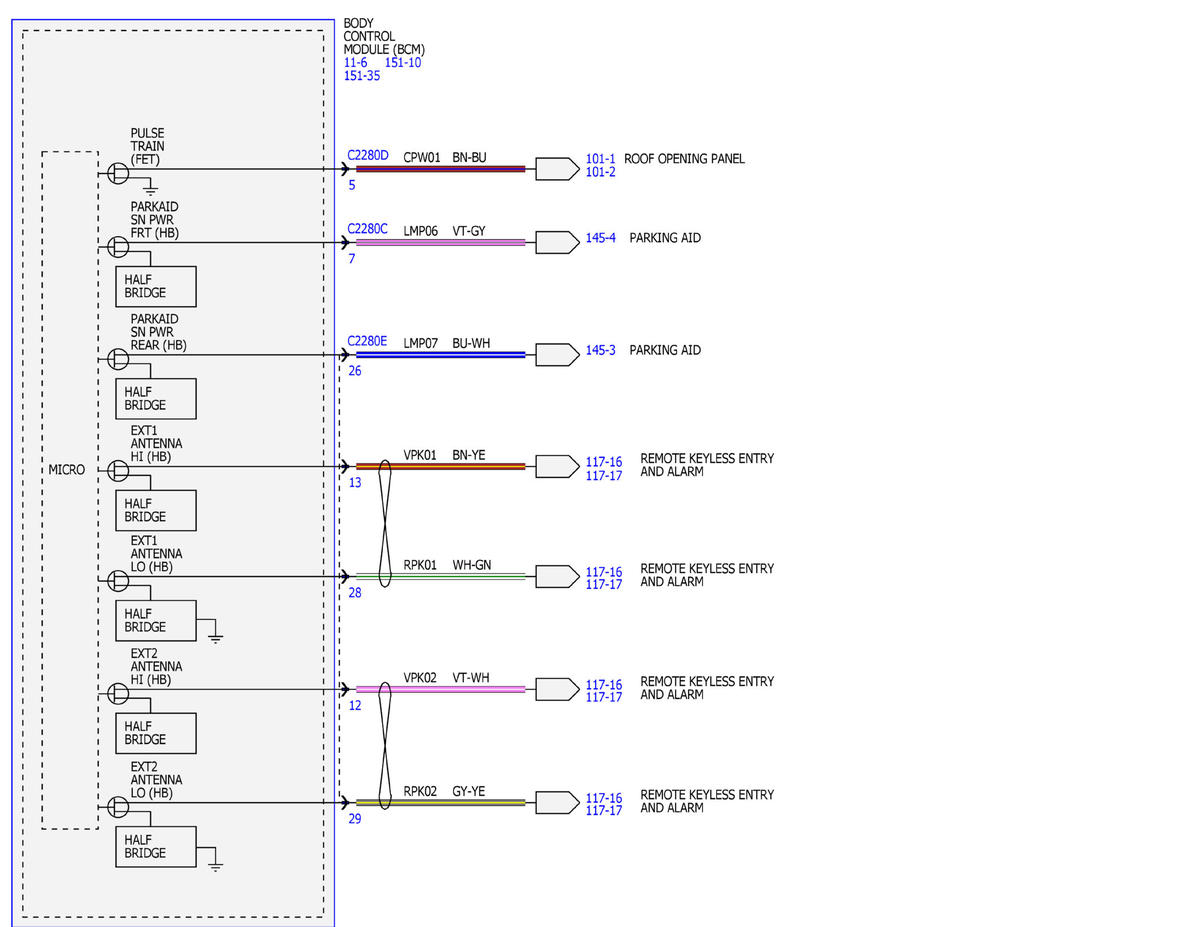

Fig 28: Power Distribution Wiring Diagram (28 Of 59)

GFDWR50343

Courtesy of FORD MOTOR COMPANY

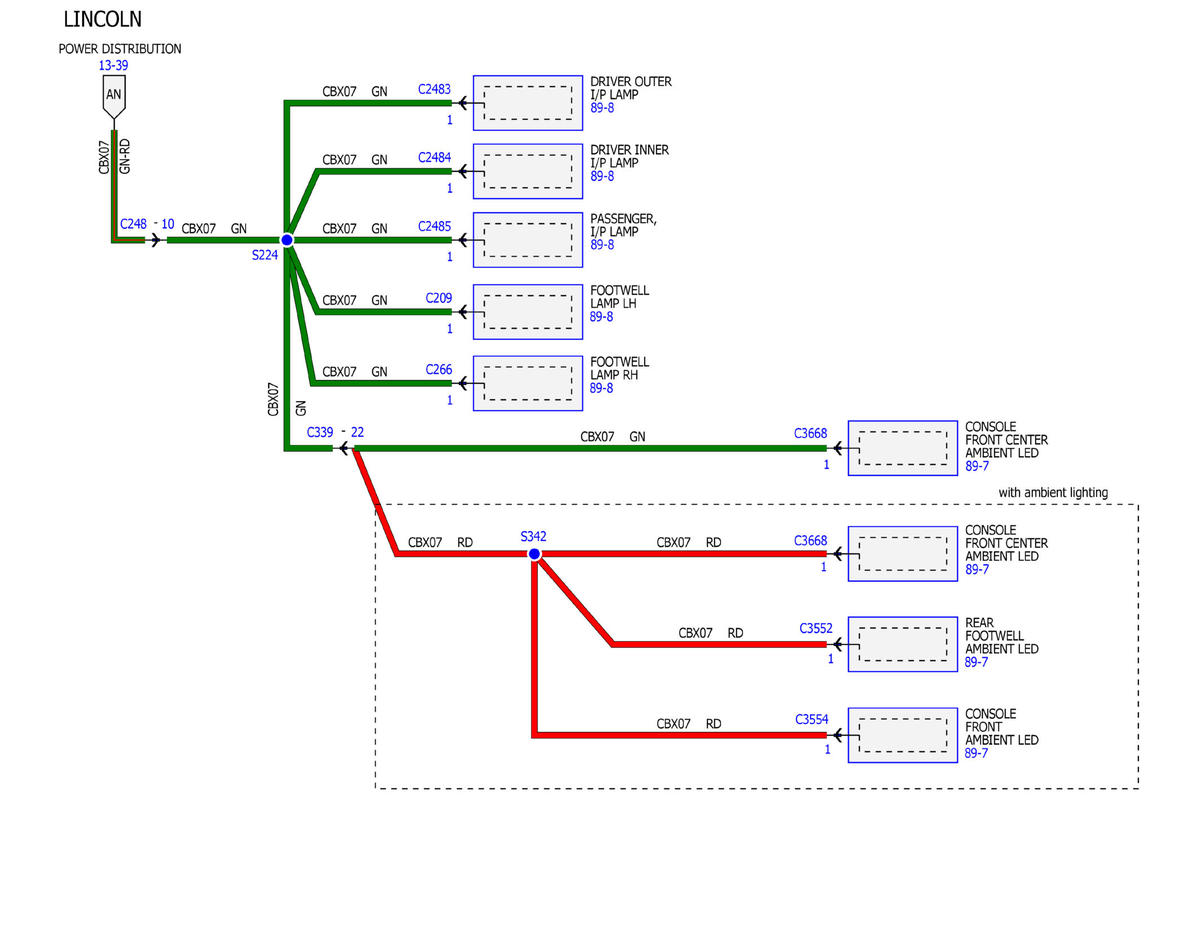

Fig 29: Power Distribution Wiring Diagram (29 Of 59)

GFDWR50344

Courtesy of FORD MOTOR COMPANY

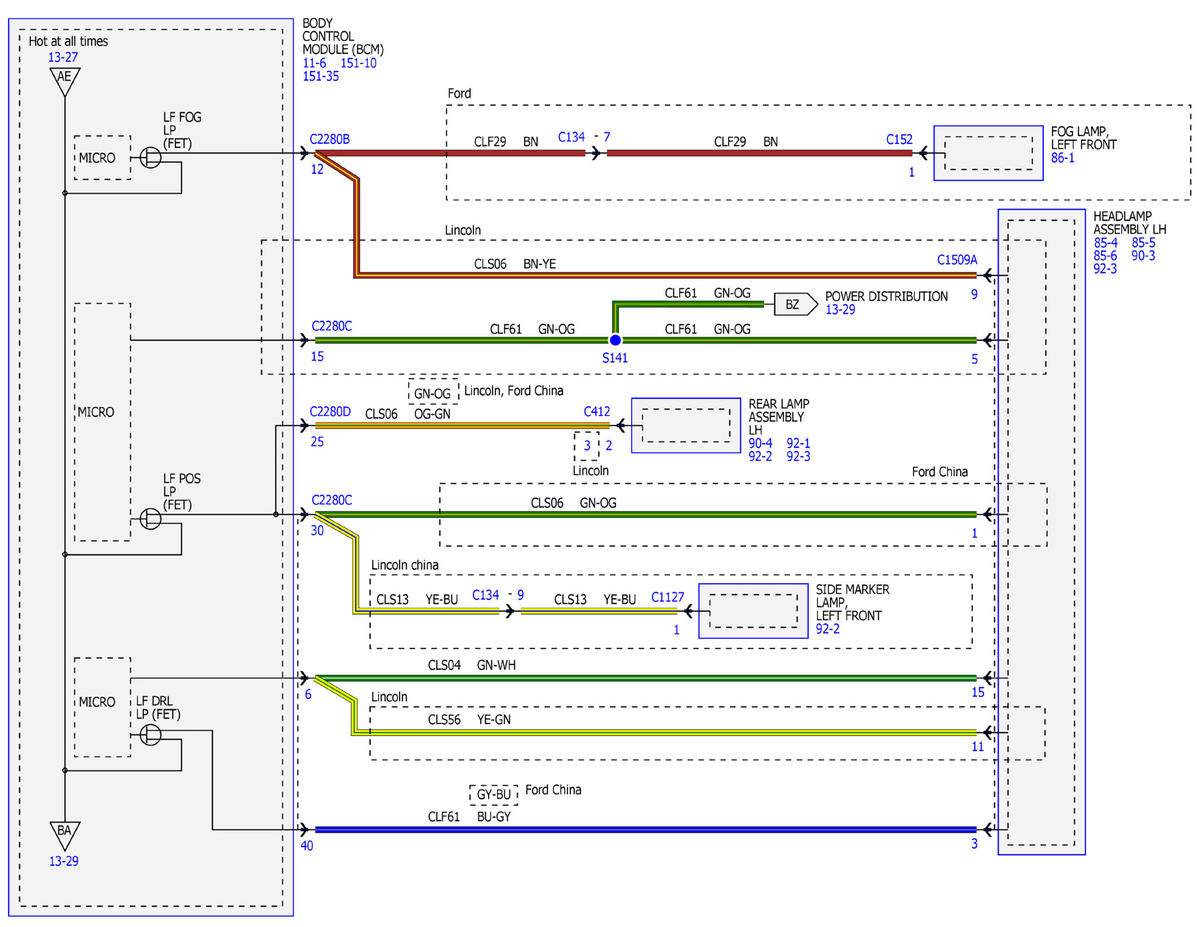

Fig 30: Power Distribution Wiring Diagram (30 Of 59)

GFDWR50345

Courtesy of FORD MOTOR COMPANY

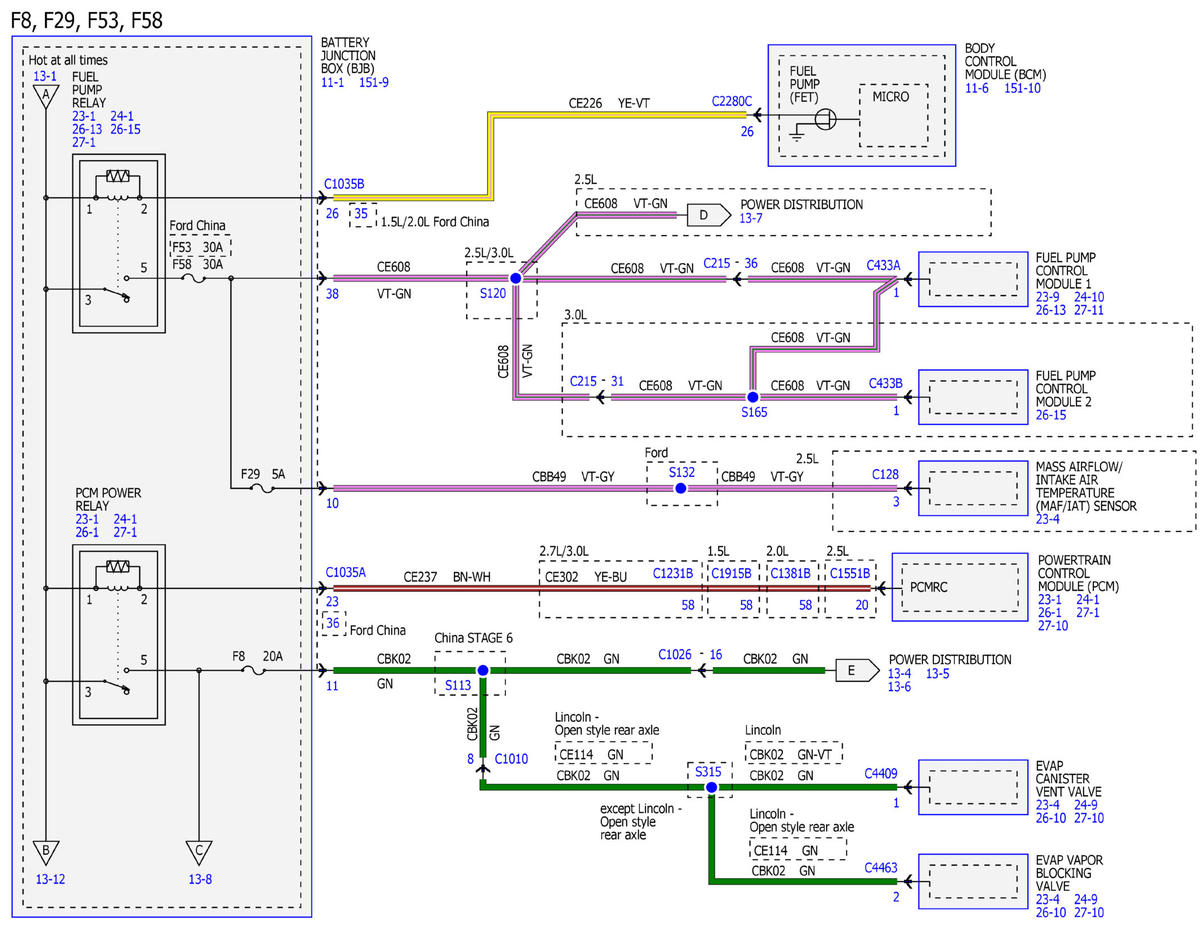

Fig 31: Power Distribution Wiring Diagram (31 Of 59)

GFDWR50346

Courtesy of FORD MOTOR COMPANY

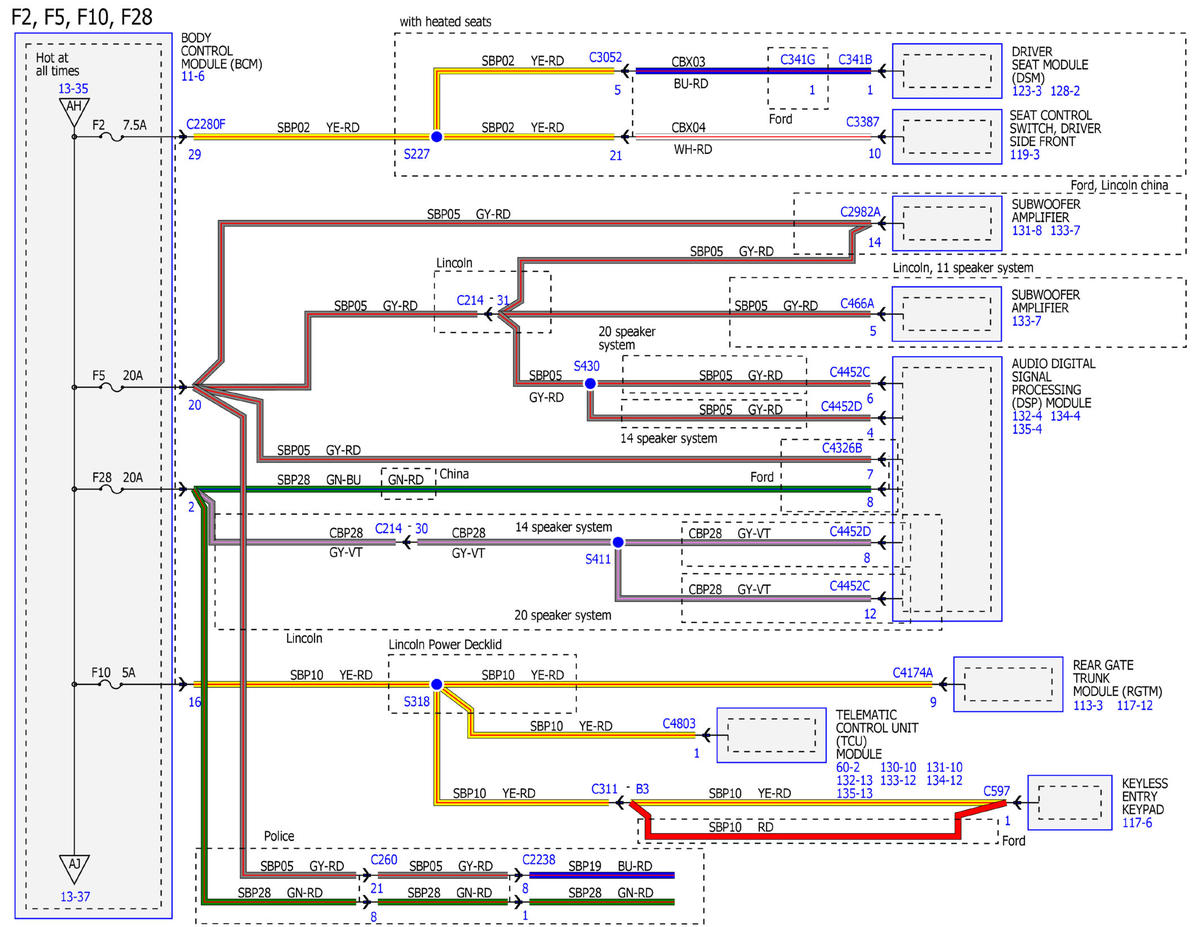

Fig 32: Power Distribution Wiring Diagram (32 Of 59)

GFDWR50347

Courtesy of FORD MOTOR COMPANY

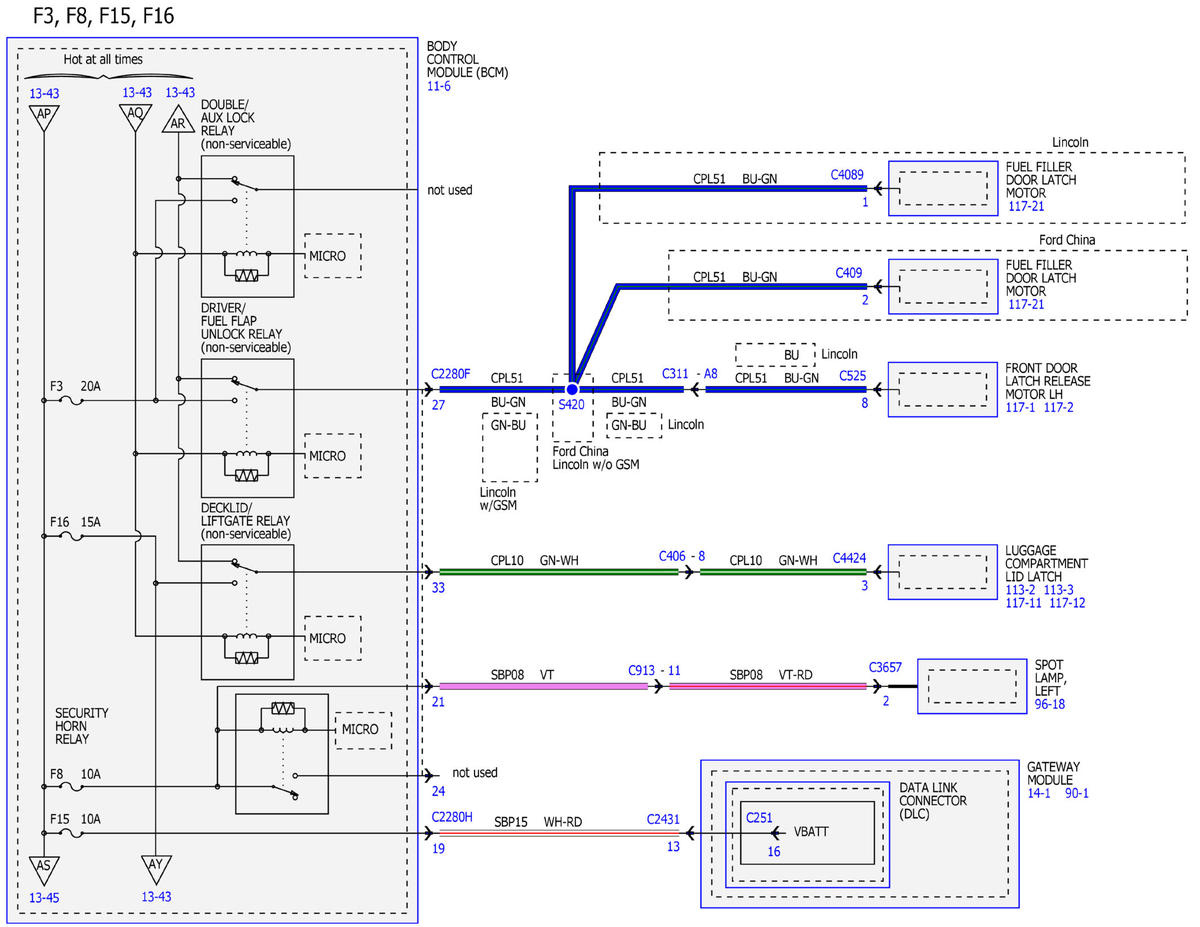

Fig 33: Power Distribution Wiring Diagram (33 Of 59)

GFDWR50348

Courtesy of FORD MOTOR COMPANY

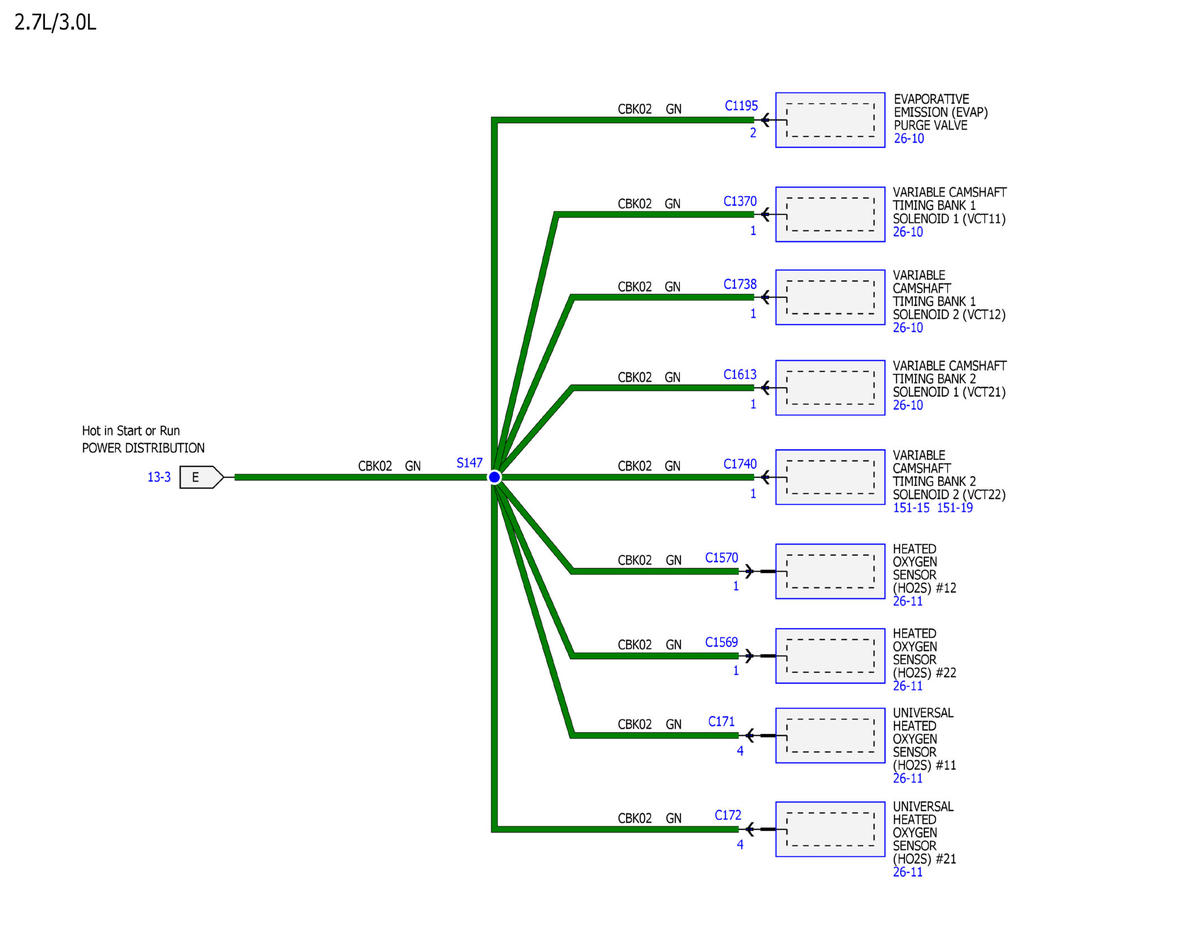

Fig 34: Power Distribution Wiring Diagram (34 Of 59)

GFDWR50349

Courtesy of FORD MOTOR COMPANY

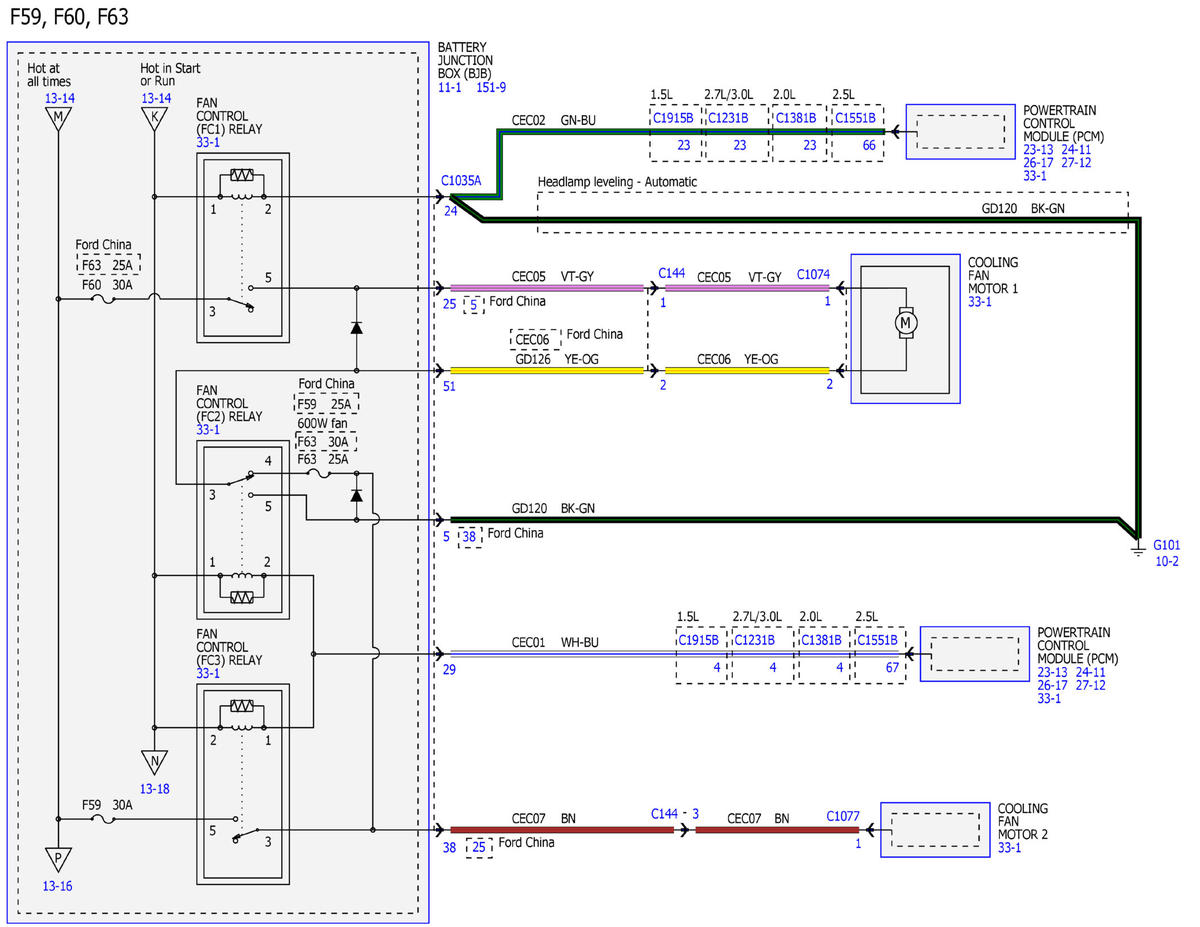

Fig 35: Power Distribution Wiring Diagram (35 Of 59)

GFDWR50350

Courtesy of FORD MOTOR COMPANY

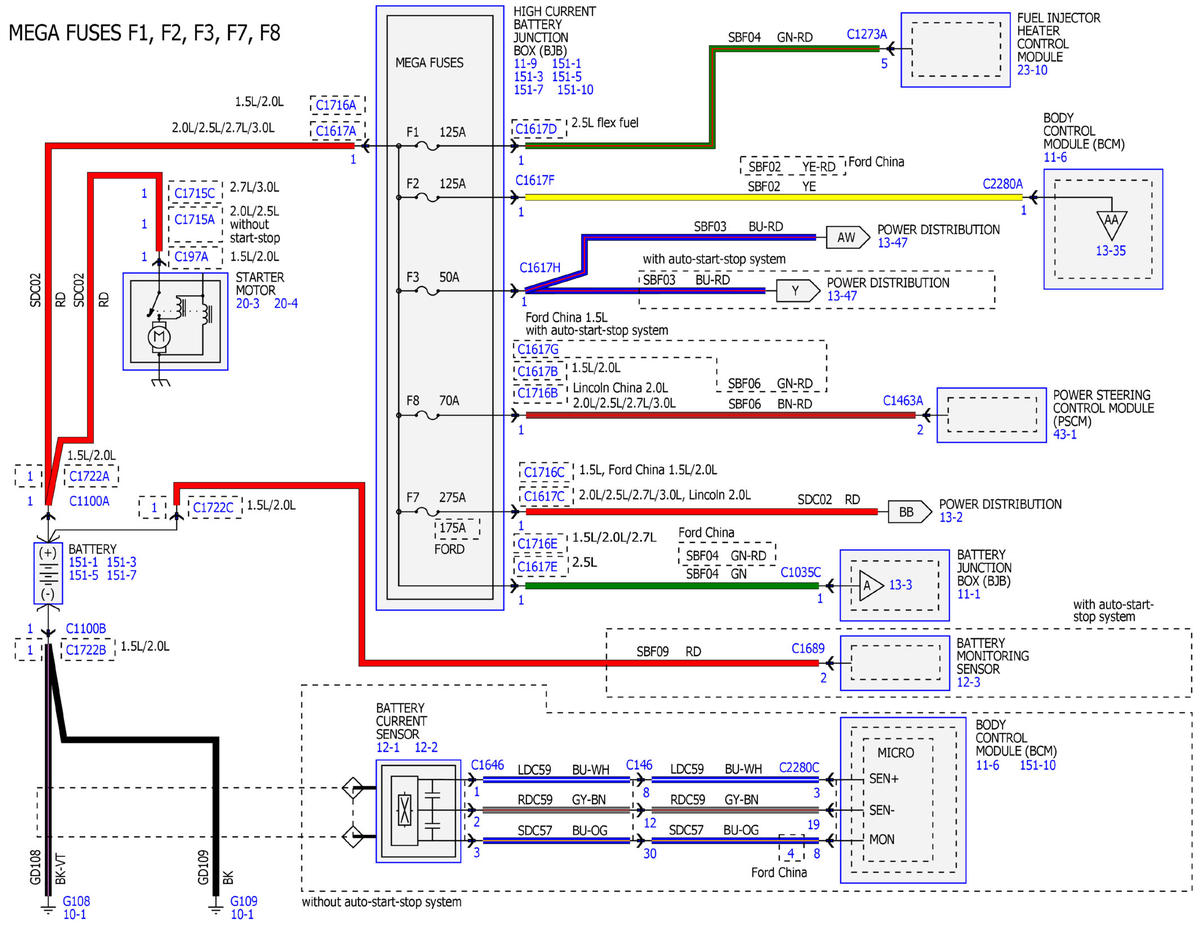

Fig 36: Power Distribution Wiring Diagram (36 Of 59)

GFDWR50351

Courtesy of FORD MOTOR COMPANY

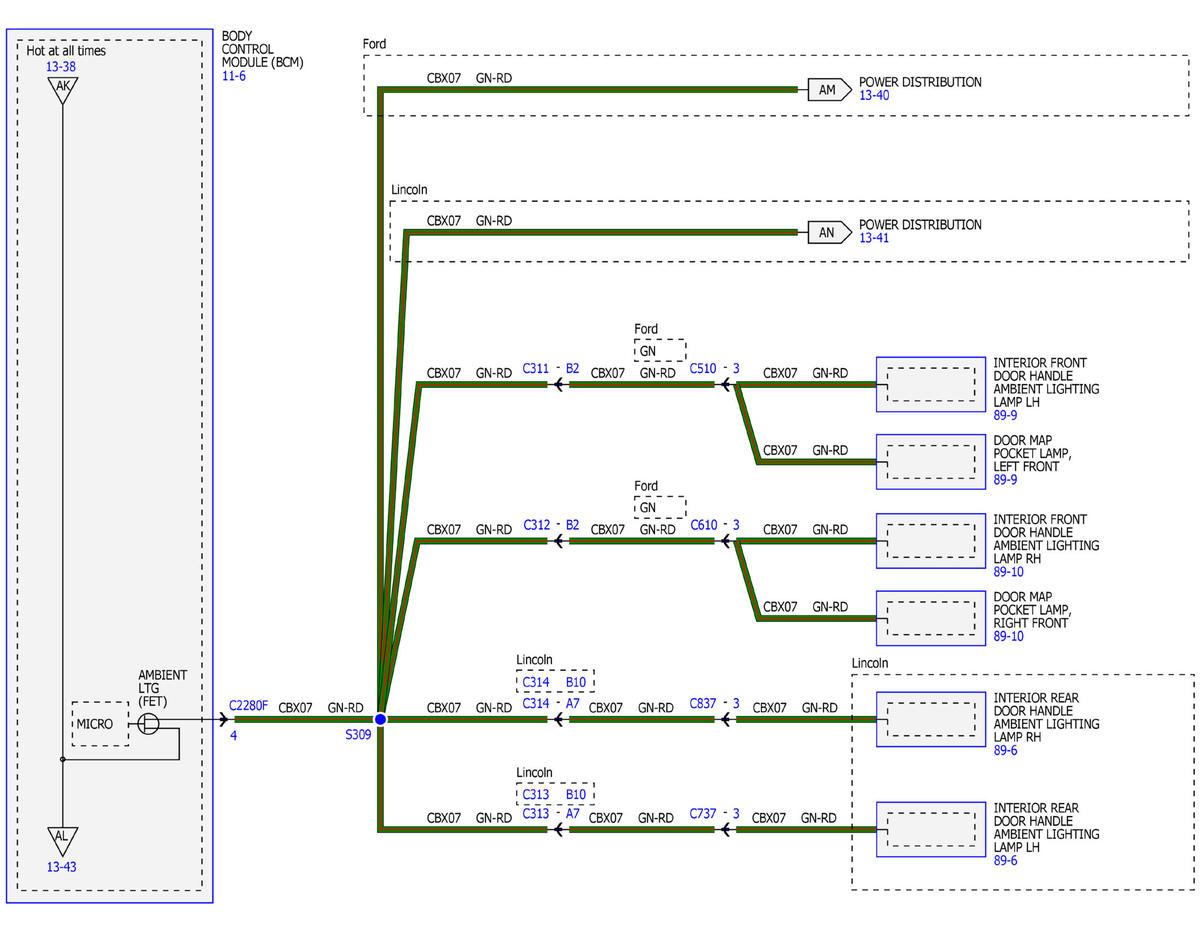

Fig 37: Power Distribution Wiring Diagram (37 Of 59)

GFDWR50352

Courtesy of FORD MOTOR COMPANY

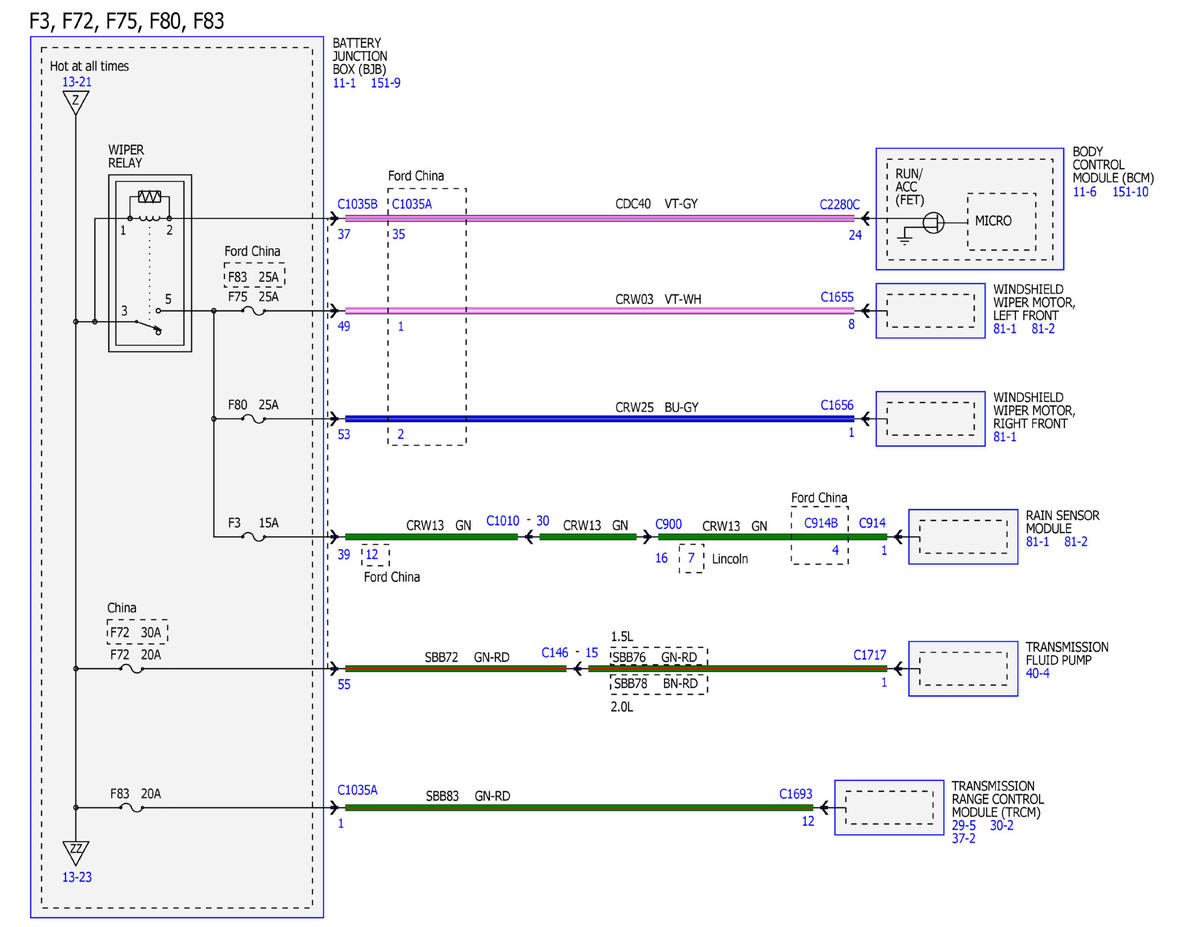

Fig 38: Power Distribution Wiring Diagram (38 Of 59)

GFDWR50353

Courtesy of FORD MOTOR COMPANY

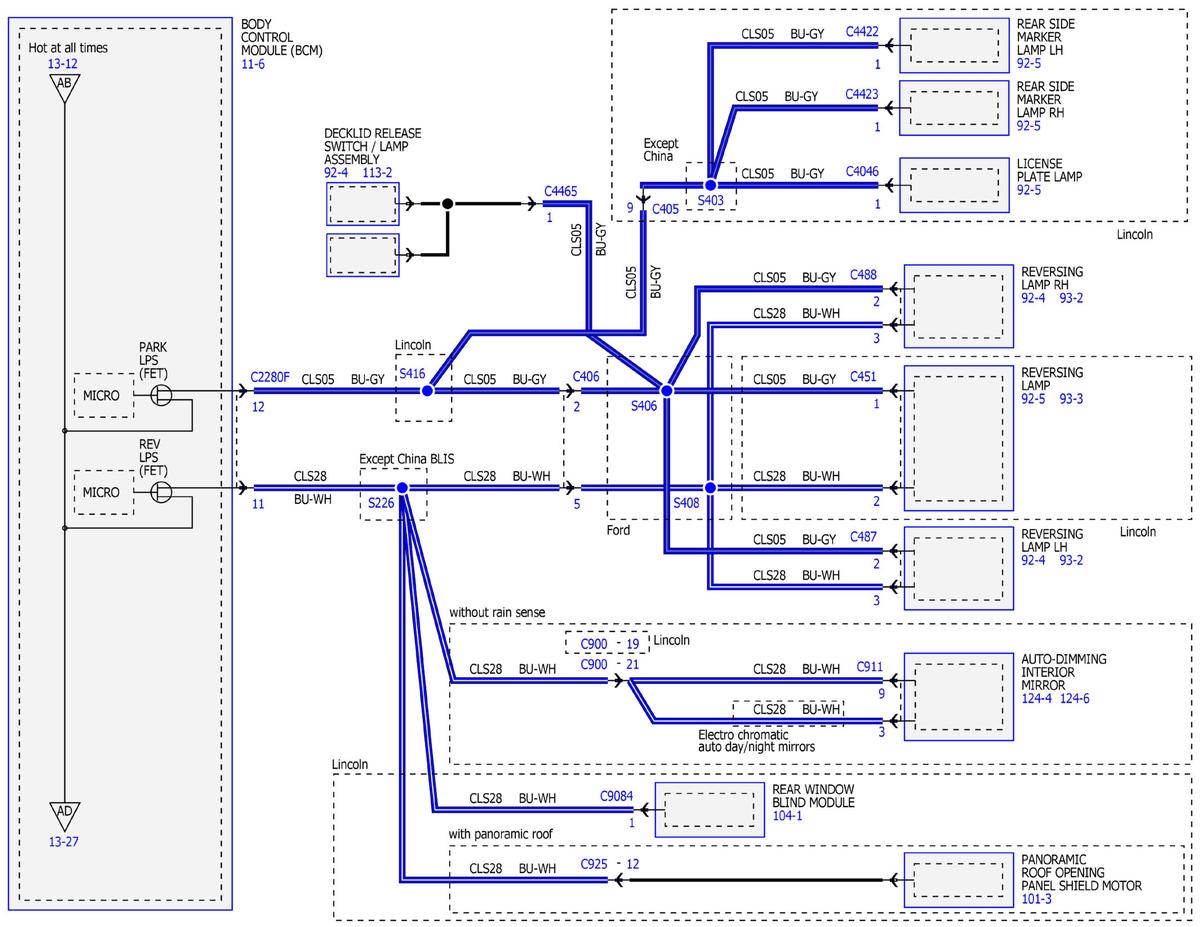

Fig 39: Power Distribution Wiring Diagram (39 Of 59)

GFDWR50354

Courtesy of FORD MOTOR COMPANY

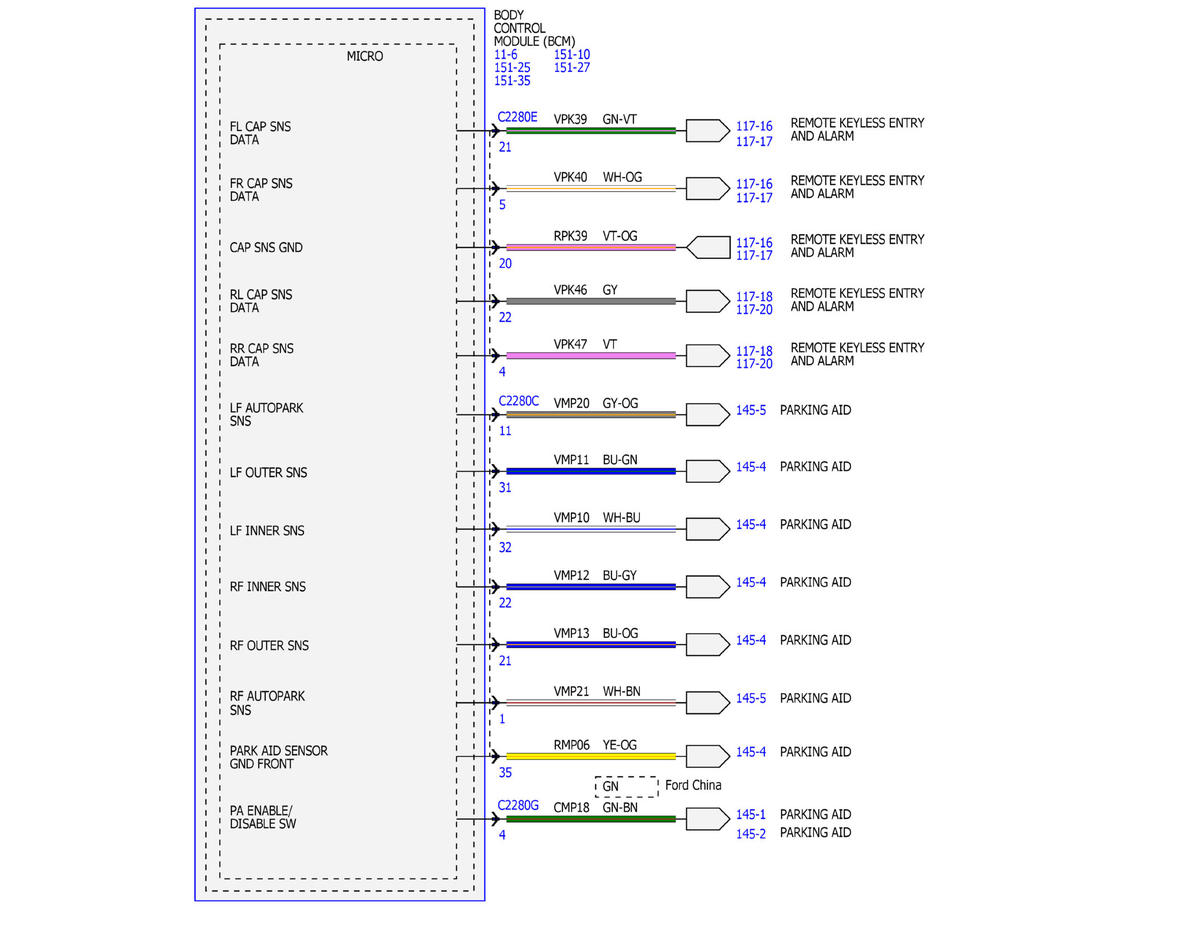

Fig 40: Power Distribution Wiring Diagram (40 Of 59)

GFDWR50355

Courtesy of FORD MOTOR COMPANY

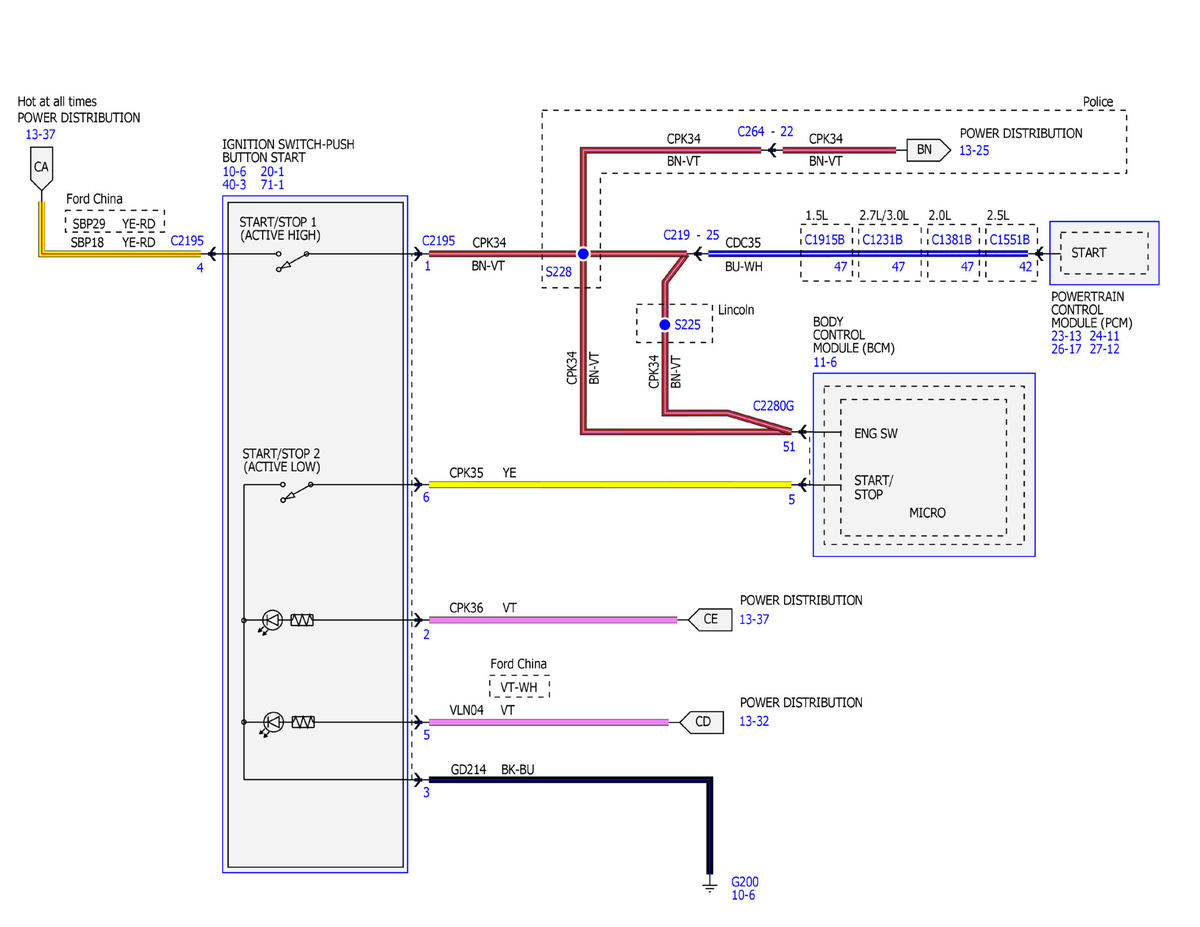

Fig 41: Power Distribution Wiring Diagram (41 Of 59)

GFDWR50356

Courtesy of FORD MOTOR COMPANY

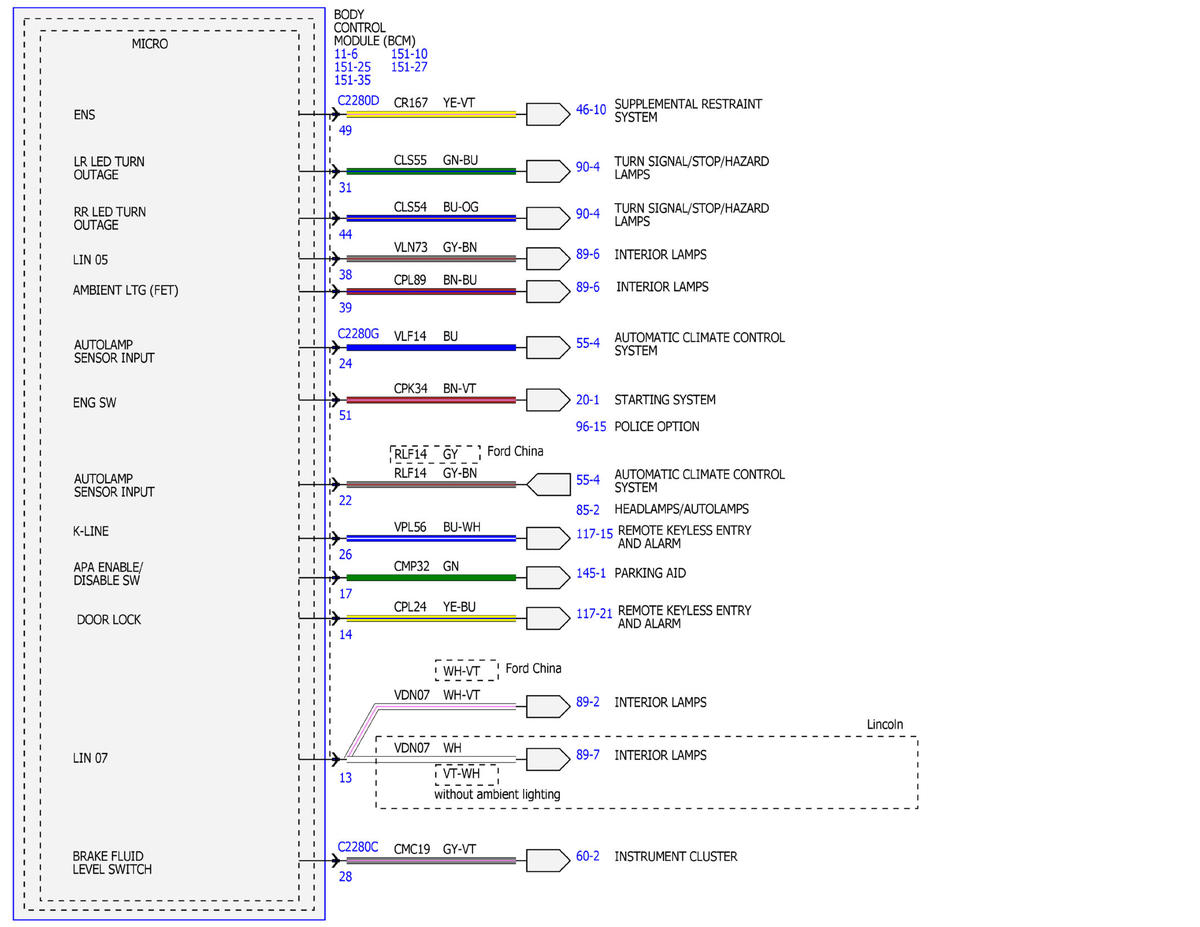

Fig 42: Power Distribution Wiring Diagram (42 Of 59)

GFDWR50357

Courtesy of FORD MOTOR COMPANY

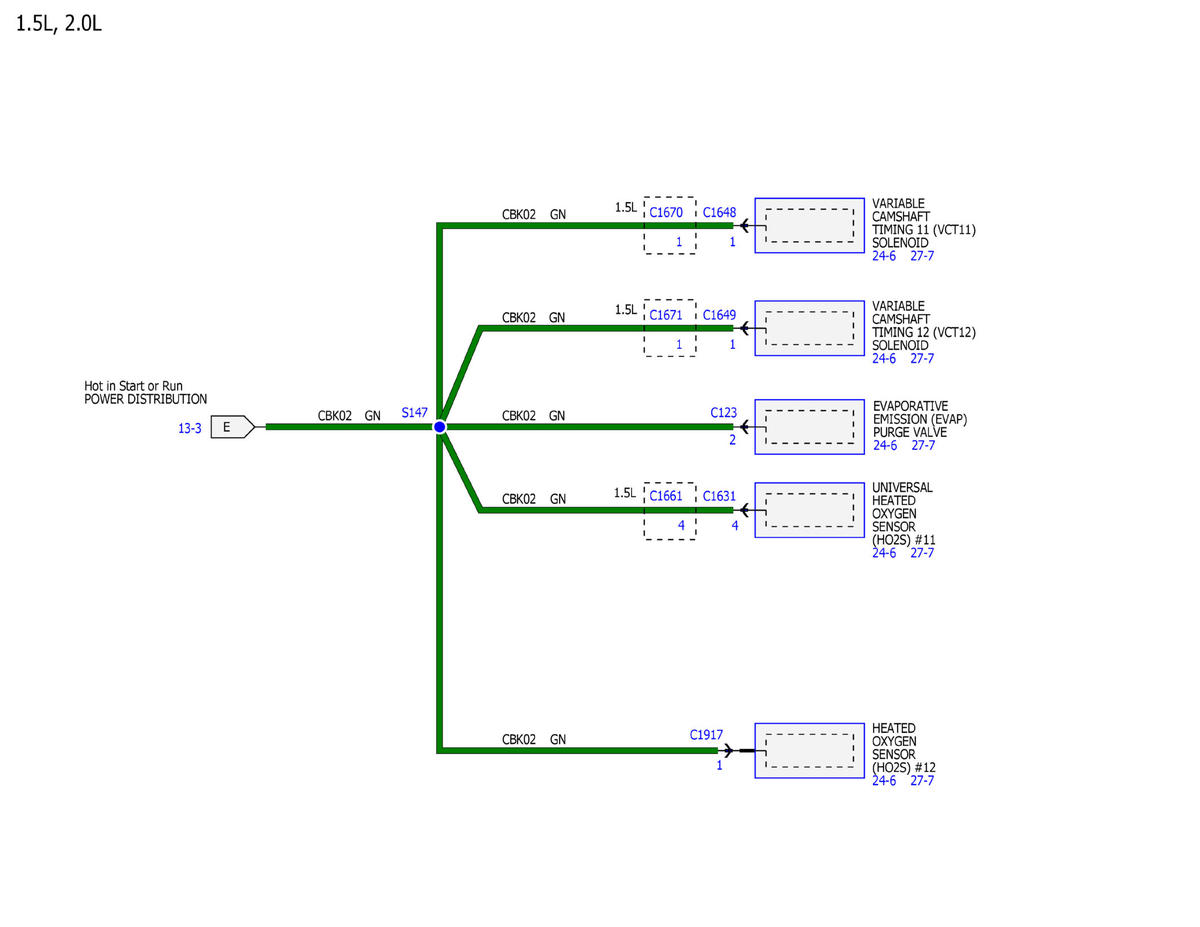

Fig 43: Power Distribution Wiring Diagram (43 Of 59)

GFDWR50358

Courtesy of FORD MOTOR COMPANY

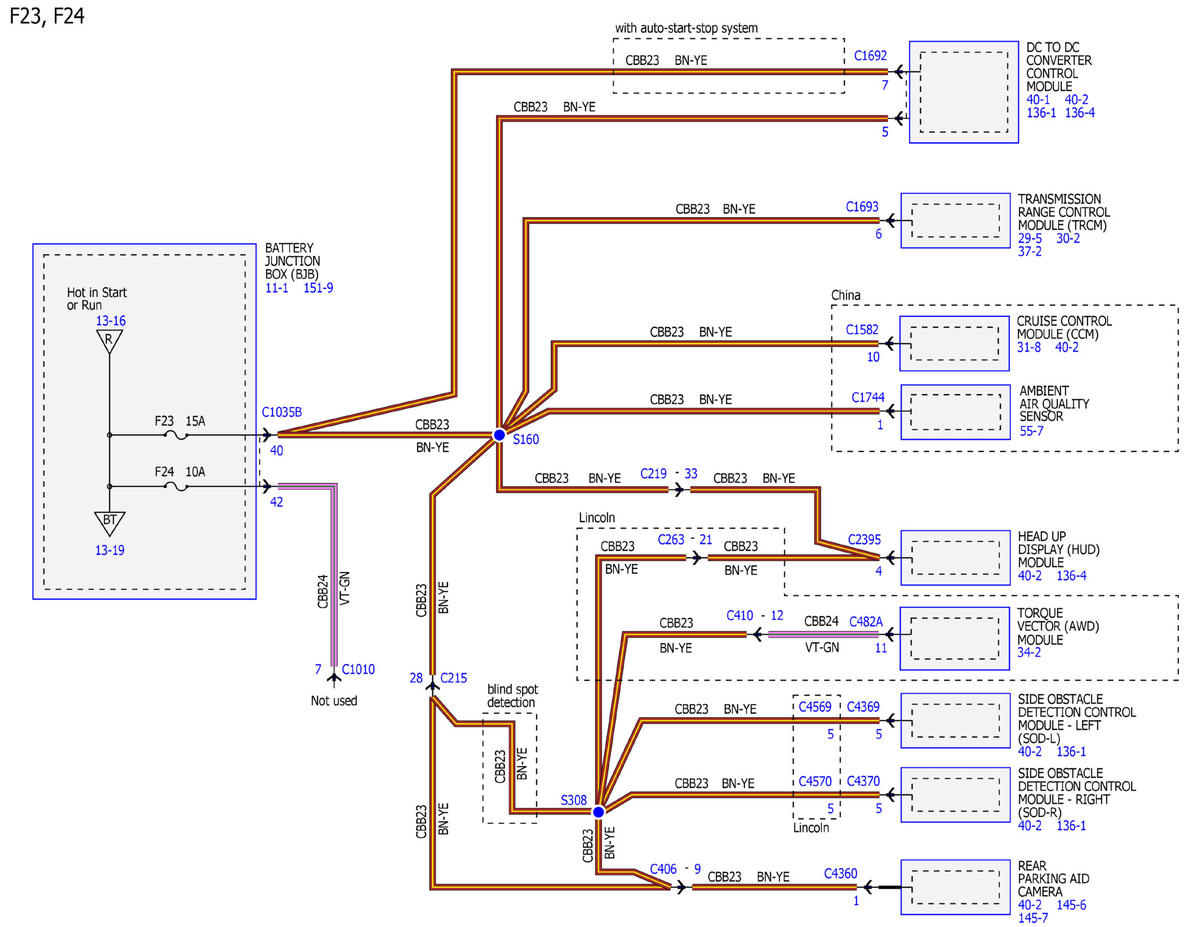

Fig 44: Power Distribution Wiring Diagram (44 Of 59)

GFDWR50359

Courtesy of FORD MOTOR COMPANY

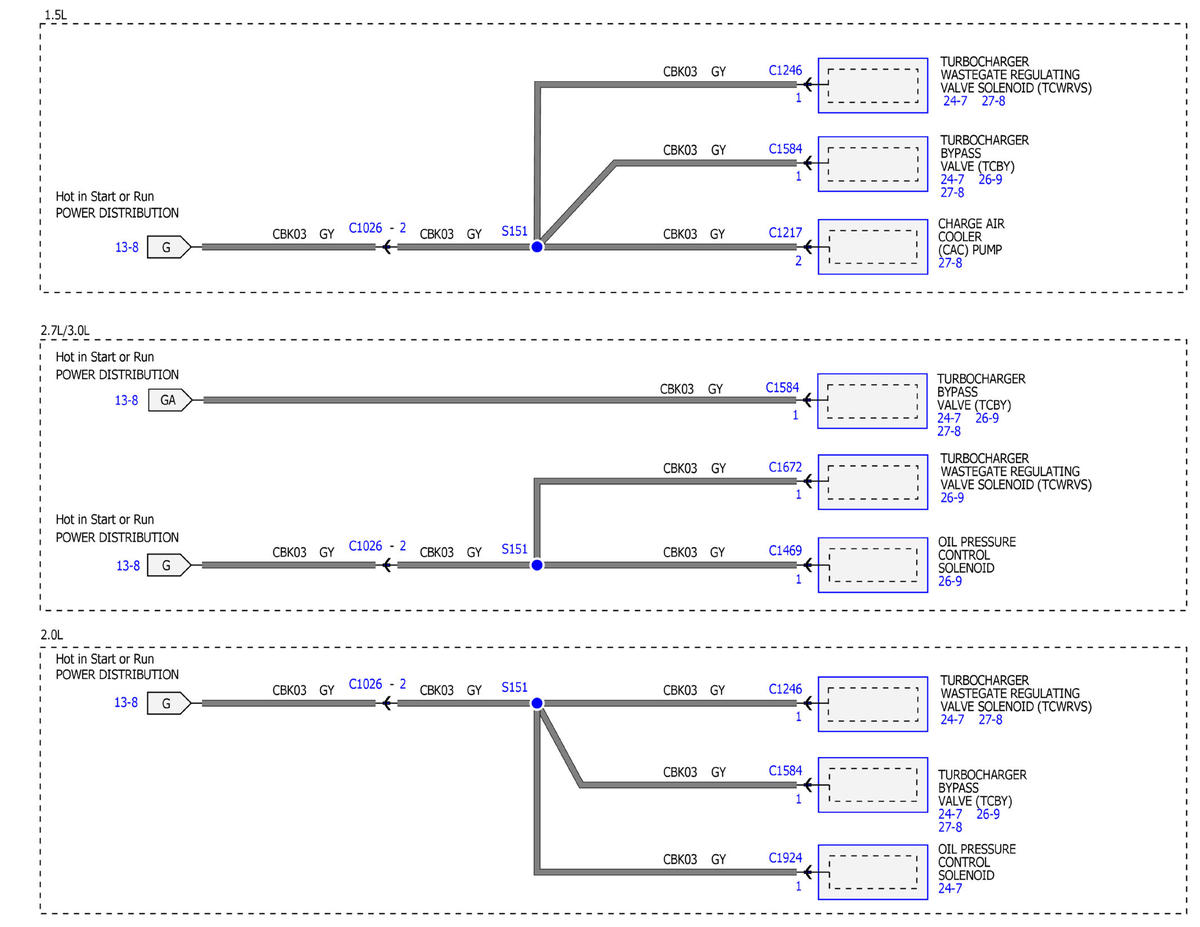

Fig 45: Power Distribution Wiring Diagram (45 Of 59)

GFDWR50360

Courtesy of FORD MOTOR COMPANY

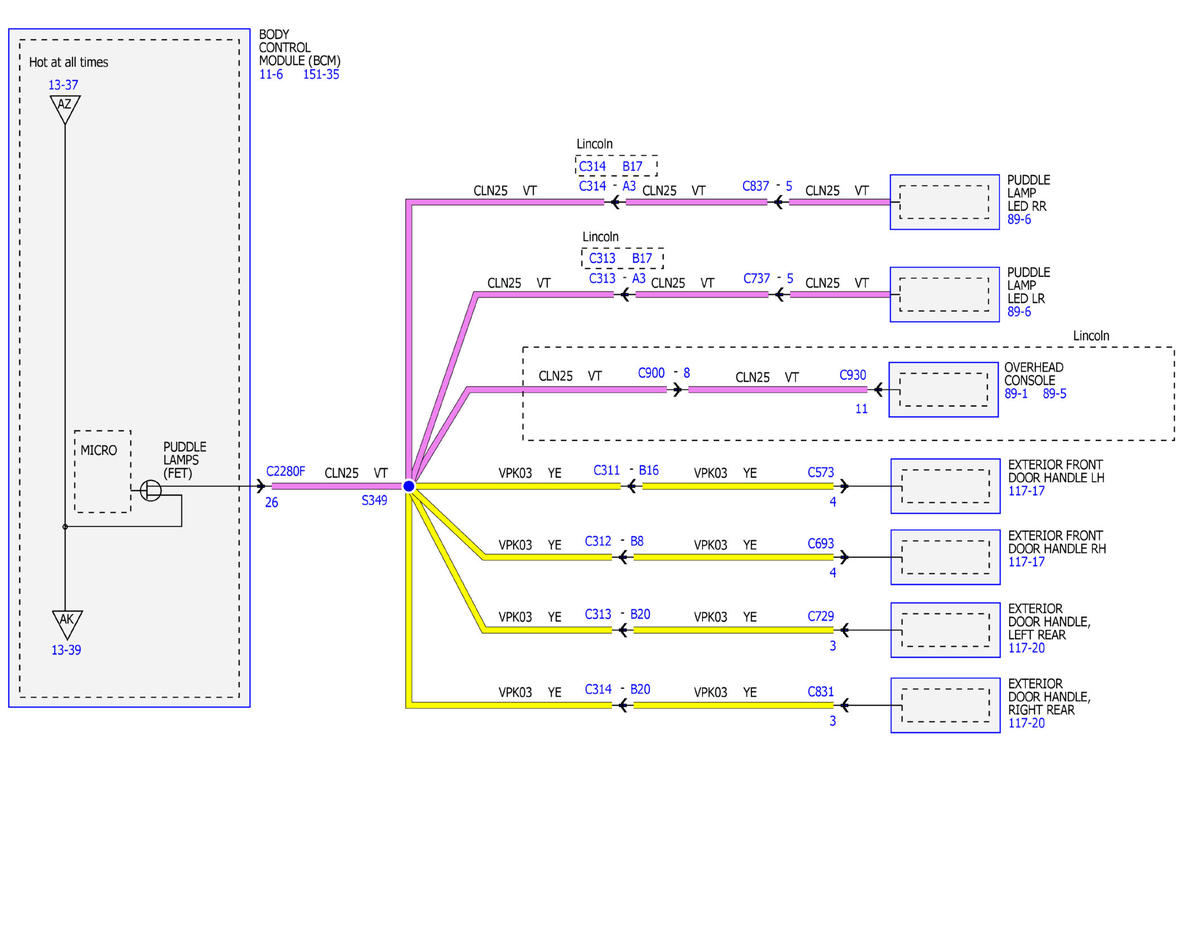

Fig 46: Power Distribution Wiring Diagram (46 Of 59)

GFDWR50361

Courtesy of FORD MOTOR COMPANY

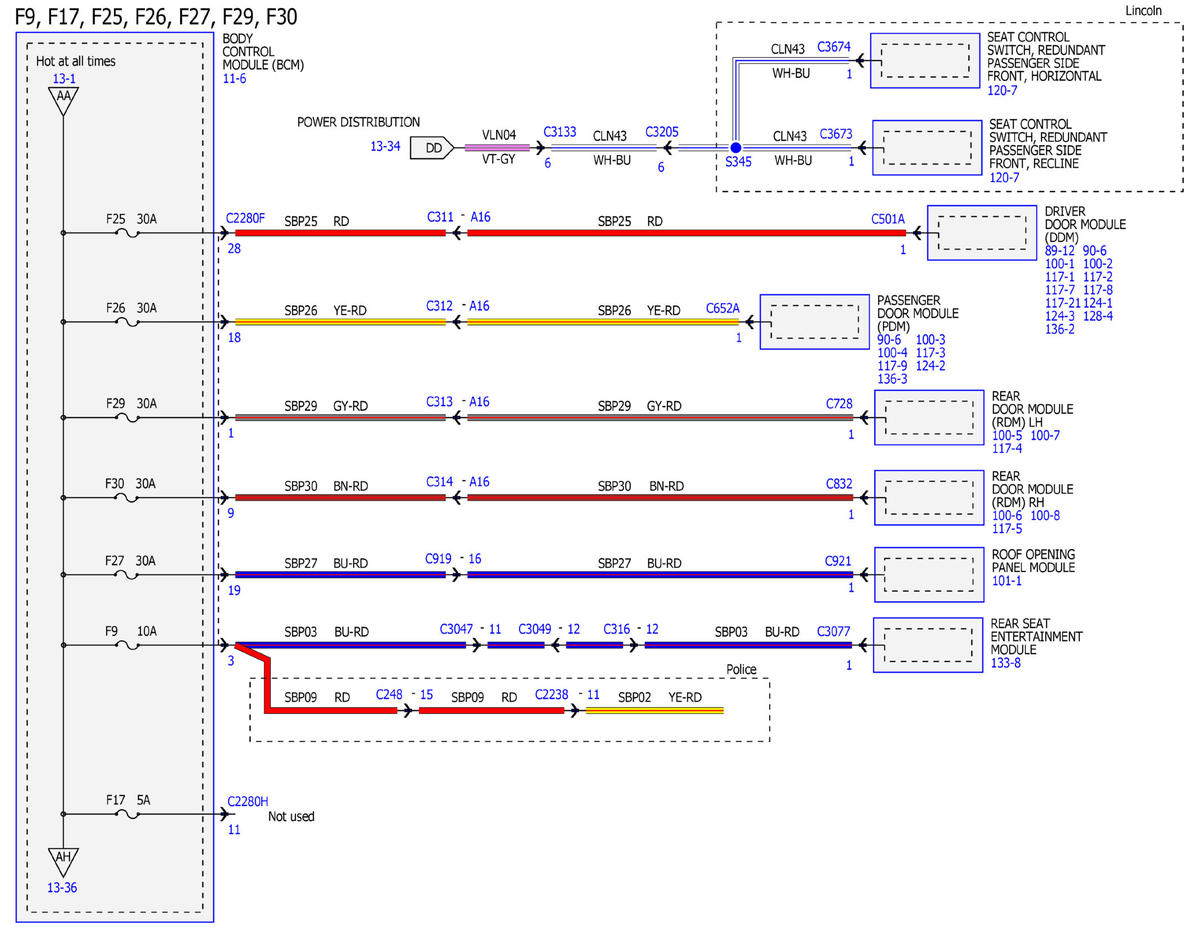

Fig 47: Power Distribution Wiring Diagram (47 Of 59)

GFDWR50362

Courtesy of FORD MOTOR COMPANY

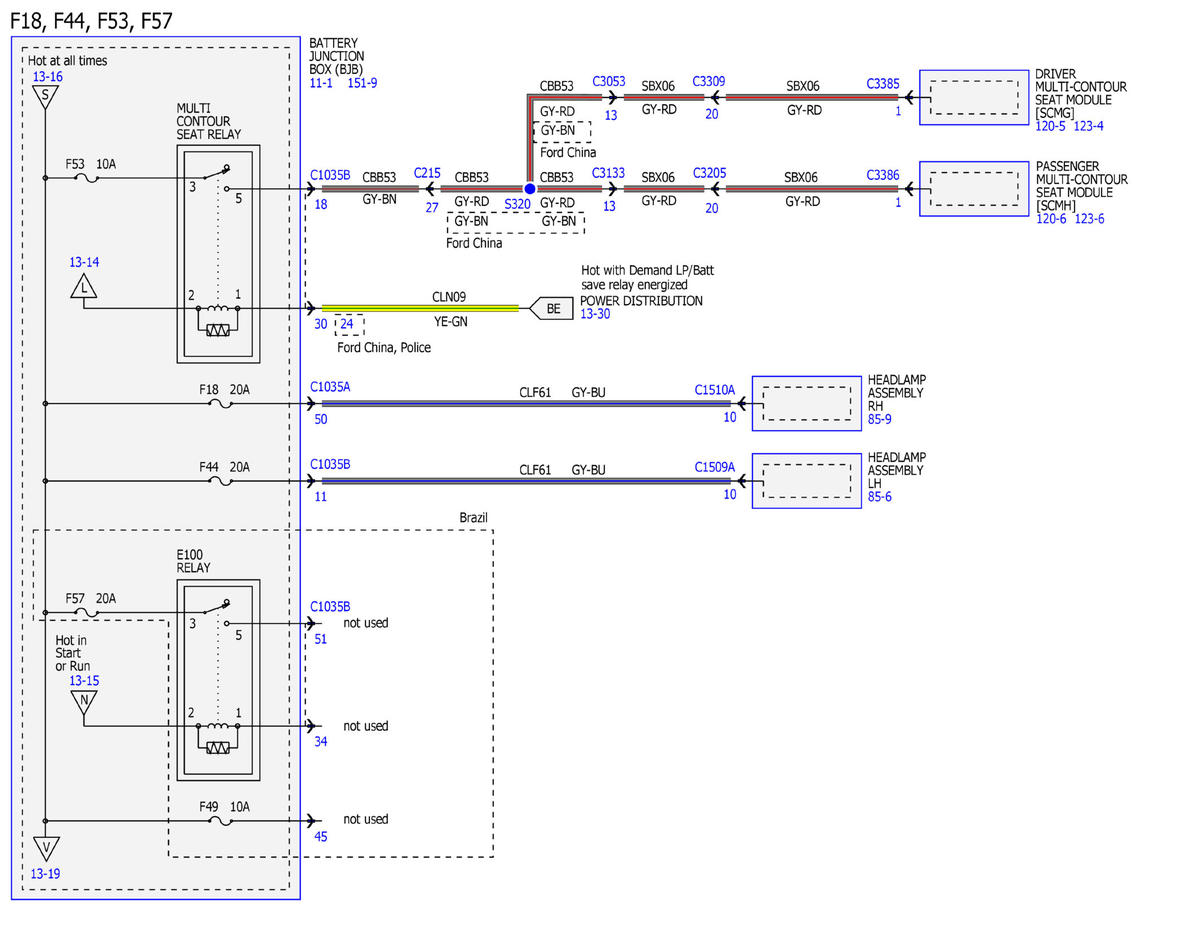

Fig 48: Power Distribution Wiring Diagram (48 Of 59)

GFDWR50363

Courtesy of FORD MOTOR COMPANY

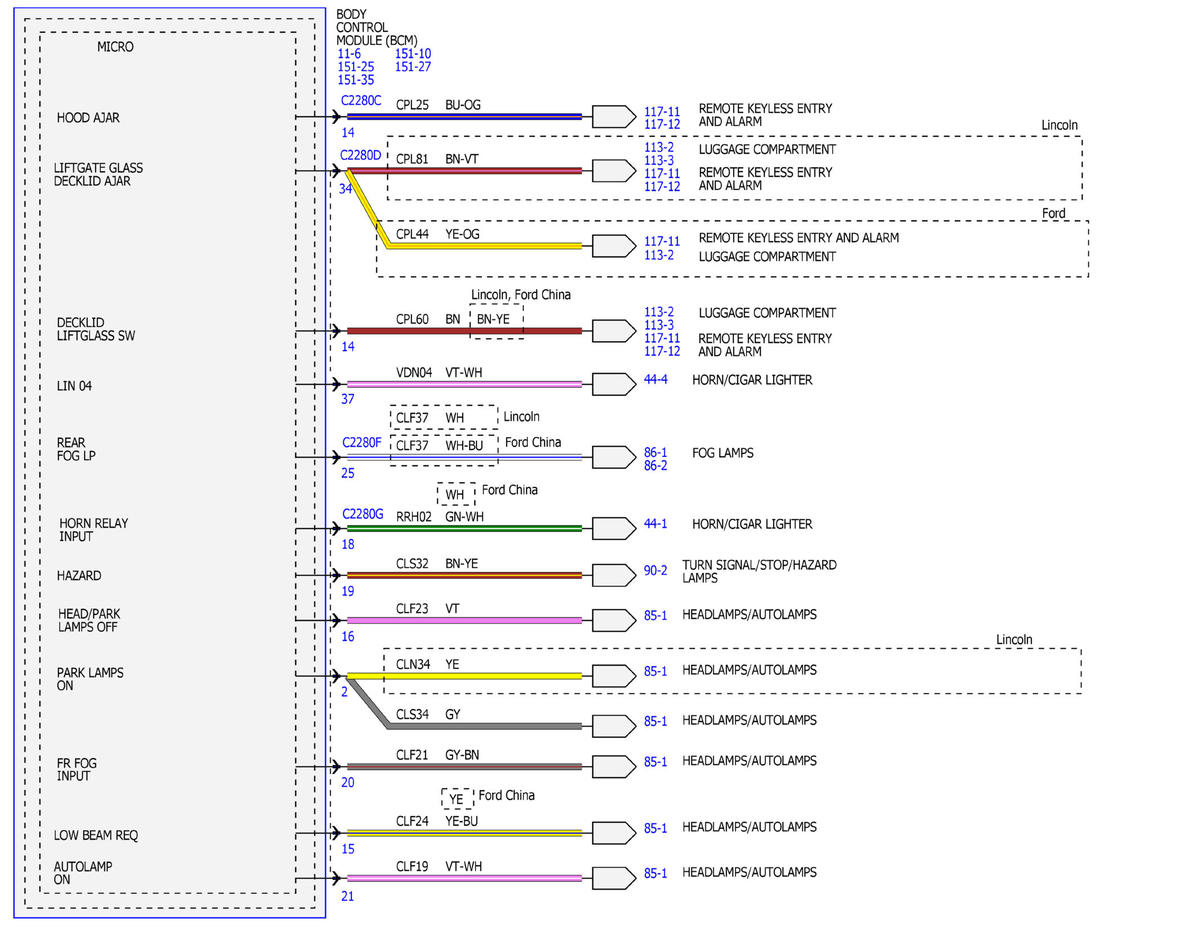

Fig 49: Power Distribution Wiring Diagram (49 Of 59)

GFDWR50364

Courtesy of FORD MOTOR COMPANY

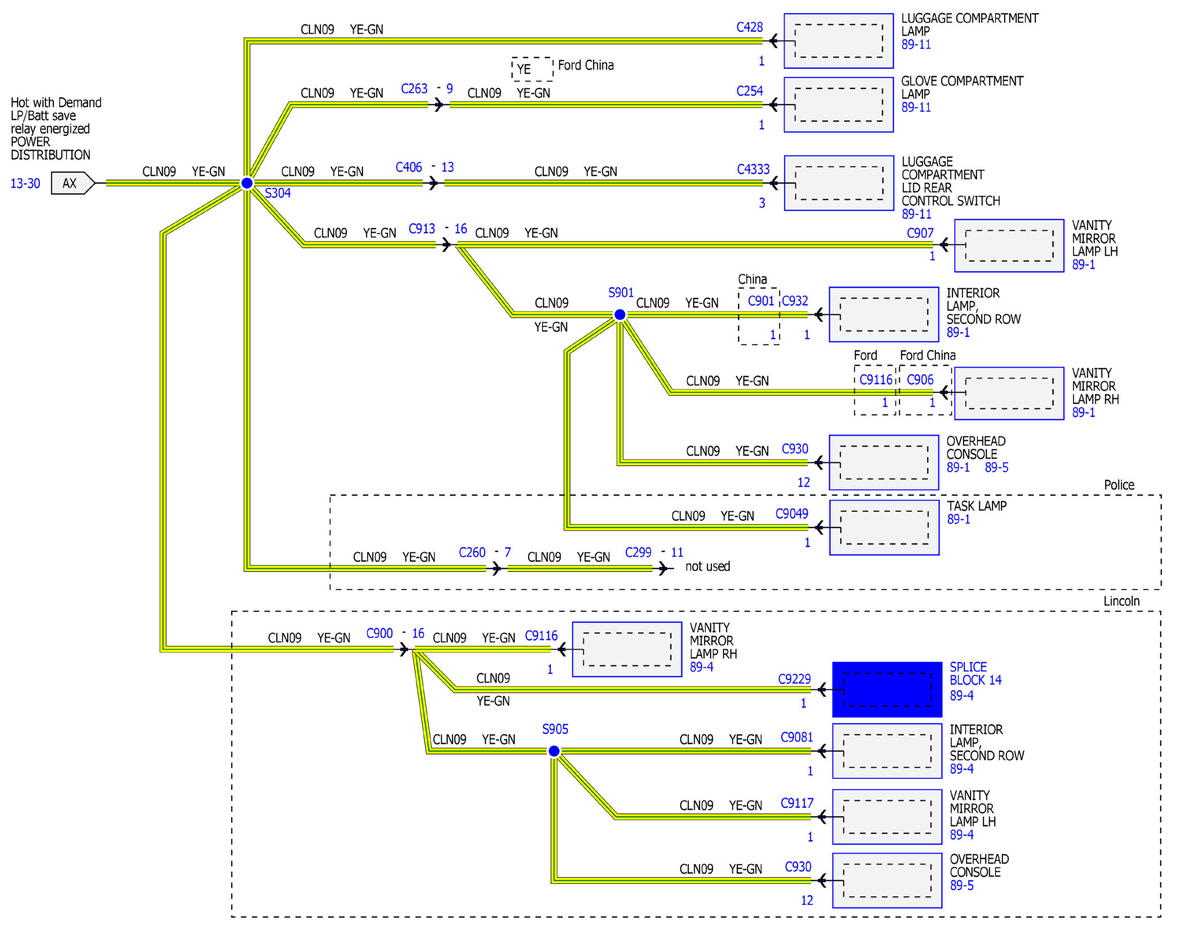

Fig 50: Power Distribution Wiring Diagram (50 Of 59)

GFDWR50365

Courtesy of FORD MOTOR COMPANY

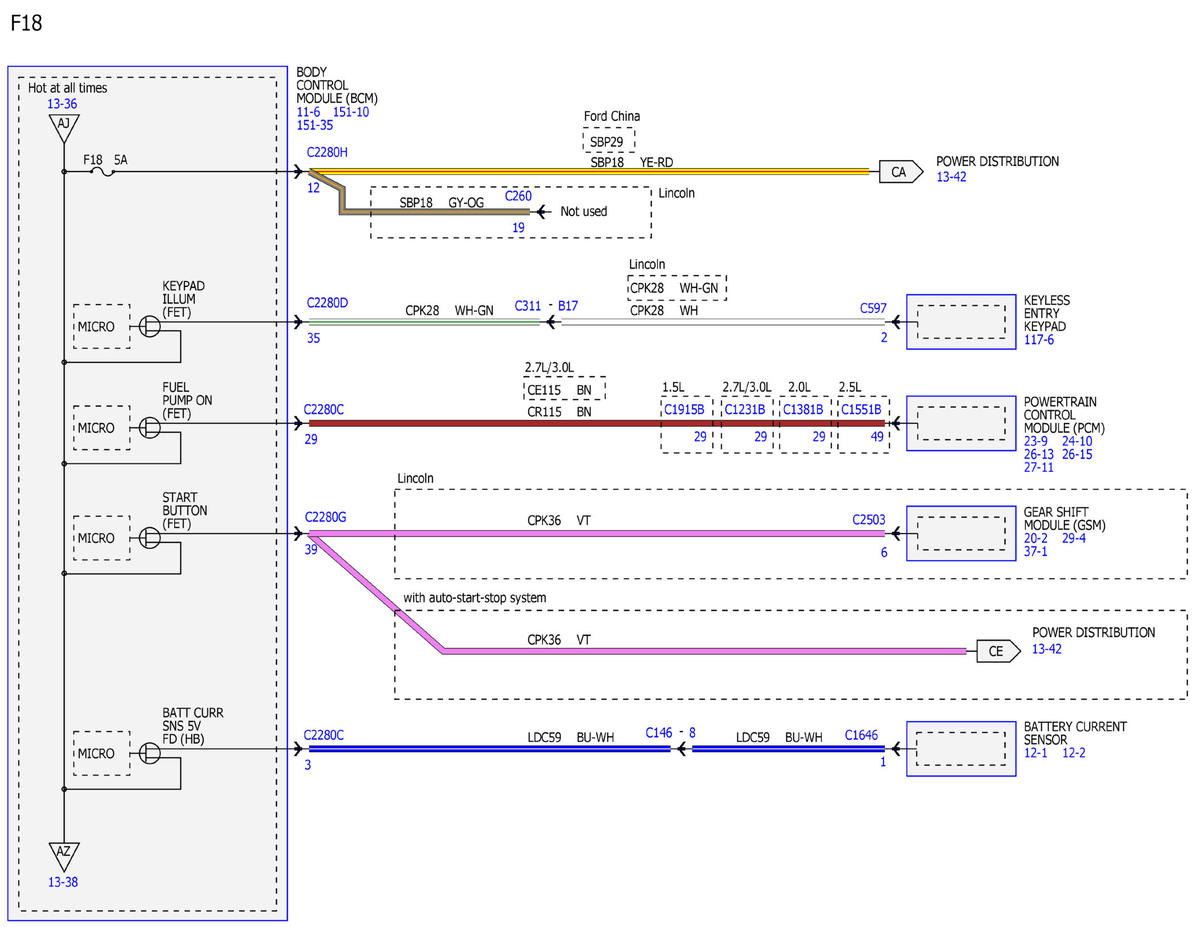

Fig 51: Power Distribution Wiring Diagram (51 Of 59)

GFDWR50366

Courtesy of FORD MOTOR COMPANY

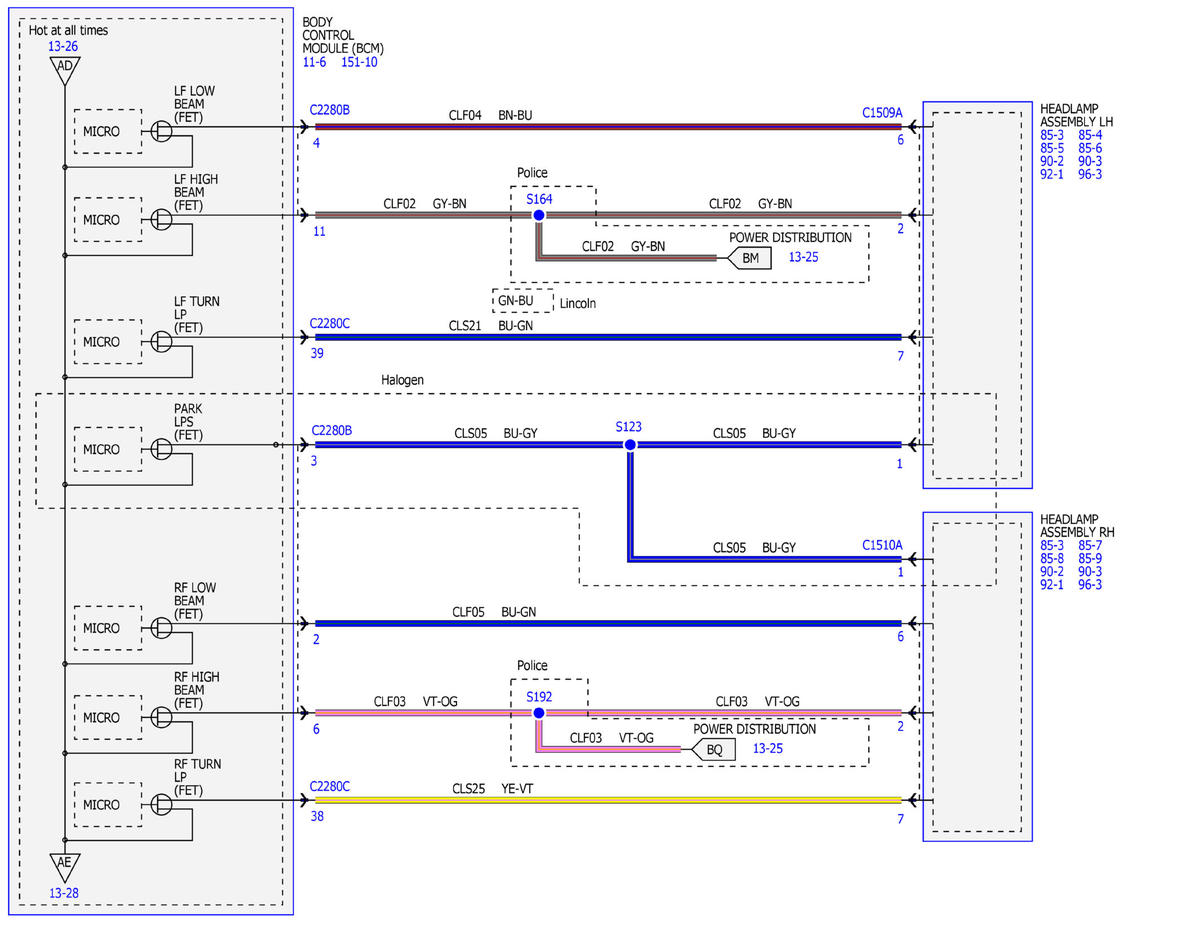

Fig 52: Power Distribution Wiring Diagram (52 Of 59)

GFDWR50367

Courtesy of FORD MOTOR COMPANY

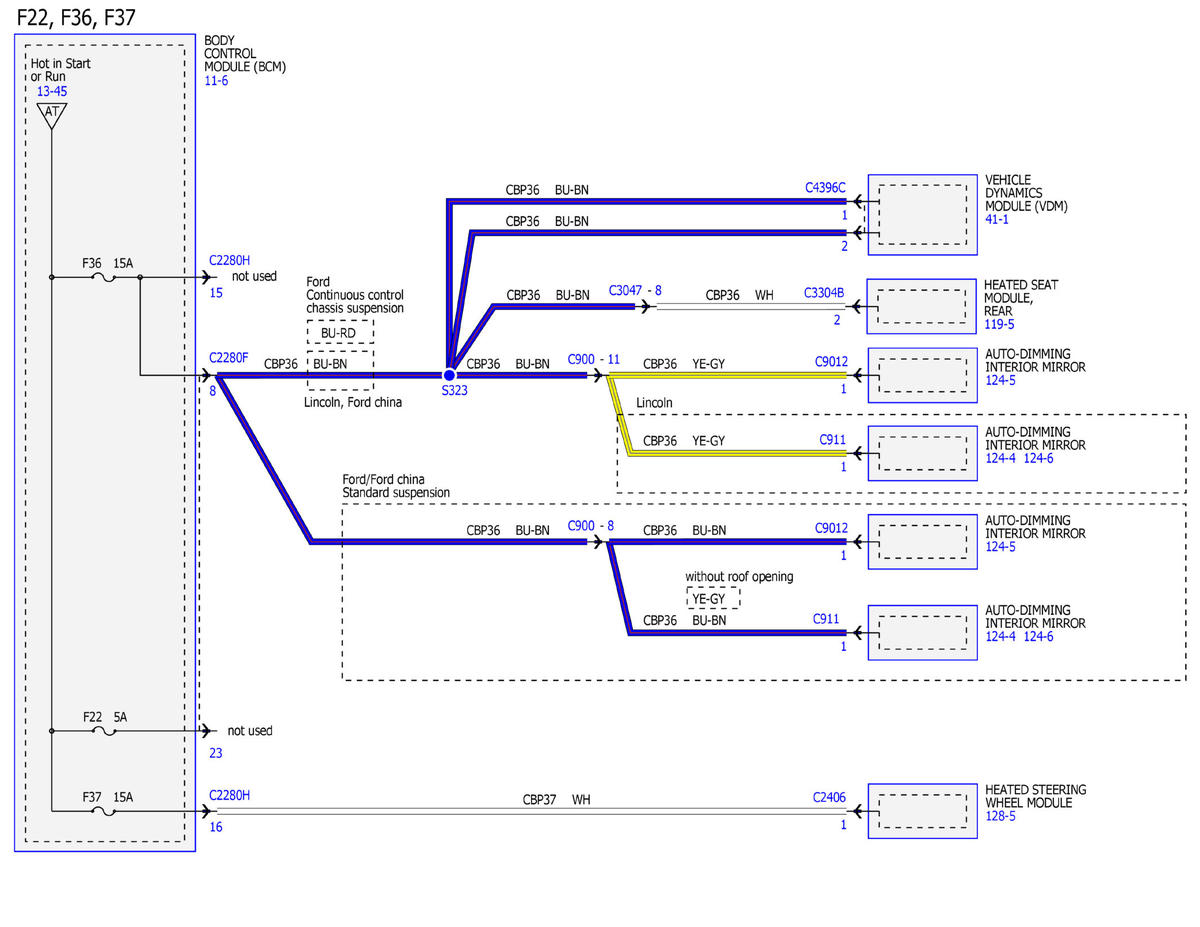

Fig 53: Power Distribution Wiring Diagram (53 Of 59)

GFDWR50368

Courtesy of FORD MOTOR COMPANY

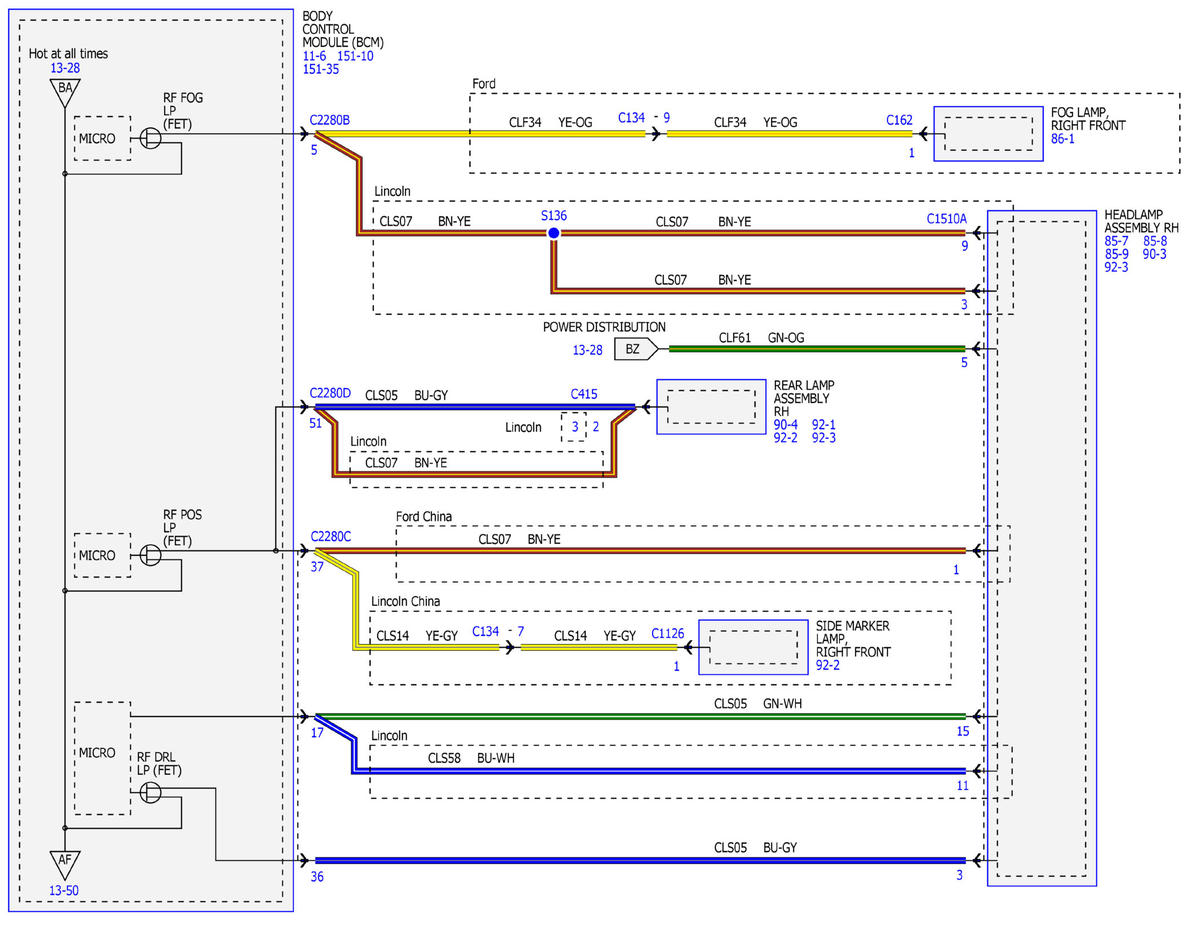

Fig 54: Power Distribution Wiring Diagram (54 Of 59)

GFDWR50369

Courtesy of FORD MOTOR COMPANY

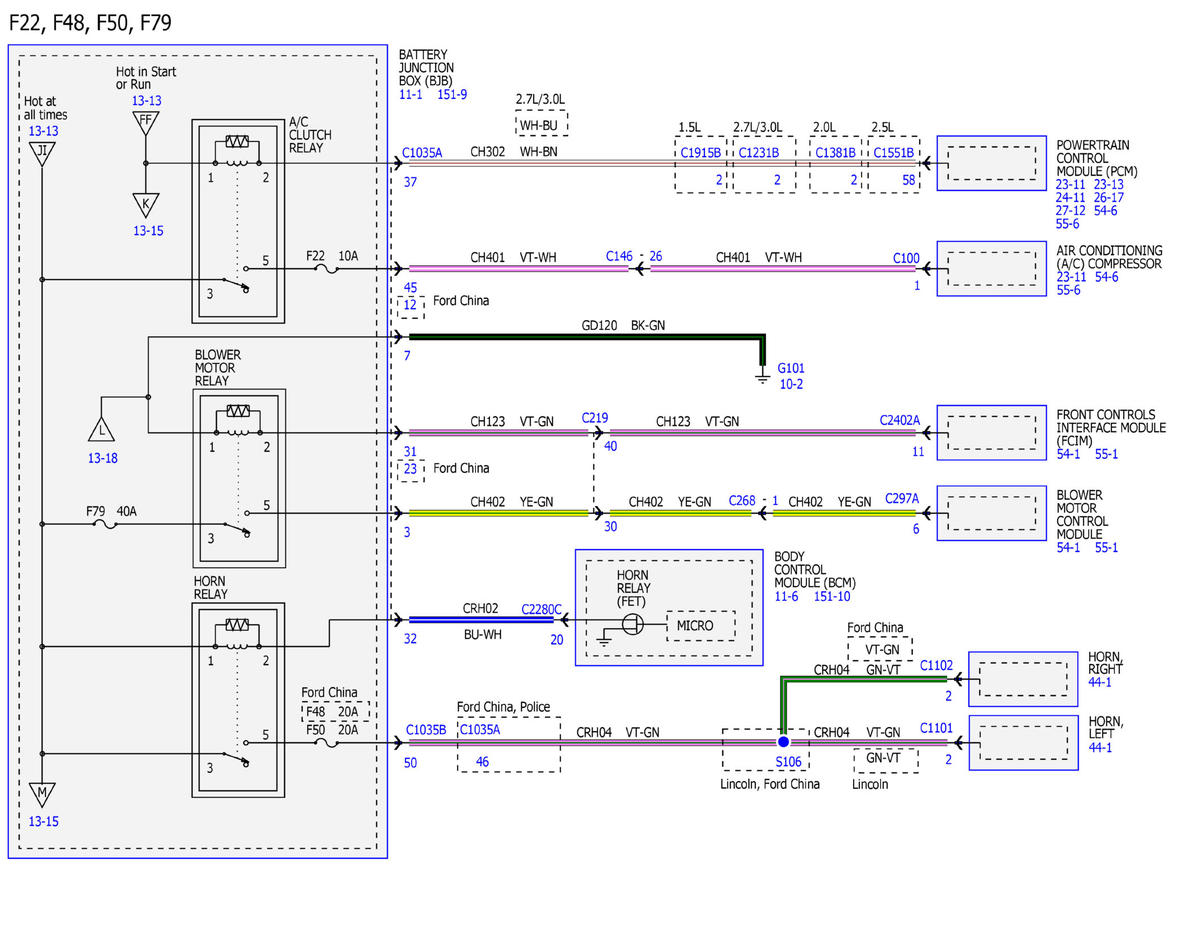

Fig 55: Power Distribution Wiring Diagram (55 Of 59)

GFDWR50370

Courtesy of FORD MOTOR COMPANY

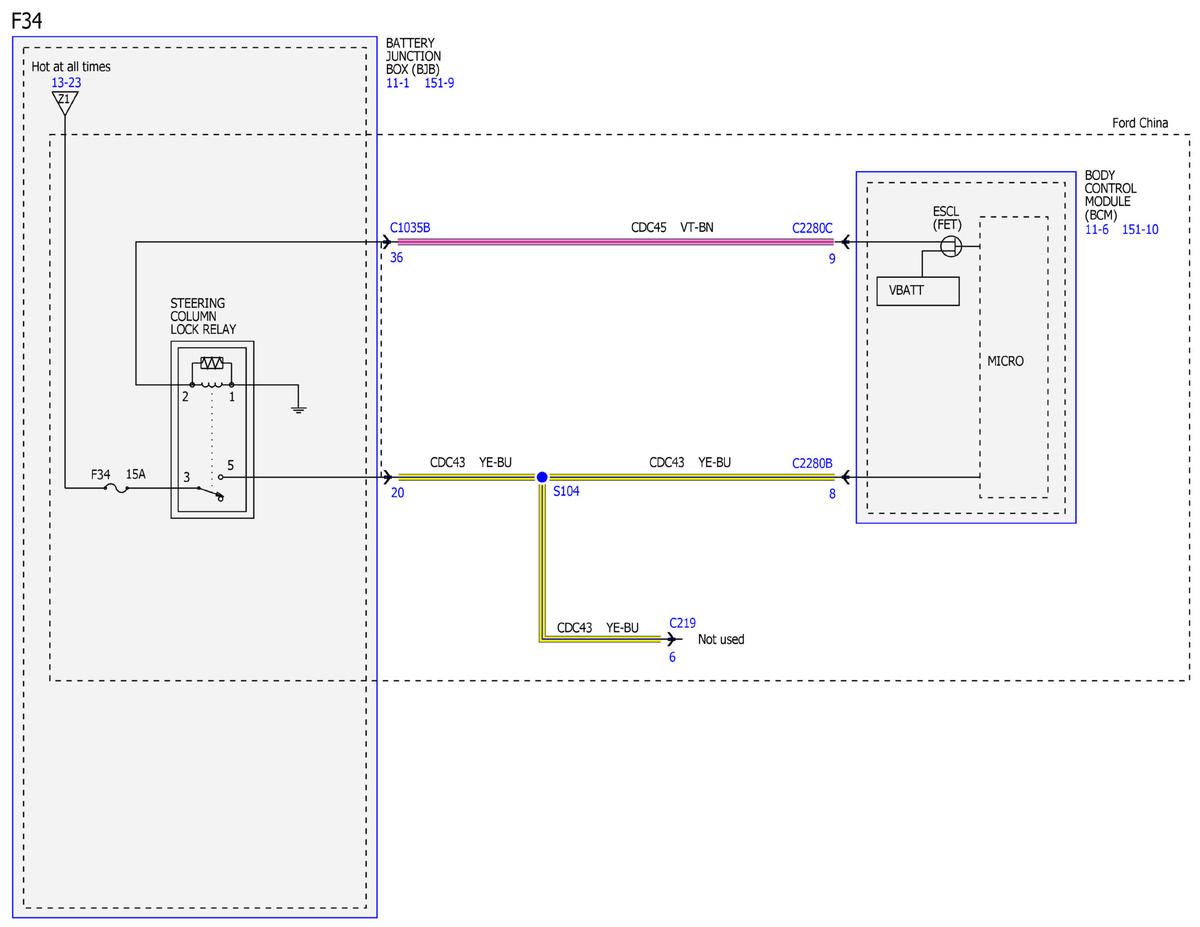

Fig 56: Power Distribution Wiring Diagram (56 Of 59)

GFDWR50371

Courtesy of FORD MOTOR COMPANY

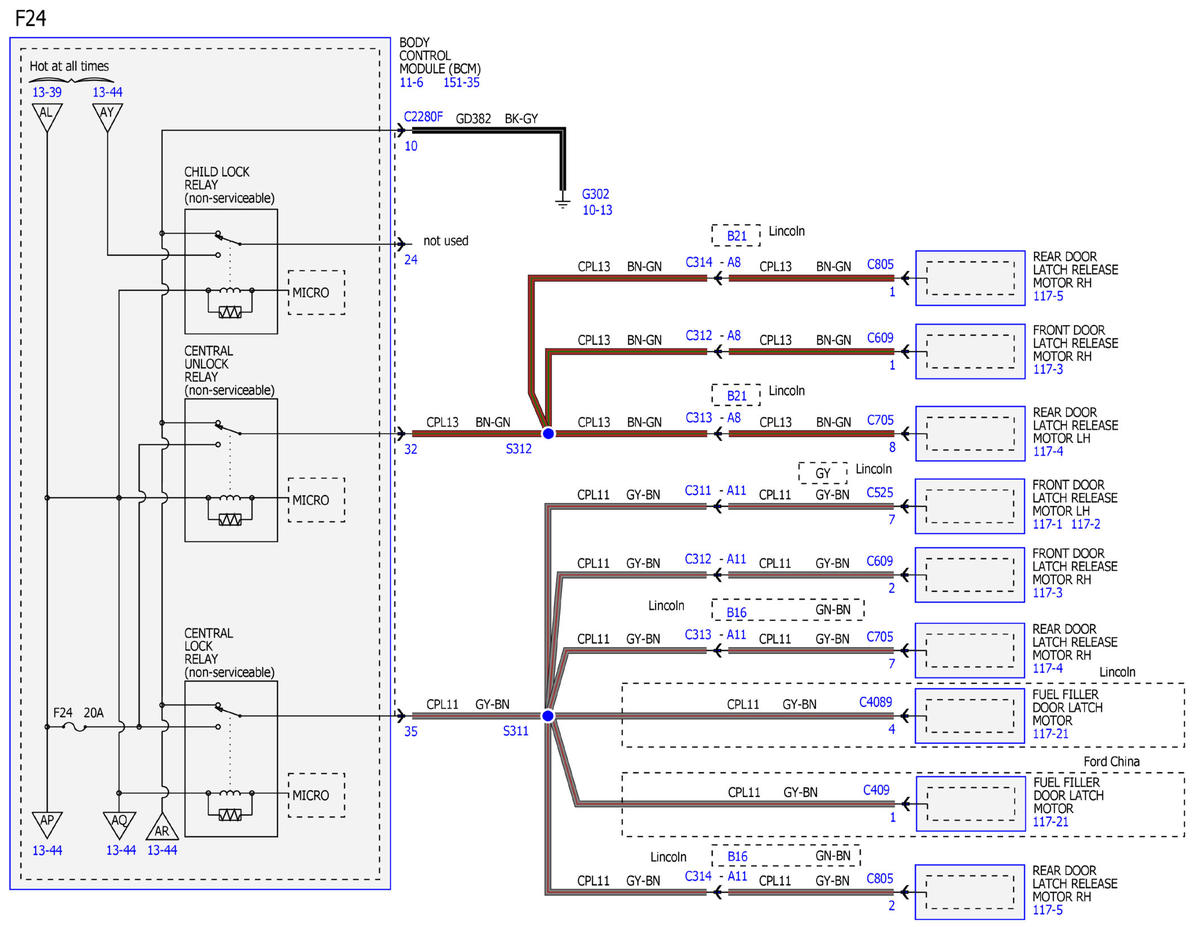

Fig 57: Power Distribution Wiring Diagram (57 Of 59)

GFDWR50372

Courtesy of FORD MOTOR COMPANY

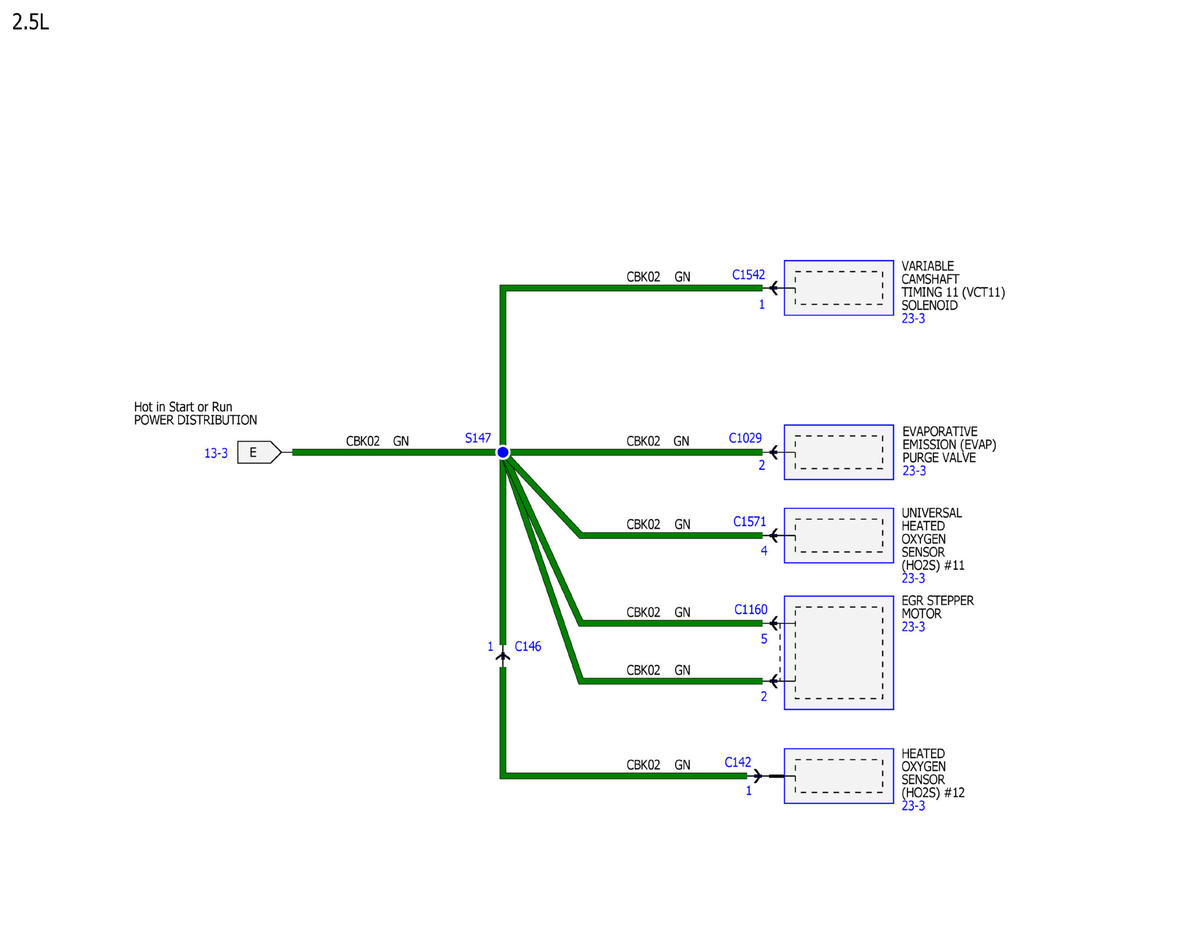

Fig 58: Power Distribution Wiring Diagram (58 Of 59)

GFDWR50373

Courtesy of FORD MOTOR COMPANY

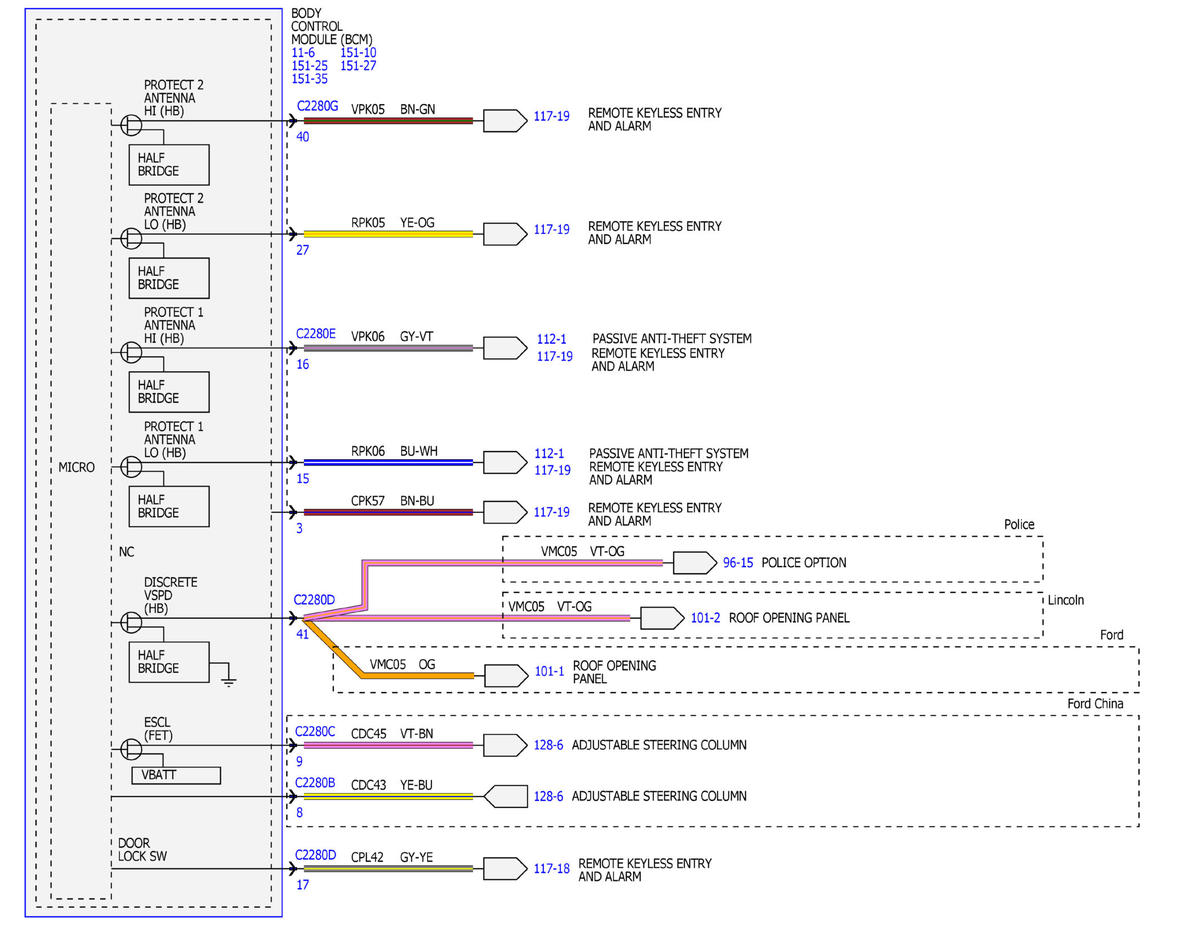

Fig 59: Power Distribution Wiring Diagram (59 Of 59)

GFDWR50374

Courtesy of FORD MOTOR COMPANY
