OEM Electrical Wiring Diagram Introduction (Except Hybrid): Introduction

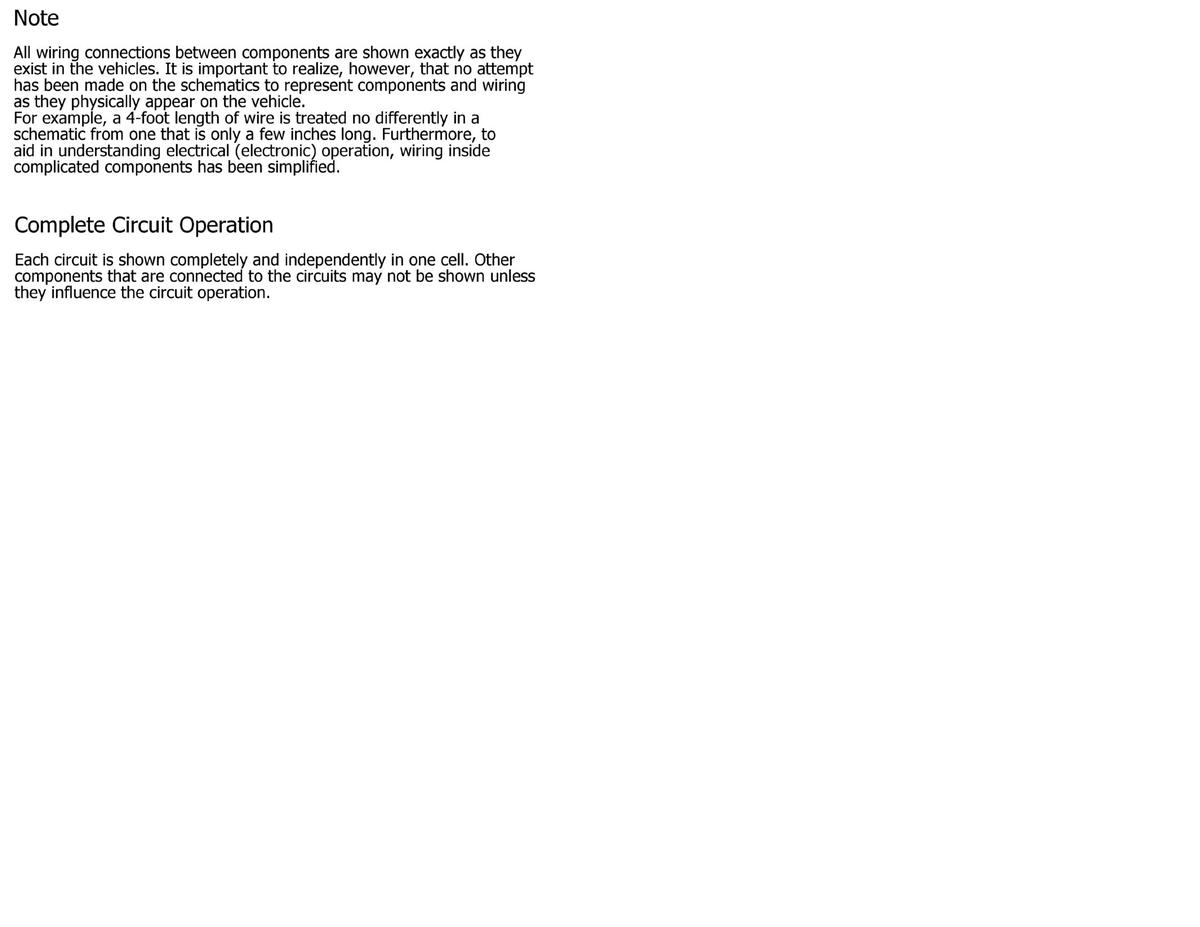

GFDWR49973Courtesy of FORD MOTOR COMPANY

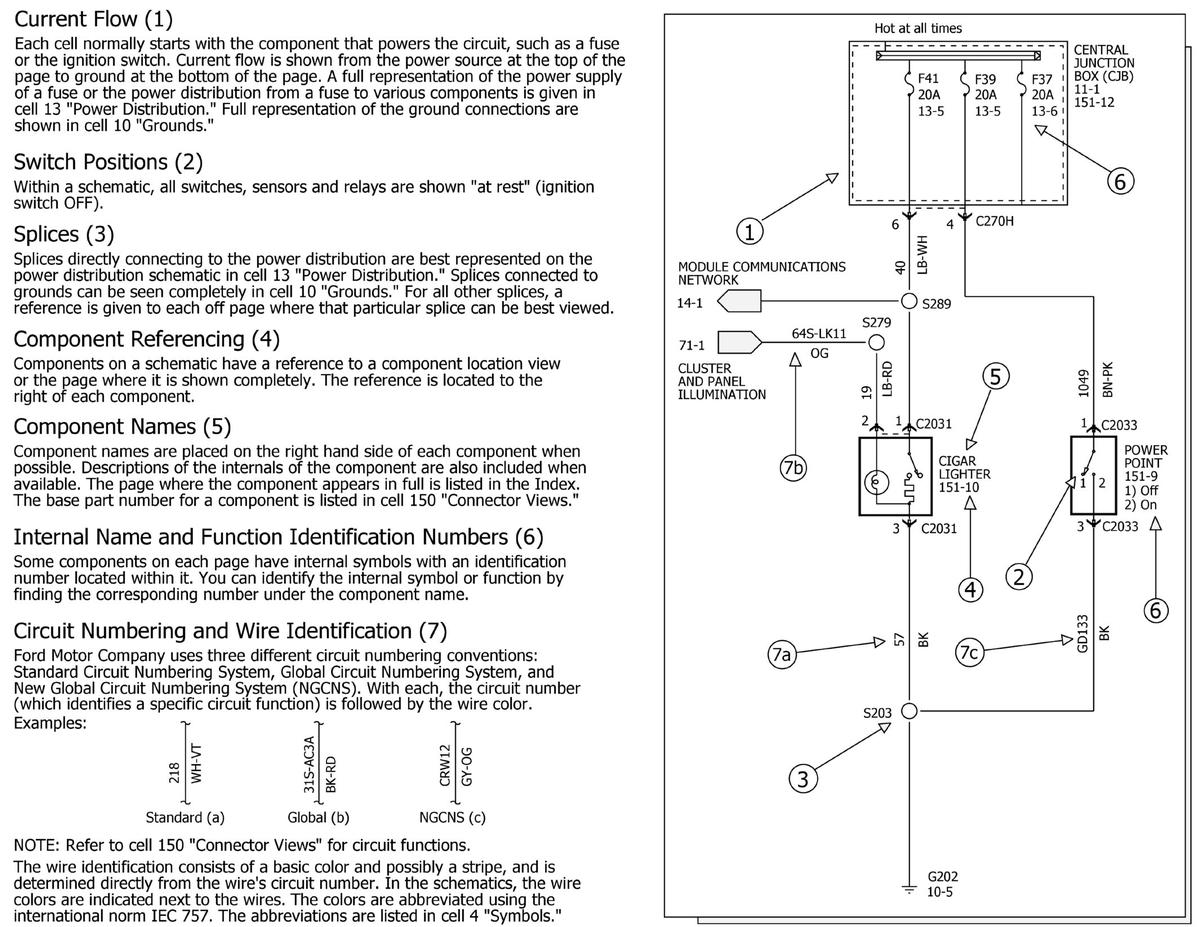

GFDWR49971Courtesy of FORD MOTOR COMPANY

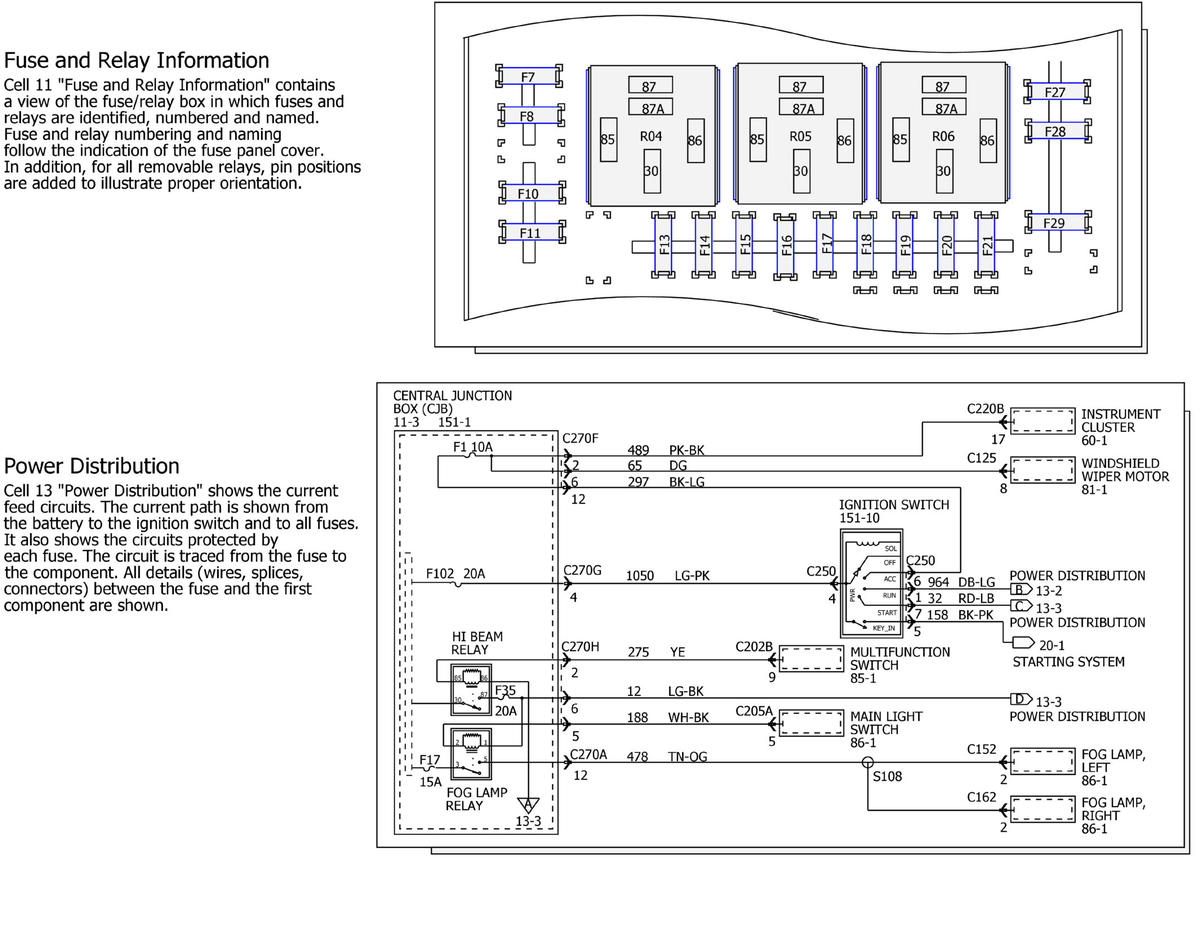

GFDWR49972Courtesy of FORD MOTOR COMPANY

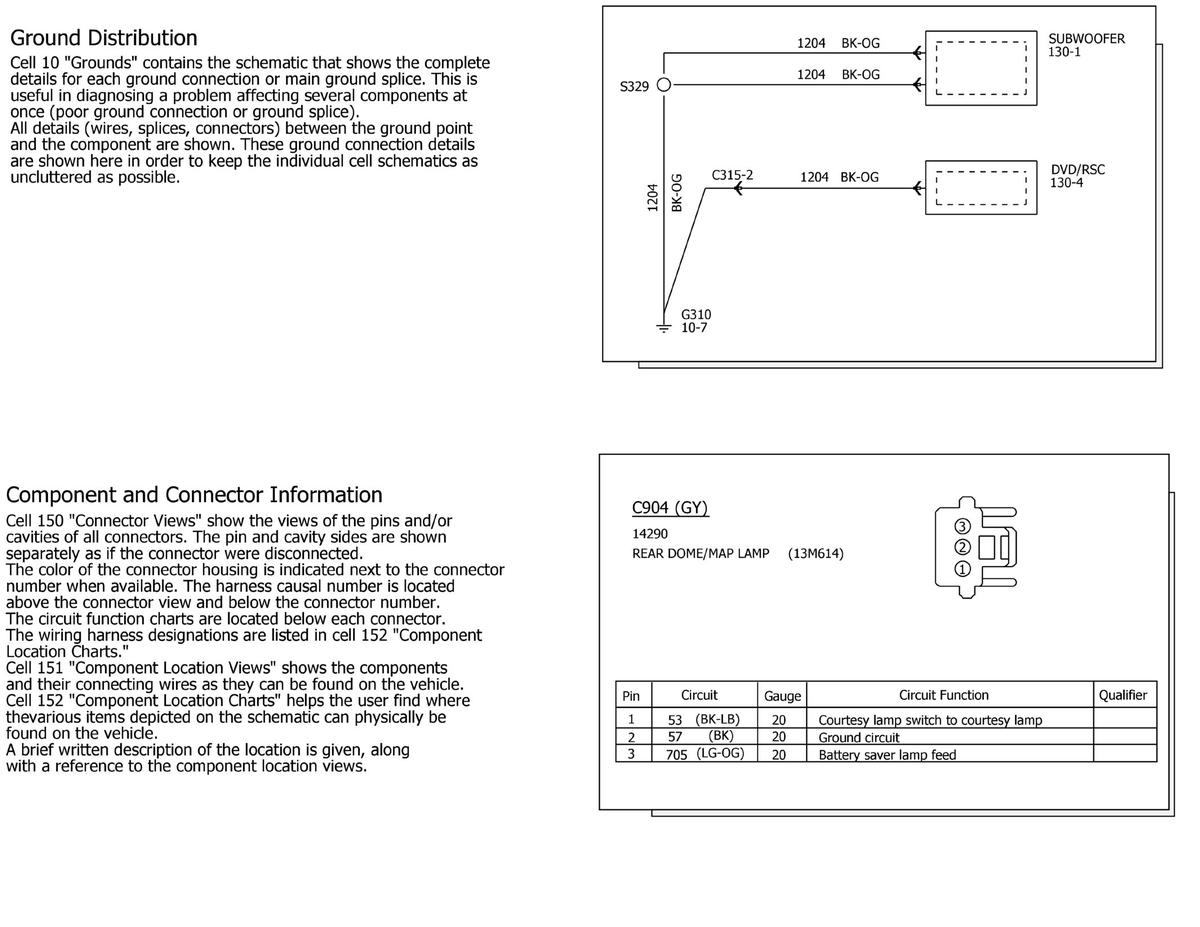

GFDWR49974Courtesy of FORD MOTOR COMPANY

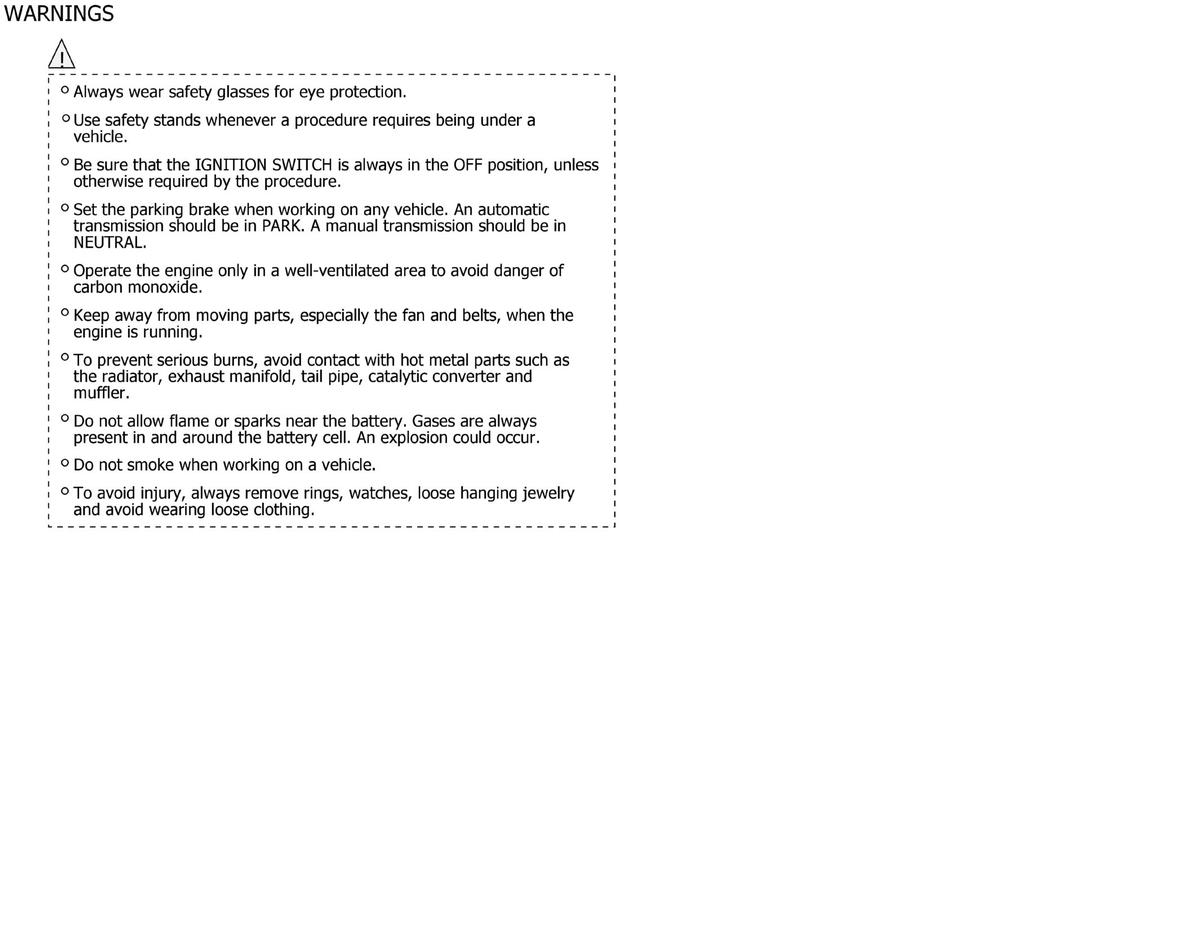

GFDWR49975Courtesy of FORD MOTOR COMPANY
