Home >> Lincoln >> 2019 >> MKZ Base, AWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors (Except Hybrid) >> Component Location Charts By Connectors >> C3014 LH B-pillar Near Vehicle Floor

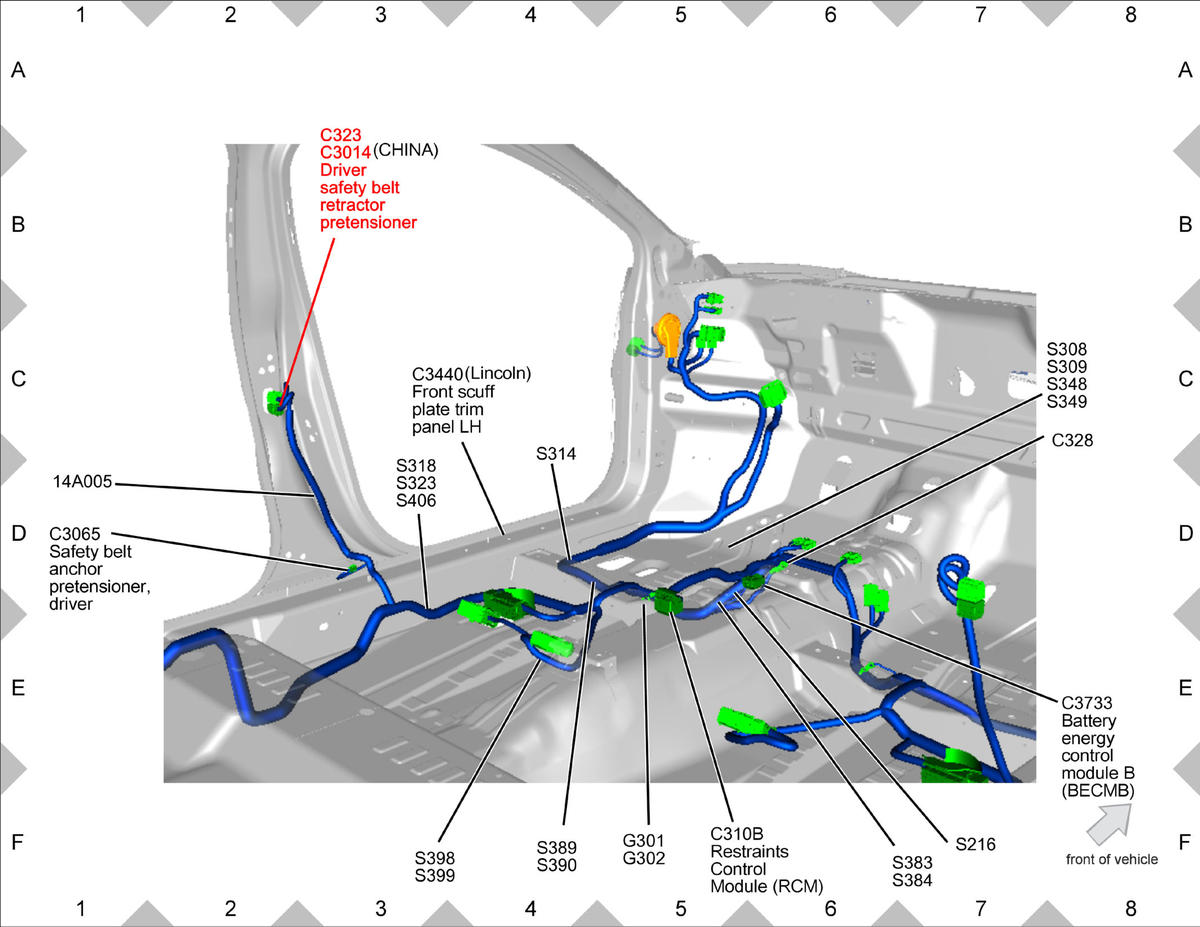

C3014 LH B-pillar Near Vehicle Floor

GFDWR48894

Courtesy of FORD MOTOR COMPANY
