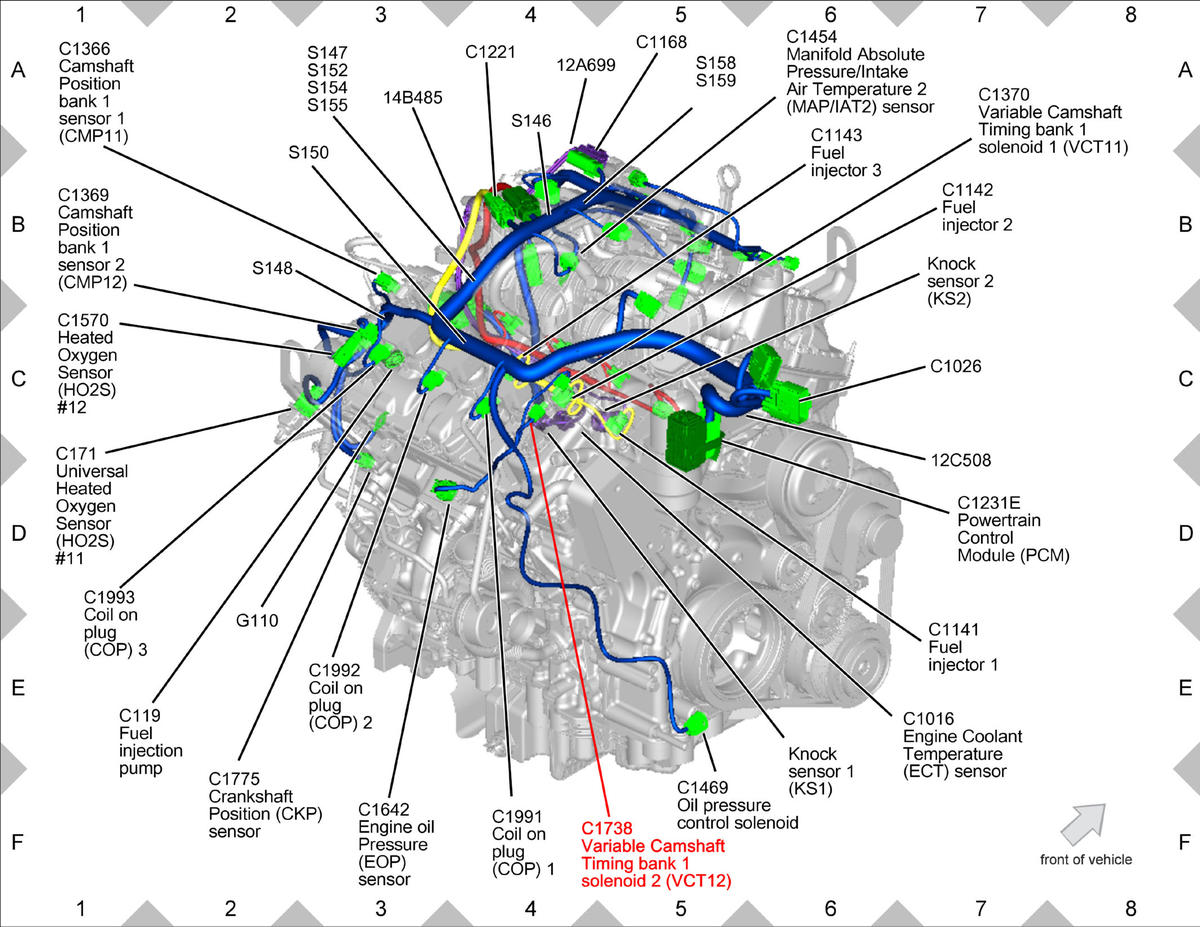

Home >> Lincoln >> 2019 >> MKZ Base, AWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors (Except Hybrid) >> Component Location Charts By Connectors >> C1738 (3.7L)
