Home >> Lincoln >> 2019 >> MKZ Base, AWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors (Except Hybrid) >> Component Location Charts By Connectors >> C128 Left Front Of Engine Compartment

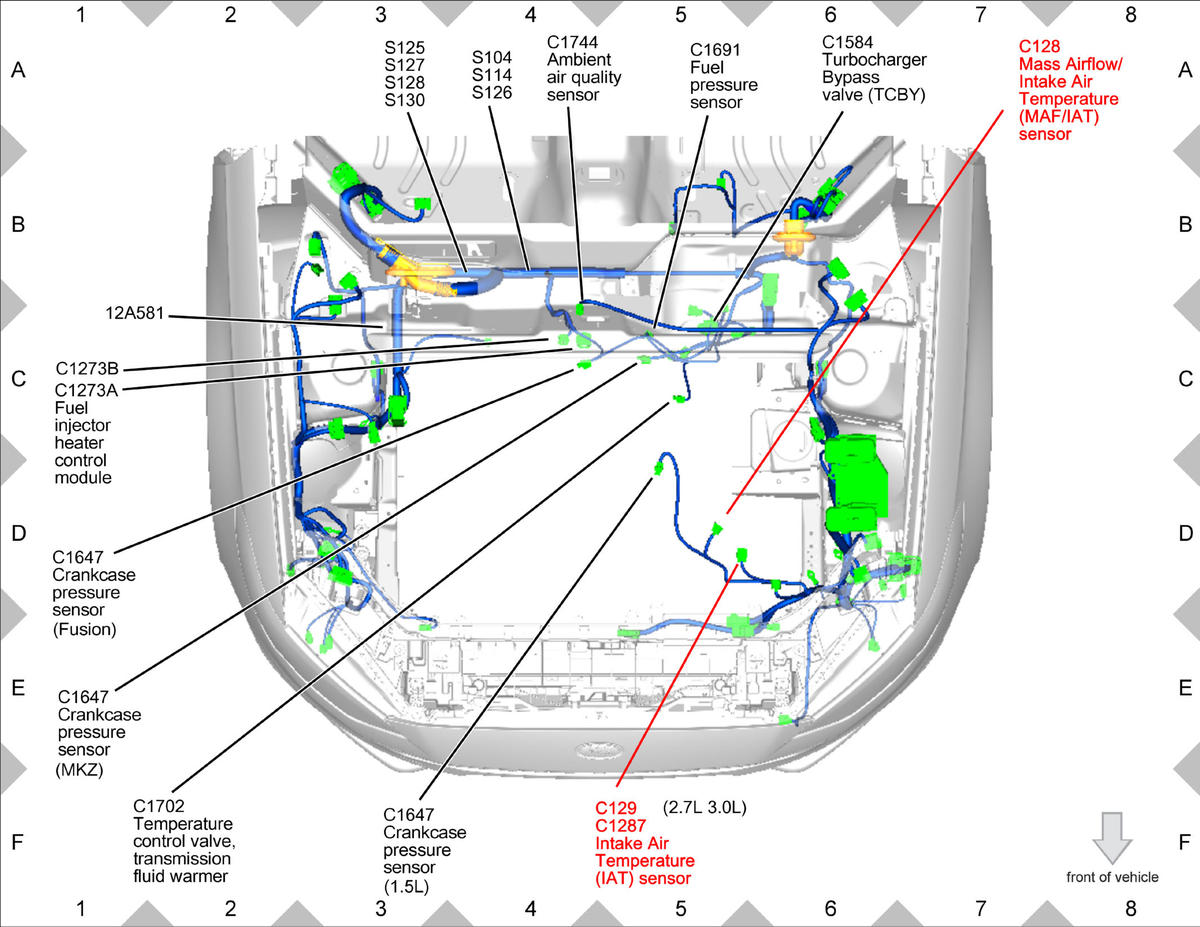

C128 Left Front Of Engine Compartment

GFDWR48108

Courtesy of FORD MOTOR COMPANY
