Overhead Console: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this service information, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
-
- Open the storage compartment.

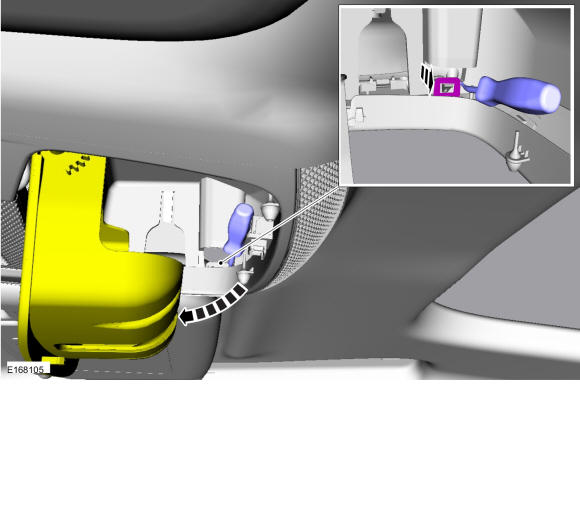

- Push upwards on the rear of the console, use a 90 degree pick tool and release the RH and LH rear console clips.
-
- Pull downwards on each side of the console to release the spring clips.
- Disconnect the electrical connectors.
