Glove Compartment: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this service information, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.

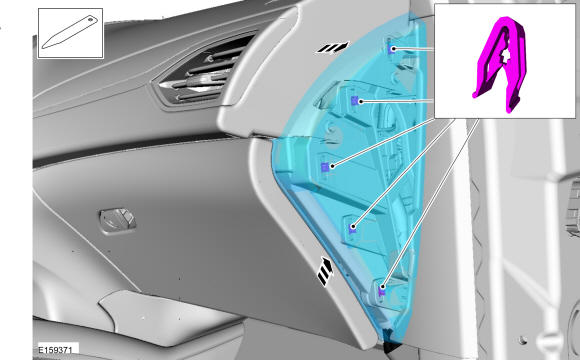

- Release the clips and remove the instrument panel side trim panel. Use the General Equipment: Interior Trim Remover
- Remove the bolts, release the clips and remove the glove compartment. Disconnect the electrical connector.
Torque: 22 lb.in (2.5 Nm)
