Parking Aid Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the luggage compartment lid lower molding. Refer to: Luggage Compartment Lid Lower Molding .

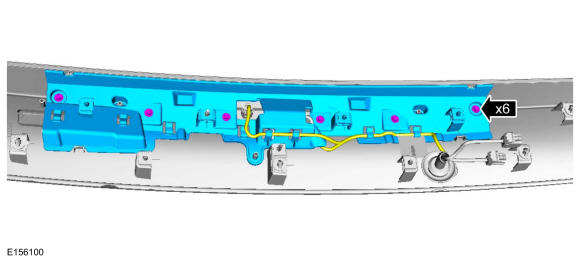

  2. Remove the screws, position the wiring harness aside and remove the rear bumper cover reinforcement.
    GFD379341Courtesy of FORD MOTOR COMPANY

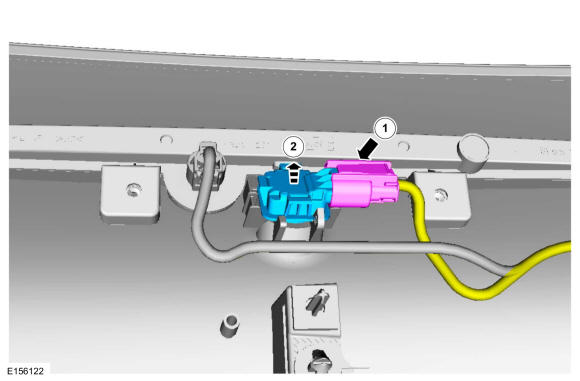

  3. Remove the parking aid camera.

    1. Disconnect the parking aid camera electrical connector.
    2. Remove the parking aid camera.

GFD379342Courtesy of FORD MOTOR COMPANY
