Rear Active Park Assist Sensors: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

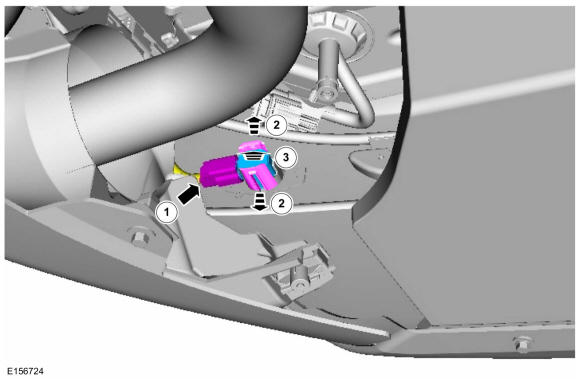

2. Remove the rear active park assist sensor.
   1. Disconnect the rear active park assist sensor electrical connector.
   2. Release the tabs.
   3. Remove the rear active park assist sensor from the bracket.
