Active Park Assist Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this service information, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
  2. Remove the FCIM. Refer to: Front Controls Interface Module (FCIM) - Vehicles With: Touchscreen Display . Refer to: Front Controls Interface Module (FCIM) - Vehicles With: Harman Revel Audio System .

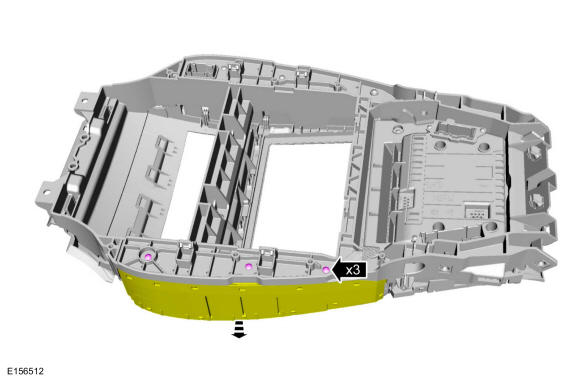

  3. Remove the retainers and position the FCIM side trim panel aside.
    GFD379347Courtesy of FORD MOTOR COMPANY

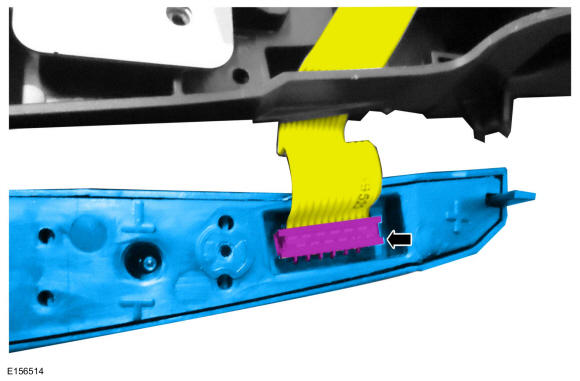

  4. Disconnect the electrical connector and the remove the active park assist switch.
GFD379348Courtesy of FORD MOTOR COMPANY
