Adjustable Pedals Control Switch: Notes

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

NOTE: Steering wheel removed for clarity.

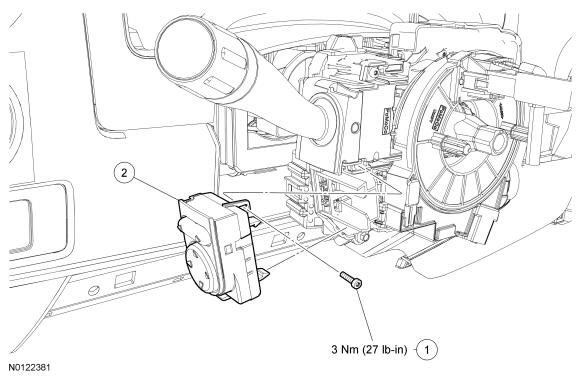

Fig 1: Adjustable Pedals Control Switch With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W715057	Adjustable pedals control switch screw
2	9G604	Adjustable pedals control switch
