Brake Master Cylinder: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Battery Tray .

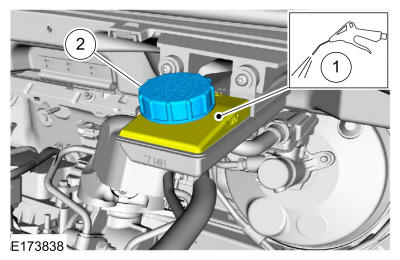

    GFD393293Courtesy of FORD MOTOR COMPANY

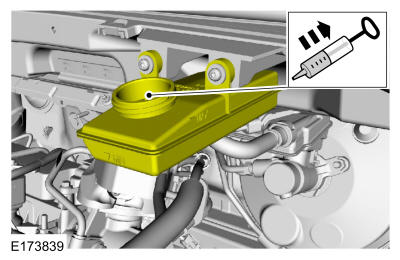

    GFD393294Courtesy of FORD MOTOR COMPANY

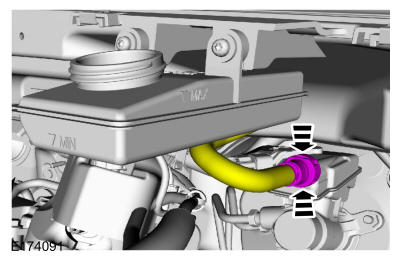

    GFD393295Courtesy of FORD MOTOR COMPANY

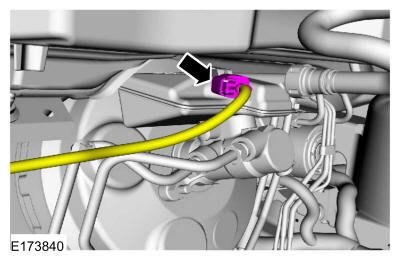

    GFD393296Courtesy of FORD MOTOR COMPANY

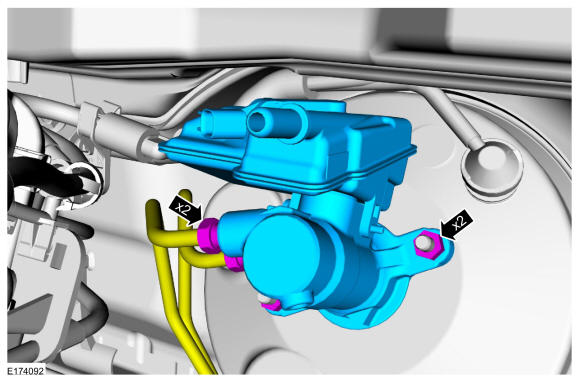

  2. Torque: Brake master cylinder nuts: 18 lb.ft (25 Nm) Brake tube fittings: 19 lb.ft (26 Nm)
GFD393297Courtesy of FORD MOTOR COMPANY
