Brake Fluid Reservoir: Removal

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake master cylinder. Refer to: Brake Master Cylinder  .

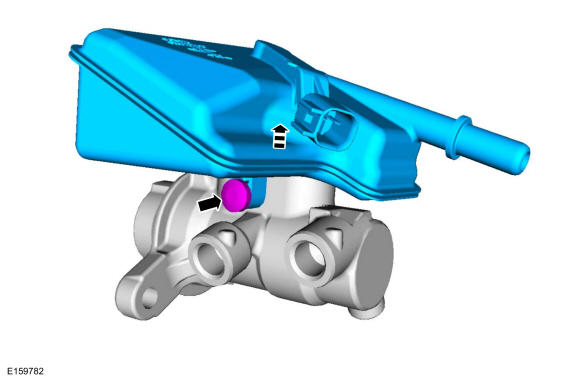

  2. Remove the pin and the brake fluid reservoir.
    GFD393304Courtesy of FORD MOTOR COMPANY

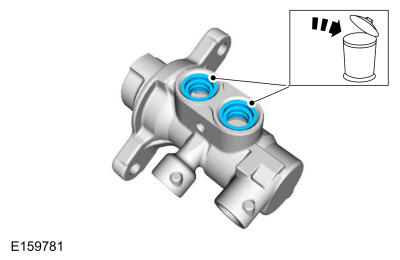

  3. Remove and discard the brake fluid reservoir seals.
GFD393305Courtesy of FORD MOTOR COMPANY
