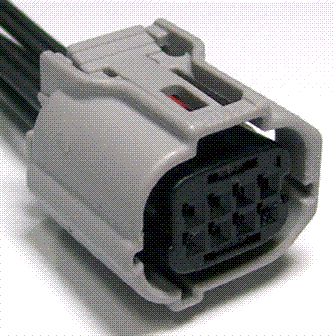

Connector End View C4452A - REAR SIDE MARKER LAMP RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4423	REAR SIDE MARKER LAMP RH	GY	15K868	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8V5T-14474-ANA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD349 (BK-GN)	0.50	GROUND - PILLAR D LEFT	8V5T-14474-ANA
2	CLS05 (BU-GY)	0.50	CTRL MOD. - PARK LAMPS 1	North America	8V5T-14474-ANA
2	CLS07 (BN-YE)	0.50	CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT	China	8V5T-14474-ANA
3	CLS19 (VT-OG)	0.50	CTRL MOD. - STOP/TURN RIGHT (INBOARD)	8V5T-14474-ANA
4	CLS24 (BN-WH)	0.50	CTRL MOD. - TURN LAMP RIGHT	8V5T-14474-ANA
5	*	*	Not Used	N/A
6	CLS54 (BU-OG)	0.50	LAMP - TURN REAR RIGHT # SIGNAL OUT	8V5T-14474-ANA
7	CPL44 (YE-OG)	0.50	SWITCH - LIFTGATE/DECKLID/CARGO # AJAR	8V5T-14474-ANA
8	GD349 (BK-GN)	0.50	GROUND - PILLAR D LEFT	8V5T-14474-ANA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1489

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-TB

Gauge:

20

Pin material:

Tin

Cavities:

8

Vehicle Uses:

• Lamp - Park/Turn/Stop
• Pump - Fuel Tank Leak Detection

Pigtail Kit Part Number WPT-1349

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-TA

Gauge:

20

Pin material:

Tin (greased)

Cavities:

8

Vehicle Uses:

• Pump - Fuel Tank Leak Detection
